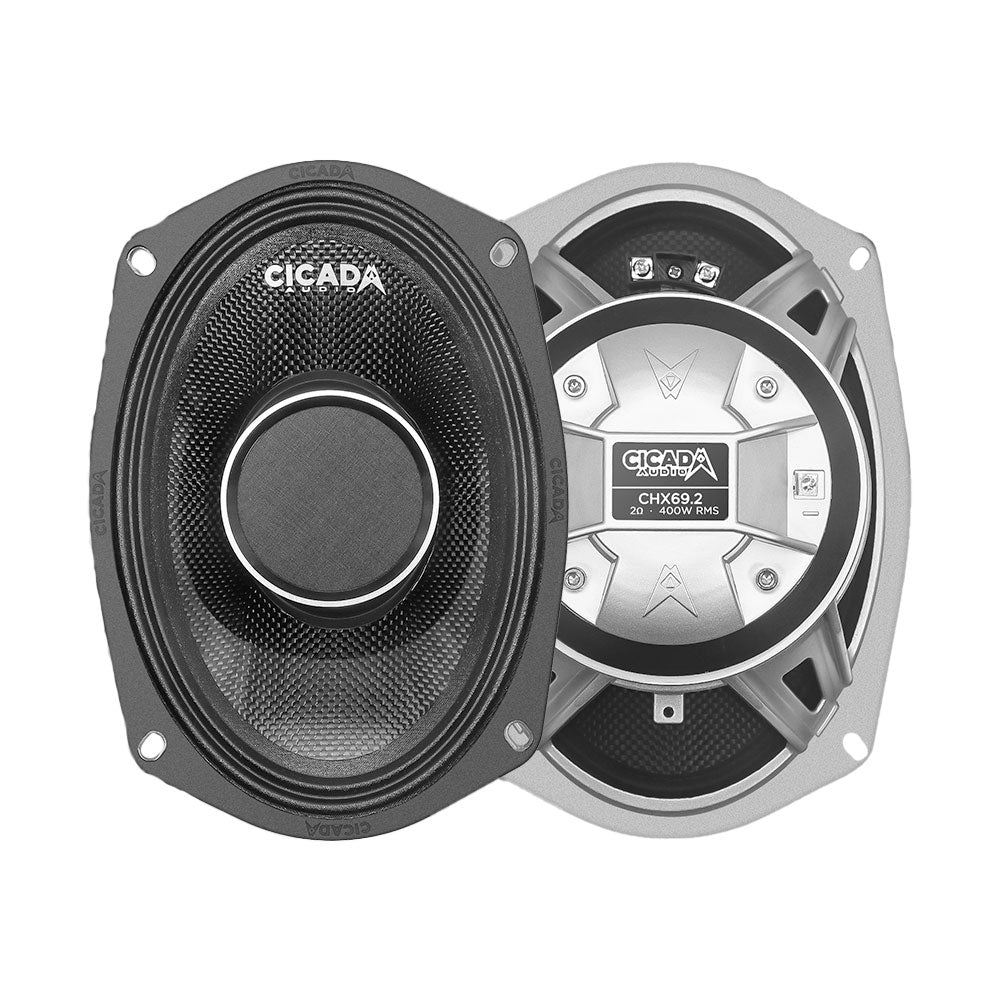

Cicada Audio CHX69.2 — 6x9" Pro Coaxial Horn Motorcycle Speakers (2Ω, Carbon Matrix Composite)
Cicada Audio CHX69.2 — 6×9″ Pro Coaxial Horn Speakers for Harley-Davidson Motorcycle Audio Systems (2Ω, Carbon Matrix Composite)
If you want massive rear-stage output, aggressive projection and serious mid-bass authority, the CHX69.2 is built to dominate.

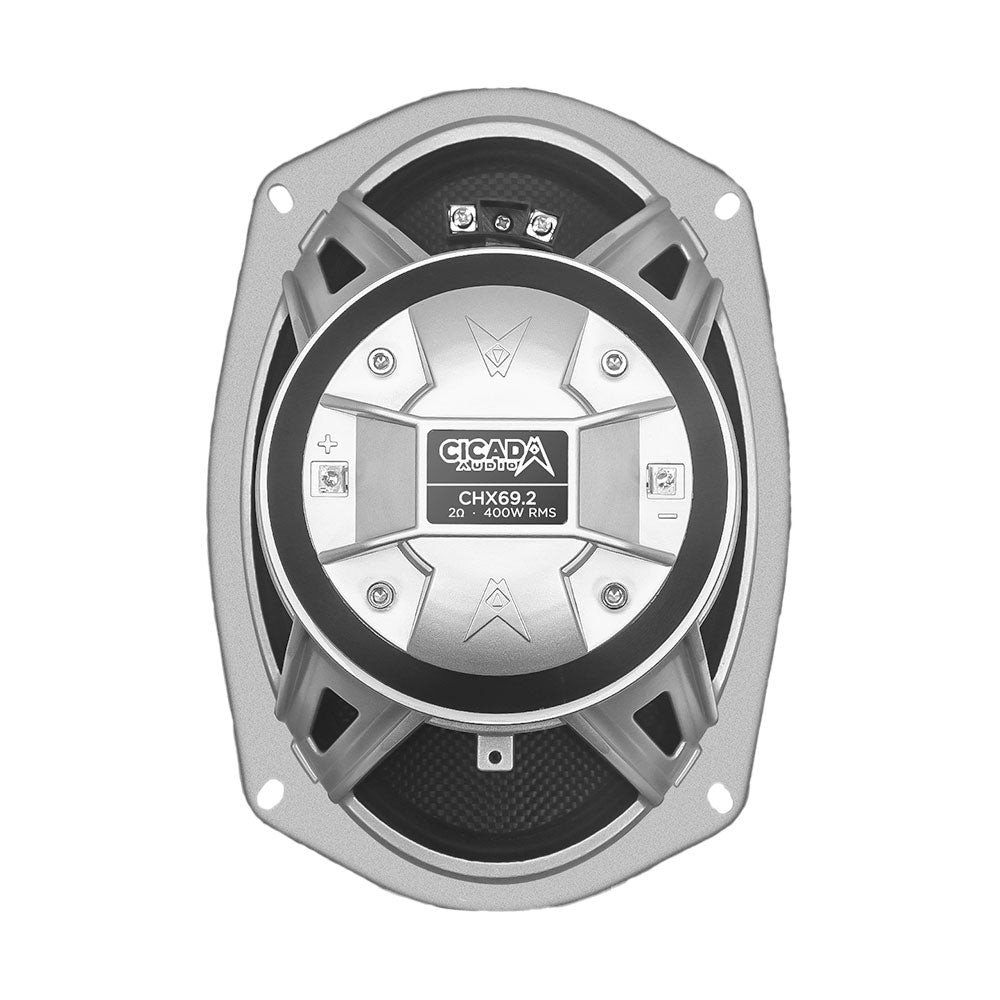

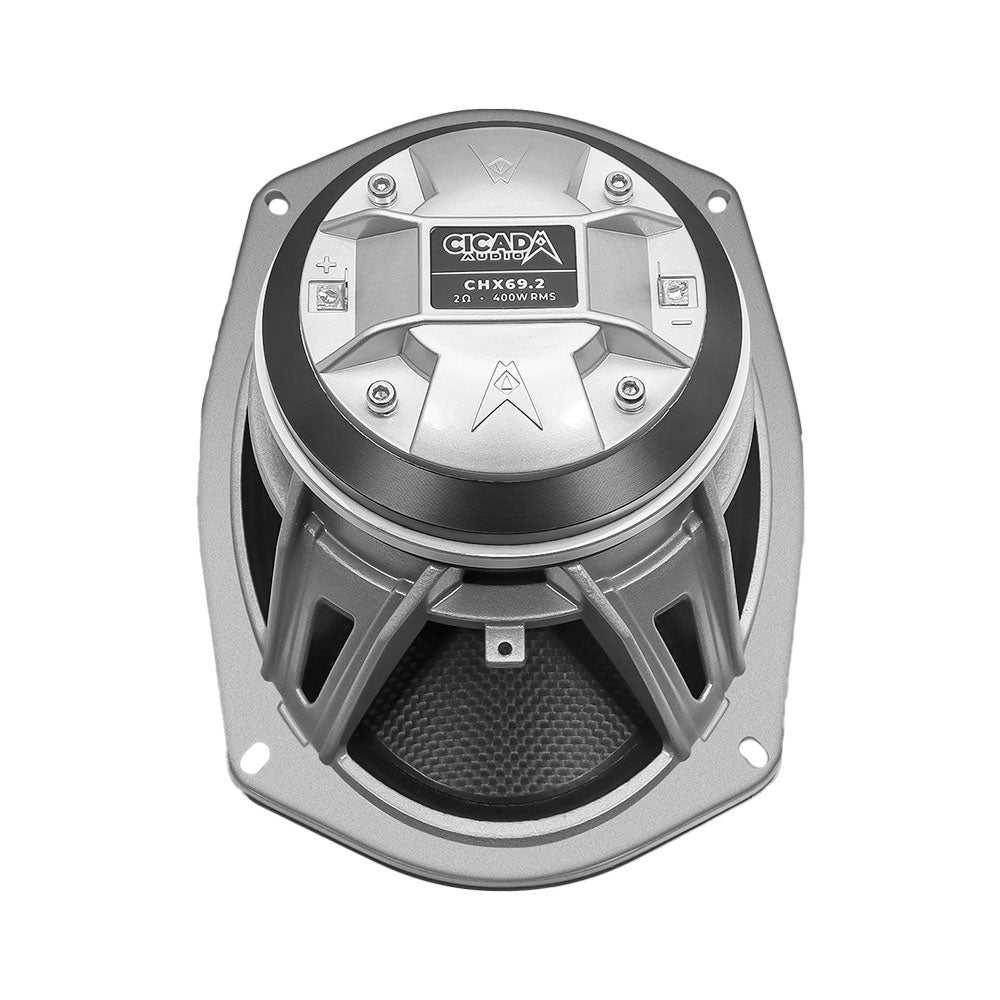

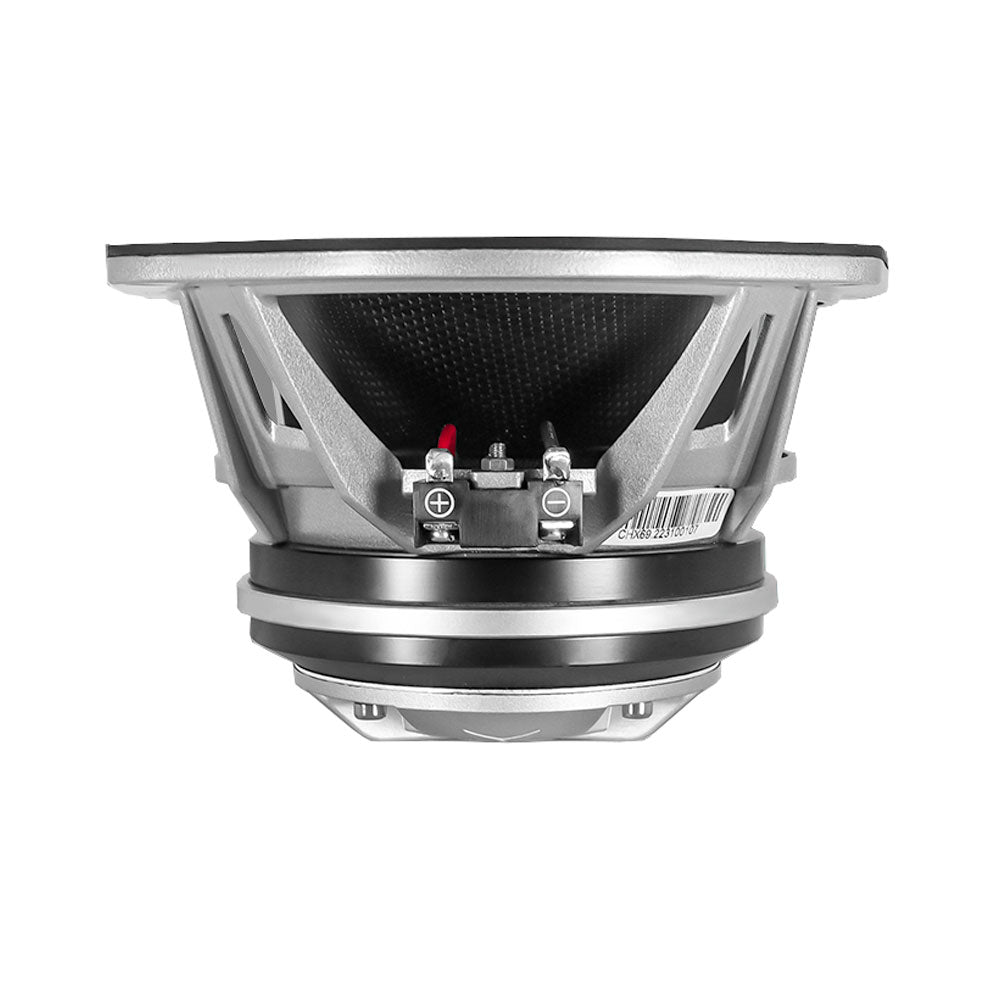

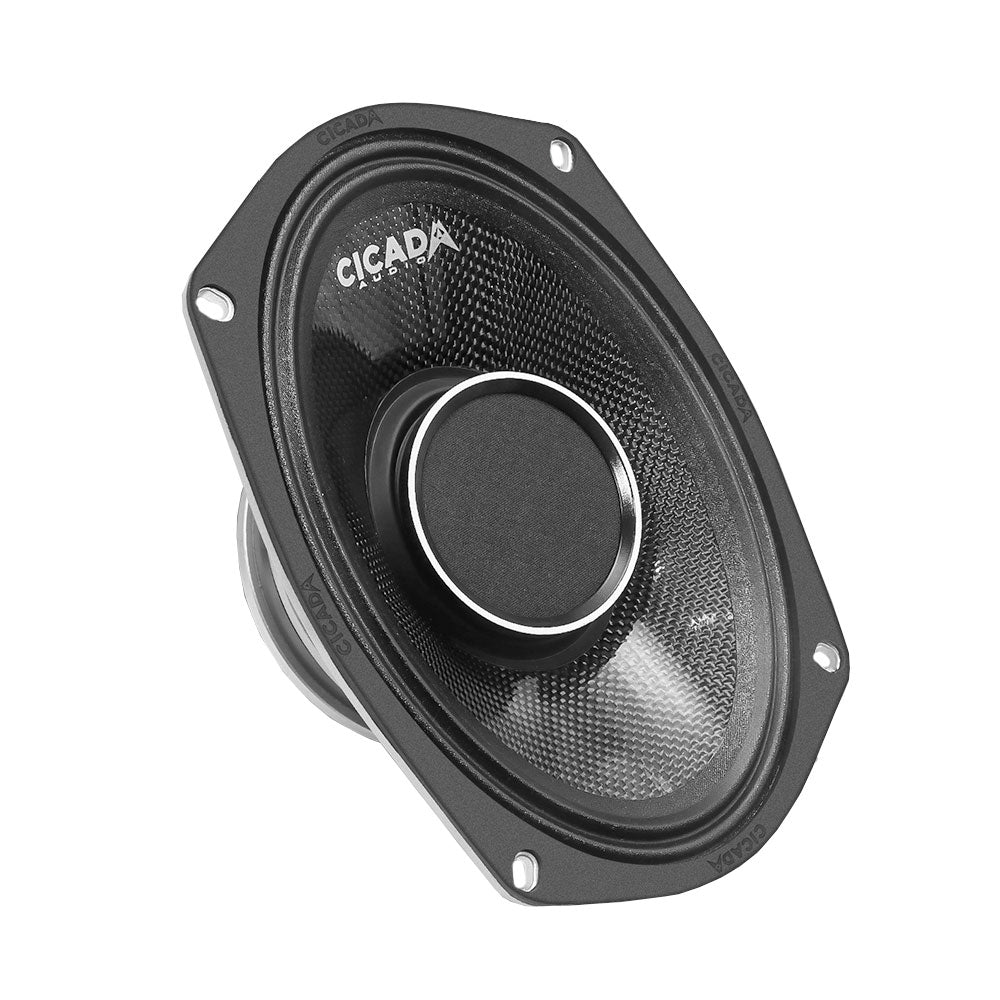

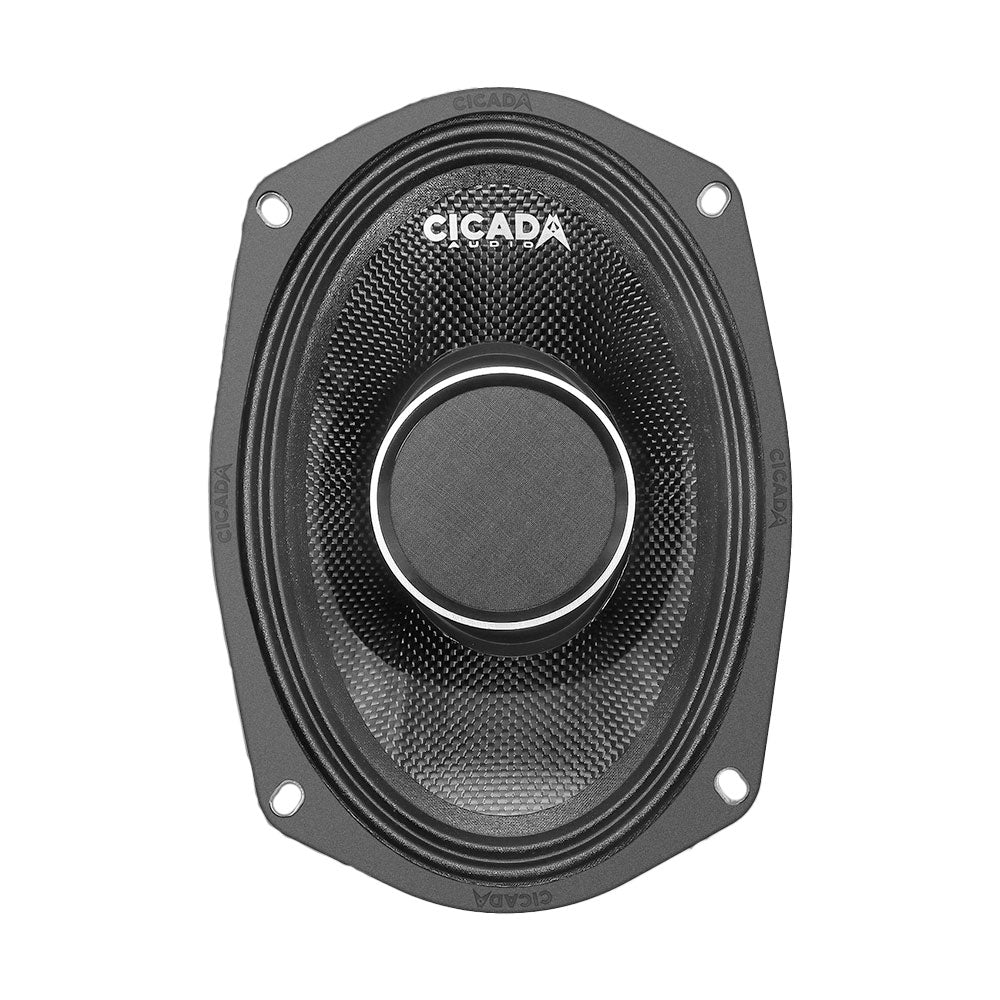

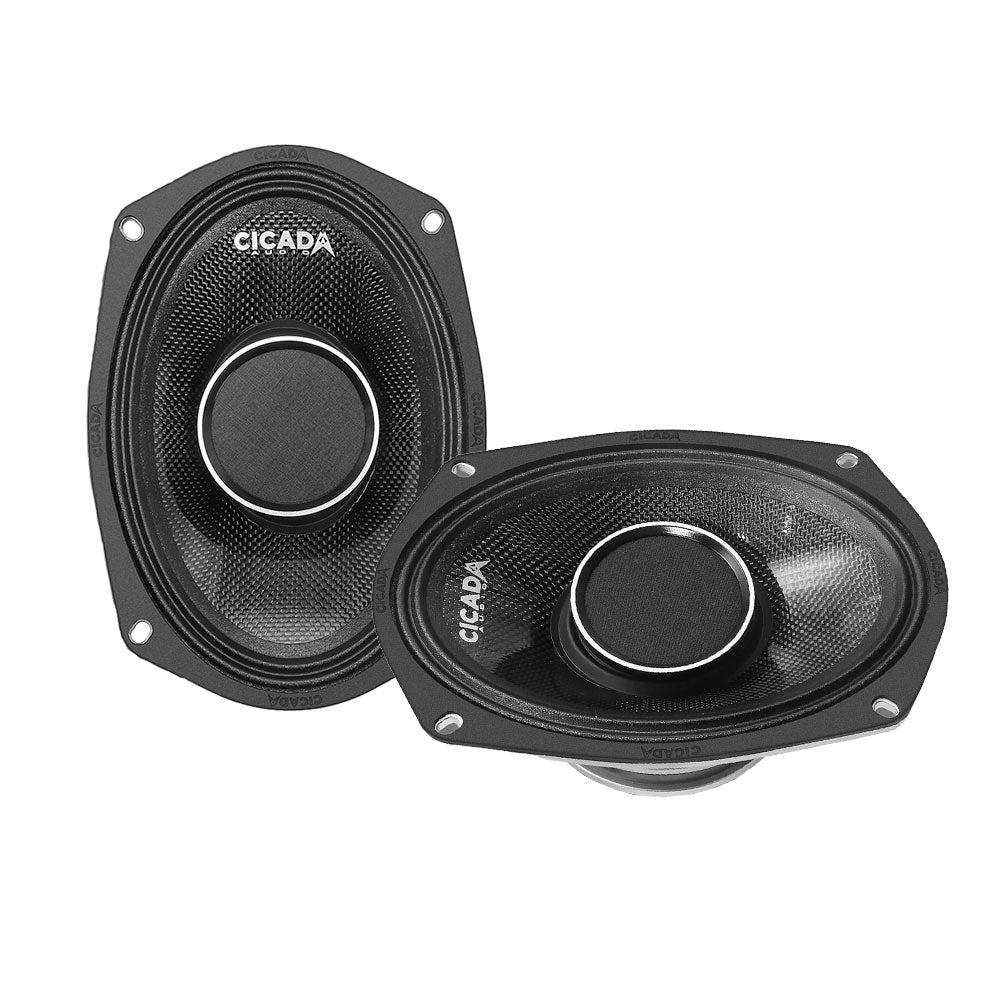

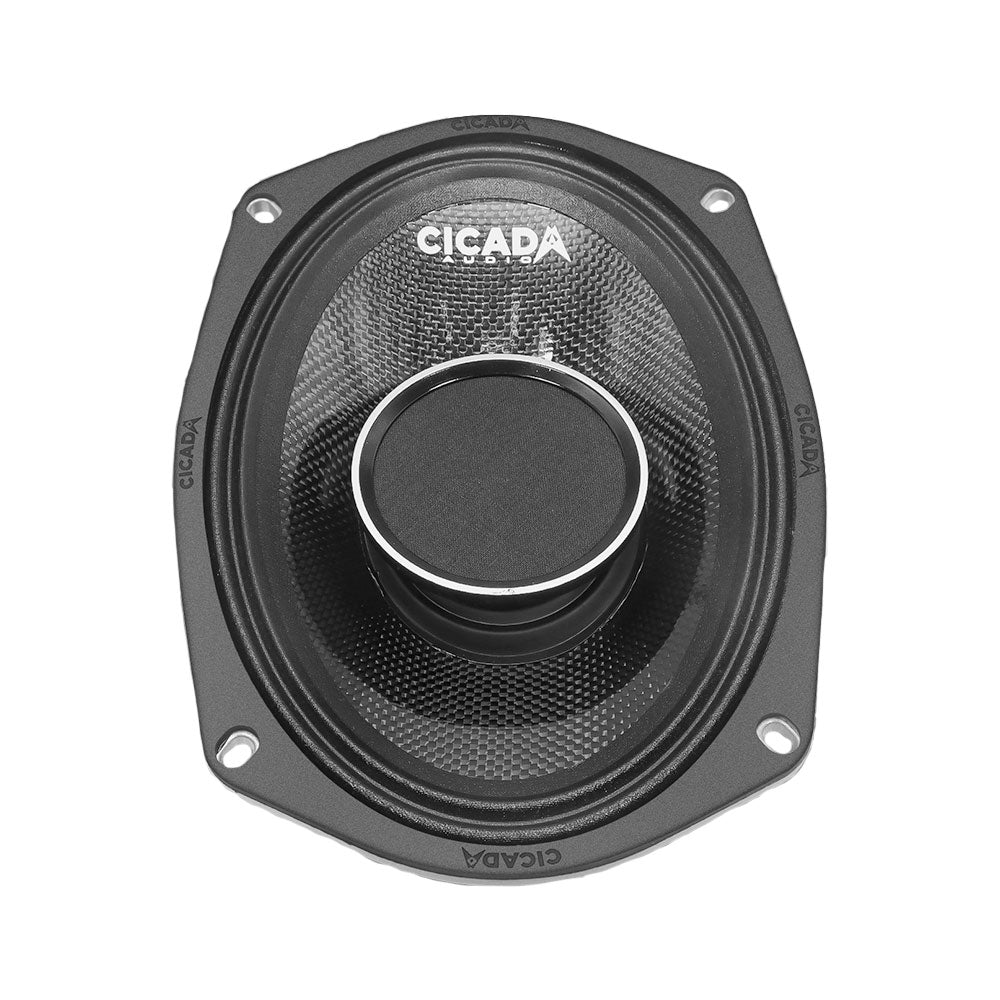

The Cicada Audio CHX69.2 is a high-output 6×9-inch Pro Coaxial Horn speaker engineered specifically for Harley-Davidson saddlebag lids, rear pods and custom touring systems where volume, clarity and durability matter. Featuring a Carbon Matrix Composite™ cone, oversized 2.5″ mid-bass voice coil and a 1.75″ horn-loaded tweeter, the CHX69.2 delivers huge output with control even at sustained highway speeds.
Designed for riders running powerful front stages and subwoofers, the CHX69.2 provides the projection and efficiency required to keep rear audio balanced in loud, DSP-driven touring systems.
Key Features
- 6×9″ pro coaxial horn design: Large cone area and horn tweeter deliver massive output and wide coverage.
- Carbon Matrix Composite™ cone: Lightweight, rigid and heat-resistant for tight, controlled mid-bass.
- 2Ω impedance: Designed to extract maximum output from high-current motorcycle amplifiers.
- N35SH neodymium motor: High-efficiency magnetic structure for strong output and thermal stability.
- Repairable horn tweeter: Serviceable 1.75″ tweeter voice coil (CHT175).

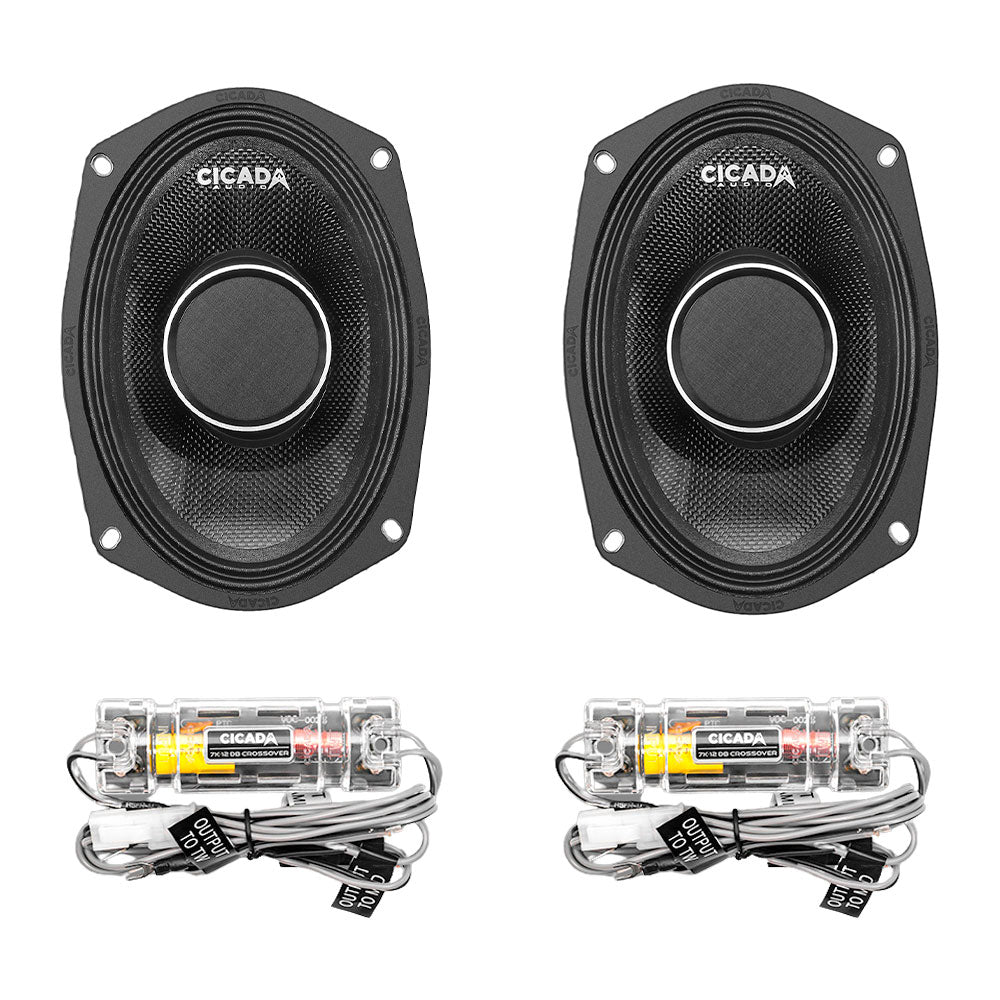

- External 12 dB crossover: Includes -3 / -6 dB tweeter attenuation for system tuning.
- Motorcycle-ready construction: Built for heat, vibration and constant outdoor exposure.
- Ideal for saddlebags & rear pods: Perfect match for 6×9″ lid kits and rear enclosures.
Recommended Power Amplifiers
To achieve correct control, output and long-term reliability, Cicada Audio recommends pairing the CHX69.2 with the following motorcycle-specific amplifiers:
- FLX1000.4 — when bridged and used with 4Ω speaker loads
- FLX1400.4
- FLX1400.4P — DSP-equipped for advanced tuning and protection
- FLX2000.4
Important: These speakers are designed for high-power, high-current amplifiers. Underpowered or inappropriate amplifiers increase the risk of distortion, clipping and mechanical failure.
Specifications
| Cicada Audio CHX69.2 – Technical Specifications | |
|---|---|
| GENERAL | |
| Speaker Size | 6×9″ Pro Coaxial Horn |
| Design | Horn-loaded coaxial with Carbon Matrix Composite™ cone |
| Impedance | 2 Ω |
| Power Handling | 400W RMS / 800W MAX |
| AUDIO PERFORMANCE | |
| Sensitivity | 92 dB (1W / 1M) |
| Frequency Response | 46 Hz – 20 kHz (±3 dB) |
| COMPONENTS | |
| Mid-Bass Voice Coil | 2.5″ Black Coat™ OFC copper |
| Tweeter | 1.75″ aluminium-dome horn tweeter |
| Tweeter Voice Coil | Repairable OFC copper (CHT175) |
| Crossover | External 12 dB, vented, encased |
| Tweeter Attenuation | -3 / -6 dB resistor pack |
| Magnet | Neodymium N35SH |
| Basket | Die-cast aluminium with Vortex Flow Venting™ |
| PHYSICAL | |
| Mounting Depth | 3.75″ (96 mm) |
| Cut-Out Size | 8.5″ × 5.7″ (216 × 145 mm) |
| Grilles | Not included |
| WARRANTY | |
| Coverage | 2 years |
| ⚠️ IMPORTANT – Crossover & Setup Requirements (Read Before Installation) | |
|---|---|
|
All horn speakers have mechanical limits. Most failures are caused by over-excursion, not excessive power. Running horn drivers too low in frequency causes the cone to move beyond its mechanical limits, resulting in permanent damage. |
|
Required High-Pass Crossover Settings
Lower crossover points will cause distortion and speaker damage. |
|
|
Saddlebag Installations – Critical Note
Due to limited internal air volume, Cicada Audio strongly recommends:
Never run horn speakers full-range inside saddlebags. |
|
Amplifier & Wiring Notes
|
Why It Works So Well on Motorcycles
- Huge output capability: 6×9 format moves more air for a powerful rear stage.
- Perfect for lid kits: Delivers the projection needed to keep up with loud front stages.
- Clear at any speed: Horn tweeter cuts through wind and exhaust noise.
- Touring-proven design: Built for harsh heat, vibration and weather.
Fitment
Designed for Harley-Davidson Touring saddlebag lid kits & rear speaker pods.
Recommended System Matching
- Pairs well with Cicada FLX-series amplifiers.
- DSP recommended for crossover control and level balancing.
- Complements CHX65, CHX8 front stages and subwoofer systems.
Building a loud touring system?
Motorcycle Audio Australia can help match the CHX69.2 with the correct amplifier, DSP and lid kit for your Harley.
