Harnesses vs Cutting Factory Wiring

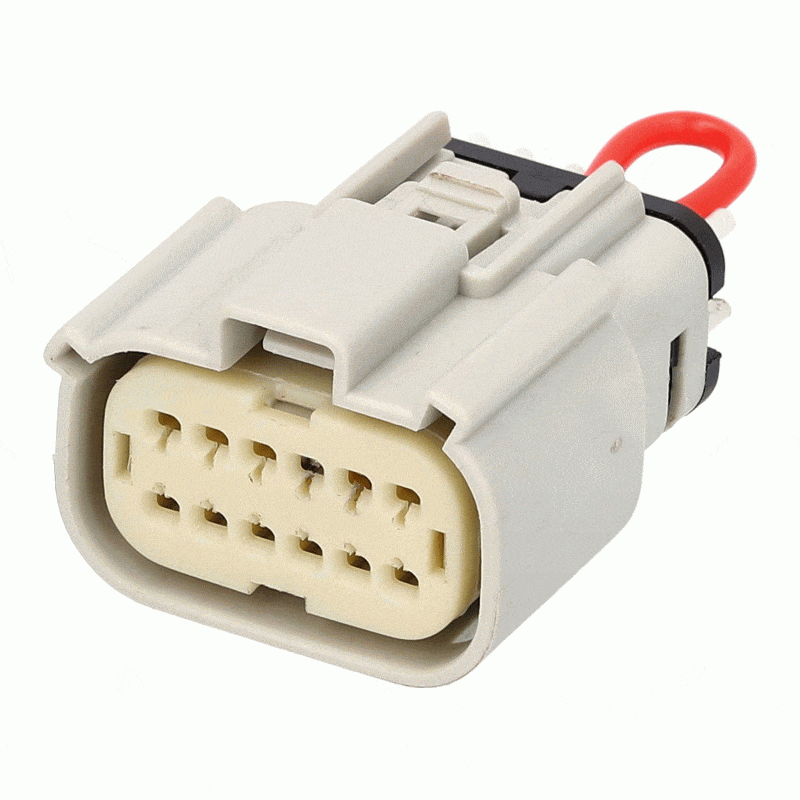

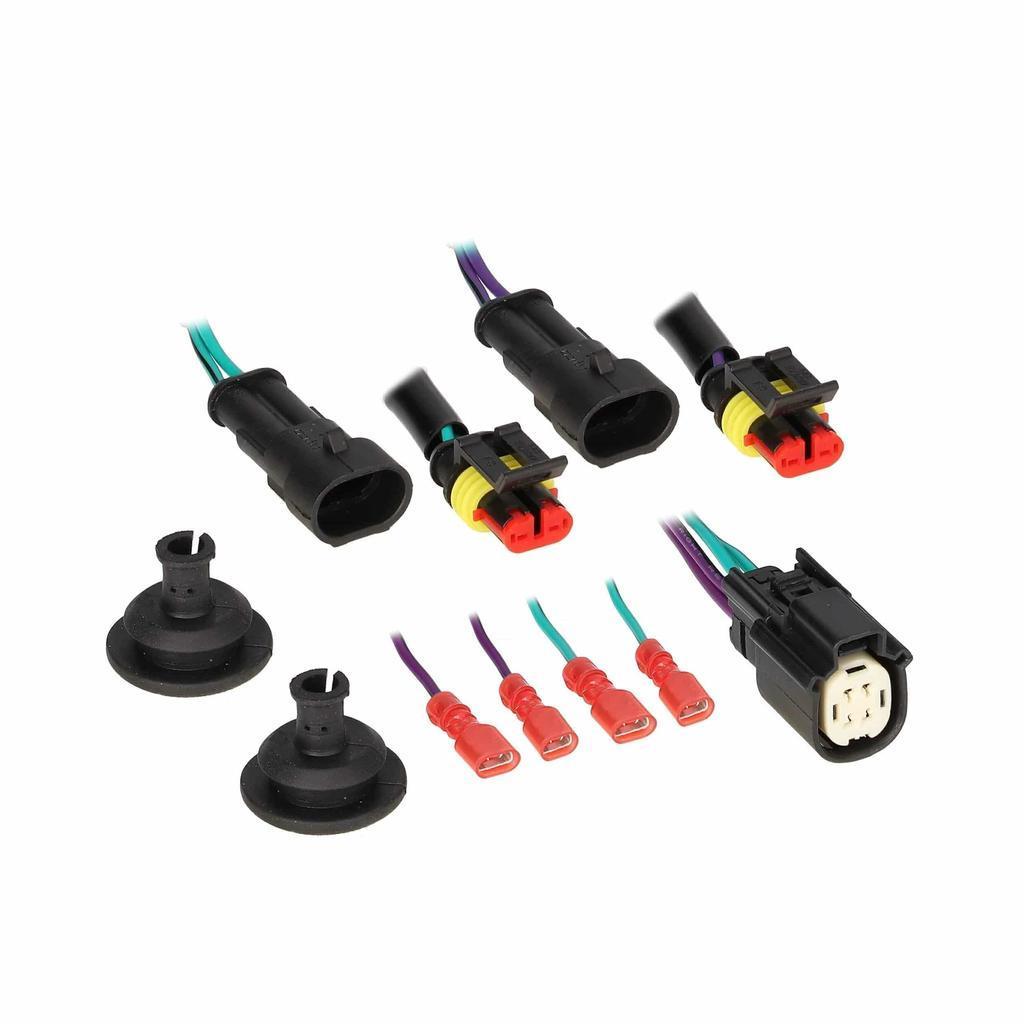

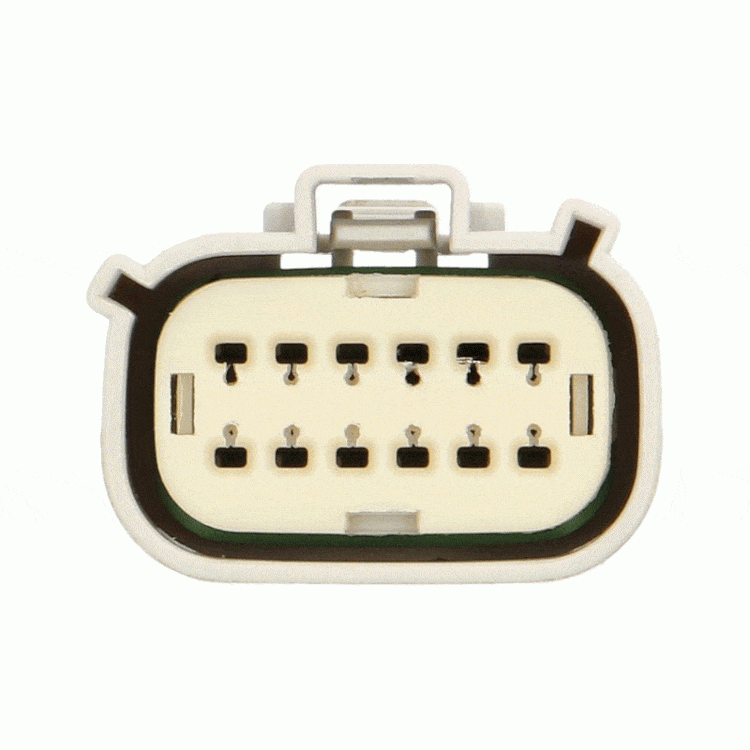

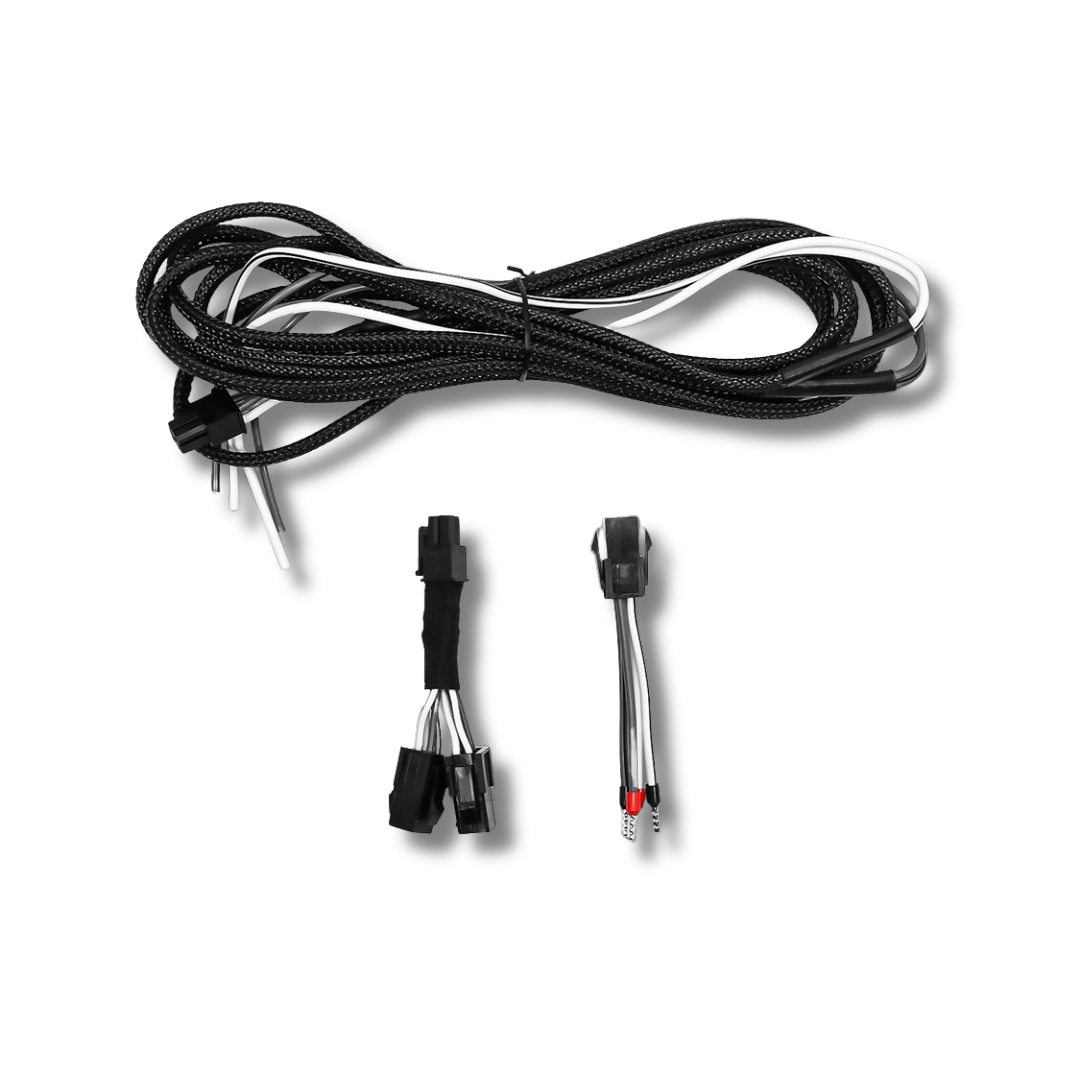

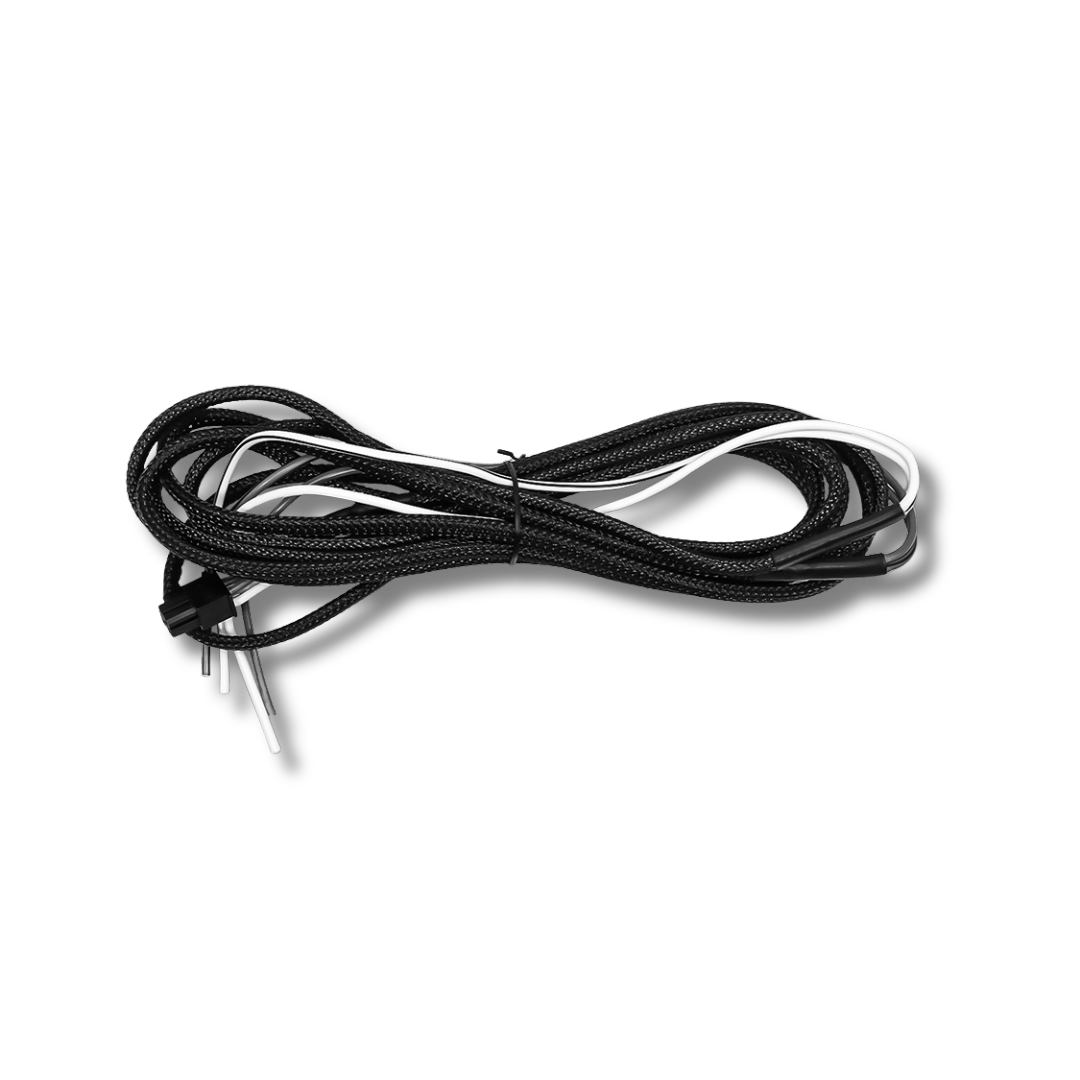

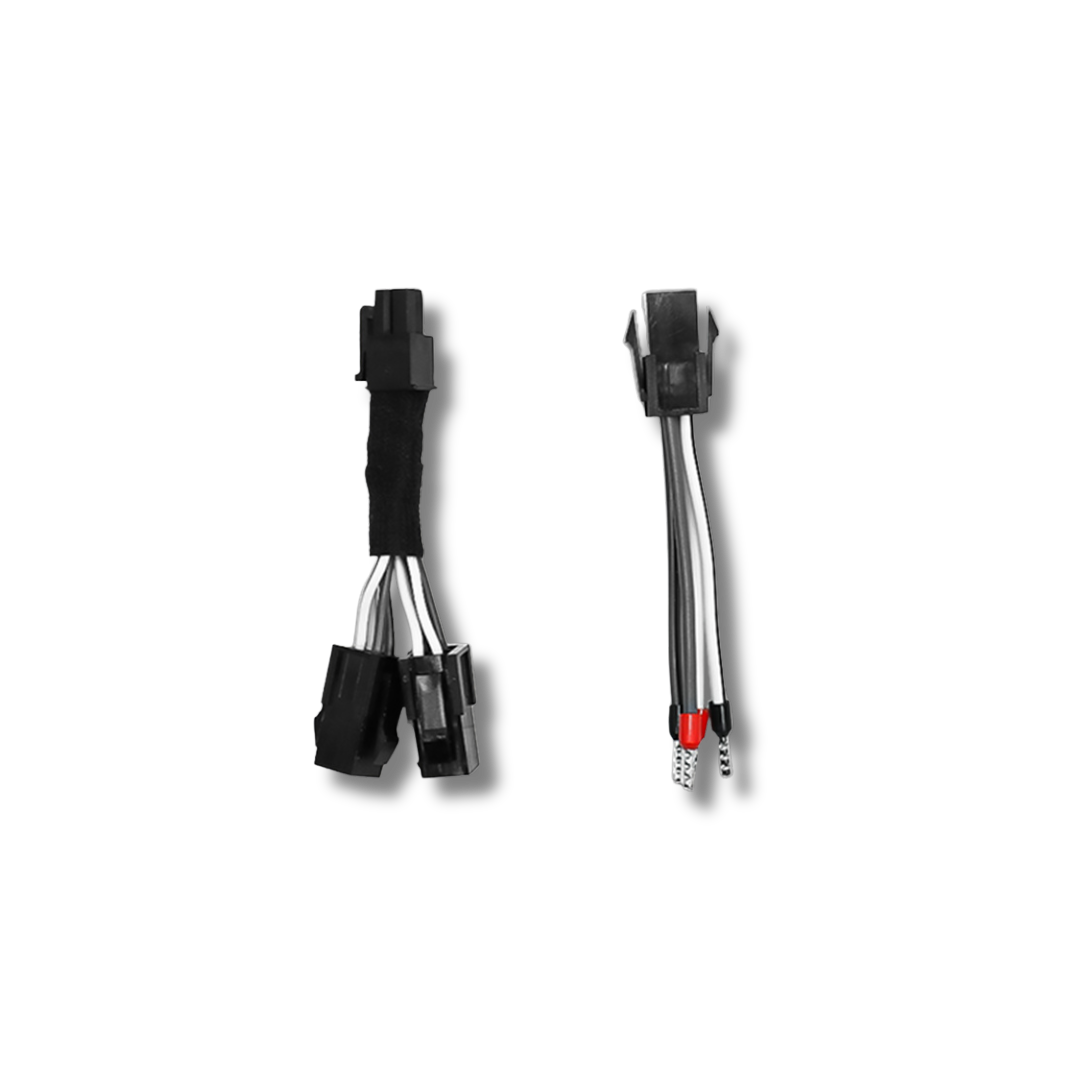

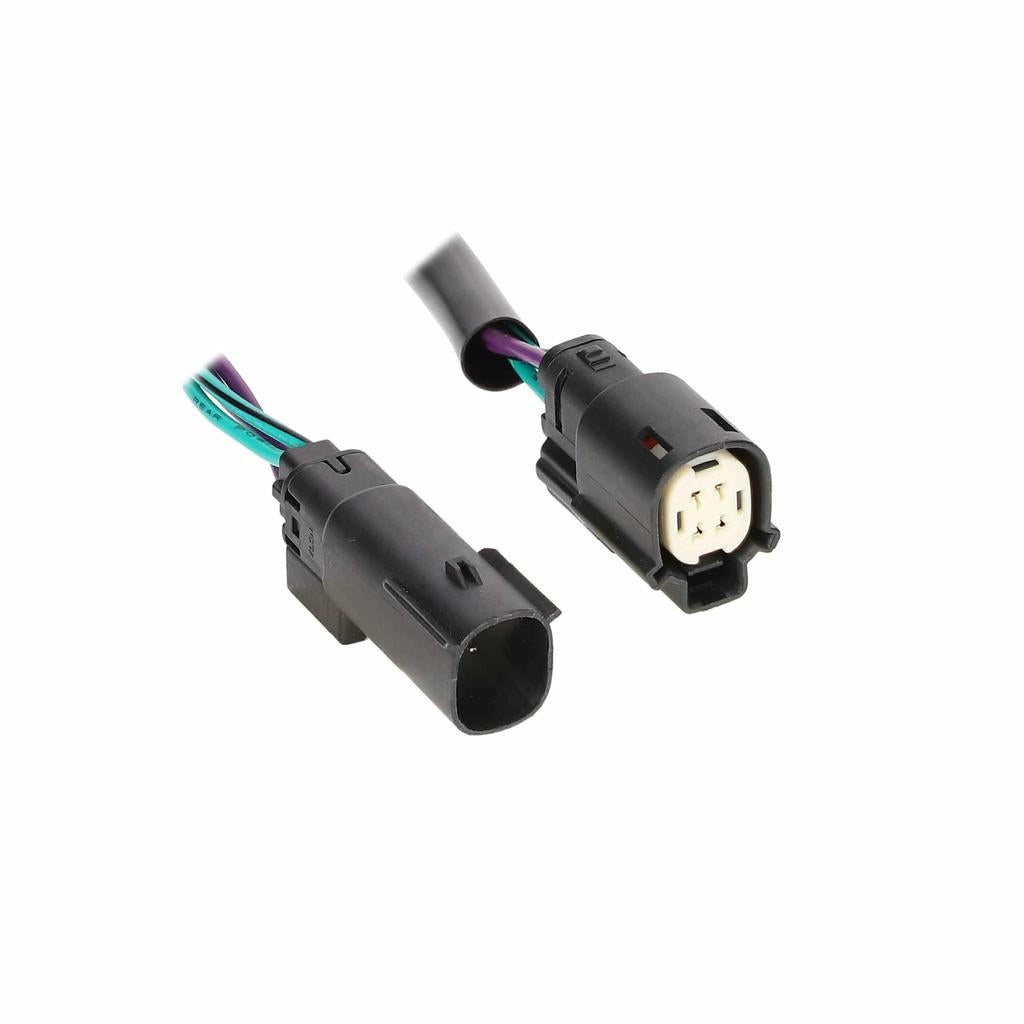

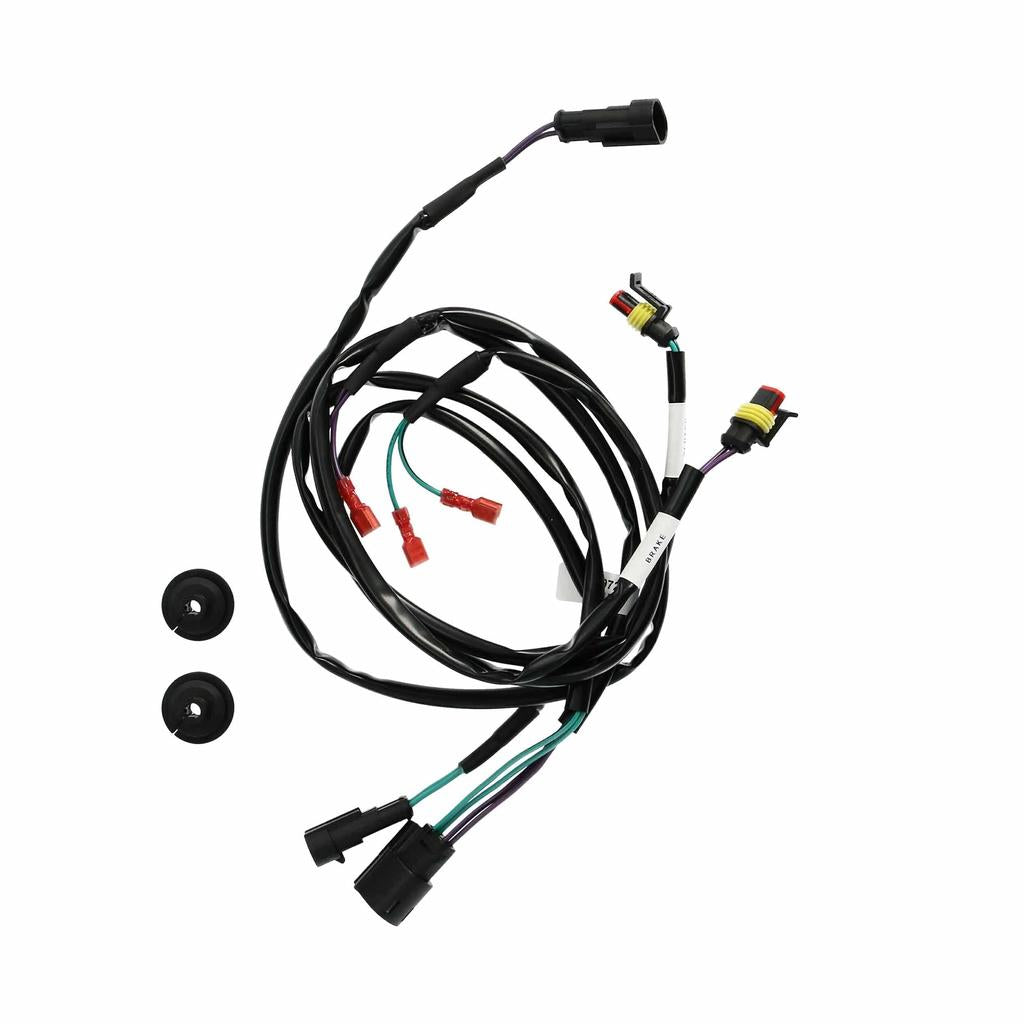

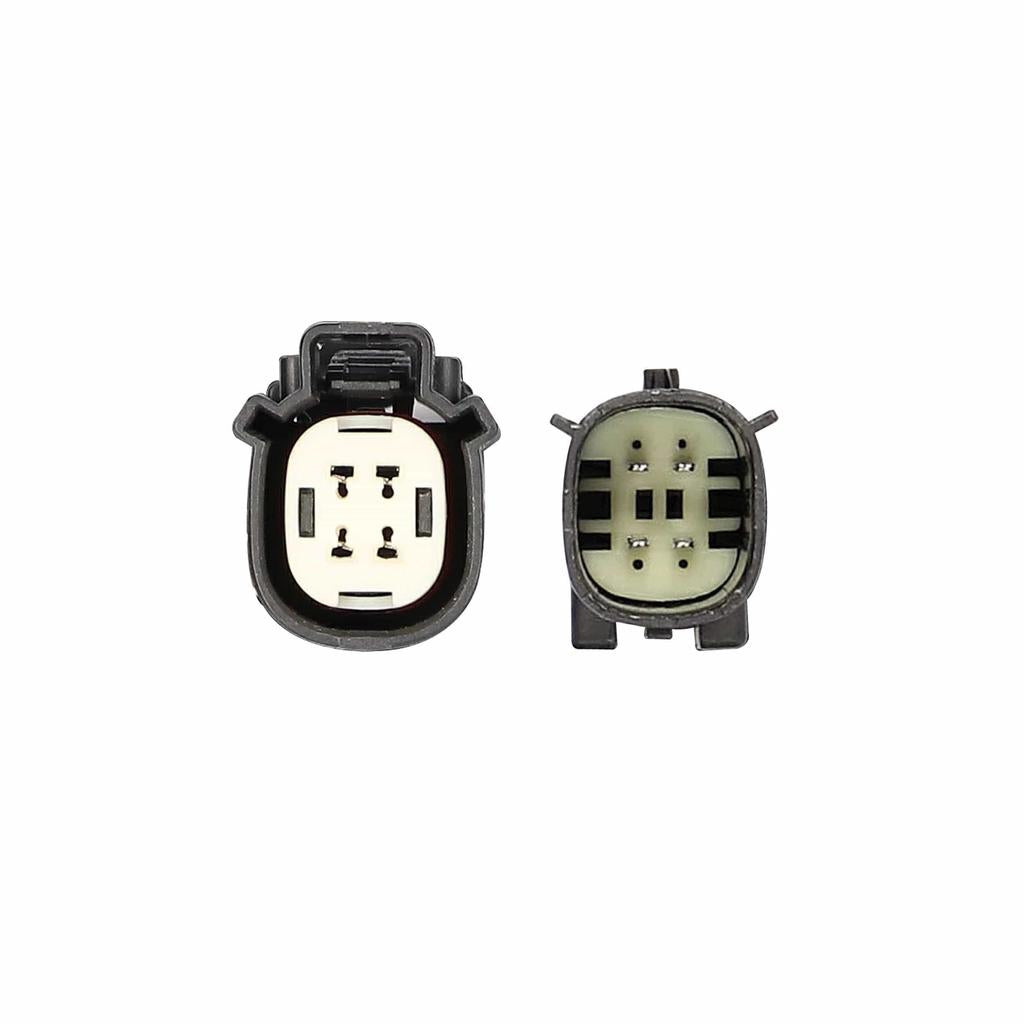

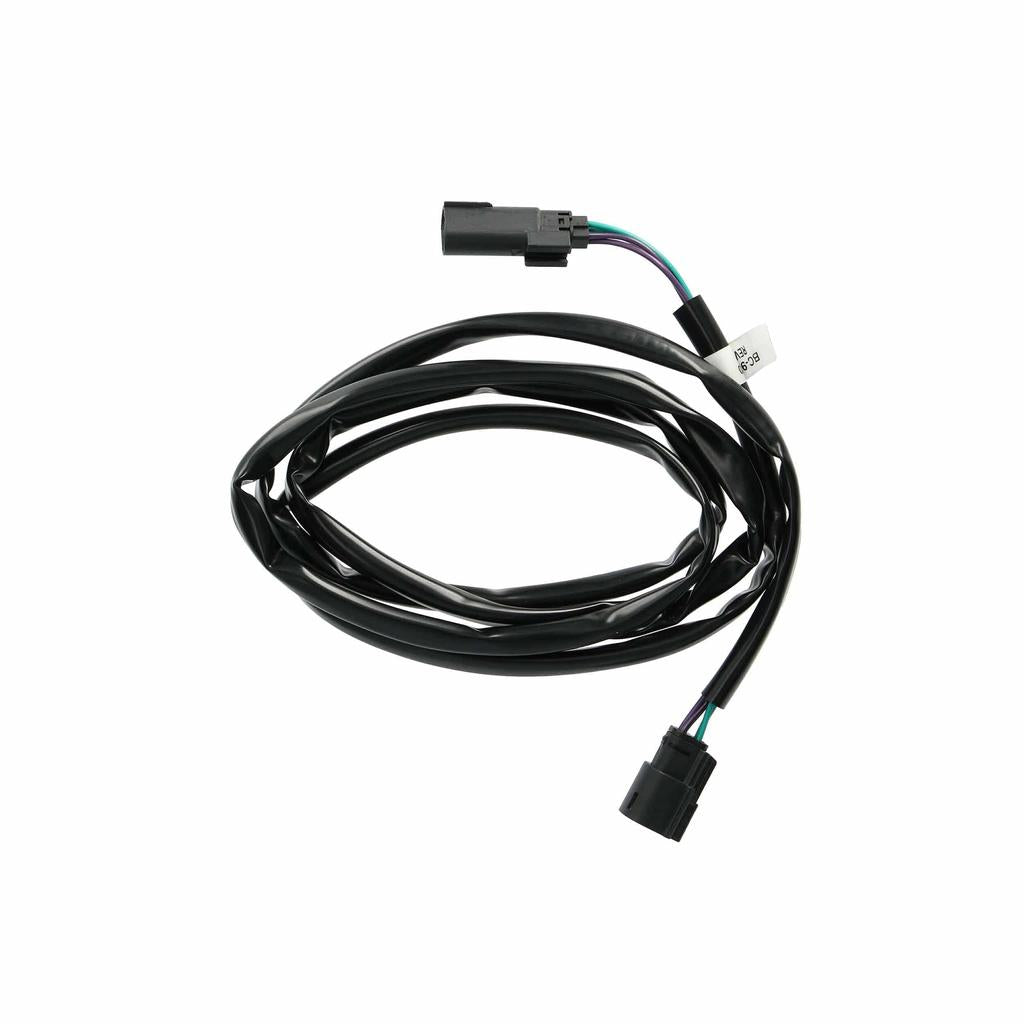

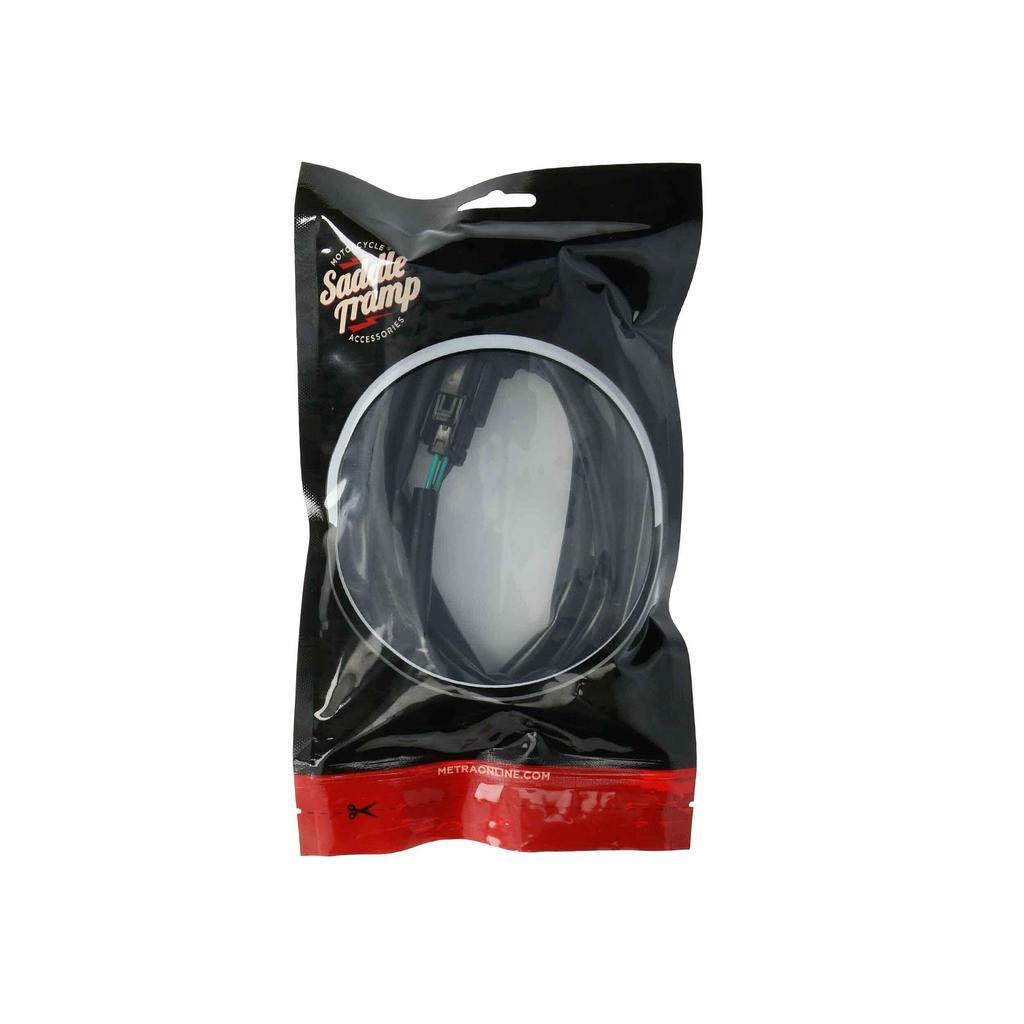

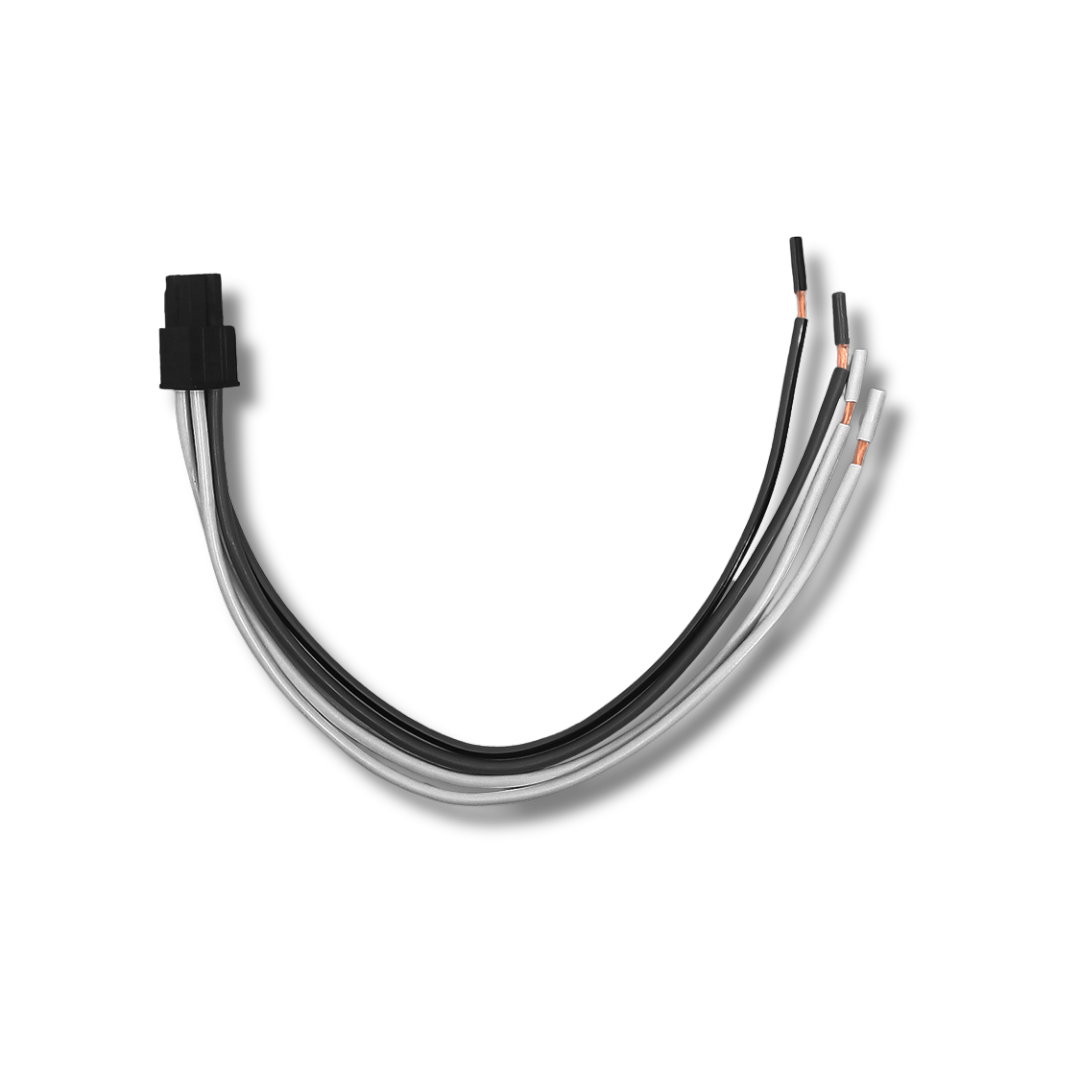

Every Harley-Davidson Touring bike leaves the factory with a precisely engineered wiring loom. Cutting into it — even with proper splices — introduces potential failure points, voids factory protection, and makes future servicing significantly harder. Plug-and-play signal harnesses connect directly to factory connectors, preserving the original loom completely. If you need to remove the system or sell the bike, the factory wiring is untouched.

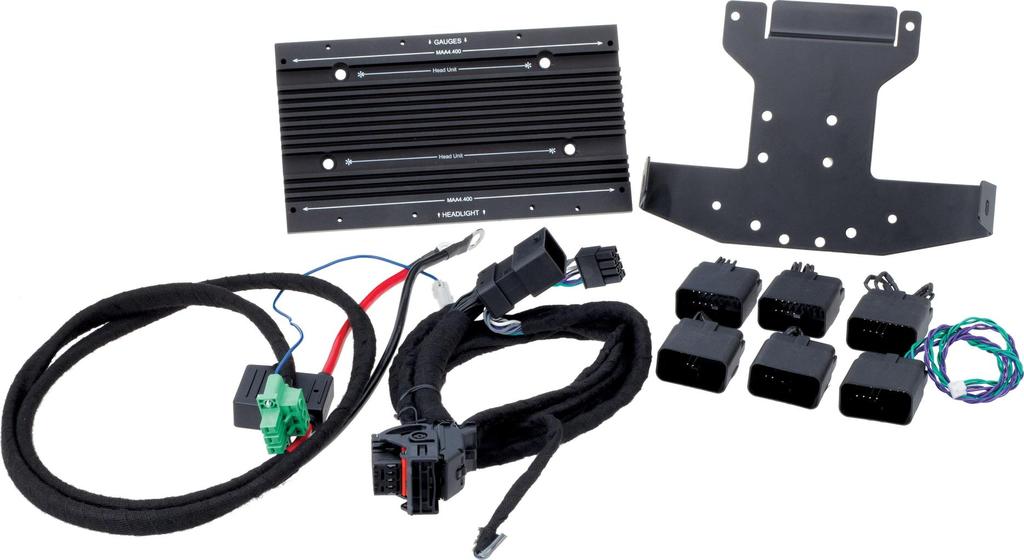

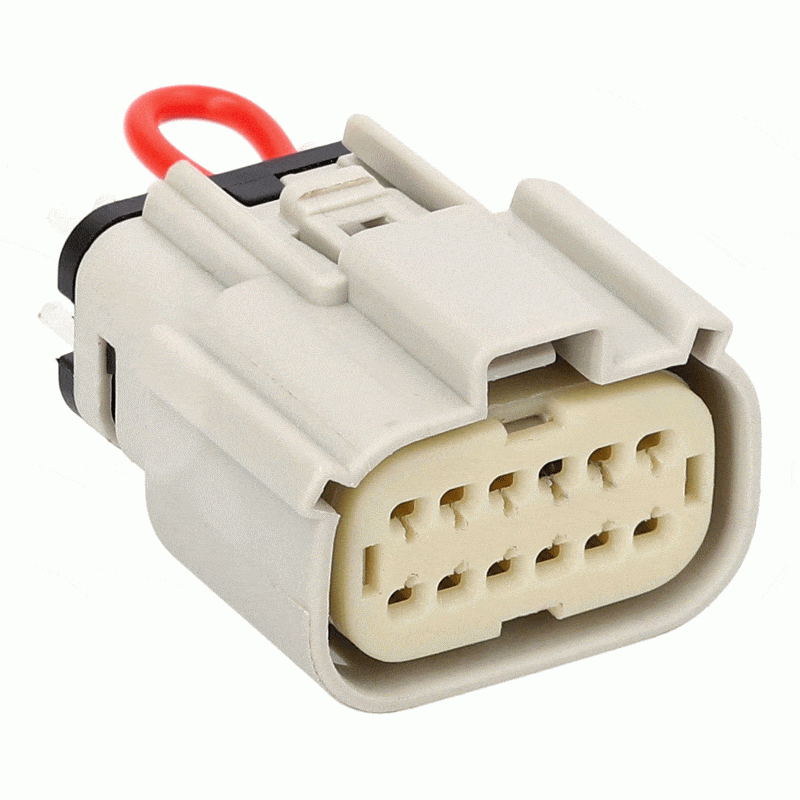

For any amplifier integration on a 2014–2023 Touring bike, a signal harness taps the factory head unit output without modifying the bike's wiring. On 2024+ models running Skyline OS, the A2B adapter handles factory signal extraction as part of the integration path — no harness cutting required there either.
Speaker Wire Gauge

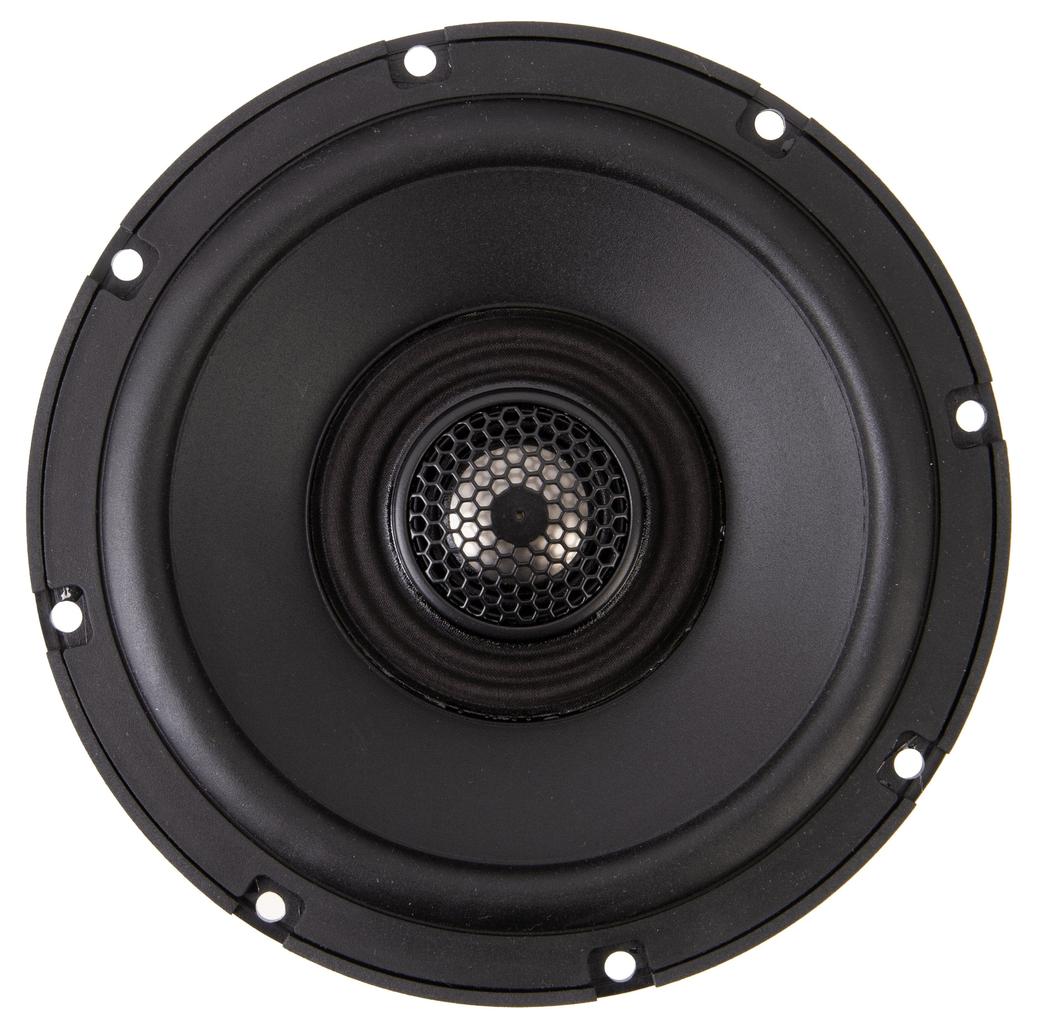

Most fairing and saddlebag speaker runs on a Harley Touring bike are short — typically under 3 metres. For those runs, 16 AWG OFC (oxygen-free copper) is adequate for systems up to around 150W RMS per channel. For longer runs to tour pack or external speakers, step up to 14 AWG. If you're running high-power dedicated drivers — particularly subwoofers or high-excursion mid-bass drivers — 12 AWG gives you the headroom and reduces resistive losses over the run.
Avoid CCA (copper-clad aluminium) wire. It has roughly 60% of the conductivity of OFC copper at the same gauge, which means actual resistance is higher than the gauge suggests. In a motorcycle environment where the wiring is subject to heat and vibration, CCA's aluminium core also presents long-term termination reliability issues.
Power Wire Sizing

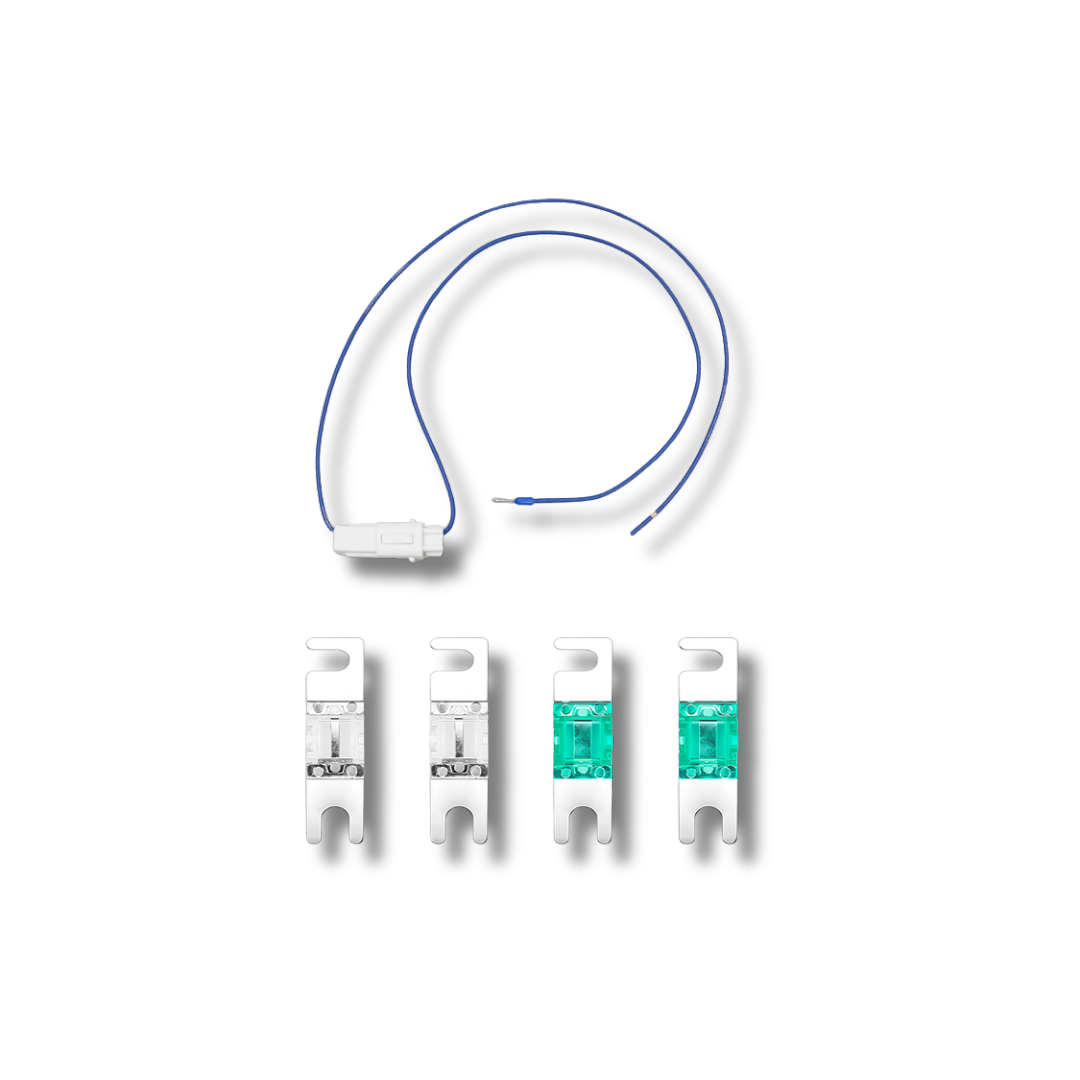

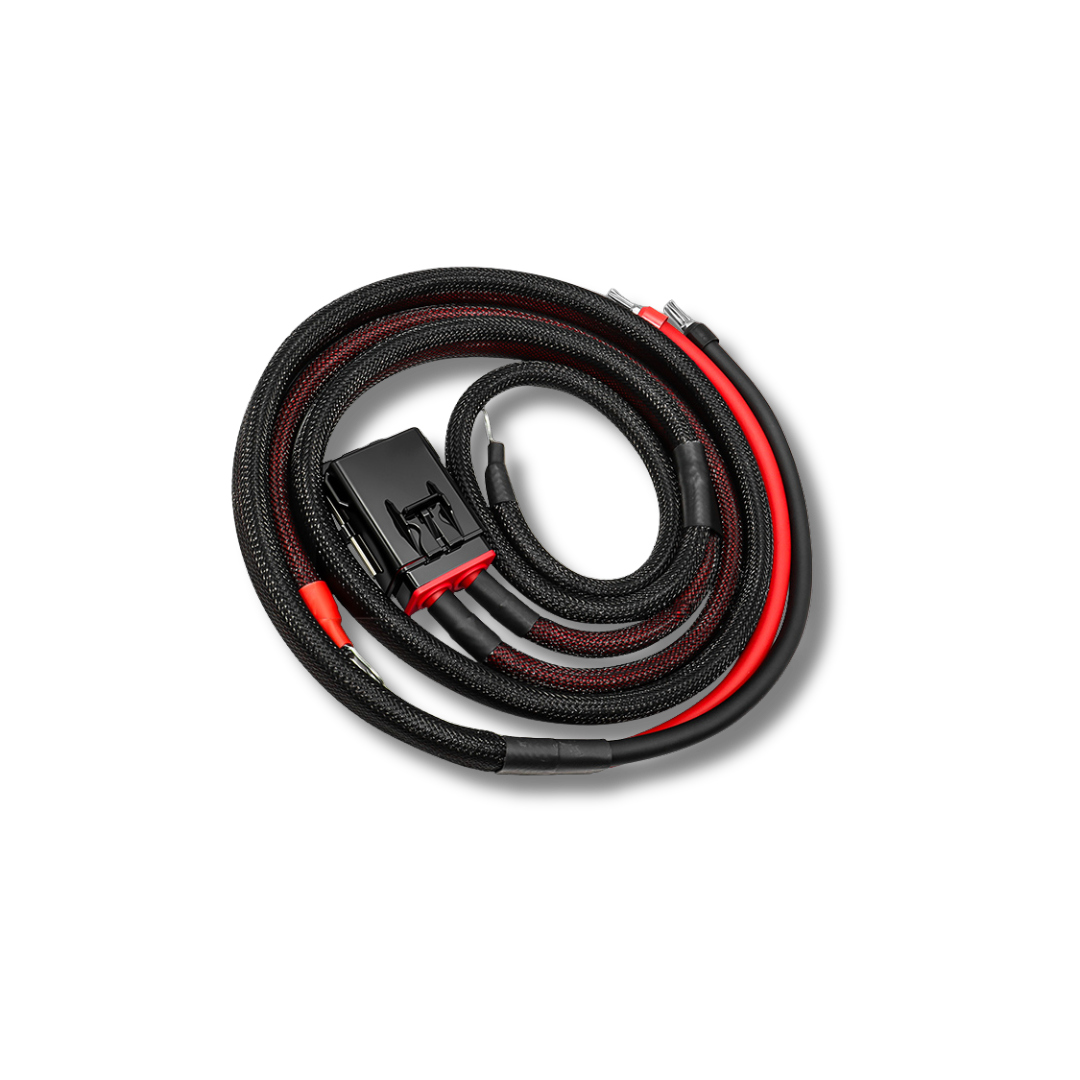

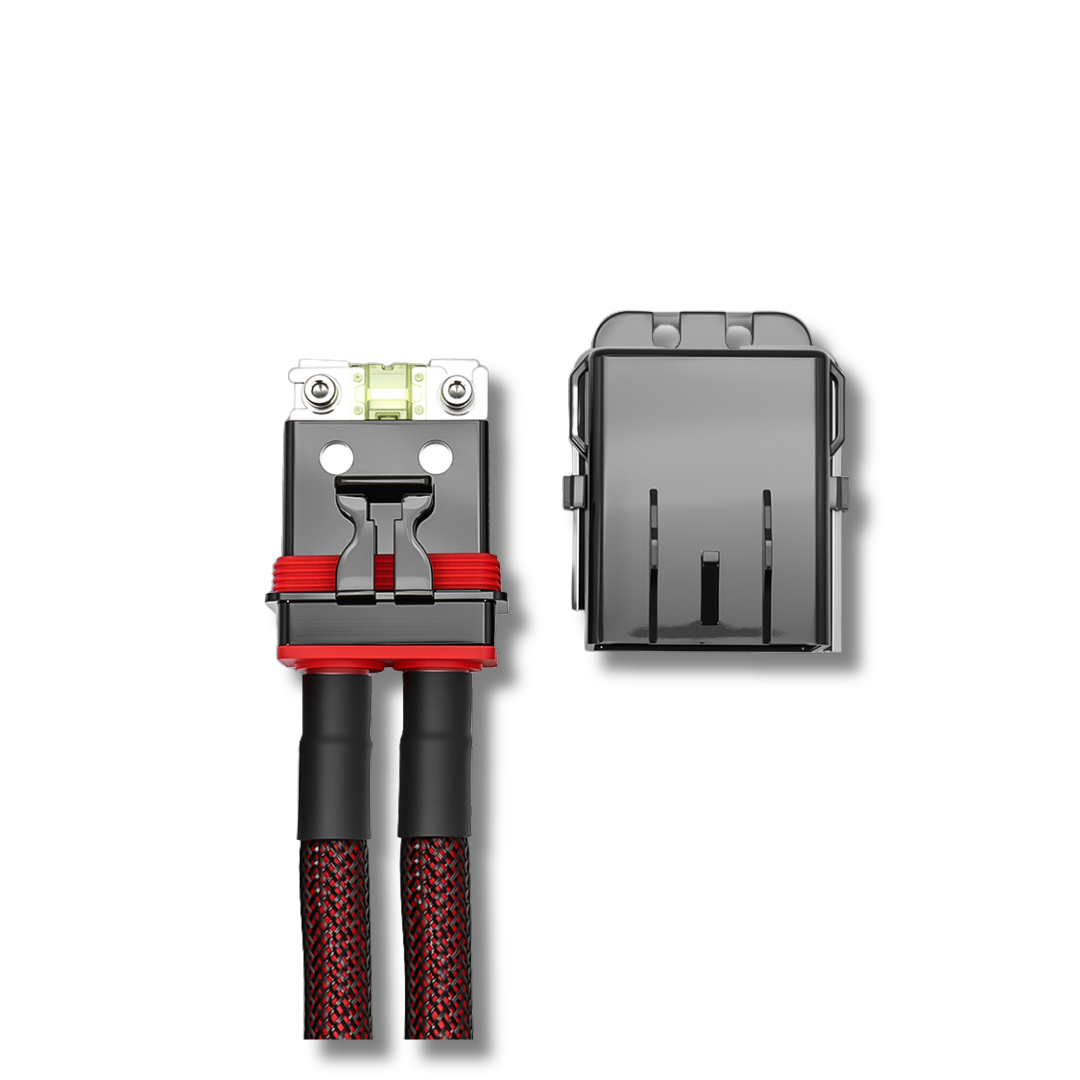

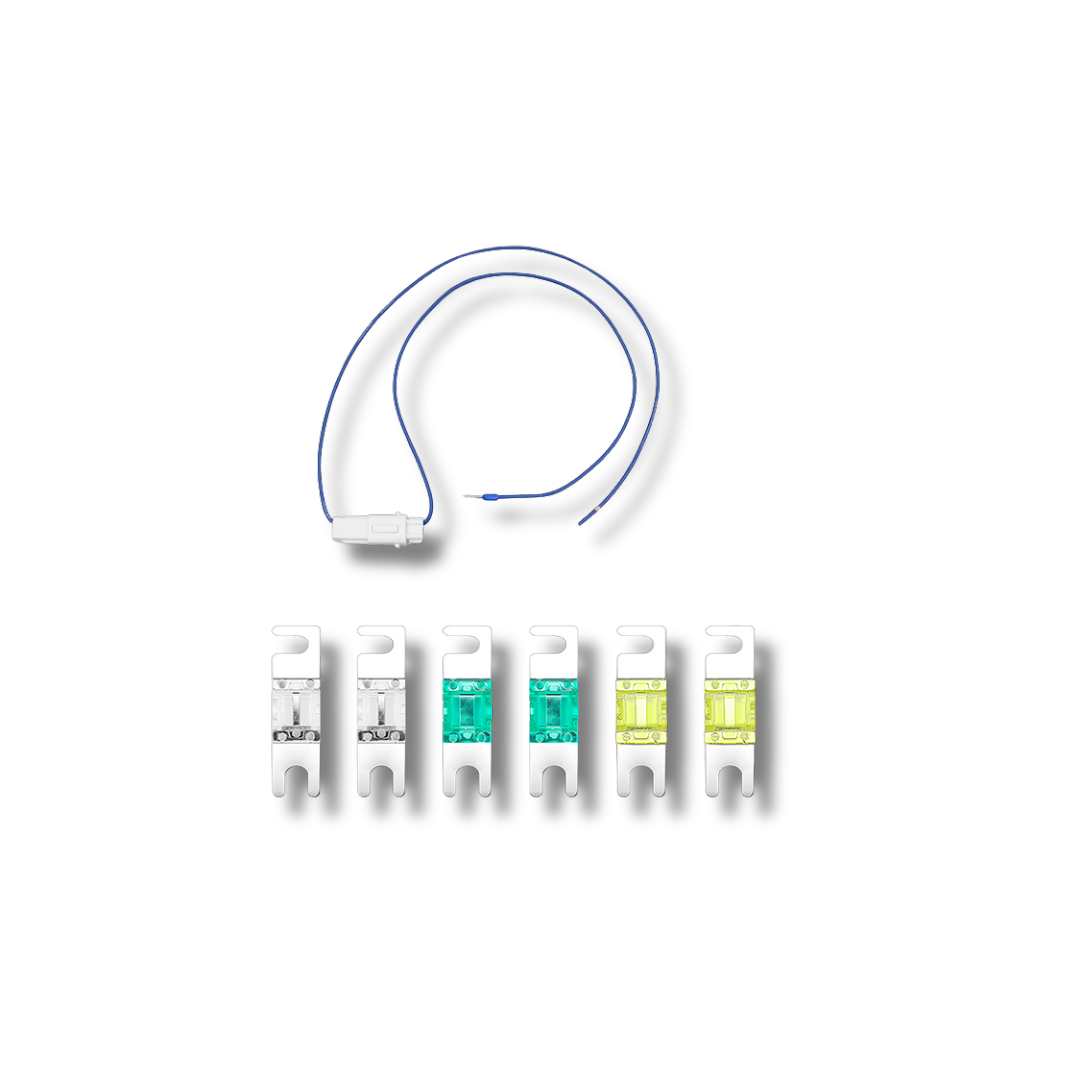

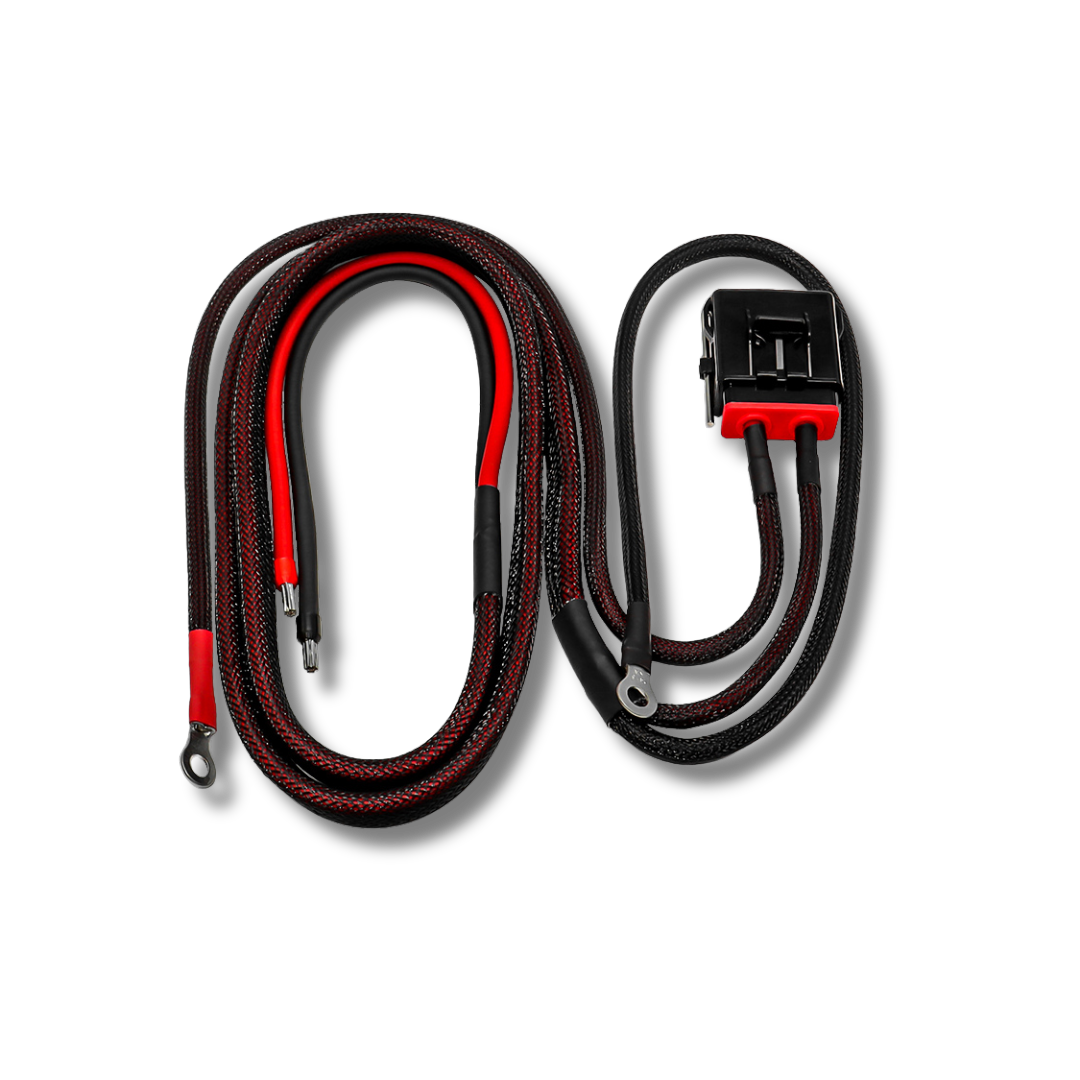

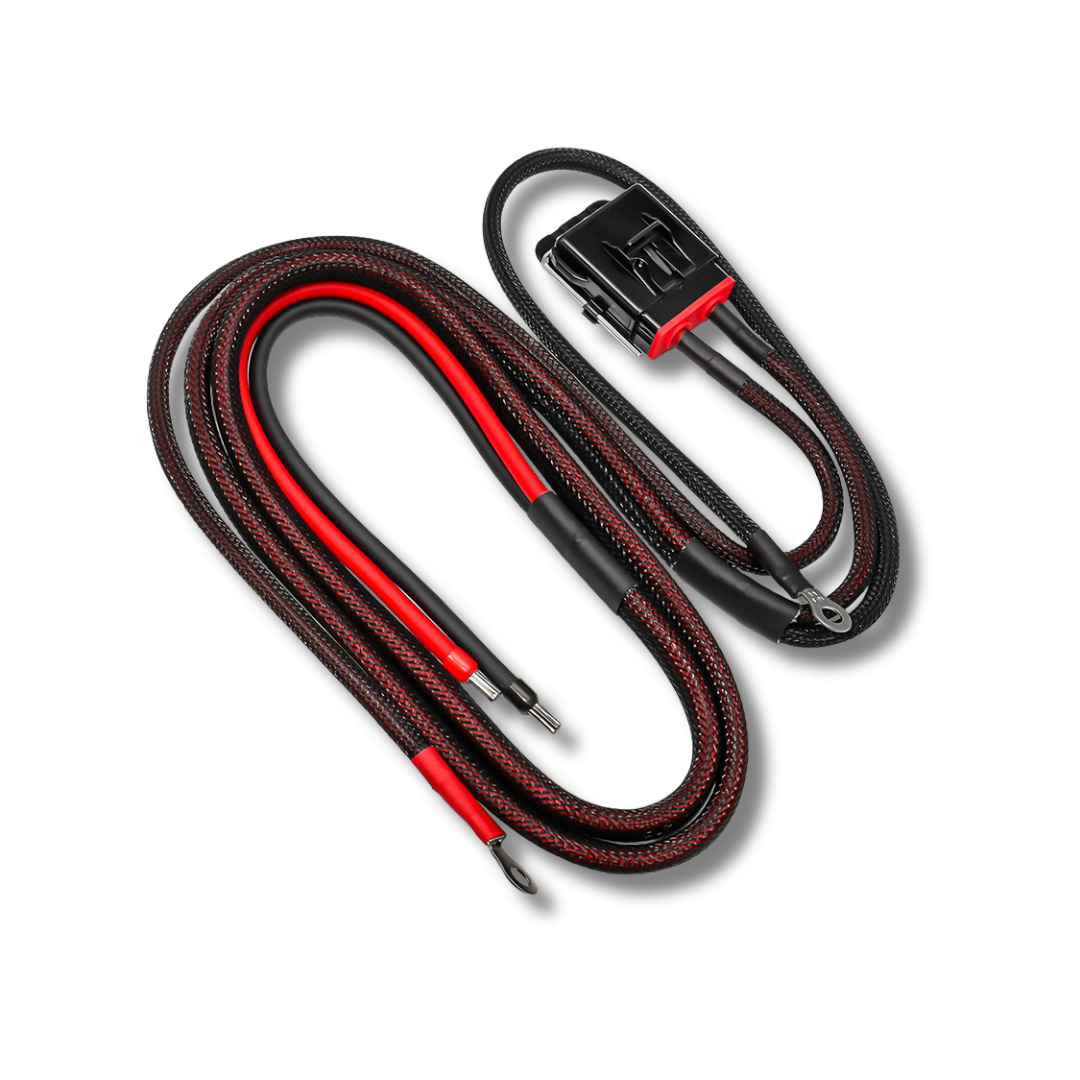

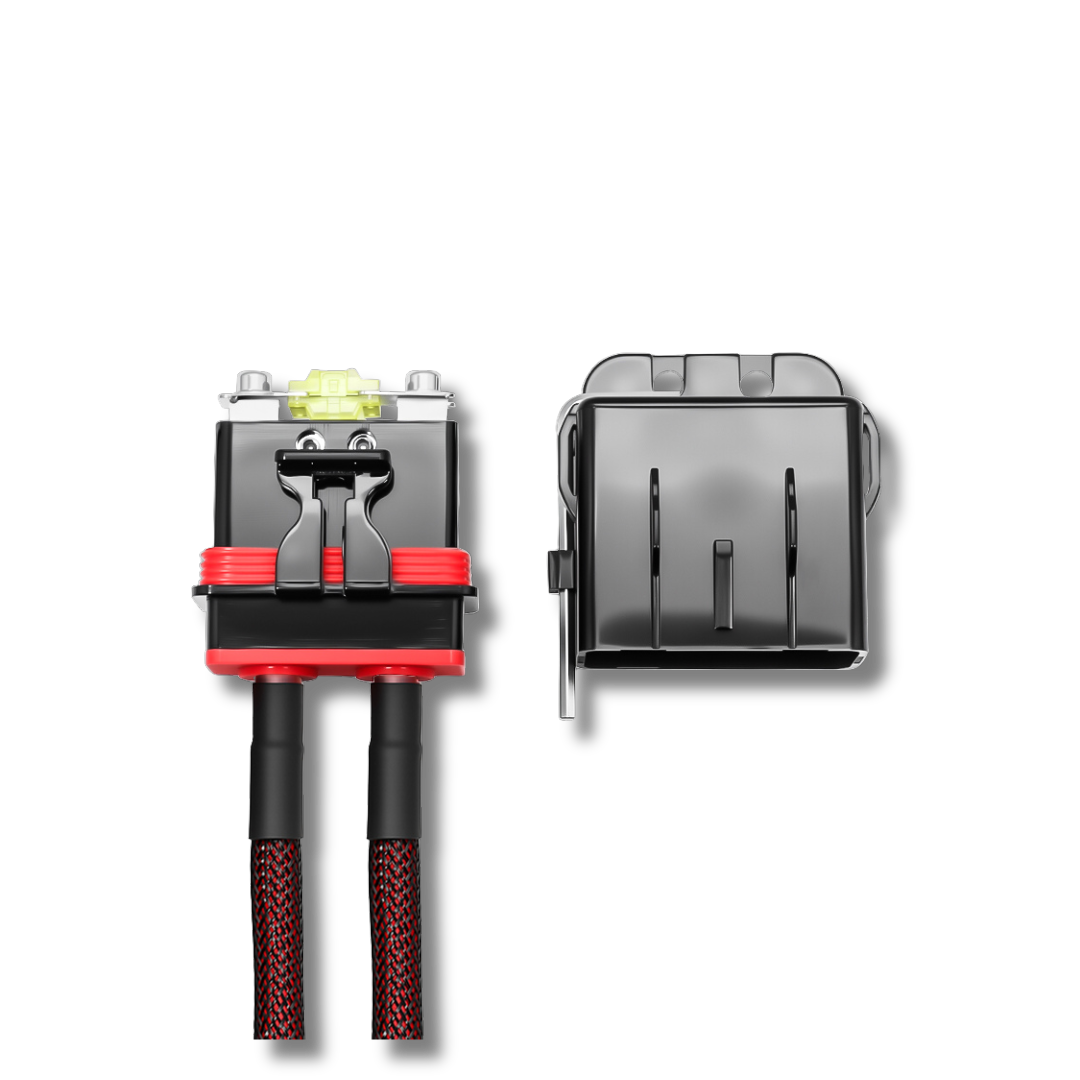

Amplifier power wire is sized to two factors: the amp's maximum current draw and the length of the run from battery to amplifier. A 4-channel amplifier drawing 40A at musical levels needs a minimum of 8 AWG for runs under 4 metres. At 60–80A, step up to 4 AWG. For high-power mono amplifiers or stacked builds exceeding 100A combined draw, 0 AWG to a distribution block is the correct approach.
Most Harley-Davidson Touring charging systems produce 45–50A at highway speed. A single high-efficiency 4-channel amplifier sits comfortably within that range. Adding a second amplifier or a subwoofer amplifier requires a proper current draw assessment — undersized power wiring creates resistive voltage drop that limits amplifier performance and generates heat in the wiring.
RCA and Signal Cable Quality
The RCA cable carries the pre-amplified signal from your head unit to your amplifier. Noise introduced at this stage — ground loops, RF interference, poor shielding — cannot be corrected downstream by the amplifier or DSP. On a motorcycle, the signal cables run close to ignition wiring, charging system components, and the battery. Shielding quality matters. Use cables with 95% or higher braid shield coverage, and route signal cables on the opposite side of the bike from power wiring wherever the installation allows.
Connectors and Terminations
A poor termination is the most common cause of audio system faults on a motorcycle. Heat, vibration, and moisture all work against loosely crimped or poorly soldered connections over time. Use correctly sized crimp terminals with a ratchet crimper — not pliers. Heat shrink all exposed connections, and use adhesive-lined heat shrink anywhere there is moisture exposure. For high-current connections at the battery and amplifier, use ring terminals with the correct gauge rating for the wire being used.
