High-output 2-channel line output converter for 2014+ H-D® factory radios — H-D® Molex® connectors, 10V output, three turn-on methods, adjustable remote delay.

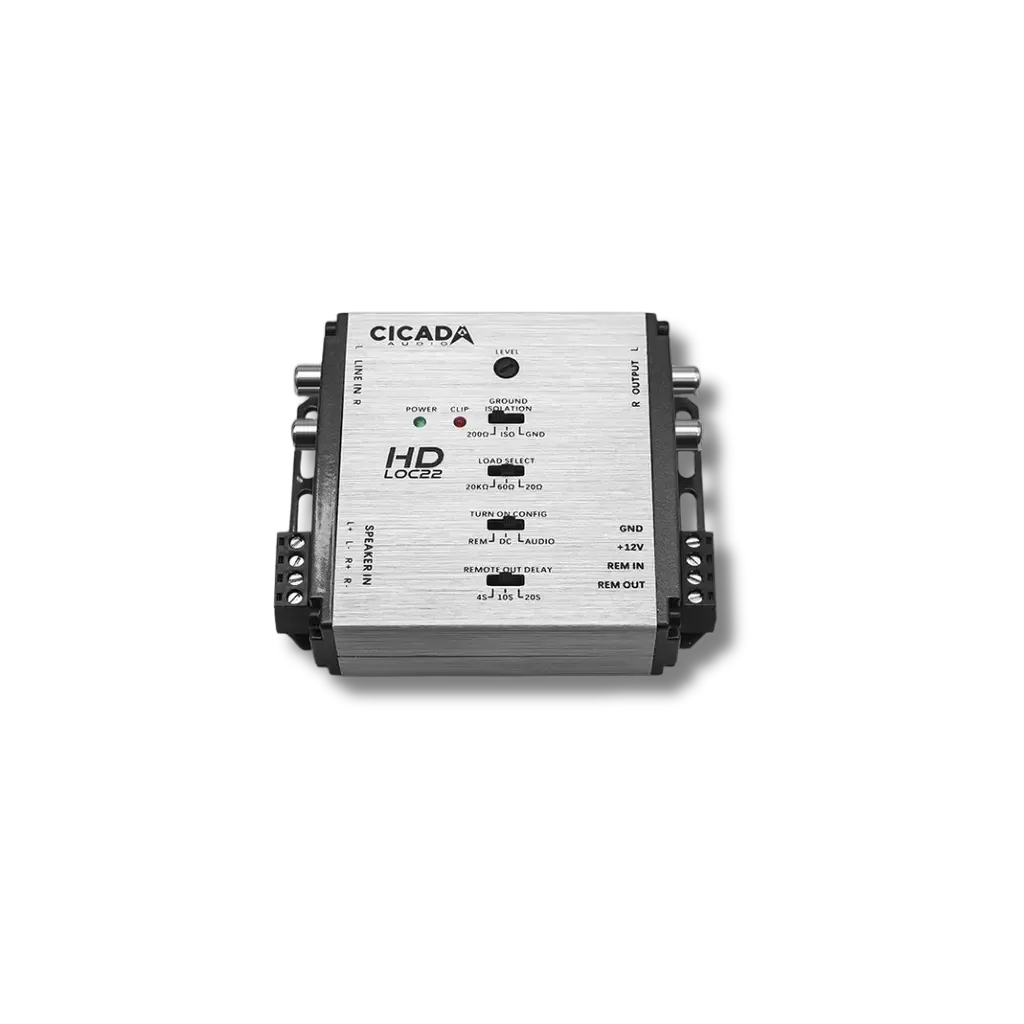

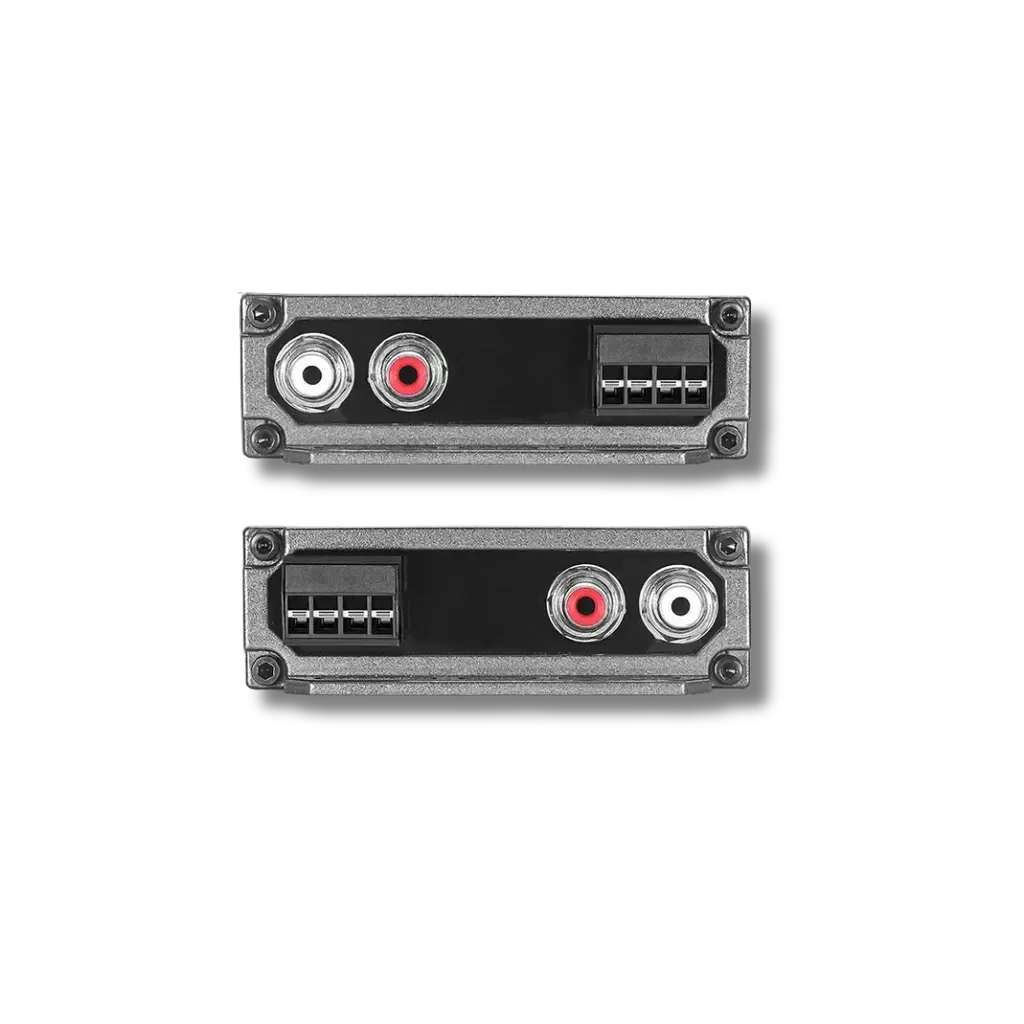

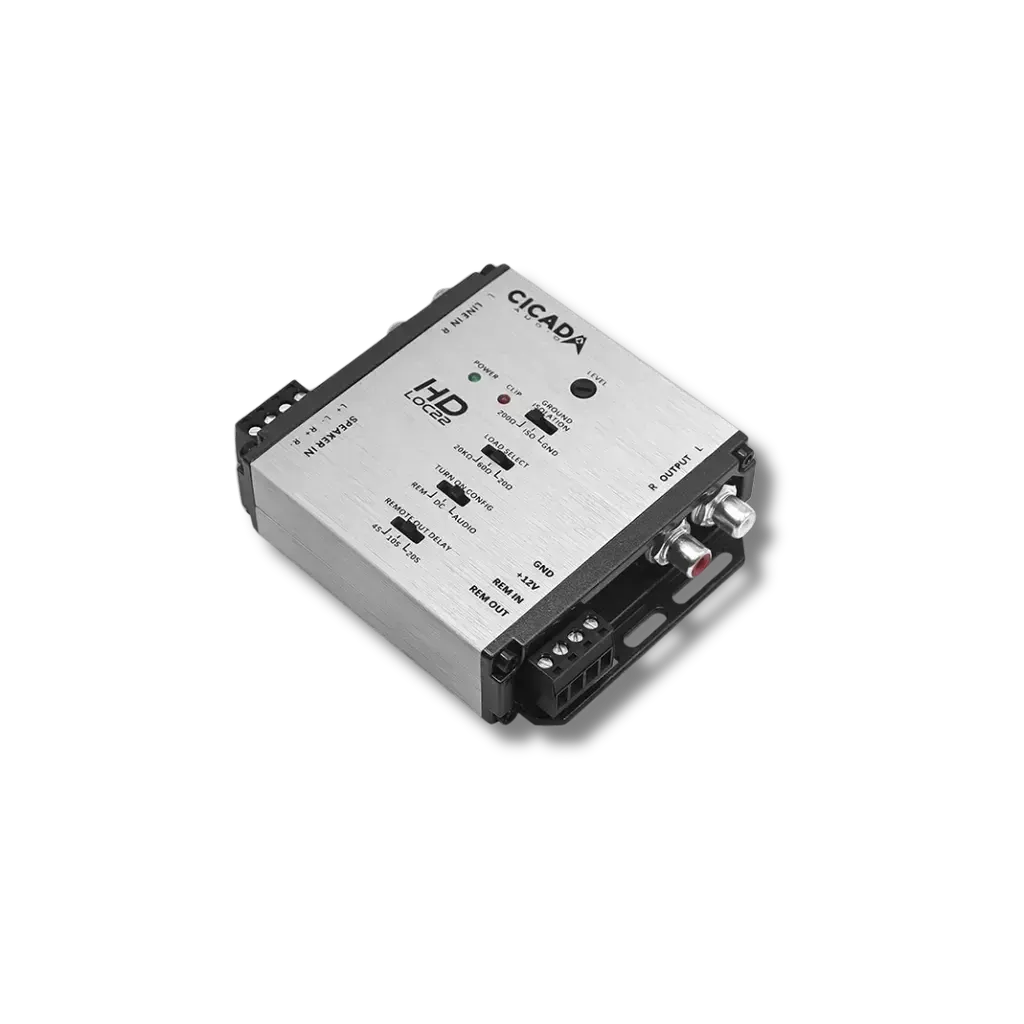

The Cicada Audio HDLOC-MAX2 is a high-output 2-channel line output converter designed for 2014 and newer Harley-Davidson® factory radios — converts speaker-level output to a clean RCA preamp signal for aftermarket amplifiers, using H-D® Molex® connectors for clean integration. Selectable load (20kΩ @ 60Ω or 20Ω), three turn-on methods (VOX/REM/DC offset), and selectable remote out delay (4/10/20 seconds). Up to 10V maximum output.
Adding an aftermarket amplifier to a 2014+ H-D® Touring bike while retaining the factory radio requires a way to extract a usable preamp signal from the radio's speaker-level outputs. The HDLOC-MAX2 does this cleanly — H-D® Molex® connectors plug directly into the factory harness rather than requiring wire taps or splice points, and the high-output design delivers up to 10V RCA signal for strong input headroom into any Cicada Audio® amplifier. The selectable load and three turn-on options cover the range of factory radio output configurations and amplifier remote requirements without needing additional hardware.
Who This Is For
Builders adding an aftermarket amplifier to a 2014+ H-D® Touring bike while retaining the factory radio, who need a high-output LOC with clean H-D® Molex® integration. For the complete T-harness solution that replaces multiple harnesses and includes removable RCA outputs, see the HDTSLINKv2. For a simpler 2-channel LOC with load resistors, see the HDLOC2.
What This Is Best For
- High-output signal for strong amplifier input headroom — up to 10V RCA output; minimises noise floor and maximises signal-to-noise ratio into aftermarket amplifier inputs.

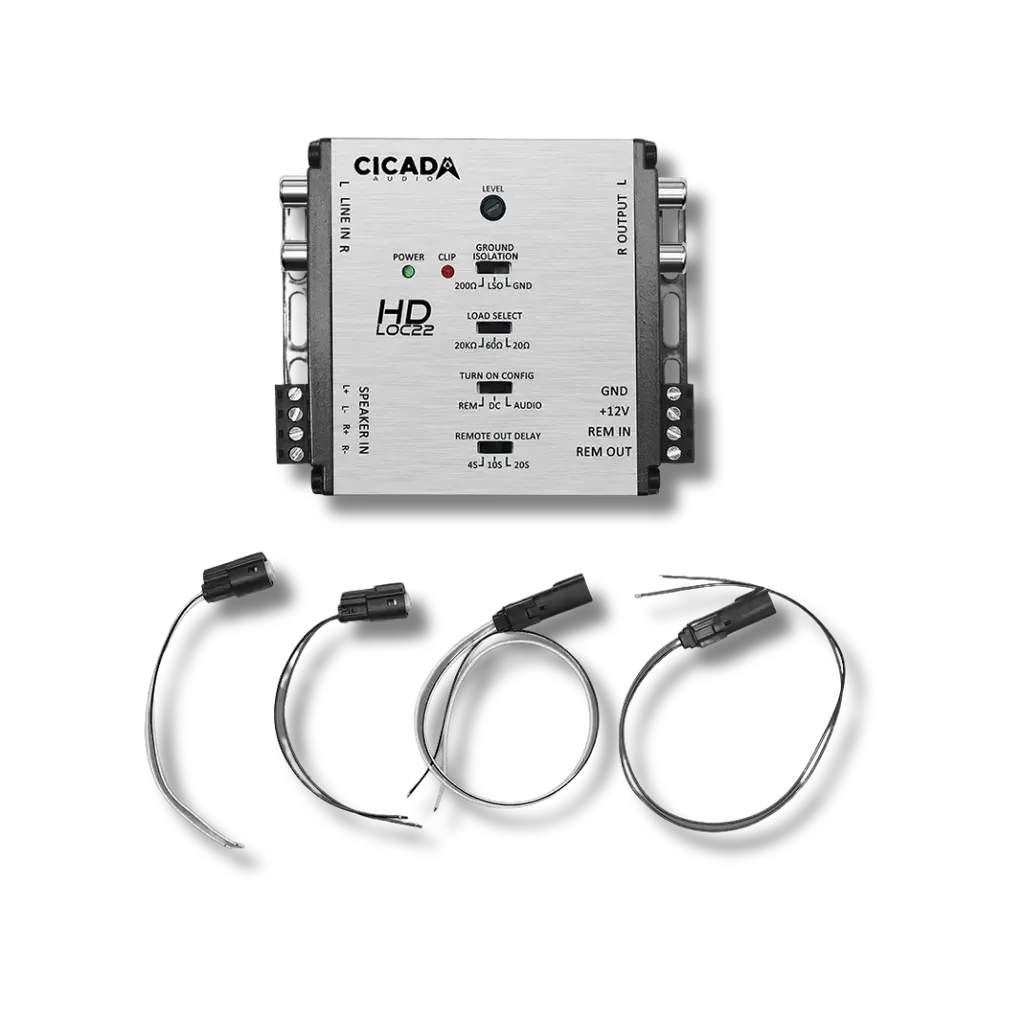

- H-D® Molex® connector integration — plugs directly into factory harness connectors; no wire tapping or splicing at the radio output.
- Flexible turn-on and load configuration — VOX, REM, or DC offset turn-on methods; selectable load (20kΩ @ 60Ω or 20Ω) to suit different factory radio output stages; remote out delay of 4, 10, or 20 seconds for amplifier sequencing.
The Bottom Line
High-output 2-channel LOC for 2014+ H-D® factory radios — 10V output, H-D® Molex® connectors, three turn-on methods, adjustable remote delay. For a complete T-harness solution, see the HDTSLINKv2.
Add to cart above.
Specifications
| Channels | 2 |
| Maximum Output | 10V |
| Selectable Load | 20kΩ @ 60Ω or 20Ω |
| Turn-On Methods | VOX / REM / DC offset |
| Remote Out Delay | 4 / 10 / 20 seconds (selectable) |
| Connectors | H-D® Molex® (included) |
| Bike Application | 2014+ Harley-Davidson® factory radios |
