Cicada Audio HDPG6K – 6 AWG Power & Ground Amplifier Wiring Kit for Harley-Davidson®
$170.00 AUD
SKU: HDPG6K
6 AWG power and ground wiring kit for Harley-Davidson® amplifier installations. Pre-terminated, pre-loomed, plug-and-play.

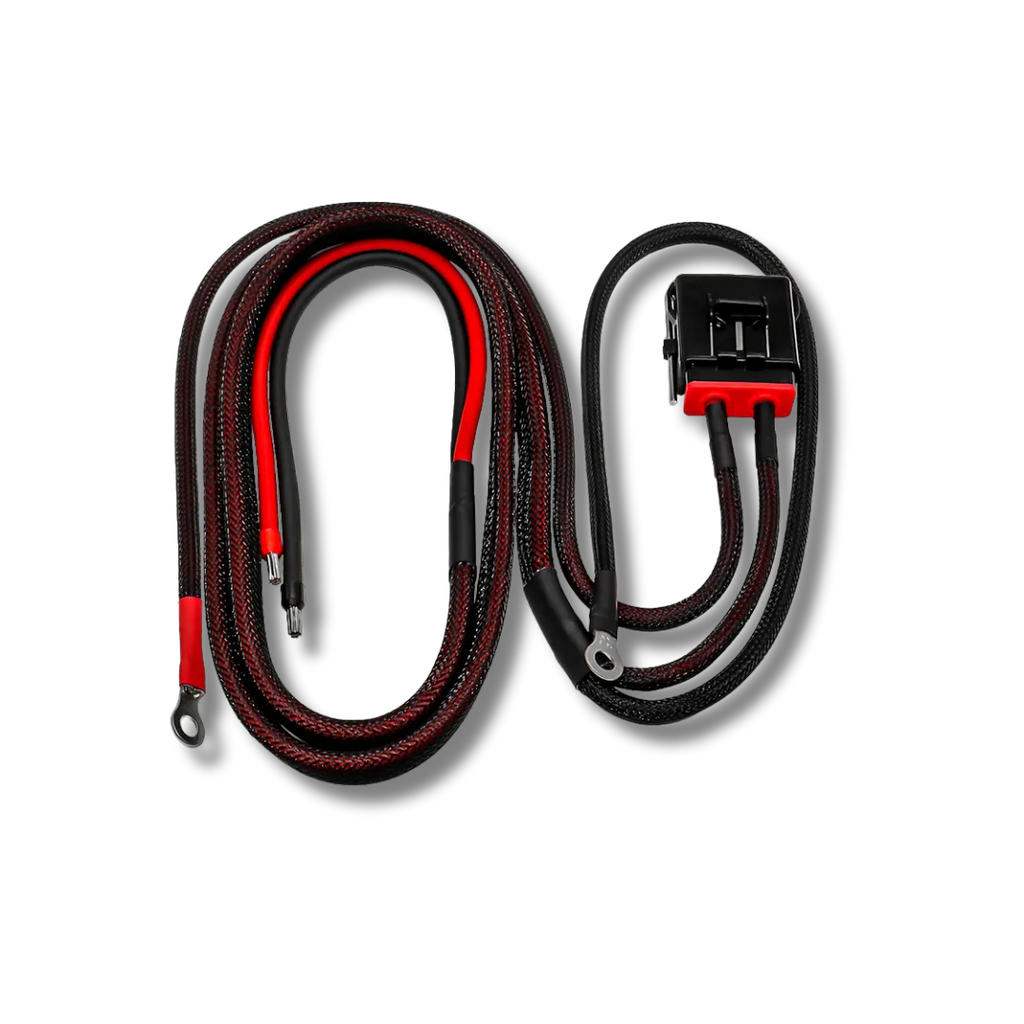

The Cicada Audio HDPG6K is a 6 AWG power and ground wiring kit for Harley-Davidson amplifier installations – 6ft power/ground cables with black over-braid, ring terminals at the battery end, ferrules at the amplifier end, remote trigger wire with H-D plug, waterproof Mini ANL fuse holder, and 60A, 80A, and 100A fuses included.
The HDPG6K handles the power delivery side of a single-amplifier Harley build. 6 AWG is the right gauge for mid-power systems – fairing, front-rear, or saddlebag builds running one amplifier as the backbone of the system. The cable comes pre-cut to length and wrapped in black braided loom; the battery-end connections are pre-fitted with ring terminals, and the amplifier end uses ferrules for a clean, secure landing in the amp's power/ground terminals. The included remote trigger wire has an H-D-compatible plug so it lands directly on the factory harness without modification.
Who This Is For
Riders building single-amplifier Harley Touring systems who want a complete, pre-terminated power kit ready to install. The HDPG6K suits most mid-power builds – one 4-channel amplifier powering a full front-rear or saddlebag stage. For higher-powered builds or Tour-Pak® installations where the amplifier is further from the battery, the HDPG2KT (2 AWG) provides lower resistance over the longer run. For lighter single-amp builds, an 8 AWG kit is the compact option.
What This Is Best For
- Single-amp mid-power installations – 6 AWG handles typical 4-channel motorcycle amplifier current draw without significant voltage drop under load.
- Clean, professional finish – black braided loom over the full cable run, pre-fitted terminals at both ends; no stripping, crimping, or sourcing hardware separately.
- Harley factory harness integration – the remote trigger wire includes an H-D-compatible plug so the amplifier remote turn-on connects directly to the factory harness.
- Flexible fusing – 60A, 80A, and 100A Mini ANL fuses included; match fuse rating to the amplifier's actual current draw.
What's in the HDPG6K
The kit includes 6ft of 6 AWG power (red) and ground (black) cable wrapped in black braided loom. The battery end is pre-terminated with ring terminals. The amplifier end uses ferrules for direct connection to the amp's power/ground terminals. Also included: an 18 AWG remote trigger wire with H-D-compatible plug, a waterproof Mini ANL fuse holder, and three Mini ANL fuses (60A, 80A, 100A). On the road: the cable comes cut to length, loomed and terminated at both ends, so the power feed goes in without stripping, crimping or sourcing extra hardware.
Fitment
This part is listed for the platforms below. If your bike is not on the list, tell us the model and year and we will check it for you.
| Model | Years |
|---|---|
| Electra Glide and Street Glide (batwing) | 1998 – 2013 |
| Road Glide | 1998 – 2013 |
| Street Glide, Electra Glide and Ultra (batwing) | 2014 – 2023 |
| Road Glide | 2015 – 2023 |
| Street Glide (batwing) | 2024+ |
| Road Glide | 2024+ |
| Harley trike (batwing) | 2009 – 2013 |
| Tri Glide Ultra (batwing) | 2014 – 2025 |
| Road Glide 3 (sharknose trike) | 2023 – 2025 |
| Harley trike (batwing) | 2026+ |
| Road Glide 3 (sharknose trike) | 2026+ |
Technical Specifications
| Wire Gauge | 6 AWG |
| Cable Length | 6 ft |
| Cable Covering | Black braided loom |
| Battery Termination | Ring terminals (pre-installed) |
| Amplifier Termination | Ferrules (pre-installed) |
| Remote Wire | 18 AWG – H-D plug included |
| Fuse Holder | Waterproof Mini ANL |
| Fuses Included | 60A, 80A, 100A Mini ANL |
