Cicada Audio CH65.4v2 — 6.5″ Pro Coaxial Horn Speakers (4Ω) for Harley-Davidson
Cicada Audio CH65.4v2 — 6.5" Pro Coaxial Horn Speakers for Harley-Davidson Motorcycle Audio Systems (4Ω)
Engineered for riders who demand extreme clarity, efficiency, and volume from factory speaker locations.
The Cicada Audio CH65.4v2 is a 6.5-inch coaxial horn speaker purpose-built for 2014+ Harley-Davidson factory speaker locations. Designed to deliver blistering output with exceptional control, the CH65.4v2 combines a high-efficiency mid-bass driver with a compression-style horn tweeter to cut through wind, pipes, and road noise at highway speeds.
With a 4Ω impedance, ultra-high sensitivity, and premium materials throughout, the CH65.4v2 is ideal for riders who want loud, clean audio without stressing their amplifiers. Whether used in a fairing, lowers, or other factory locations, these speakers deliver professional-grade performance with real-world durability.
Key Features
- Designed for 2014+ Harley-Davidson factory locations: Direct fit for OEM-style speaker mounts.
- Removable threaded horn flange: Allows easy colour customisation.
- High-efficiency horn-loaded tweeter: Brighter sound with superior projection.
- Aluminium tweeter diaphragm: Crisp, detailed highs with excellent heat resistance.

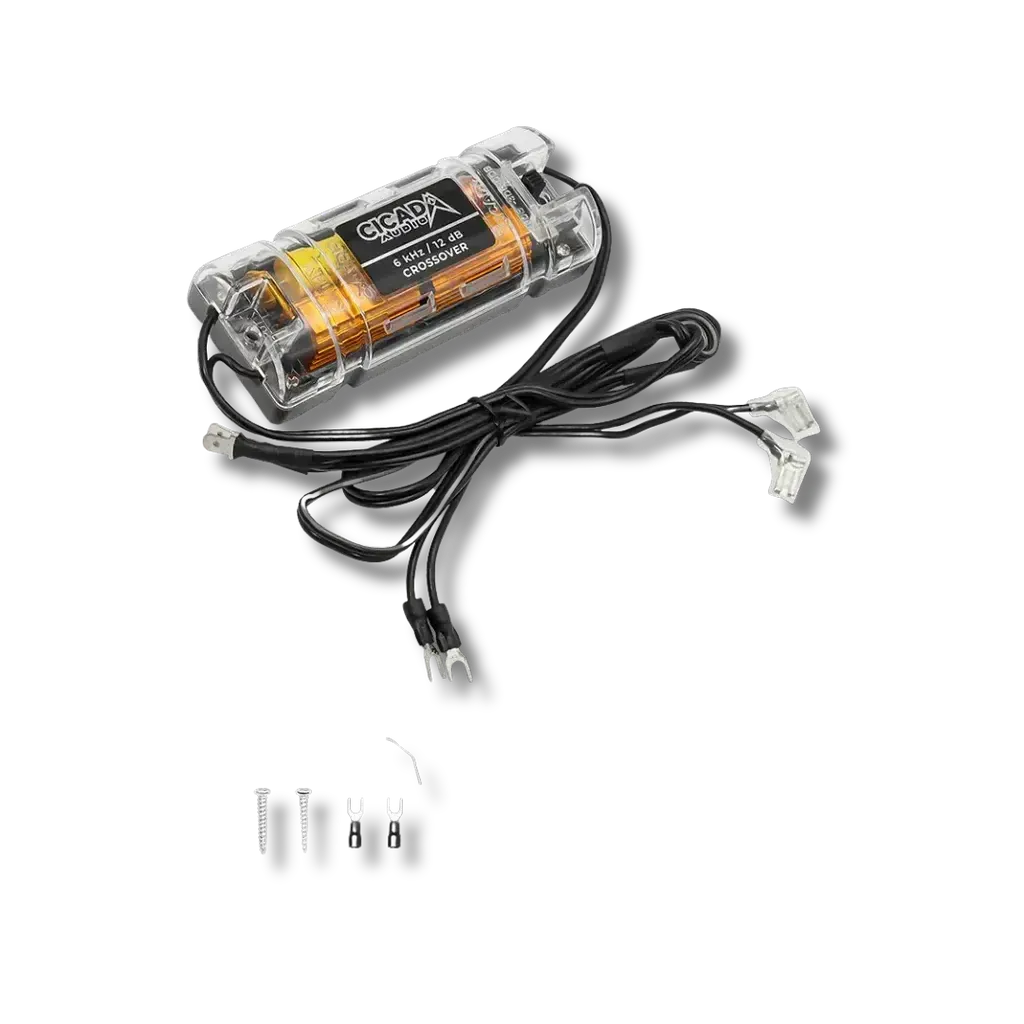

- External 12 dB crossover: Includes optional tweeter attenuation resistors.
- Water-resistant treated paper cone: Built for real motorcycle conditions.
- N35SH neodymium magnet: Lightweight, powerful motor for maximum efficiency.
- Die-cast aluminium basket with Vortex Flow Venting™: Improves cooling and speaker control.
Specifications
| Cicada Audio CH65.4v2 – Technical Specifications | |
|---|---|
| GENERAL | |
| Speaker Size | 6.5" Coaxial Horn Speaker |
| Impedance | 4 Ω |
| Power Handling | 250W RMS / 500W MAX |
| AUDIO PERFORMANCE | |
| Sensitivity | 99 dB (1W / 1M average) |
| Frequency Response | 75 Hz – 20 kHz (±5 dB) |
| COMPONENTS | |
| Mid-Bass Voice Coil | 2.0" high-temp Black Coat™ VC (4Ω) |
| Tweeter Voice Coil | 1.4" aluminium diaphragm, high-temp OFC copper |
| Crossover | External 12 dB with optional tweeter attenuation |
| Magnet | N35SH Neodymium |
| Basket | Die-cast aluminium with Vortex Flow Venting™ |
| PHYSICAL | |
| Mounting Depth | 3.0" (76.2 mm) |
| Mounting Diameter | 5.7" (145.5 mm) |
| WARRANTY | |
| Coverage | 2 Years |
| ⚠️ IMPORTANT – Crossover & Setup Requirements (Read Before Installation) | |
|---|---|
|
All horn speakers have mechanical limits. Regardless of power ratings or advertised “MAX” figures, a speaker can only move so far before mechanical failure occurs. Most horn speaker failures are NOT burned voice coils. Damage is typically caused by over-excursion from running the speaker crossed over too low. This causes tinsel leads to tear away from the voice coil or spider, resulting in permanent damage. |
|
Required High-Pass Crossover Settings
Lower crossover points WILL cause distortion and speaker damage. |
|
Amplifier & Wiring Setup Notes
Always high-pass coaxial horn drivers. |
Why Riders Choose the CH65.4v2
- Extreme clarity at speed: Horn-loaded design cuts through wind and exhaust noise.
- High efficiency: Gets loud without requiring massive amplifier power.
- OEM-friendly fitment: Designed specifically for Harley factory speaker locations.
- Built for real riding: Weather-resistant materials and heat-tolerant components.
Need help choosing amps or DSP settings?
Motorcycle Audio Australia can help configure a system that delivers maximum output while protecting your speakers.
