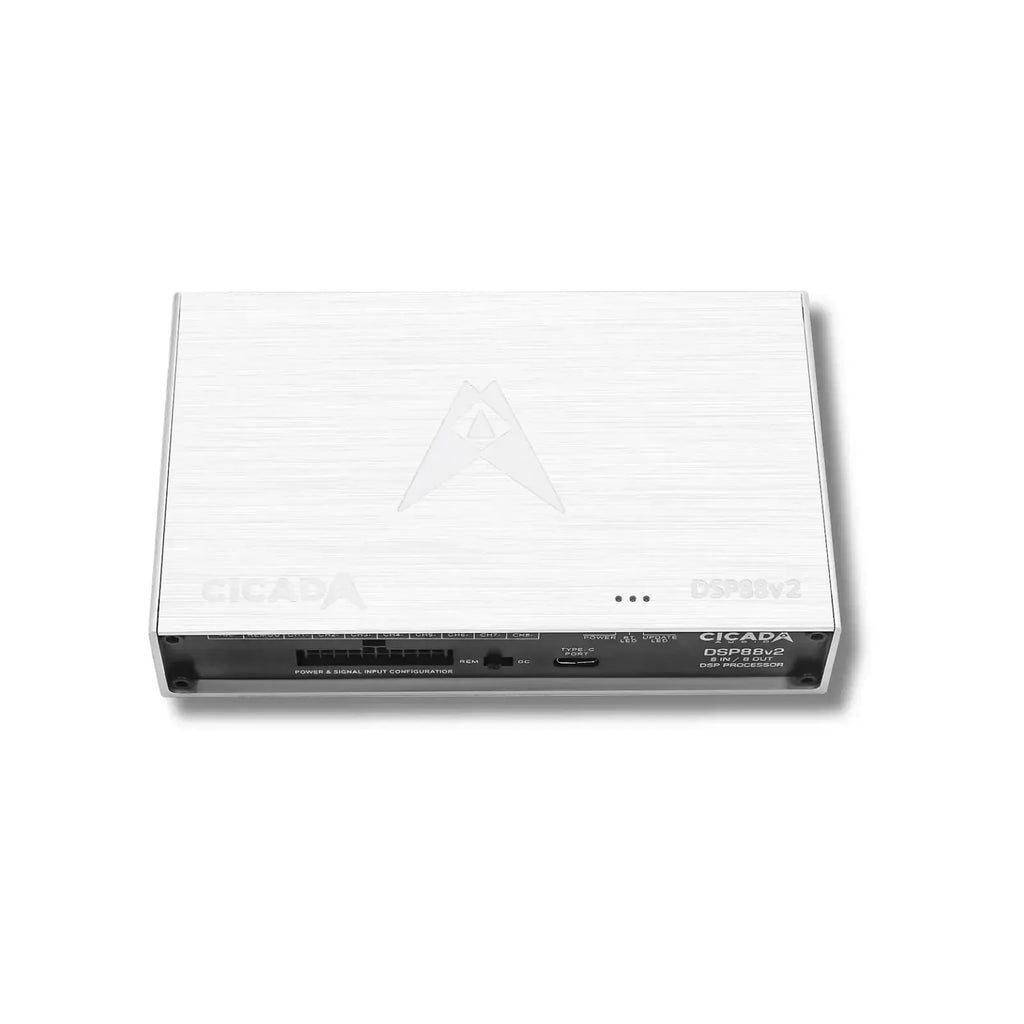

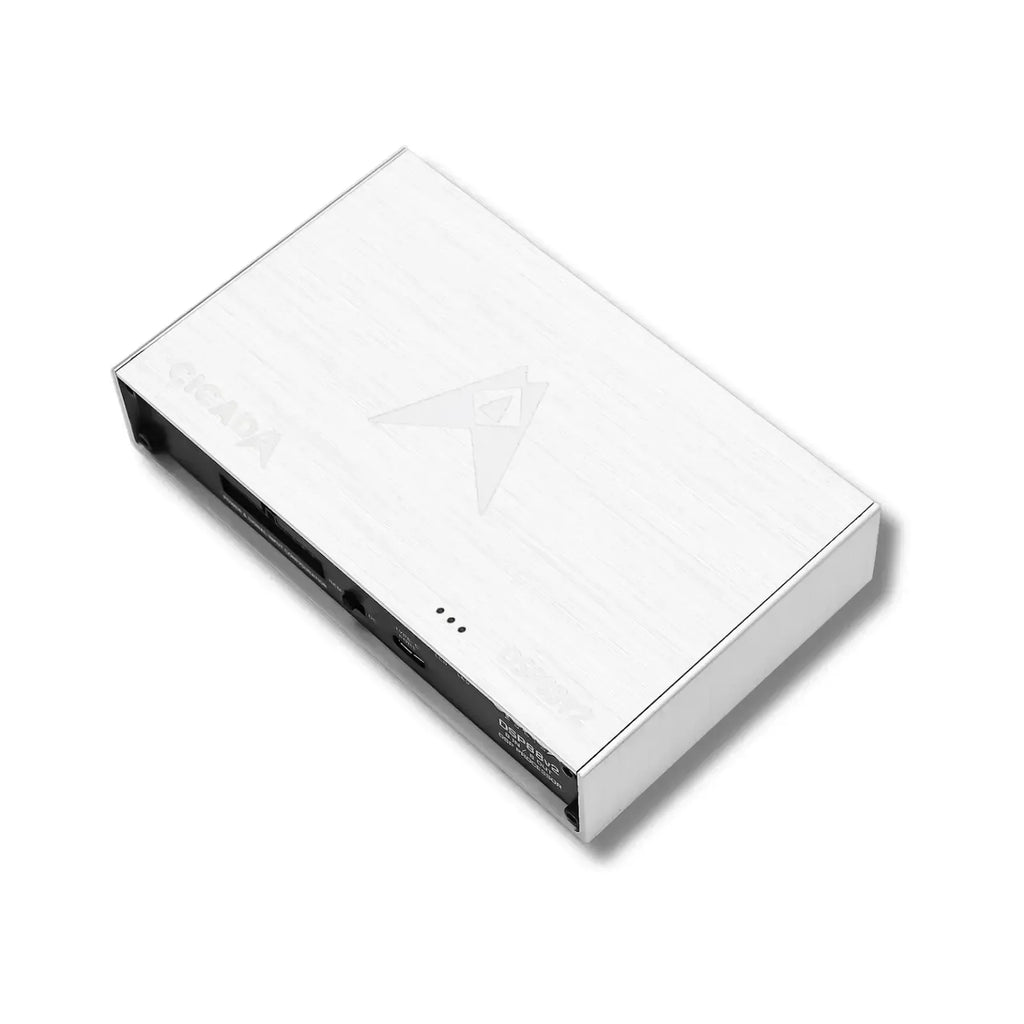

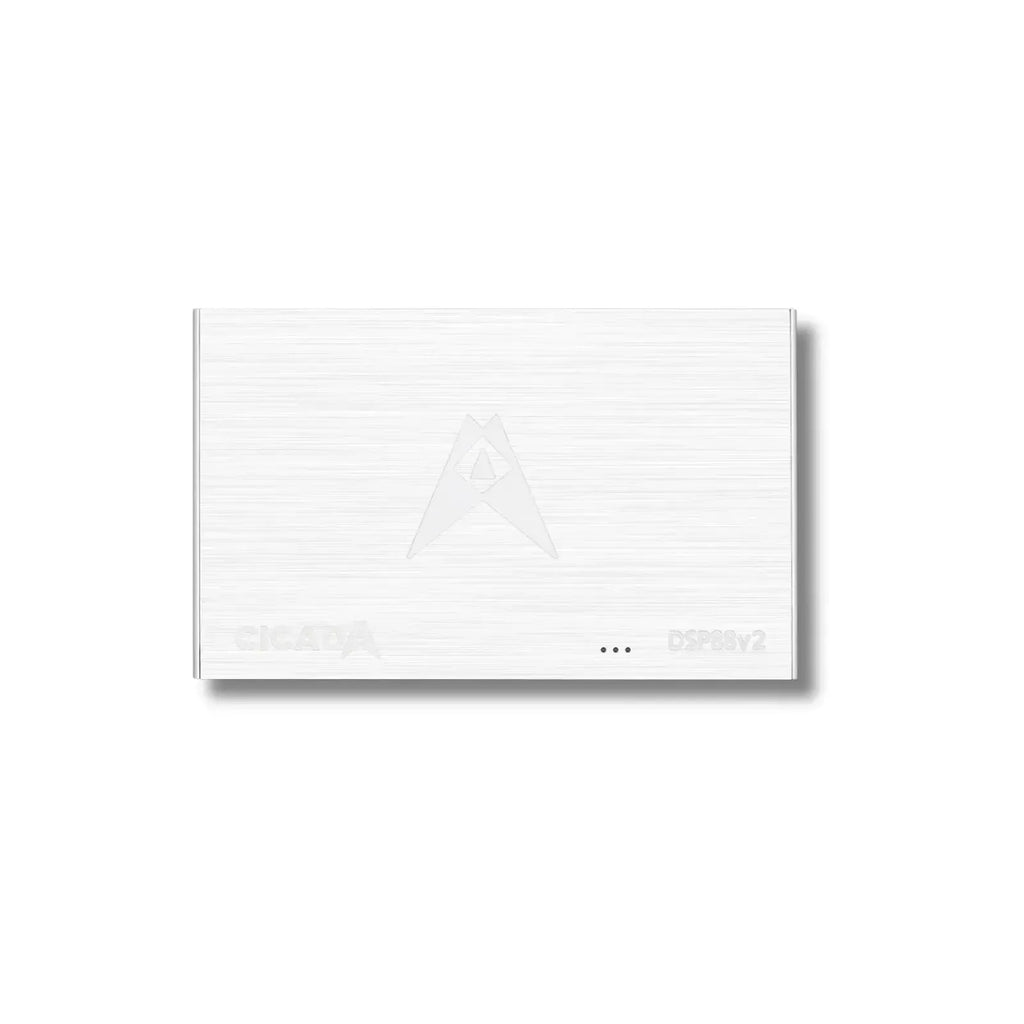

Cicada Audio DSP88v2 — 8×8 Motorcycle DSP Processor (8 In / 8 Out)
The Cicada Audio DSP88v2 is a powerful 8-input / 8-output DSP processor designed for serious motorcycle and automotive audio tuning. With flexible routing, high-voltage outputs, advanced crossover options and precise EQ control, it gives you full command over front, rear, lid and sub stages in complex Harley touring systems.
Built around a high-speed 32-bit DSP core with 24-bit ADC/DAC stages, the DSP88v2 combines excellent audio performance with compact dimensions that make it easy to mount in fairings, saddlebags or side covers.
Key Features
- 8 Inputs / 8 Outputs: Supports multi-amp and multi-speaker-stage systems.
- High/Low Level Inputs: Integrates with factory radios and aftermarket head units.
- Up to 8V Output: Strong signal drive for modern Class-D amplifiers.
- Advanced Crossovers: 20 Hz–10 kHz, 6–48 dB/octave selectable slopes.
- Precise EQ Control: Wide Q range from 0.05 to 20.0 for detailed tuning.
- High-Performance DSP Engine: 147 MIPS, 32-bit processing.
- Compact Chassis: Easy to tuck away in touring bikes.
- PC Software: Windows-based tuning app with preset save/load capability.
Specifications
| Cicada Audio DSP88v2 – Technical Specifications | |
|---|---|
| INPUTS & OUTPUTS | |

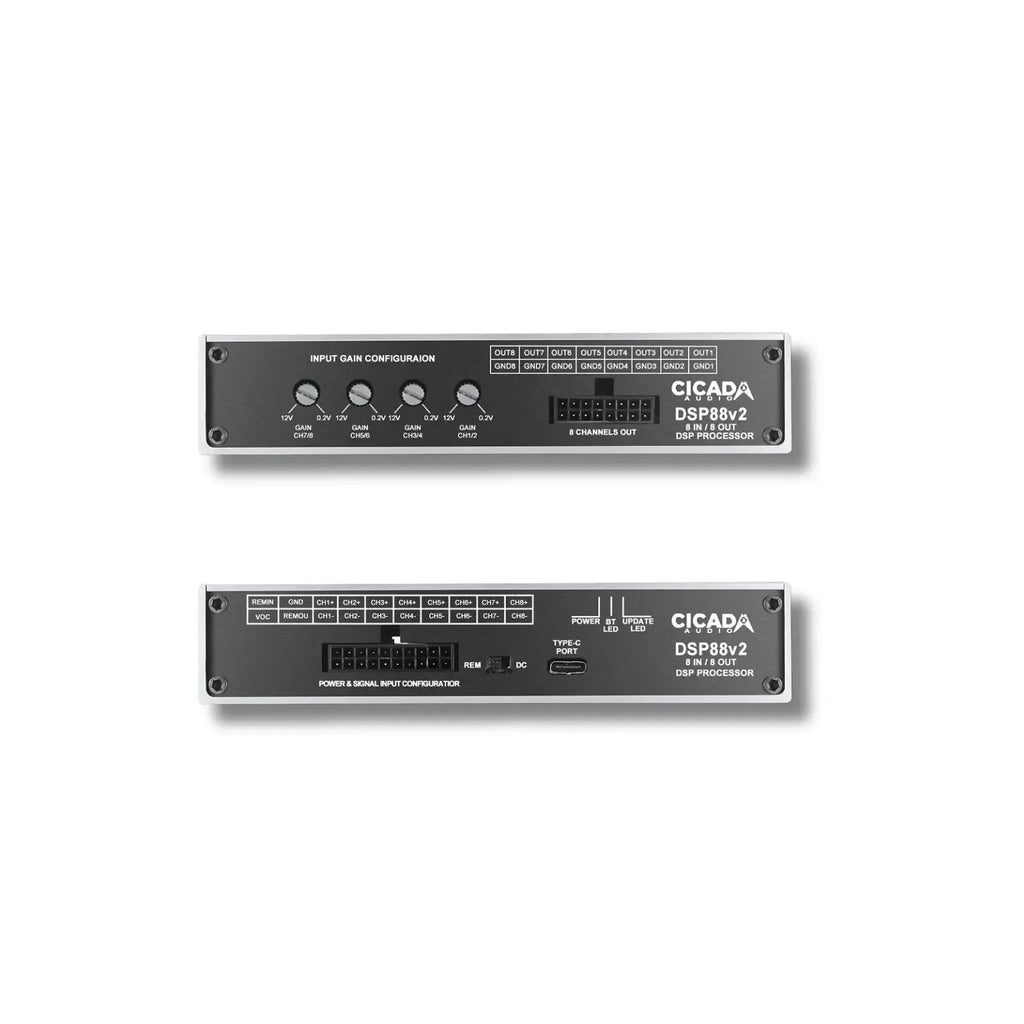

| Inputs | 8 × High/Low Level |
| Outputs | 8 × RCA |
| Input Voltage Range | 0.02 V – 12 V |
| Output Voltage | Up to 8 V (unity gain) |
| Input Impedance | 20 kΩ |
| Output Impedance | 200 Ω |
| AUDIO PERFORMANCE | |
| Frequency Response | 20 Hz – 20 kHz ±0.5 dB |
| THD+N | <1.0% |
| Signal-to-Noise Ratio | >100 dBA (A-weighted) |
| DSP ENGINE | |
| DSP Speed | 147 MIPS |
| DSP Precision | 32-bit (72-bit accumulators) |
| DAC | 24-bit, 108 dB dynamic range, -98 dB THD+N |
| ADC | 24-bit, 105 dB dynamic range, -98 dB THD+N |
| CROSSOVER & EQ | |
| Crossover Frequency | Variable 20 Hz – 10 kHz |
| Crossover Slopes | 6 / 12 / 18 / 24 / 36 / 48 dB per octave |
| EQ Q Range | 0.05 – 20.0 (selectable) |
| POWER & PHYSICAL | |
| Operating Voltage | 9 – 16 V DC |
| Dimensions (H × W × D) | 1.26" × 4.04" × 5.12" (32 × 102.5 × 130 mm) |
Harley & Motorcycle Use
- Ideal for multi-amp Harley touring systems (front, rear, lids, subs).
- Perfect when upgrading to aftermarket head units or keeping the OEM radio with full tuning control.
- Great for riders who want repeatable, sharable tunes – presets can be saved and loaded between DSP88v2 units.
Building a multi-stage Harley audio system?
Motorcycle Audio Australia can help design a complete amp and speaker combination around the DSP88v2.
