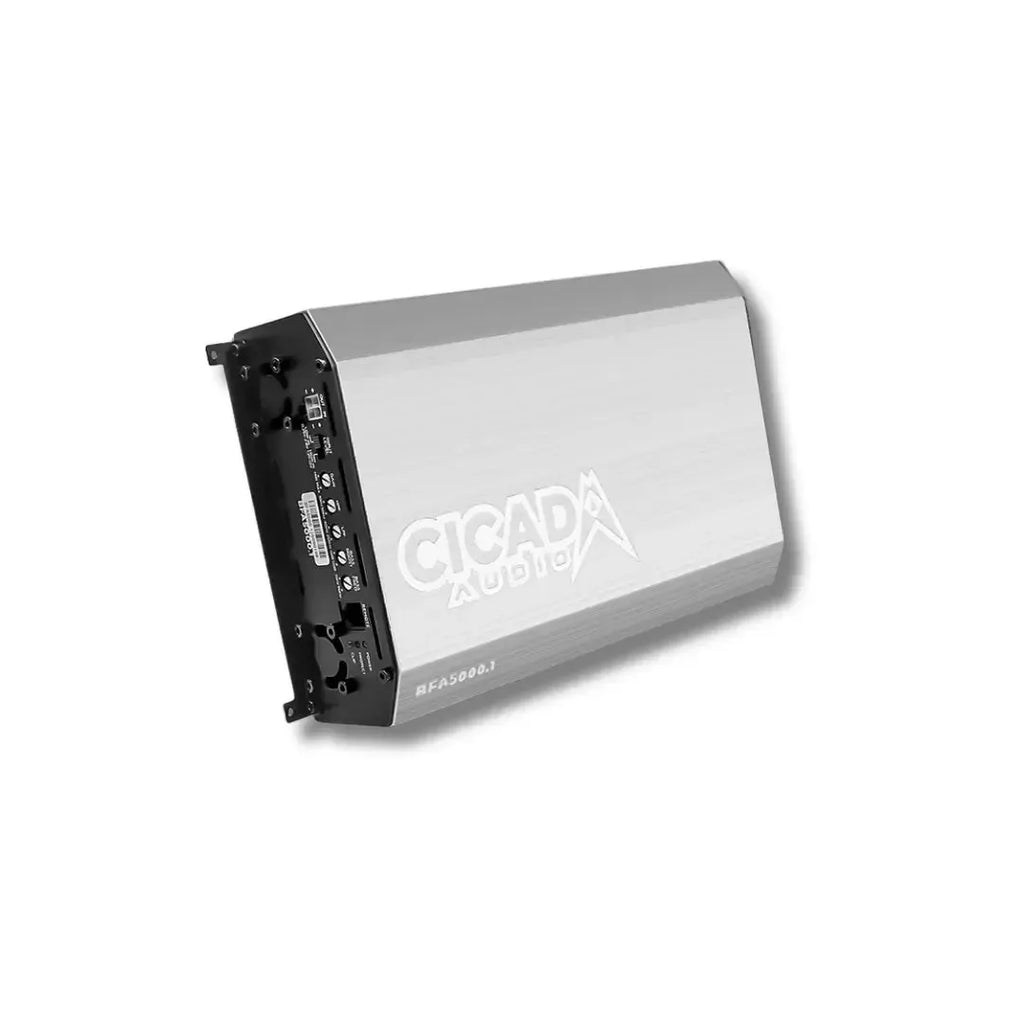

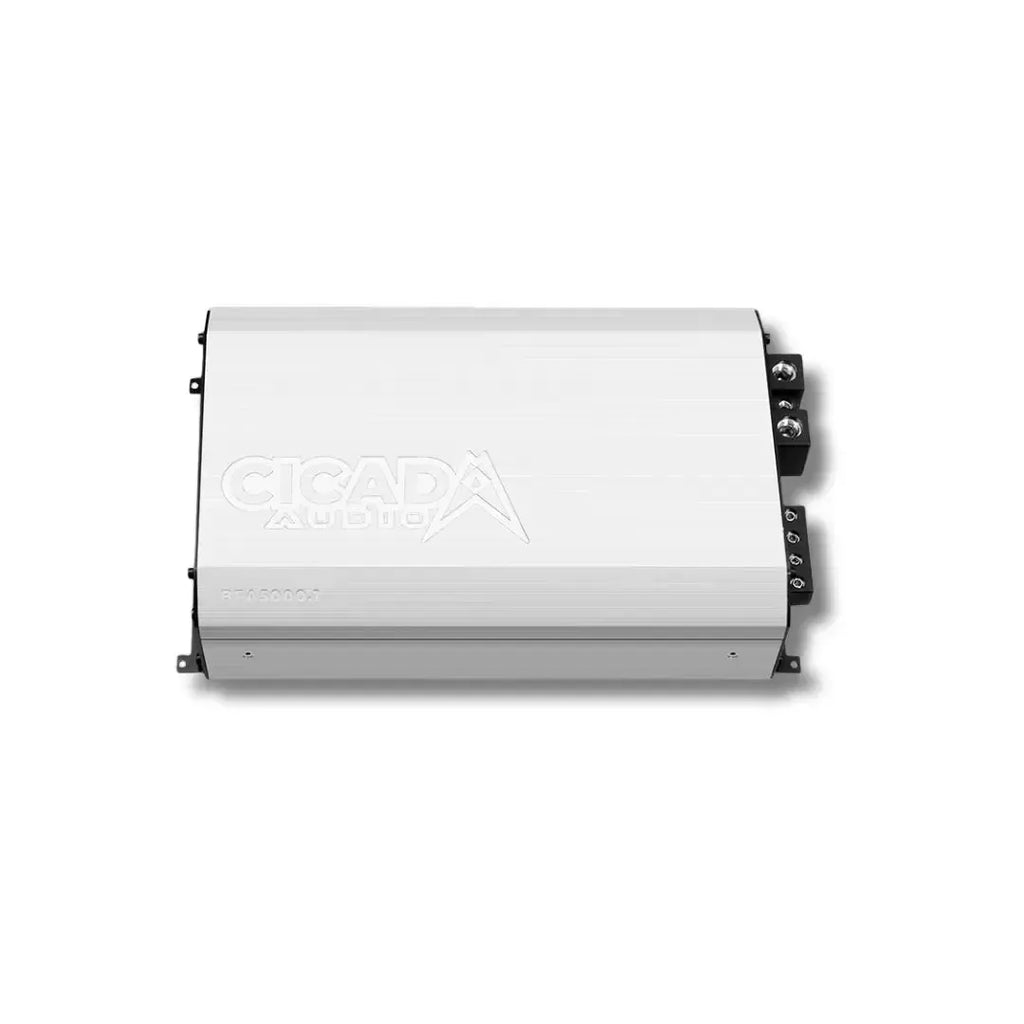

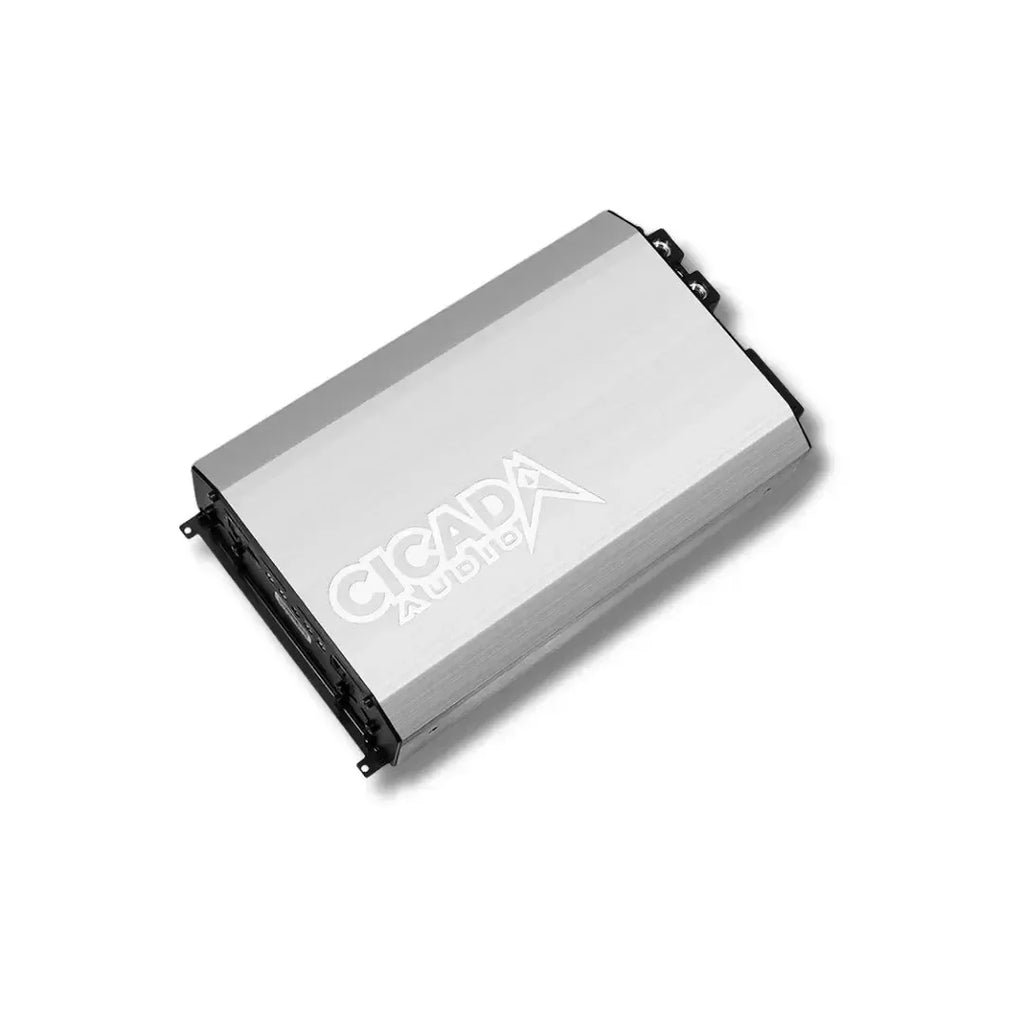

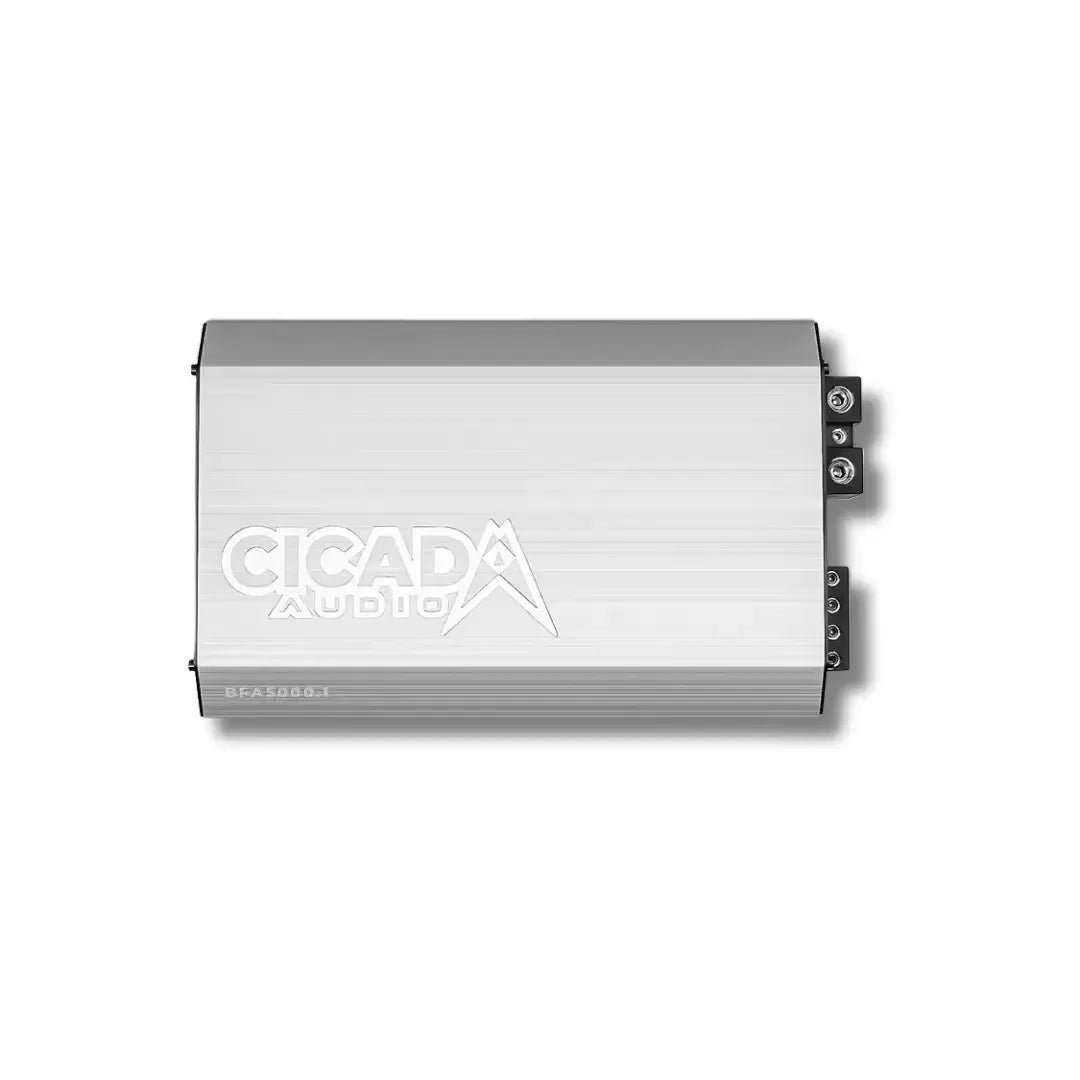

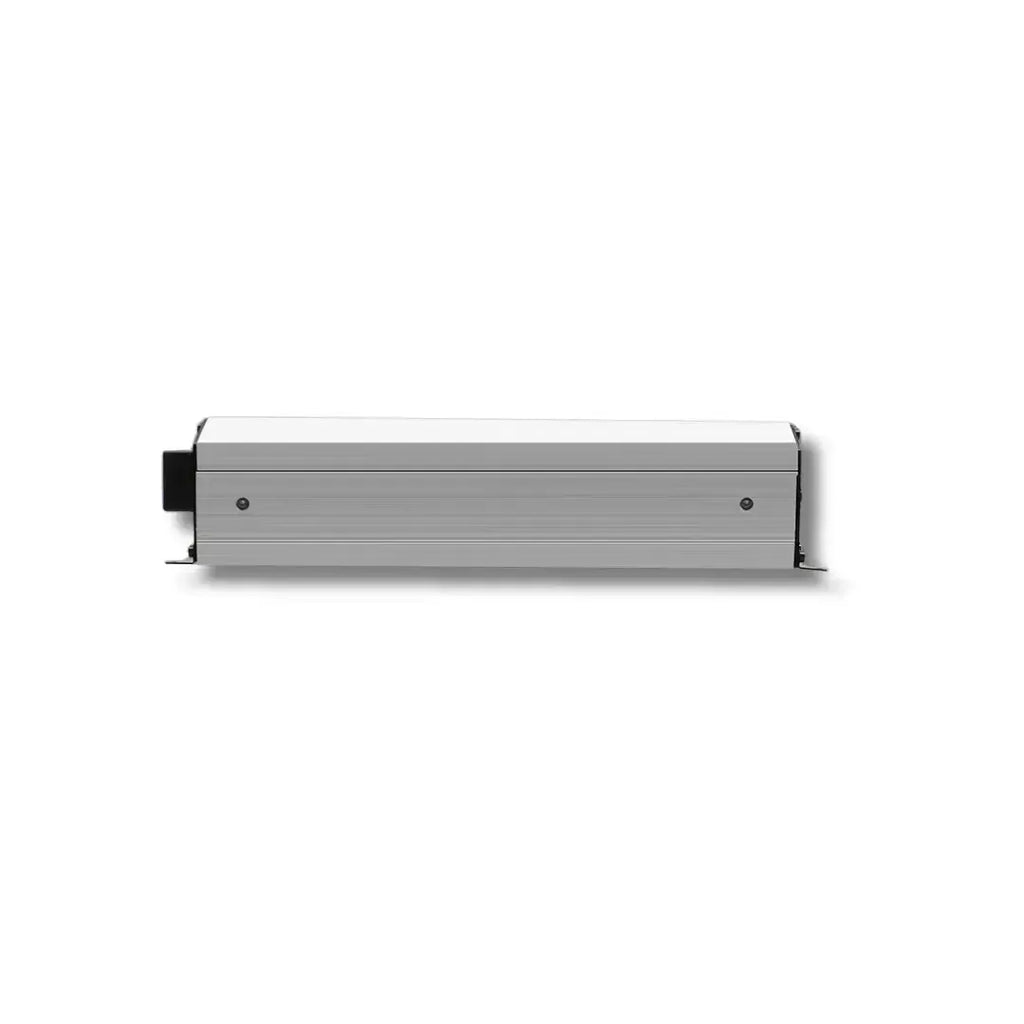

Cicada Audio BFA5000.1 — 1-Channel Extreme-Power Class-D Motorcycle Subwoofer Amplifier (5,000W RMS @ 2Ω)
Cicada Audio BFA5000.1 — Extreme 5,000W Mono Class-D Amplifier for Motorcycle Subwoofers & SPL Bagger Builds
This is the biggest, baddest mono amplifier Cicada has ever built — and it’s motorcycle ready.
The Cicada Audio BFA5000.1 is an ultra-high-output Class-D mono amplifier engineered to deliver up to 5,000W RMS @ 2Ω from a compact, motorcycle-friendly chassis. Designed for SPL-style Harley baggers, extreme subwoofer systems, and riders who want truly earth-moving bass, the BFA5000.1 provides unmatched output, stability, and control.
With oversized power connections, advanced thermal design, and vibration-resistant construction, this amplifier thrives in real motorcycle environments — enclosed saddlebags, high heat, long rides, and heavy electrical demand. If your Harley needs serious low-frequency authority, this is the tool for the job.
Key Features
- Insane RMS power: Up to 5,000W RMS @ 2Ω and 3,000W RMS @ 4Ω.
- Class-D IR® chipset: Efficient, powerful, and optimised for motorcycle charging systems.
- Compact motorcycle-ready chassis: Fits saddlebags, amp racks, or custom enclosures.
- Extreme durability: Conformal-coated PCB protects against moisture, vibration, and dust.

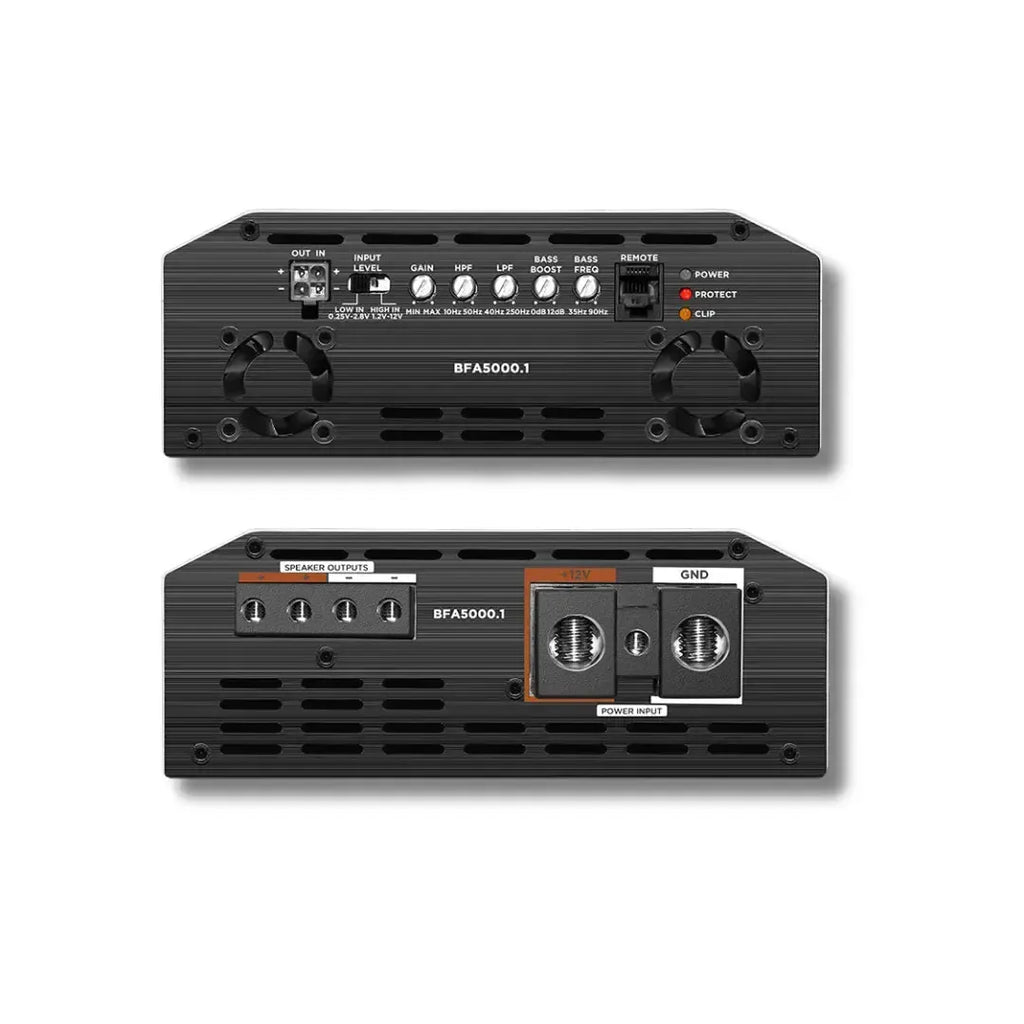

- High-current connectivity: 1/0 AWG power inputs and 12 AWG speaker busbar outputs.
- Dedicated subwoofer controls: LPF 20–250 Hz + Subsonic 20–50 Hz.
- Flexible integration: RCA or Molex® inputs for Harley Boom!Box or aftermarket radios.
- REM / DC auto turn-on: OEM radio compatible.
Specifications
| Cicada Audio BFA5000.1 – Technical Specifications | |
|---|---|
| OUTPUT POWER (RMS) | |
| 4Ω Mono @ 14.4V | 3,000W ×1 |
| 2Ω Mono @ 14.4V | 5,000W ×1 |
| AUDIO PERFORMANCE | |
| Frequency Response | 20 Hz – 250 Hz ±3 dB |
| Signal-to-Noise Ratio | 86 dB (A-weighted) |
| THD + N | Not specified |
| Damping Factor | 200 |
| CROSSOVER & FILTERS | |
| LPF | 20 – 250 Hz |
| Subsonic Filter | 20 – 50 Hz |
| Slope | 12 dB/octave |
| INPUT & ELECTRICAL | |
| Inputs | High-Level / Low-Level RCA or Molex® |
| Operating Voltage | 9 – 16 V DC |
| Turn-On Mode | REM / DC auto turn-on |
| Gain Range | 0.2 – 12 V |
| Current Draw (Music / Max) | 200 A / 450 A |
| Recommended Fuse | 200 A |
| Total Efficiency | 80% |
| PHYSICAL | |
| Chassis | Extruded aluminium heatsink |
| Dimensions | Not published |
Why It Works So Well on Motorcycles
- Unmatched output density: True SPL-grade power from a motorcycle-sized amplifier.
- Handles real-world bagger conditions: Heat, vibration, and enclosed spaces are no problem.
- Massive headroom: Delivers clean, powerful bass at highway speeds.
- Designed for modern subwoofer setups: Ideal for 8", 10", or 12" motorcycle subwoofers.
Fitment
- Harley-Davidson Touring Models (1998–2024)
- Street Glide, Road Glide, Ultra Limited, CVO, Tri Glide
- Designed for saddlebag or custom sub-enclosure installation
- Compatible with Harley Boom!Box and all major aftermarket head units
Recommended System Matching
- Perfect for Cicada high-output subwoofers and midbass enclosures.
- Run at 2Ω for the full 5,000W output.
- Use 1/0 AWG power wire and proper lithium support when possible.
- Pair with a DSP for precise bass shaping and protection.
Building an extreme bass-focused Harley?
Motorcycle Audio Australia can design a full SPL-capable subwoofer stage around the BFA5000.1.
