Cicada Audio 14FLXPCHX-4X4 — 1400W 4-Channel DSP Amplifier & Pro Horn Speaker Complete System for Harley Touring (2014–2023)
Cicada Audio 14FLXPCHX-4X4 — Complete DSP-Powered Pro Horn Audio System for Harley-Davidson Touring Models (2014–2023)
This is not a parts bundle — it’s a fully engineered, DSP-controlled touring audio system.
The Cicada Audio 14FLXPCHX-4X4 is a premium, end-to-end audio upgrade package designed specifically for Harley-Davidson® Touring motorcycles. Built around Cicada’s FLX1400.4P DSP PRO amplifier and matched 2Ω pro coaxial horn speakers, this kit delivers massive output, controlled tuning, and real-world clarity at highway speeds.
Every component in this system has been selected to work together electrically, mechanically and acoustically — eliminating guesswork, avoiding mismatched impedance issues, and ensuring reliable long-term performance on Australian roads.
What This System Is Designed To Do
- Deliver extreme front and rear stage volume without distortion.
- Maintain clarity at highway speeds with pipes, wind and road noise.
- Provide DSP-based tuning control without requiring an external processor.
- Fit cleanly into Harley Touring fairings, saddlebags and amp rack locations.
System Highlights
- DSP-controlled power: FLX1400.4P 4-channel Class-D amplifier with built-in DSP for crossover, EQ and system control.
- Matched 2Ω pro horn speakers: Optimised to extract maximum output from the amplifier.
- Front + rear stage coverage: 6.5" horn speakers up front and 6×9" horn speakers in the bag lids.
- Motorcycle-specific mounting: Includes dedicated Road Glide and Street Glide amplifier racks.
- Complete wiring solution: 4 AWG power and ground wiring with Harley-specific amplifier harness.
System Overview
| System Component | Specification |
|---|---|
| Amplifier | FLX1400.4P — 4-Channel Class-D DSP Amplifier |
| Total System Power | Up to 1,400W RMS (350W × 4 @ 2Ω) |
| DSP Processing | Built-in DSP (crossover, EQ, slopes, tuning control) |
| Front Speakers | CHX65.2 — 6.5" Pro Coaxial Horn Speakers (2Ω) |
| Rear Speakers | CHX69.2 — 6×9" Pro Coaxial Horn Speakers (2Ω) |
| Speaker Impedance | 2Ω front & rear (matched for maximum amplifier output) |
| Front Stage Location | Fairing speaker positions (RG & SG specific grilles included) |
| Rear Stage Location | Saddlebag lids (6×9" cut-in kit included) |
| Wiring | Harley-specific amplifier harness with 4 AWG power & ground |
| Mounting | Dedicated Road Glide & Street Glide amplifier racks included |
| Platform | Harley-Davidson Touring (2014–2023) |
| DSP Requirement | None — DSP is built into the amplifier |

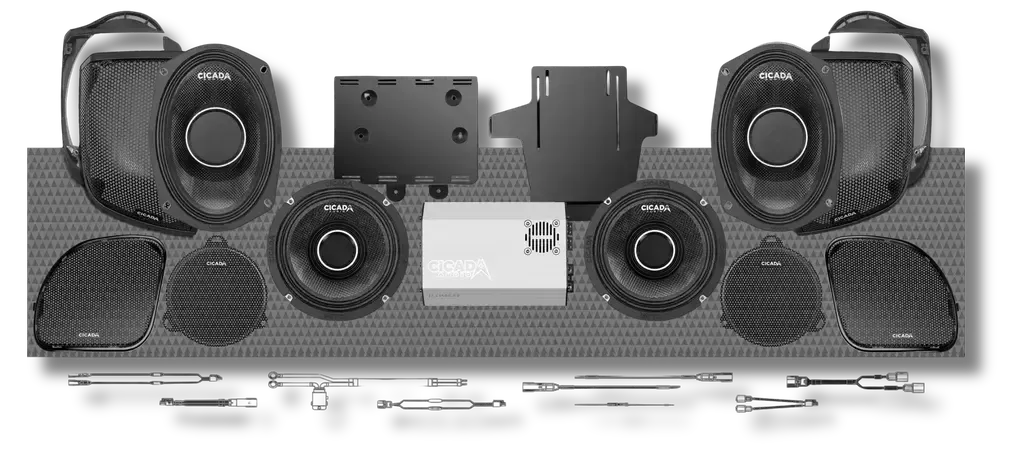

Included Components
- FLX1400.4P DSP PRO 4-channel amplifier
- CHX65-series 6.5" pro coaxial horn speakers (front stage)
- CHX69-series 6×9" pro coaxial horn speakers (rear stage)

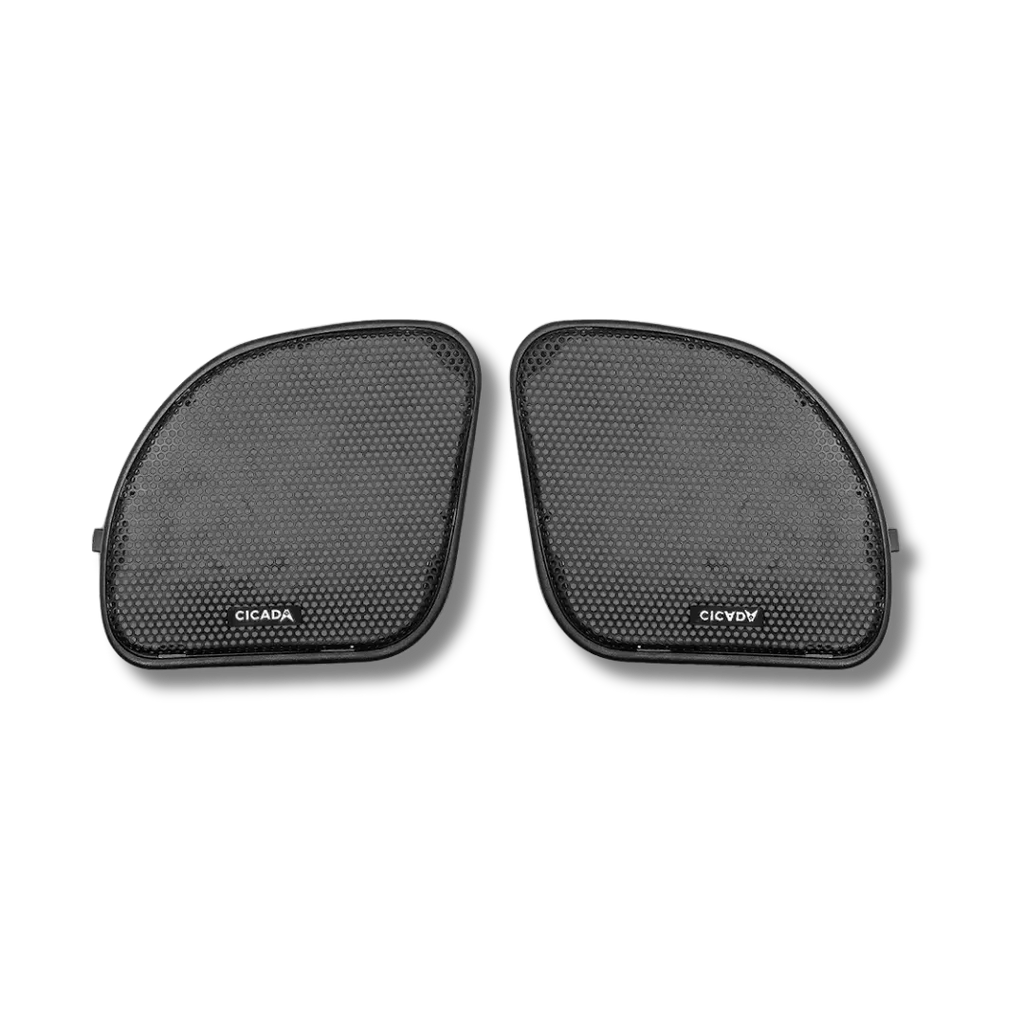

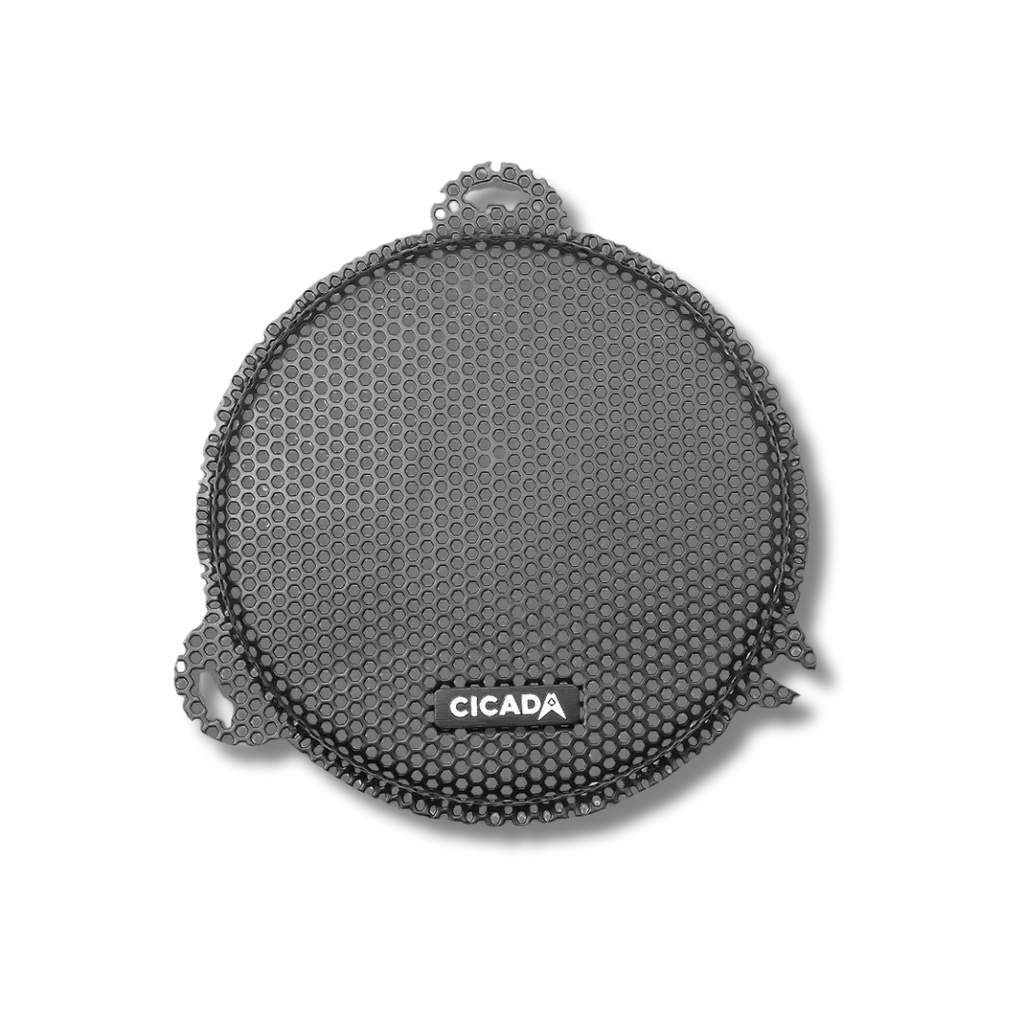

- Road Glide & Street Glide specific speaker grilles

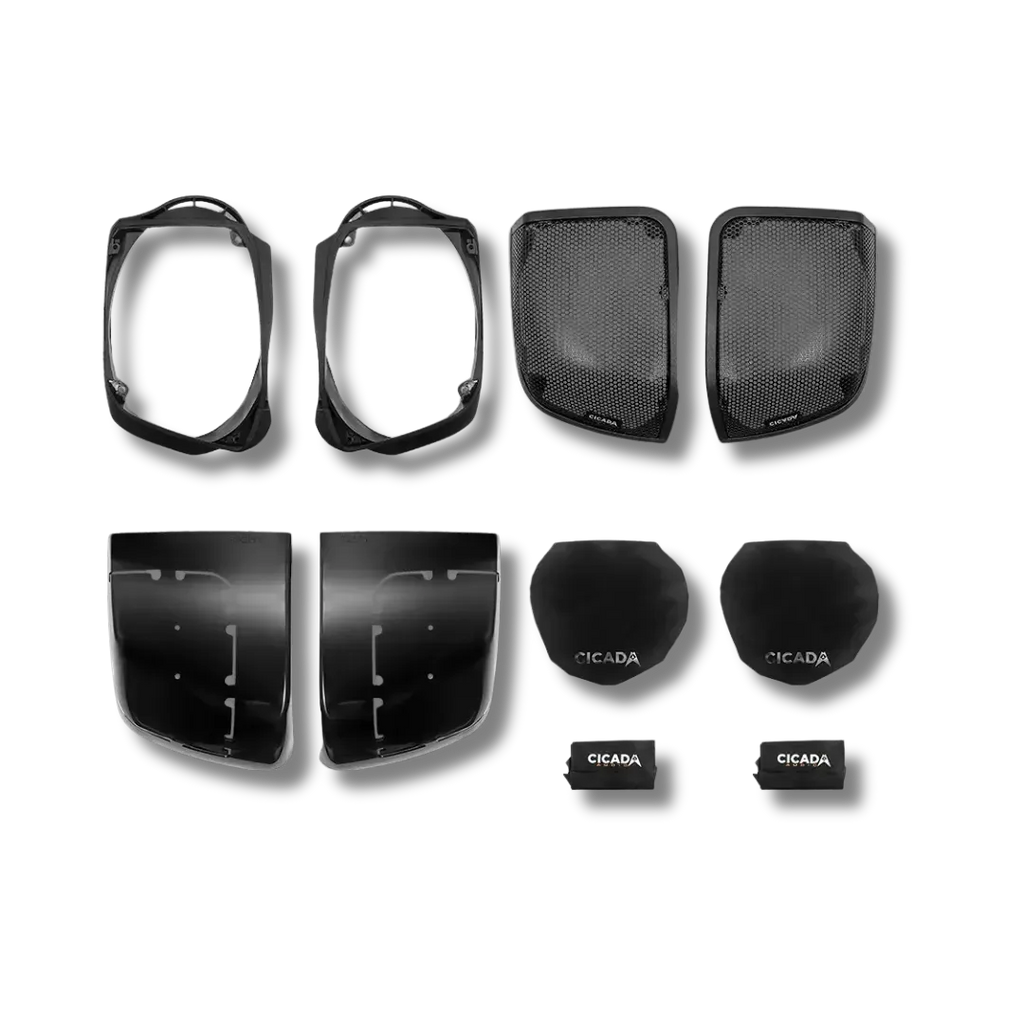

- 6×9" saddlebag lid cut-in kit (2014–2023)

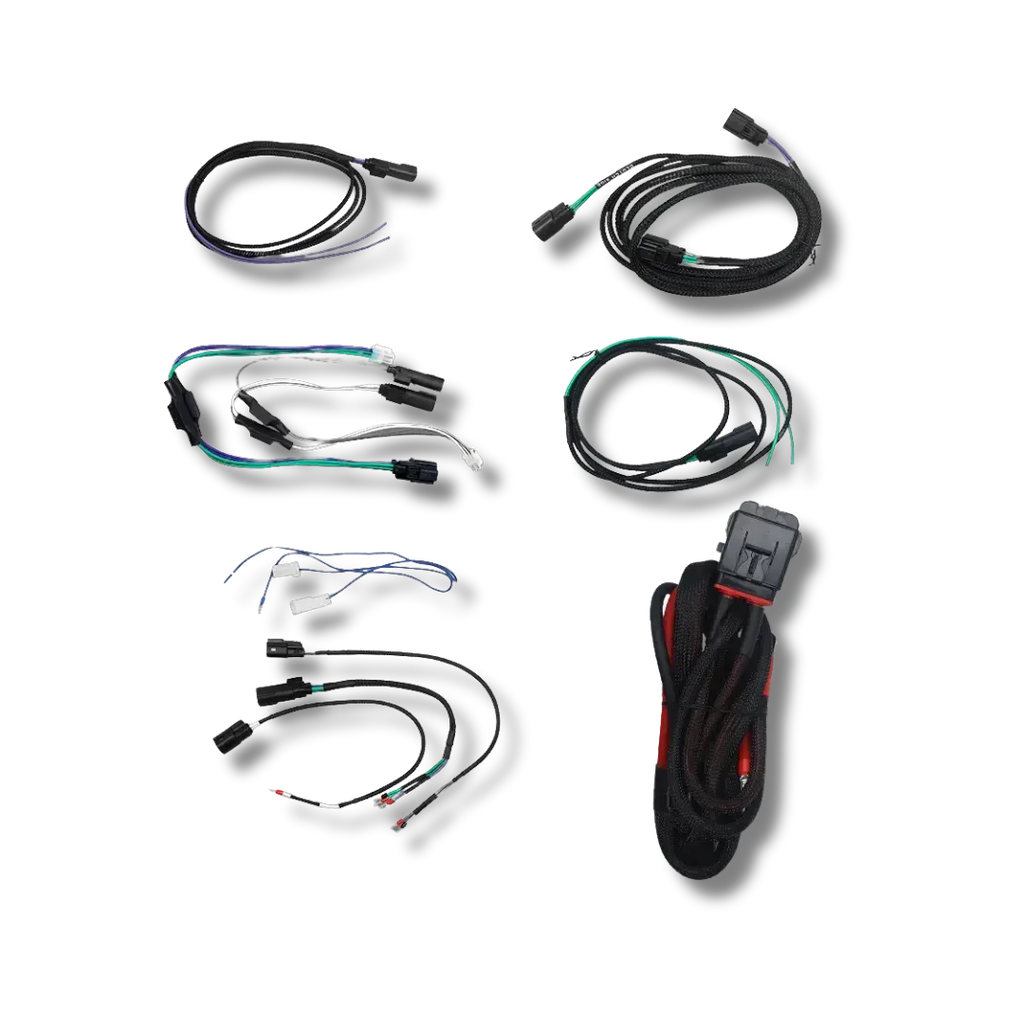

- Harley-Davidson amplifier wiring harness with 4 AWG power & ground
- Road Glide & Street Glide amplifier mounting racks
Amplifier & DSP Overview

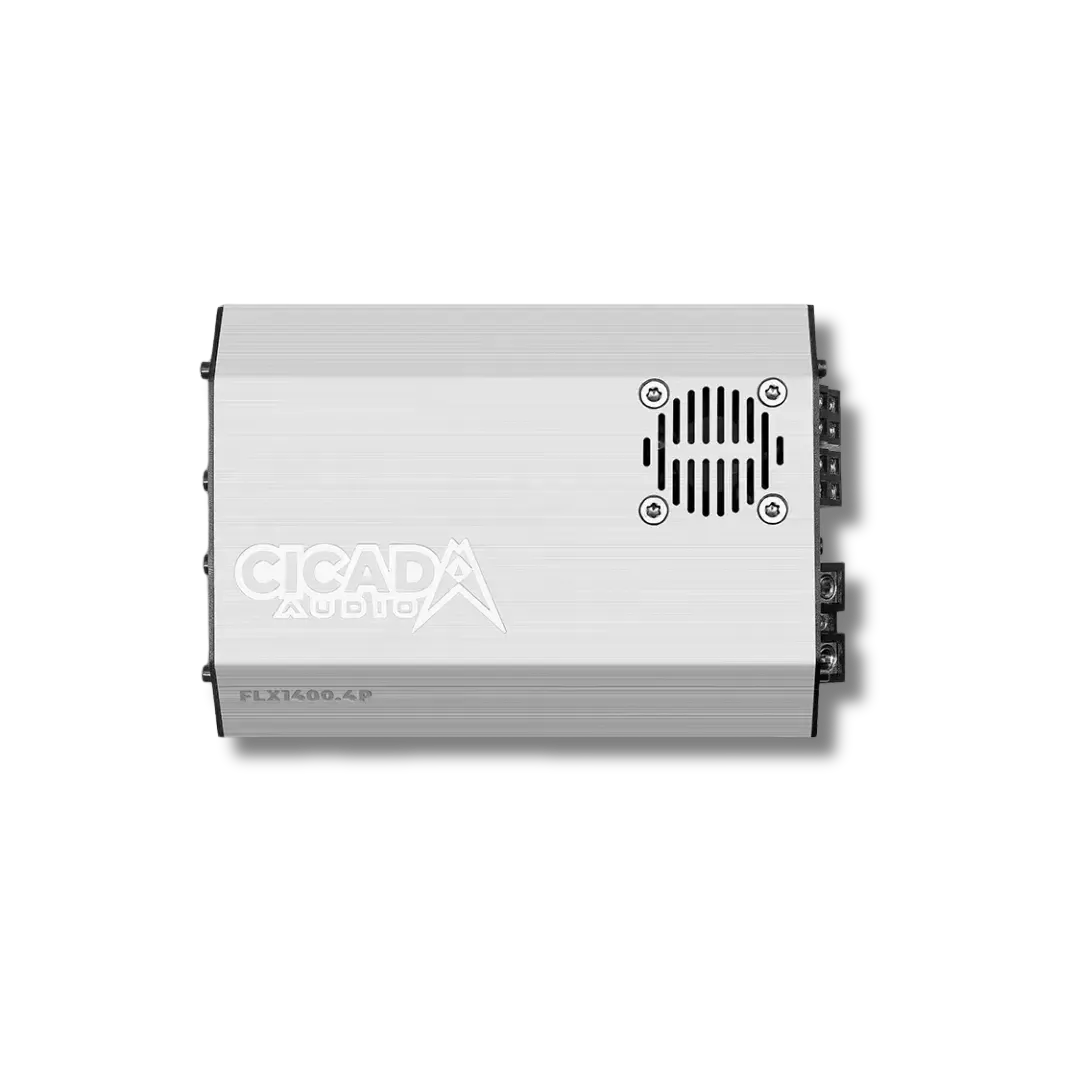

The FLX1400.4P is the heart of this system. It combines high-output Class-D amplification with an integrated DSP, allowing precise control over crossover points, slopes and EQ — without adding an external processor.
- Up to 350W × 4 RMS @ 2Ω
- DSP-controlled HPF / LPF up to 20kHz
- Configurable slopes and multi-band EQ
- Designed for stable operation in motorcycle electrical systems
Speaker Configuration
- Front stage: CHX65.2 6.5" horn coaxials for maximum projection and vocal clarity.
- Rear stage: CHX69.2 6×9" horn coaxials mounted in dedicated bag lids for strong mid-bass and fill.
- 2Ω impedance: Extracts maximum real-world power from the amplifier.
Fitment
Harley-Davidson® Touring Models — 2014 to 2023
- Street Glide
- Street Glide Special
- Electra Glide
- Ultra Limited
- Road Glide
- Road Glide Special
- Road Glide Ultra / Limited
- Tri Glide Ultra (with compatible lid configuration)
Not compatible with 2024+ Touring models using Skyline OS.
Important Notes
- This system includes a DSP amplifier — an external DSP is not required.
- Professional installation and DSP tuning are strongly recommended to achieve best results.
- Designed for high-output builds — correct gain structure and filtering are critical.
Warranty
All components covered by Cicada Audio’s manufacturer warranty.
Need help with installation or tuning?
Motorcycle Audio Australia can assist with professional setup, DSP configuration and system optimisation to get the absolute best performance from this kit.
