6×9-inch coax horn saddlebag ABS dividers for Cicada Audio® CH and CHX 6×9-inch speakers. Controls air volume for cleaner output — damping mat and hardware included, sold as pair.

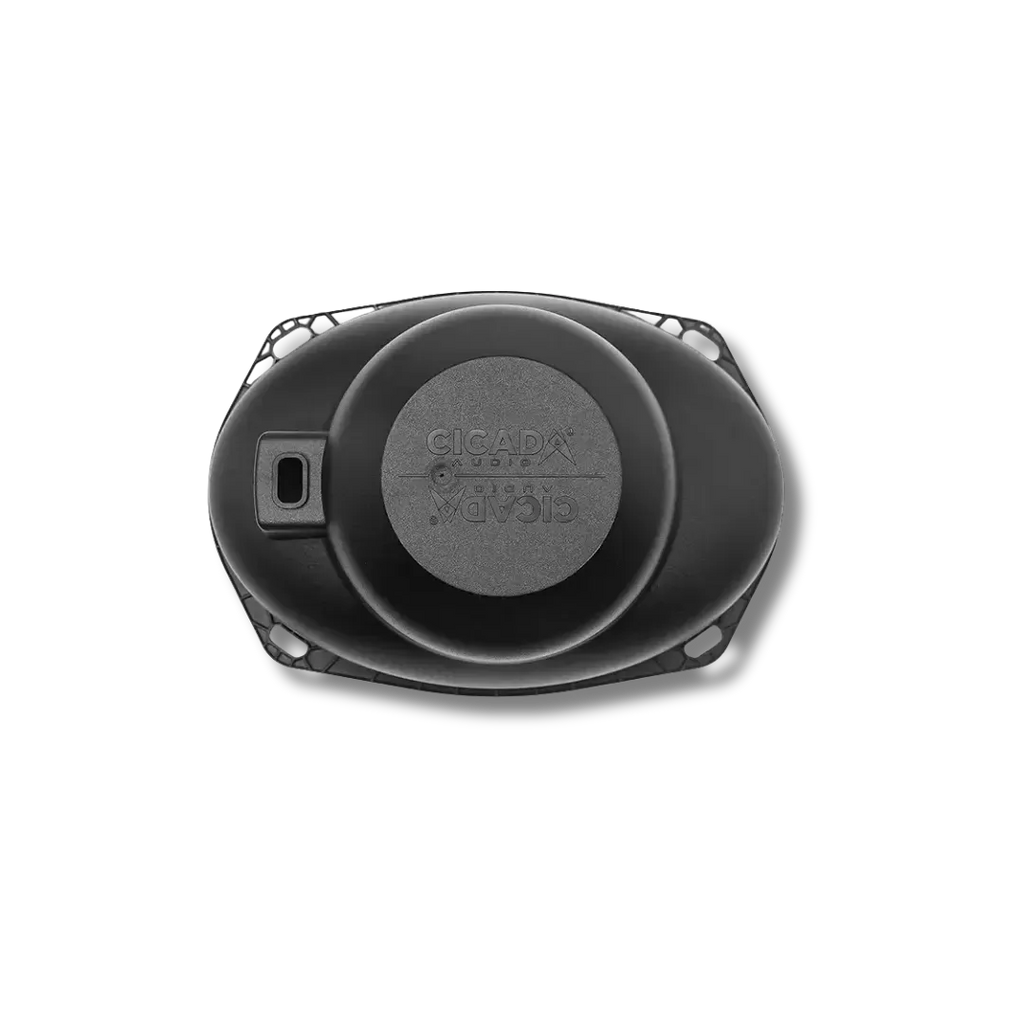

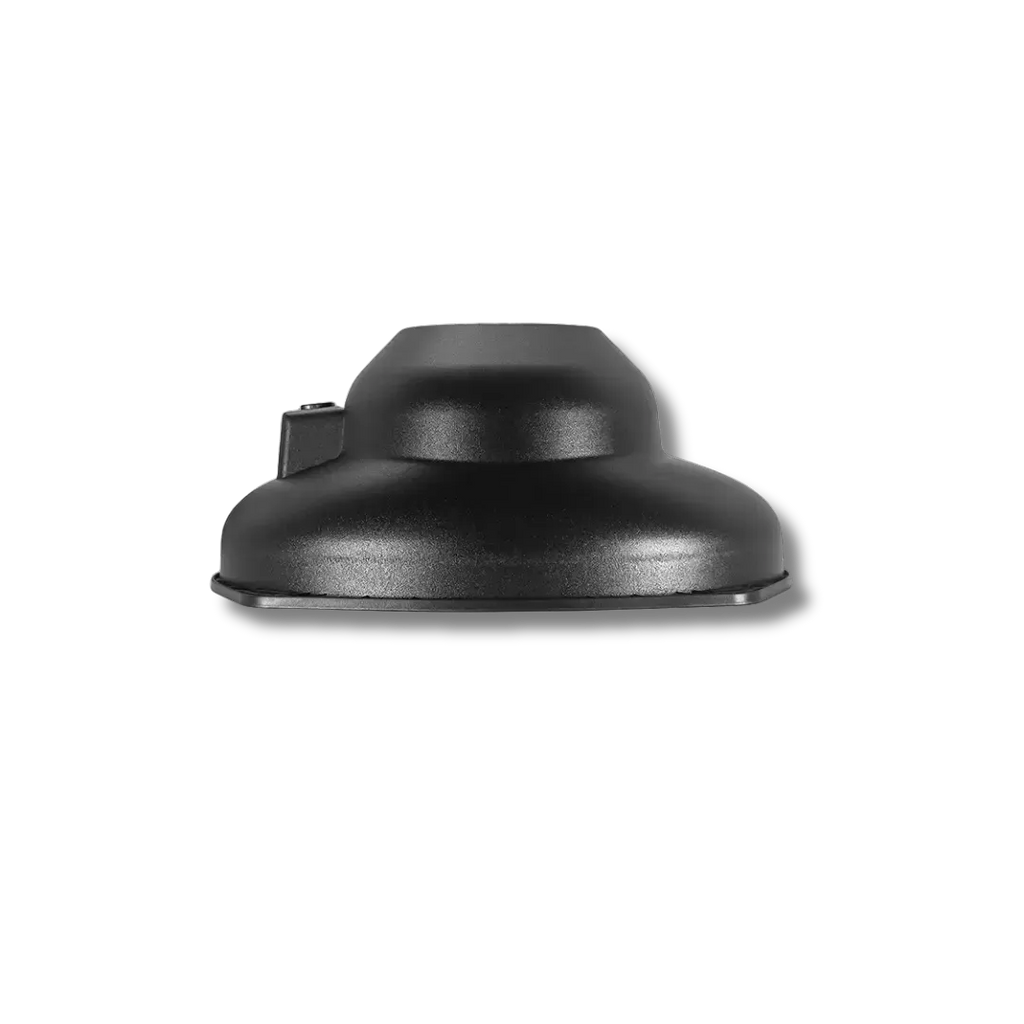

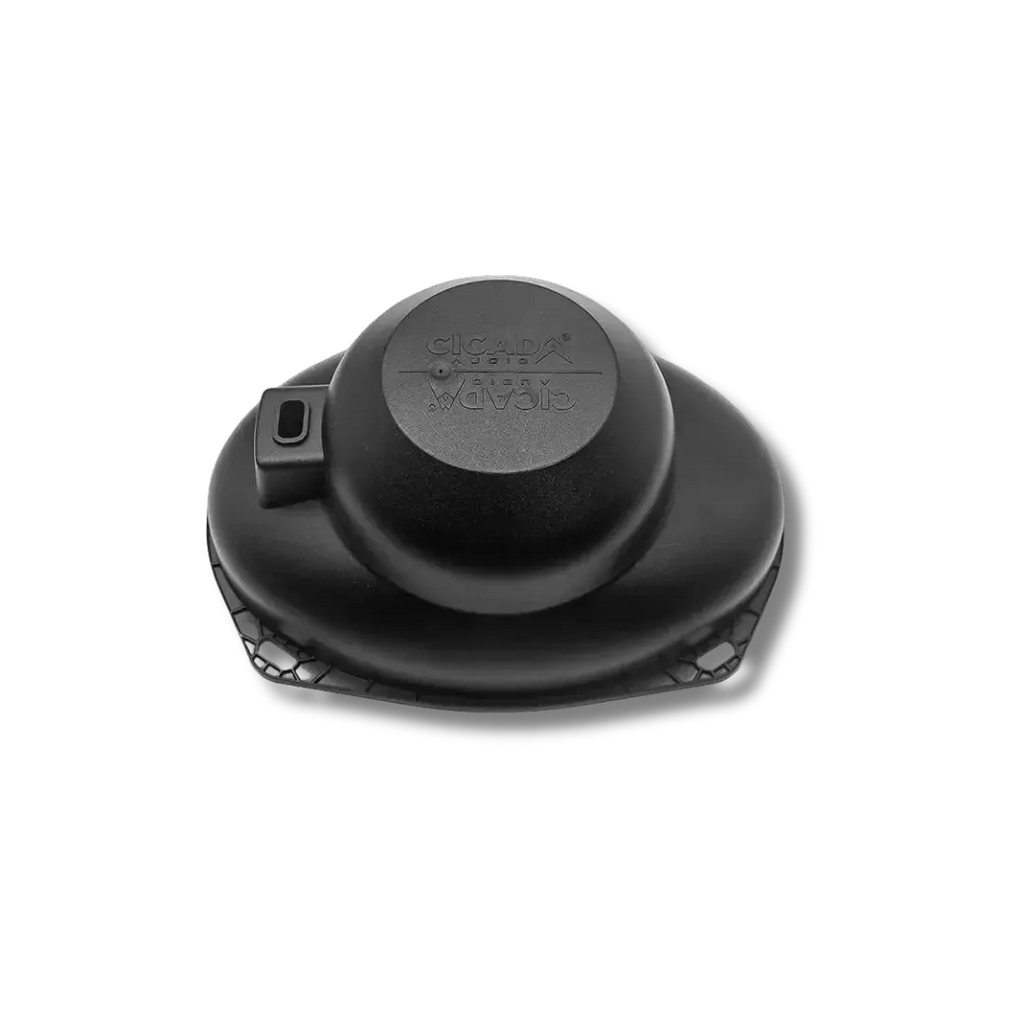

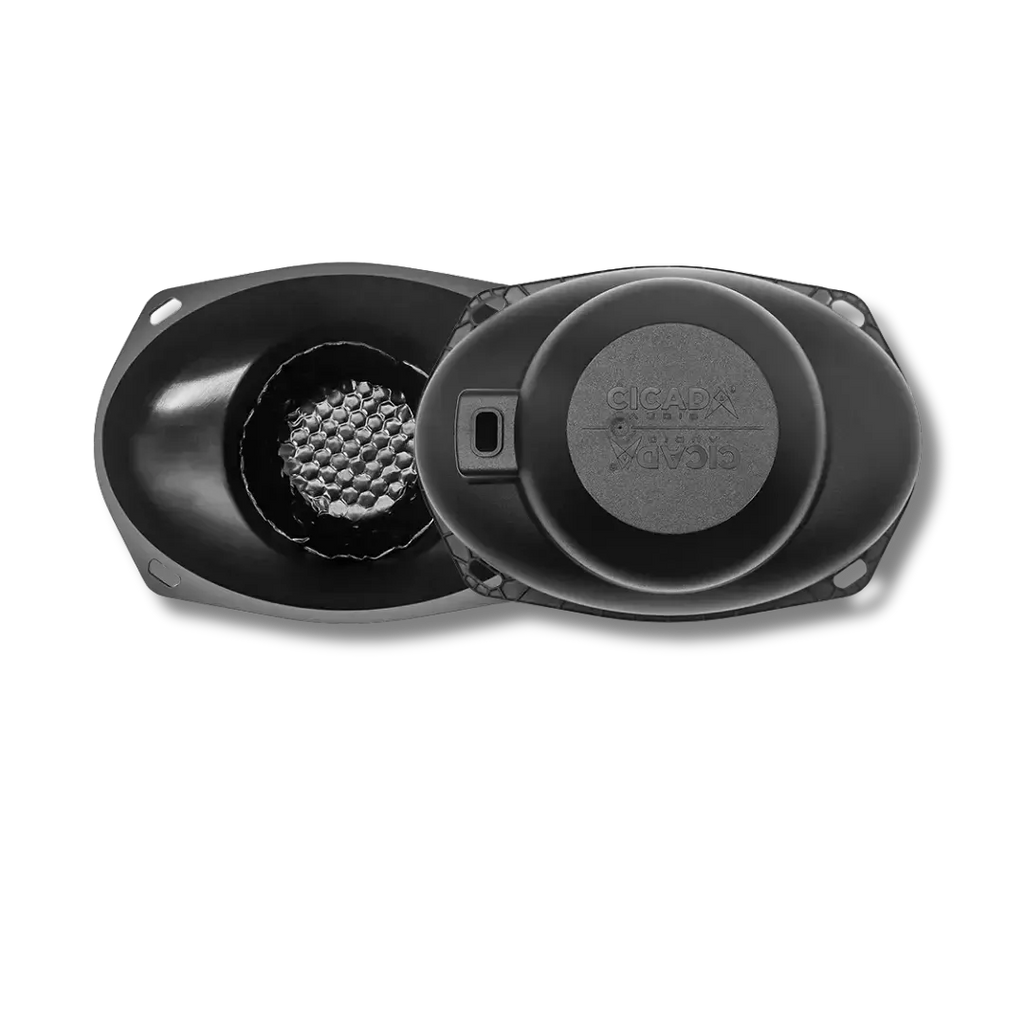

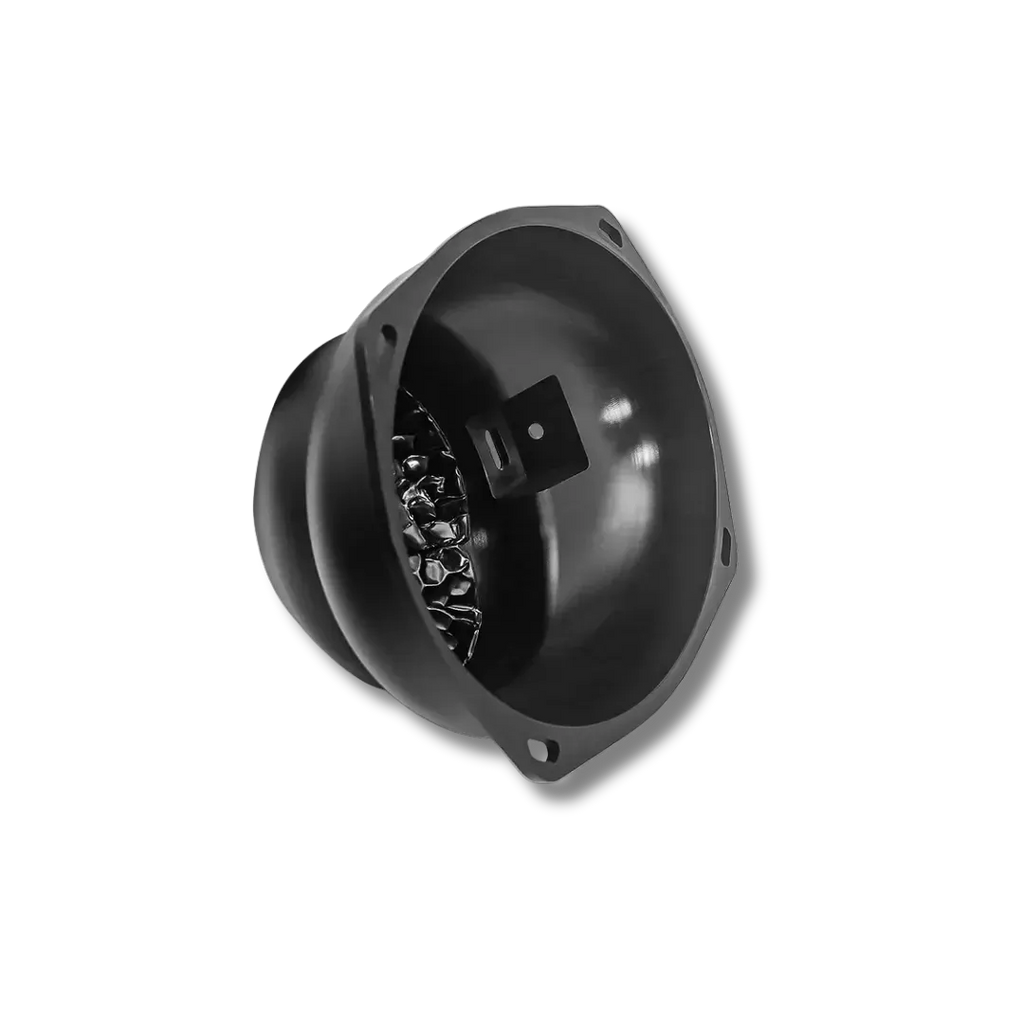

The Cicada Audio CHD69HD is a pair of custom-molded high-grade ABS saddlebag speaker dividers for Cicada Audio® CH and CHX 6×9-inch coax horn speakers — controls the internal air volume behind the speaker to reduce distortion and improve output. Includes a pre-cut damping mat and all installation hardware. Compatible with Cicada Audio® CH and CHX 6×9-inch speakers only. Sold as pair.
Running a 6×9-inch coax horn speaker in a Harley-Davidson® saddlebag without controlling the air volume behind it leads to unloaded cone movement, distortion, and potential driver damage at higher output levels. The CHD69HD divider sits between the speaker and the bag interior, creating the correct air boundary for Cicada Audio® CH and CHX 6×9-inch coax horn drivers. The pre-cut damping mat reduces resonance from the bag structure, and all mounting hardware is included. Note: this divider is designed for CH/CHX coax horn 6×9-inch speakers only — not for the CM69.2X or CM69.4X mid-bass drivers.
⚠️ Critical installation requirement: The amplifier or DSP crossover must be set to 250 Hz at 12–24 dB/octave or higher when using this divider. Any crossover point below 250 Hz will cause distortion and may permanently damage the speaker due to the controlled air space. Damage from incorrect crossover settings is not covered under warranty.
Who This Is For
Builders installing Cicada Audio® CH or CHX 6×9-inch coax horn speakers in Harley-Davidson® saddlebags who need correct air volume management. For 6×9-inch CM69.2X/CM69.4X mid-bass speaker dividers, see the CHD69MHD. For 6.5-inch saddlebag speaker dividers, see the CHD65HD.
What This Is Best For
- Air volume control for CH/CHX 6×9-inch coax horn saddlebag installs — custom-molded ABS divider creates the correct acoustic boundary behind Cicada Audio® CH and CHX 6×9-inch coax horn drivers; prevents unloaded excursion and distortion at higher output levels.
- Compatible with CH and CHX 6×9-inch speakers only — purpose-built for Cicada Audio® coax horn 6×9-inch driver dimensions; not designed for CM69 mid-bass drivers, other brands, or other sizes.
- Pre-cut damping mat included — reduces saddlebag resonance and improves overall sound quality without additional materials required.
The Bottom Line
6×9-inch coax horn saddlebag ABS dividers for Cicada Audio® CH and CHX 6×9-inch speakers — controls air volume, damping mat and hardware included, sold as pair. Crossover must be set to 250 Hz or higher. For CM69 mid-bass dividers, see the CHD69MHD.
Add to cart above.
Compatibility
| Speaker Compatibility | Cicada Audio® CH and CHX 6×9-inch coax horn speakers only |
| Material | Custom-molded high-grade ABS |
| Includes | Pre-cut damping mat, all installation hardware |
| Crossover Requirement | 250 Hz @ 12–24 dB/octave minimum — required to prevent distortion and speaker damage |
| Sold As | Pair |
