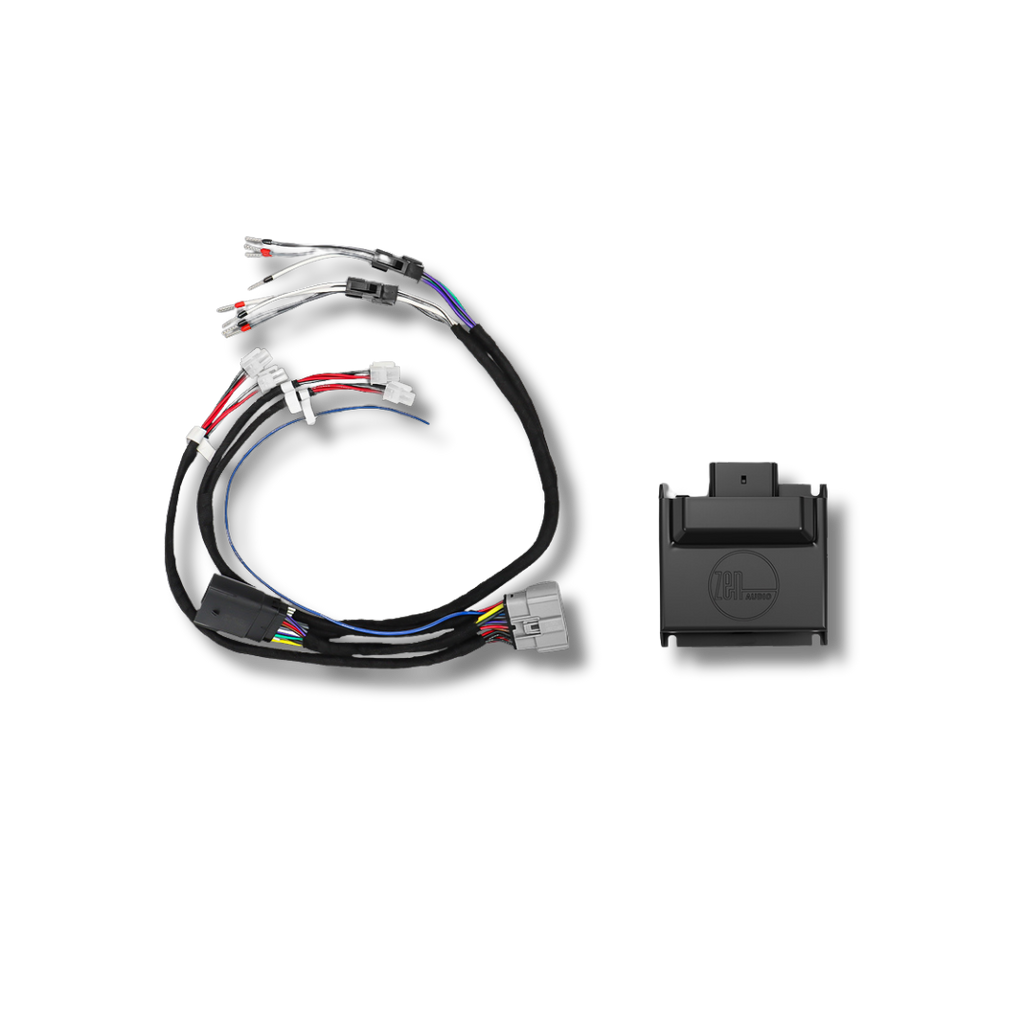

Cicada Audio 24HDZENHCAKIT – 2024+ H-D® A2B Interface with Cicada Amplifier Harness Kit
$1,135.00 AUD
SKU: 24HDZENHCAKIT
NAV-TV ZEN-H A2B interface + Cicada Audio® harness kit. The complete connection package for 2024+ Harley-Davidson® A2B builds.
The Cicada Audio 24HDZENHCAKIT bundles the NAV-TV ZEN-H 8-channel A2B audio interface with the 24HDNAVTVA2B Cicada Audio connection harness – everything needed to extract clean, flat, unprocessed analogue audio from a 2024+ Harley-Davidson A2B system and deliver it to Cicada Audio amplifier inputs. Plug-and-play, no cutting, no splicing.
On 2024+ Harley-Davidson Touring models, the factory audio system runs on the A2B digital bus. Getting clean audio out of that system for aftermarket amplification requires an interface that taps before the factory processing – and then a purpose-built harness to connect that interface to the amplifier input stage. The 24HDZENHCAKIT bundles both: the NAV-TV ZEN-H (which replaces the factory amplifier and outputs 8-channel flat, unprocessed RCA audio) and the 24HDNAVTVA2B (the correctly pinned Molex® harness that routes that output to Cicada amp inputs). Buying both separately or wiring it yourself involves more research and risk; the kit eliminates both.
Who This Is For
Builders starting a fresh 2024+ Harley-Davidson Touring amplifier build with Cicada Audio amplifiers who want the A2B interface and its connection harness in one order. If you already have the ZEN-H and only need the harness, the 24HDNAVTVA2B is available separately. If you want the A2B interface with DSP built in, see the ZEN-H PRO (sold separately).
What This Is Best For
- Complete 2024+ A2B integration in one kit – ZEN-H interface and Cicada harness together; no separate sourcing, no connector compatibility questions, no wiring guesswork.
- Builds using Cicada Audio DSP amplifiers or external DSP – the ZEN-H delivers a flat, unprocessed 8-channel signal that DSP amplifiers can work from properly; crossovers and EQ happen downstream.
- Clean, plug-and-play installation – ZEN-H installs in the factory amplifier location, harness connects directly to Cicada amp inputs; no cutting, depinning, or factory harness modification.
- Retaining OEM head unit functions – volume, balance, fade, subwoofer level, EQ presets, and phone audio remain fully operational after install.
What's in the 24HDZENHCAKIT
The kit includes the NAV-TV ZEN-H 8-channel A2B to analogue interface – 8 × RCA outputs at up to 5V RMS, 24-bit/48kHz digital input, 113 dB SNR, installs in factory amplifier location – and the 24HDNAVTVA2B Cicada Audio connection harness with correctly pinned Molex connectors for direct plug-and-play connection to all Cicada amplifier input stages.
For full ZEN-H specifications and installation notes, see the ZEN-H product page.
Kit Contents
| Interface | NAV-TV ZEN-H (8-channel A2B to analogue, 8 × RCA, 5V RMS output) |
| Harness | 24HDNAVTVA2B – Cicada Audio amplifier connection harness |
| Interface Application | 2023.5+ Harley-Davidson Touring (A2B / Skyline systems) |
| Connectors | Molex positive-locking (correctly pinned for Cicada amp inputs) |
| Installation | Plug-and-play – ZEN-H in factory amp location, harness to Cicada amp |
| OEM Functions Retained | Volume, balance, fade, sub control, EQ presets, phone audio |
Fitment
This part is listed for the platforms below. If your bike is not on the list, tell us the model and year and we will check it for you.
| Model | Years |
|---|---|
| Street Glide (batwing) | 2024+ |
| Road Glide | 2024+ |
| Harley trike (batwing) | 2026+ |
| Road Glide 3 (sharknose trike) | 2026+ |
Specifications
| Model | 24HDZENHCAKIT |
| Interface | NAV-TV ZEN-H – 8-channel A2B to analogue |
| Outputs | 8 × RCA at up to 5V RMS |
| Digital input | 24-bit/48kHz |
| Signal-to-noise ratio | 113 dB |
| Harness | 24HDNAVTVA2B – Cicada Audio amplifier connection harness |
| Connector | Molex positive-locking, correctly pinned for Cicada amp inputs |
| Install | Plug-and-play – ZEN-H in factory amplifier location, harness to Cicada amp |
| OEM functions retained | Volume, balance, fade, sub control, EQ presets, phone audio |
