Cicada Audio CHDRGGTK – Road Glide Kidney Grille + 0.75" RR075T Tweeter Kit (4Ω, 2015–2023)
$600.00 AUD
SKU: CHDRGGTK
2015–2023 Road Glide kidney grilles with RR075T tweeters. Direct-fit front stage upgrade.
The Cicada Audio CHDRGGTK is a direct-fit grille and tweeter kit for 2015–2023 Harley-Davidson® Road Glide models – Road Glide-specific kidney grilles paired with a matched set of RR075T shallow horn tweeters (4Ω, 50W RMS, 100 dB), 12 dB / 7 kHz crossovers, and mounting hardware. Replaceable diaphragm construction. Sold as a complete pair kit.
The CHDRGGTK is the direct-fit front tweeter upgrade for 2015–2023 Road Glide fairings. The kit uses Road Glide-specific kidney grilles – precision-punched for the factory fairing openings – combined with matched RR075T shallow horn tweeters. No drilling, no custom fabrication. The RR075T's aluminium diaphragm and neodymium motor deliver a clear, detailed high-frequency stage from the fairing position, and the included crossovers handle the signal split. The replaceable diaphragm design means the tweeters can be serviced in the field rather than replaced as complete units.
Who This Is For
Riders on 2015–2023 Harley-Davidson Road Glide models who want to add or upgrade front fairing tweeters without cutting or fabrication – the CHDRGGTK replaces the factory kidney grilles with direct-fit replacements incorporating RR075T mounts. For 2024+ Road Glide models, the 24CHDRGGTK-075 is the matching kit for the updated fairing design. For the Street Glide equivalent, see the CHDSGGTK. For RR075T tweeters only (without grilles), see the RR075T.
What This Is Best For
- Front tweeter upgrade on 2015–2023 Road Glide with no fabrication – replaces factory kidney grilles with punched replacements incorporating RR075T mounts; installs in the factory positions with included hardware.
- Amplified Road Glide builds – the RR075T's 100 dB sensitivity and 50W RMS handling suit amplified motorcycle audio systems across the full power range available from typical Cicada amplifier channels.
- Clean, OEM-style appearance with high-performance tweeter output – Road Glide-specific kidney grilles maintain the factory fairing aesthetic while adding high-frequency performance.
- Builds requiring serviceable tweeters – replaceable diaphragm (CRT075, sold separately) means the driver can be serviced without replacing the complete tweeter assembly.
What's Inside the CHDRGGTK

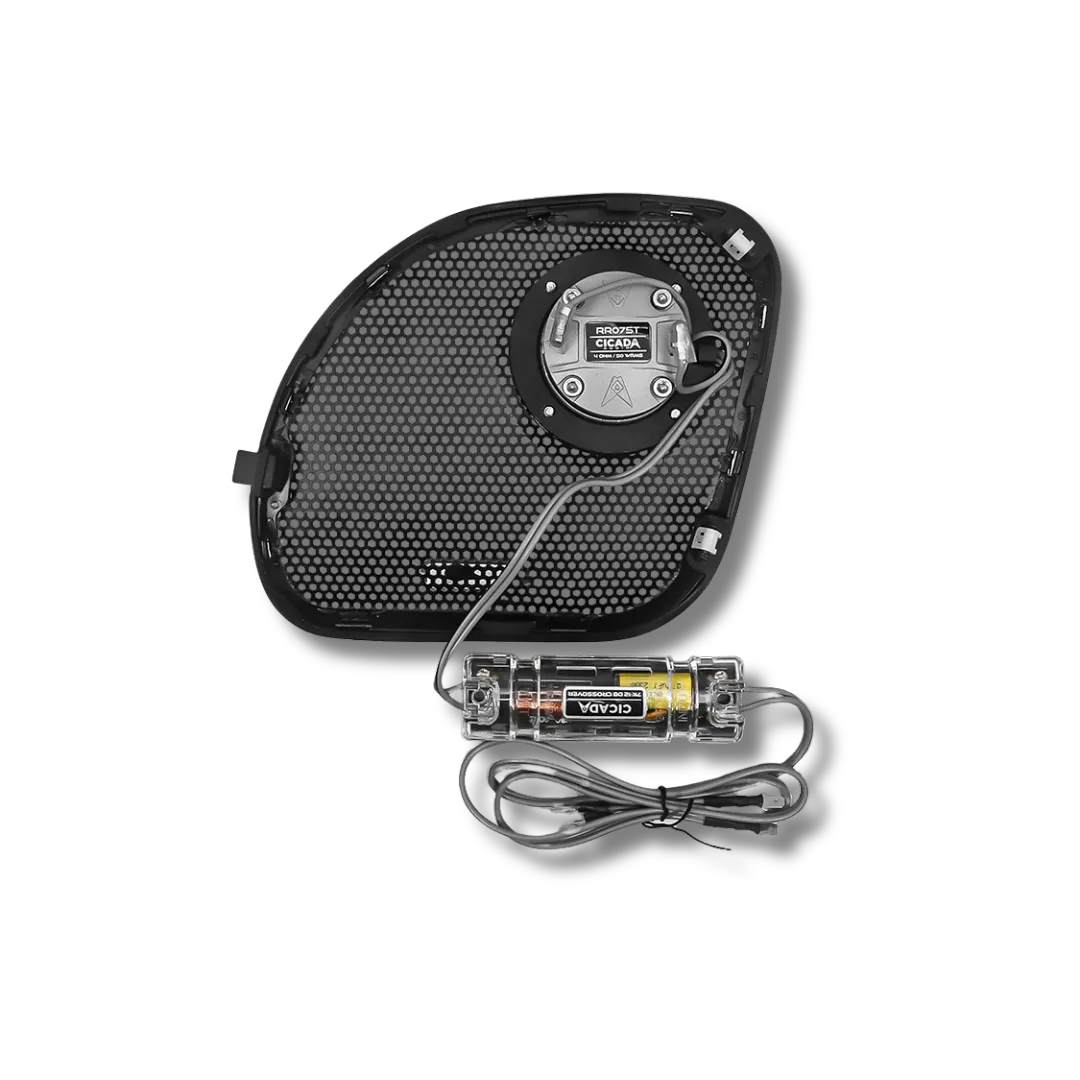

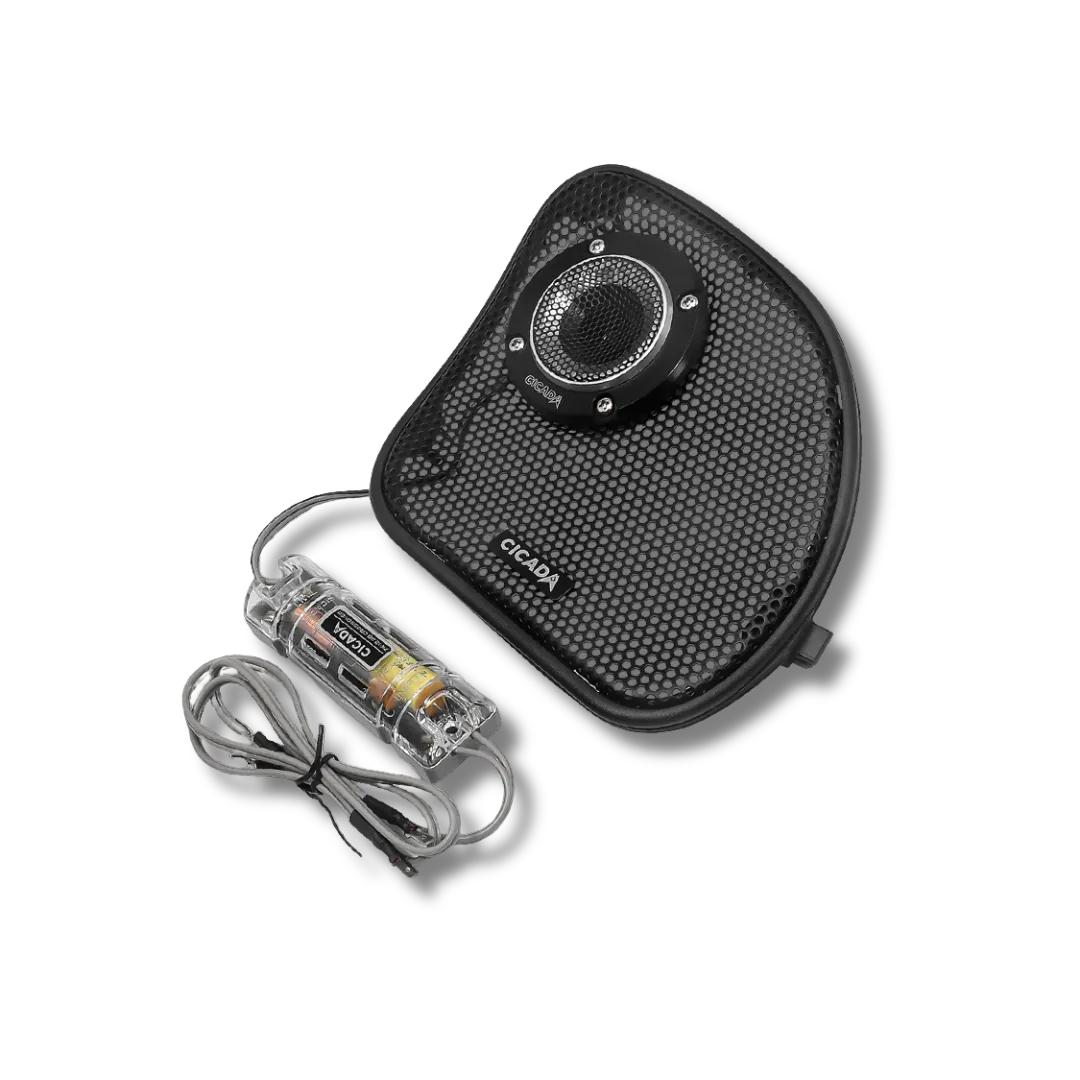

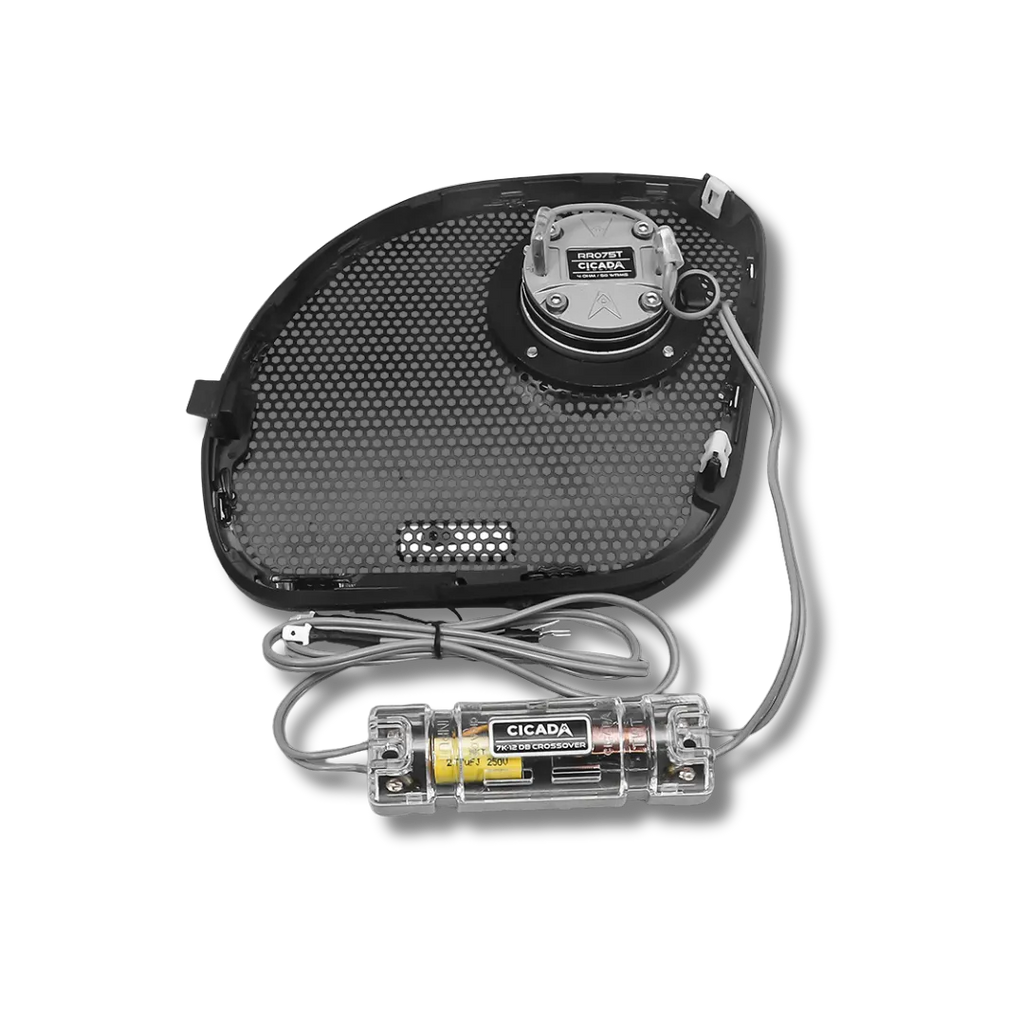

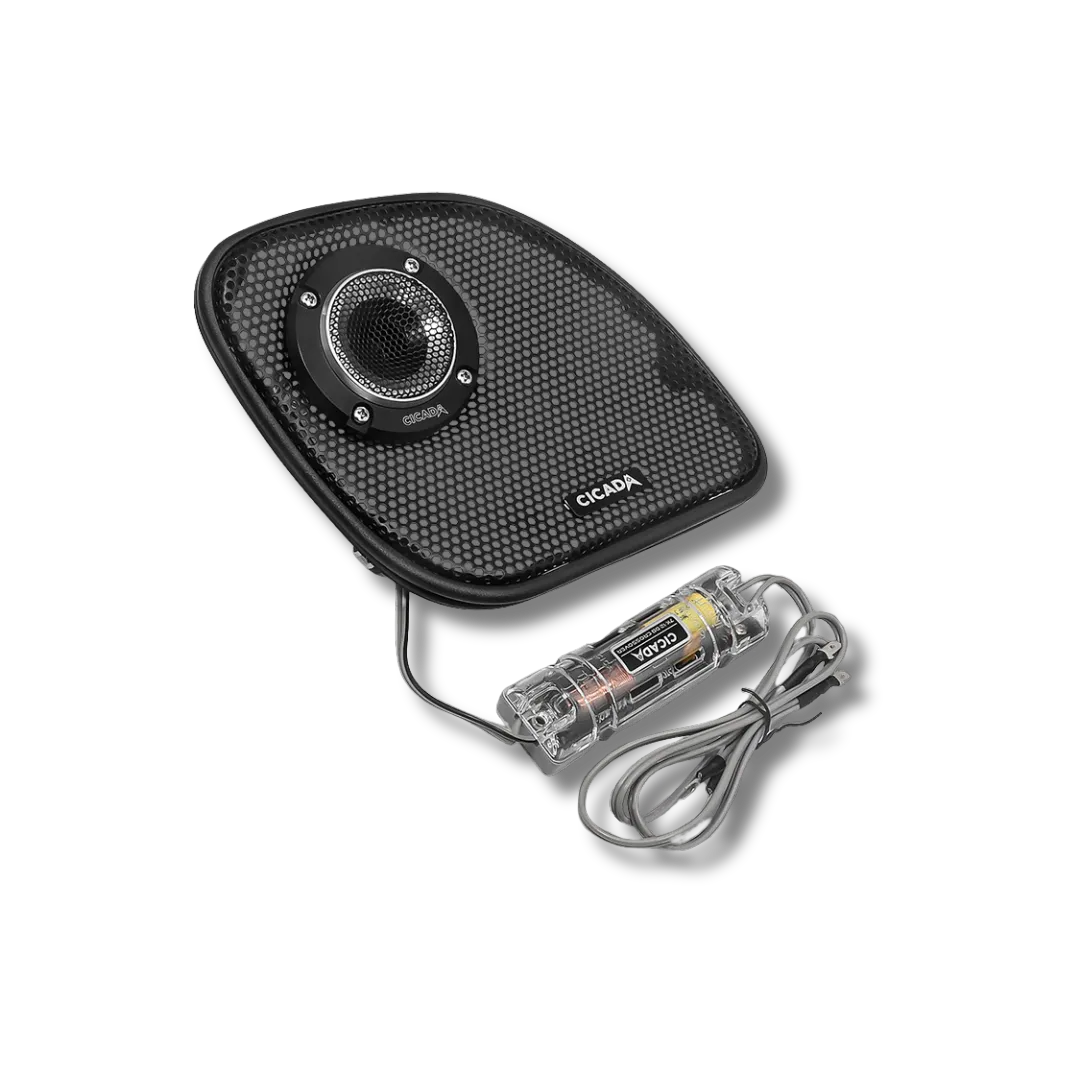

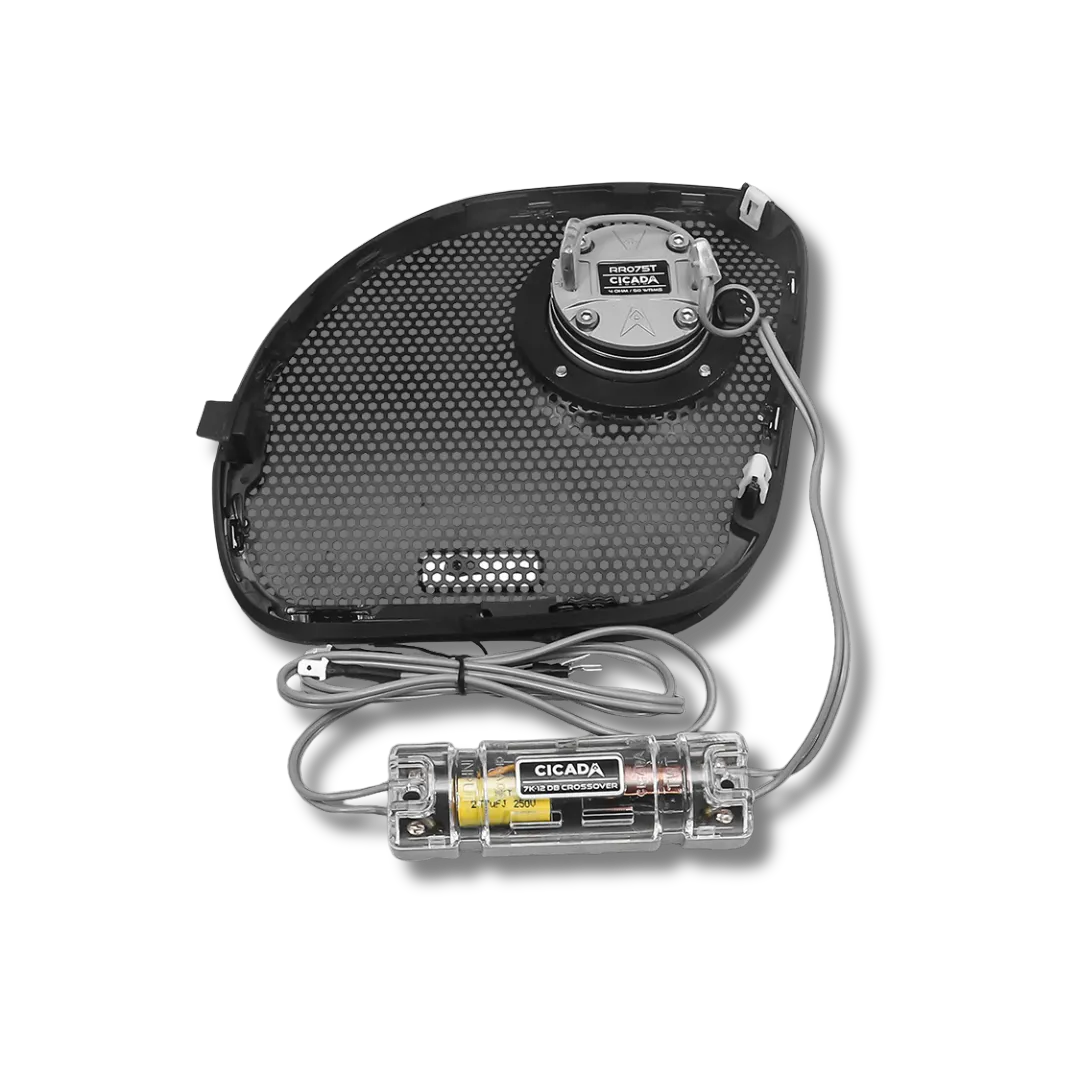

The CHDRGGTK includes two Road Glide-specific kidney grilles (precision-punched for the 2015–2023 Road Glide fairing openings), two RR075T shallow horn tweeters, two 7 kHz / 12 dB crossovers in custom-tooled vented cases, and mounting hardware. On the road: the tweeters sit behind grilles punched for the fairing openings the bike already has, so the front stage goes in without cutting the fairing.
The RR075T tweeters use a 1.0-inch aluminium diaphragm with high-temp voice coil, N35 neodymium motor, and an advanced heat-sink design for sustained thermal management. The replaceable diaphragm construction (CRT075 replacement diaphragm sold separately) means the driver can be field-serviced if damaged – the diaphragm assembly swaps out independently of the full tweeter body. The 7 kHz / 12 dB crossover handles the signal transition. A system-level high-pass on the mid-bass at 80–120 Hz and basic EQ from a DSP or head unit improves overall system balance when used with Cicada mid-bass drivers. On the road: a damaged diaphragm is swapped on its own, so hard use does not turn into a pair of replacement tweeters.
Fitment
- Designed for 2015–2023 Harley-Davidson Road Glide factory fairing kidney grille positions. The Road Glide was not produced as a 2014 model year – the generations are 1998–2013, 2015–2023 and 2024+.
- Compatible models: Road Glide (2015–2023), Road Glide Special (2015–2023), Road Glide Limited (2020–2023), Road Glide CVO™ (2015–2023).
- Tweeter: Mounting Depth 28.9 mm (1.13 in). Mounting Diameter 50 mm (2.0 in).
- For 2024+ Road Glide, see the 24CHDRGGTK-075.
Technical Specifications
| – RR075T Tweeter – | |
| Driver Size | 0.75 in (19 mm) ring radiator horn |
| Impedance | 4Ω |
| Power Handling – RMS | 50W RMS per tweeter |
| Power Handling – MAX | 100W peak per tweeter |
| Sensitivity | 100 dB (1W/1m, 2.83V) |
| Frequency Response | 2 kHz – 20 kHz (±5 dB) |
| Diaphragm Material | Aluminium, 1.0 in (25 mm) |
| Diaphragm | Field replaceable (CRT075, sold separately) |
| Voice Coil | High-temp – advanced heat-sink design |
| Magnet | Neodymium N35 |
| Basket | Die-cast aluminium |
| Mounting Depth | 28.9 mm (1.13 in) |
| Mounting Diameter | 50 mm (2.0 in) |
| – System – | |
| Crossover | 7 kHz / 12 dB – custom tooled, vented case, included |
| Grille Fitment | 2015–2023 H-D Road Glide factory fairing kidney grille positions |
| Grille Style | Road Glide-specific kidney grilles, precision-punched |
| Weather Resistance | Rain or Shine™ |
| Warranty | 2 years |
| Sold As | Complete pair kit – 2x grille, 2x tweeter, 2x crossover, mounting hardware |
