The CXK69.2 at 4Ω — for bridged channels and conservative builds.
The Cicada Audio CXK69.4 is a complete 6×9-inch 4Ω passive component speaker kit — 250W RMS mid-bass, 50W RMS ring radiator horn tweeter with field-replaceable diaphragm, Carbon Matrix Composite™ (CMC™) cone, OFC copper shorting ring, Black Coat™ OFC 2.0-inch mid-bass voice coil, 12 dB external passive crossover at 7 kHz, and all-weather Rain or Shine™ construction throughout. Designed for saddlebag lid speaker positions. Sold as a complete pair kit.
The CXK69.4 shares every construction element with the CXK69.2 — the same CMC™ 6×9 mid-bass, the same 101 dB ring radiator horn tweeter with field-replaceable diaphragm, the same 12 dB passive crossover at 7 kHz, and the same direct-fit for saddlebag lid positions. The 4Ω mid-bass impedance presents a higher electrical load to the amplifier: lower current demand, reduced thermal stress, and compatibility with bridged configurations where a 4Ω minimum load is required.
Who This Speaker Is For
For riders building passive component rear stages in 6×9-inch saddlebag lid positions with bridged rear channels, or who prefer the conservative 4Ω impedance for better thermal performance. The CXK69.4 is the 4Ω variant of the CXK69.2 — same kit, same performance, higher mid-bass impedance. For dedicated 2Ω-rated amplifiers in stereo, the CXK69.2 extracts maximum power.
What This Is Best For
- Bridged rear channels in saddlebag lid positions — when rear channels are bridged for maximum per-channel output, the CXK69.4 satisfies the 4Ω minimum load requirement while delivering the full passive component stage from the saddlebag lid position.
- Uniform 4Ω passive system builds — pairs with the 14CXK65.4 (or 24CXK65.4SG / 24CXK65.4RG) for a uniform 4Ω passive component system front and rear.
- Conservative builds where the amplifier delivers sufficient power at 4Ω — when the amp's 4Ω rated output exceeds 250W per channel, the CXK69.4 mid-bass receives its full rated power without requiring the 2Ω operating condition.
- Passive rear stage with field-serviceable tweeter at 4Ω — same field-replaceable diaphragm as the CXK69.2, with the thermal and load benefits of 4Ω impedance.
2Ω vs 4Ω — Choosing the Right Version
The CXK69.4 is a 4Ω component kit. Choose 4Ω for bridged configurations, conservative system designs, or when the amplifier already delivers sufficient power at 4Ω. For maximum output from a dedicated 2Ω-rated amplifier in stereo, the CXK69.2 (2Ω) is the correct choice.
The Bottom Line
250W mid-bass, 101 dB ring radiator horn tweeter with field-replaceable diaphragm, passive crossover at 7 kHz — the complete passive component kit for 6×9-inch saddlebag lid positions, at 4Ω for bridged and conservative builds.
Ready to build? Add to cart above. For the 2Ω variant, the CXK69.2 is the same kit at 2Ω.
What's Inside the CXK69.4
The CXK69.4 is identical in construction to the CXK69.2 — all construction notes below apply equally to both impedance variants.

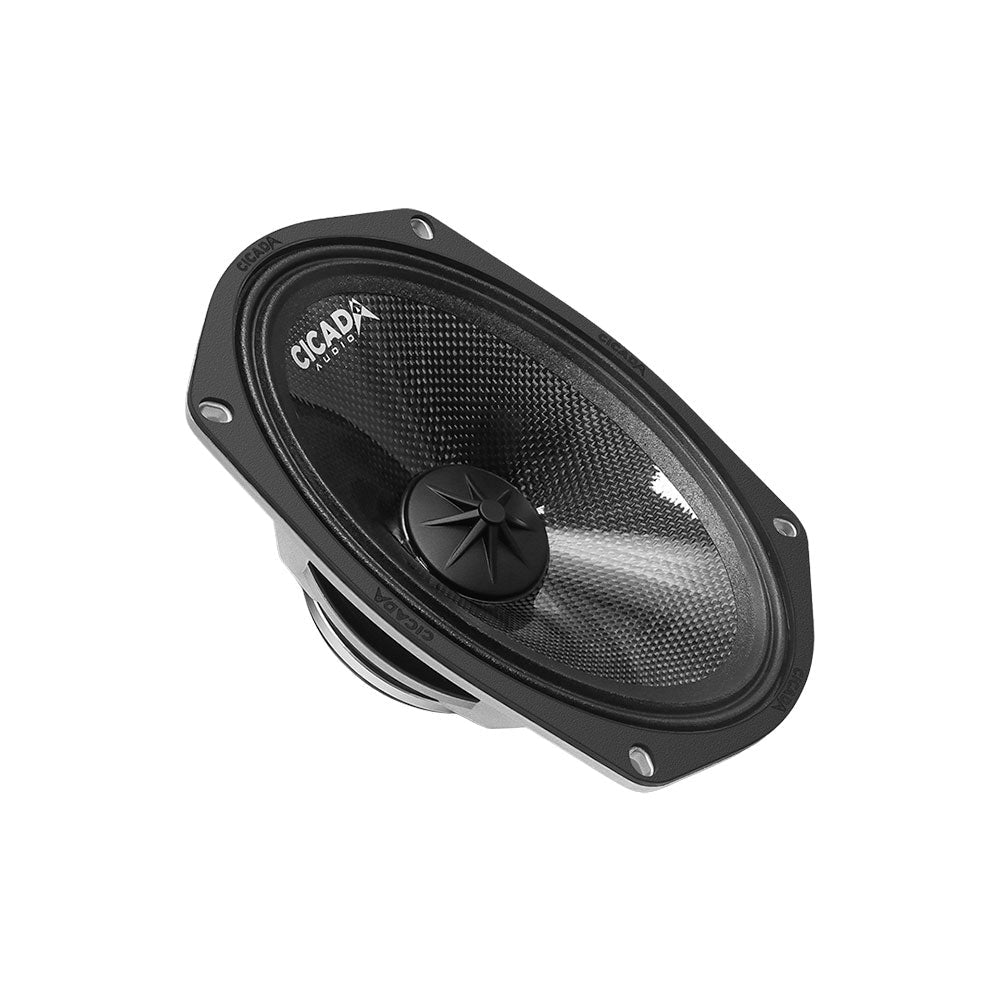

The mid-bass cone is Carbon Matrix Composite™ (CMC™) — lightweight, rigid, and thermally stable. The 2.0-inch / 51mm Black Coat™ OFC copper voice coil handles sustained 250W RMS. The OFC copper shorting ring in the motor gap reduces inductance modulation distortion. The 4Ω impedance adds thermal headroom to driver and amplifier while delivering the same 94 dB sensitivity and 70 Hz – 10 kHz range as the 2Ω variant. On the road: the same mid-bass character and output from the saddlebag lid position as the CXK69.2, with the amplifier running cooler on the rear channels.
The tweeter is the same 1.0-inch shallow ring radiator horn at 101 dB with field-replaceable diaphragm and aluminium die-cast backplate — the tweeter impedance is 4Ω on both kit variants. The 12 dB passive crossover at 7 kHz is external, custom-tooled, vented, and encased.
Sensitivity and Frequency Coverage
At 94 dB mid-bass and 101 dB tweeter, the CXK69.4 matches the output of the CXK69.2 — impedance changes amplifier compatibility, not speaker performance. Combined system frequency response runs 70 Hz – 20 kHz with the passive crossover managing the transition at 7 kHz. The 4Ω mid-bass impedance means the amplifier draws less current on the rear channels — relevant in builds where total system current demand is a design consideration.
Why 4Ω — Bridged Amps and Thermal Margin
A 4Ω mid-bass driver presents a higher electrical load than a 2Ω driver — lower current demand, less heat, and compatibility with bridged configurations. For rear channels bridged for maximum per-channel output, the 4Ω load satisfies the minimum impedance requirement on most amplifiers. For stereo installs at the amp's rated 2Ω output, the CXK69.2 is the matching choice.
Fitment
- Designed for 6×9-inch saddlebag lid speaker positions — factory and aftermarket saddlebag lids with 6×9-inch speaker cutouts on Street Glide and Road Glide platforms.

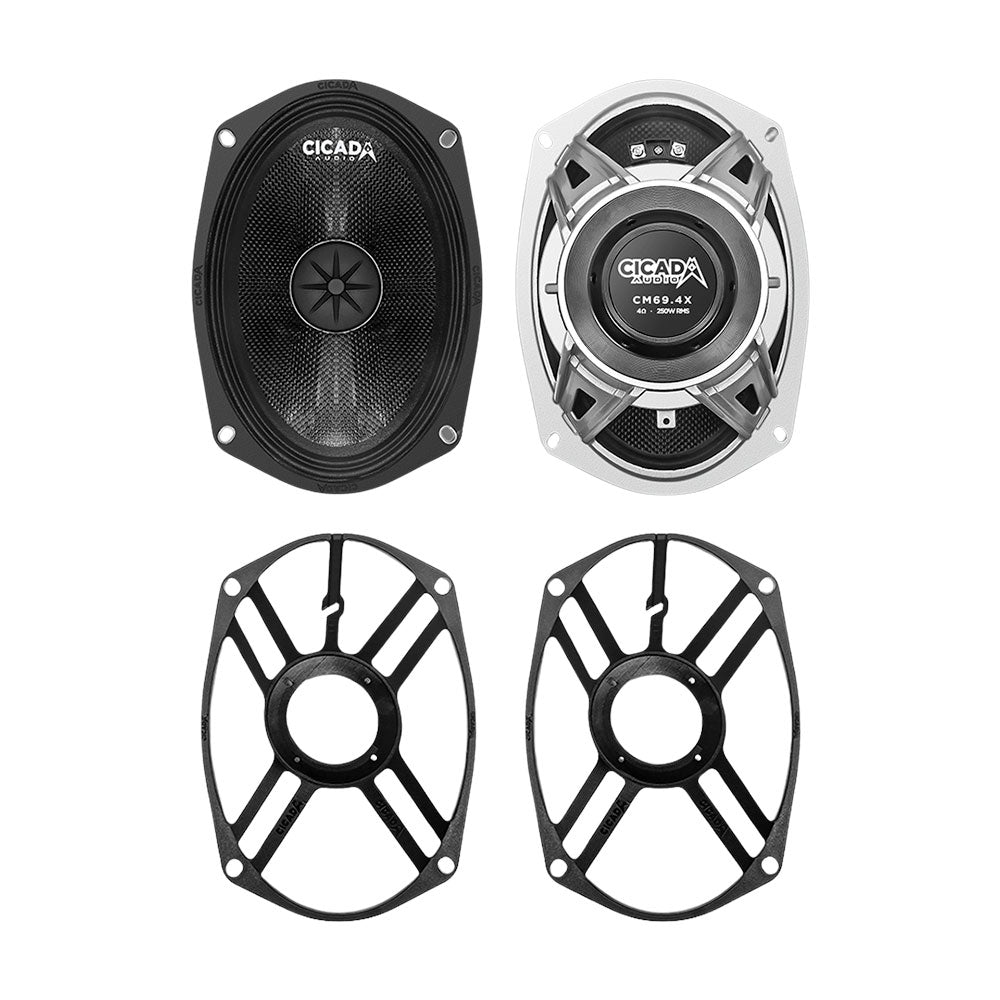

- Mid-bass: Mounting Depth 3.26 in (83 mm). Mounting Dimensions (cutout): 145 × 216 mm (5.7 × 8.5 in).
- Tweeter: Mounts separately in the saddlebag lid. Mounting Depth: 1.1 in (28 mm). Mounting Diameter: 2.0 in (50.8 mm).
- Compatible with 4Ω-rated amplifiers including bridged configurations.
Technical Specifications
| — Mid-Bass Driver — | |
| Driver Size | 6×9 in |
| Impedance | 4Ω nominal |
| Power Handling — RMS | 250W RMS |
| Power Handling — MAX | 500W peak |
| Sensitivity | 94 dB (1W/1m) |
| Frequency Response | 70 Hz – 10 kHz (±3 dB) |
| Voice Coil | 2.0 in (51 mm) — Black Coat™ OFC copper |
| Shorting Ring | OFC copper — inductance reduction, distortion control |
| Magnet Type | Neodymium N35SH |
| Cone Material | Carbon Matrix Composite™ (CMC™) |
| Basket | Die-cast aluminium — Vortex Flow Venting™ |
| Mounting Depth | 83 mm (3.26 in) |
| Mounting Dimensions (Cutout) | 145 × 216 mm (5.7 × 8.5 in) |
| — Tweeter — | |
| Driver Type | Shallow ring radiator horn tweeter |
| Driver Size | 1.0 in (25 mm) |
| Impedance | 4Ω nominal |
| Power Handling — RMS | 50W RMS |
| Power Handling — MAX | 100W peak |
| Sensitivity | 101 dB (1W/1m) |
| Frequency Response | 2 kHz – 20 kHz (±3 dB) |
| Tweeter Dome | Aluminium |
| Voice Coil | 1.0 in (25 mm) — OFC copper |
| Diaphragm | Field replaceable |
| Backplate | Aluminium die-cast, custom tooled |
| Mounting Depth | 28 mm (1.1 in) |
| Mounting Diameter | 50.8 mm (2.0 in) |
| — System — | |
| Crossover | 12 dB @ 7 kHz — external, custom tooled, vented, encased |
| Weather Resistance | Rain or Shine™ — CMC™ cone, OFC shorting ring, aluminium tweeter dome |
| Warranty | 2 years |

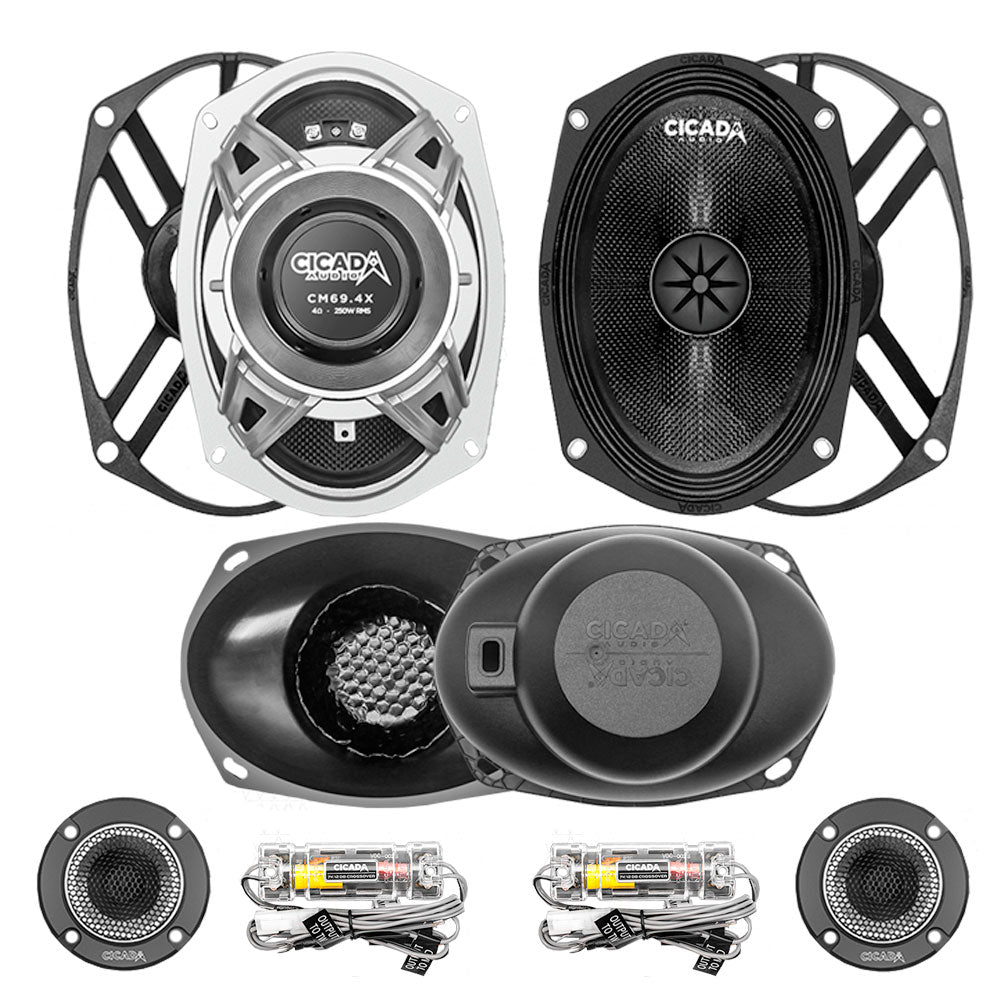

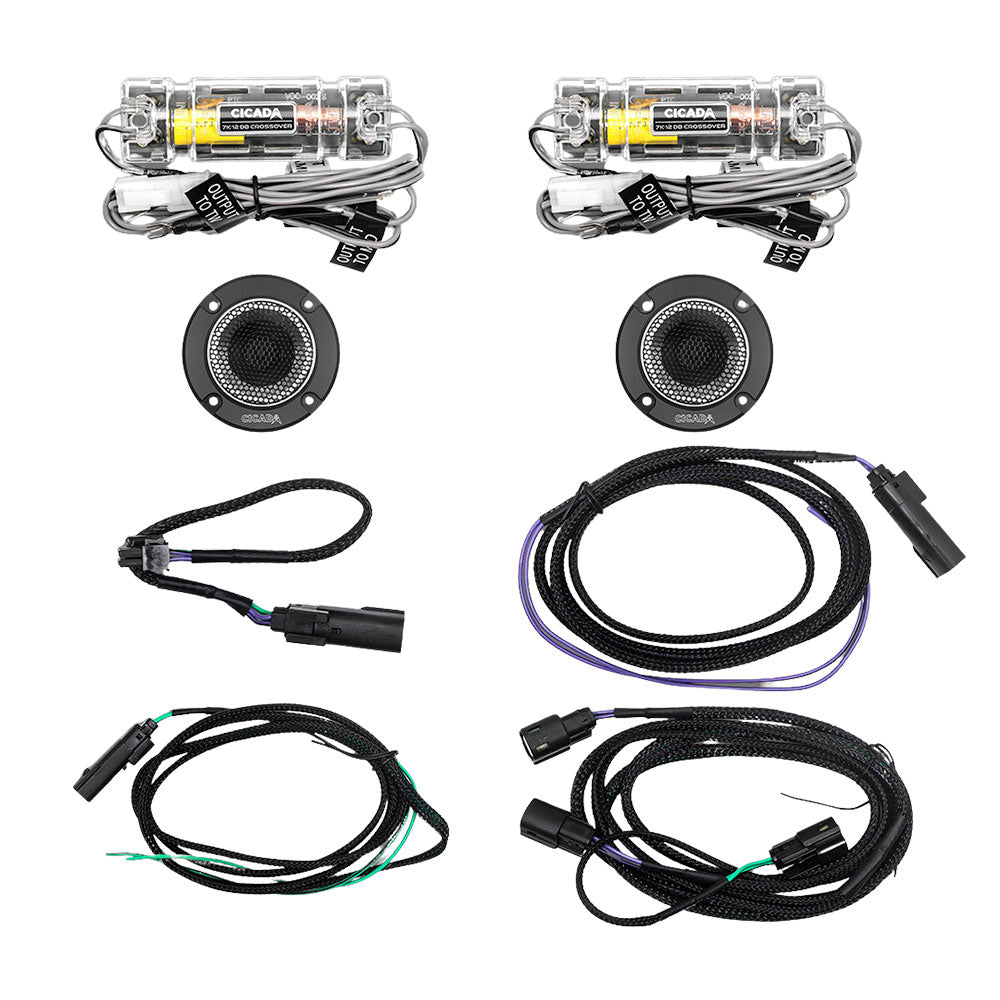

| Sold As | Complete pair kit — 2x mid-bass, 2x tweeter, 2x crossover |
