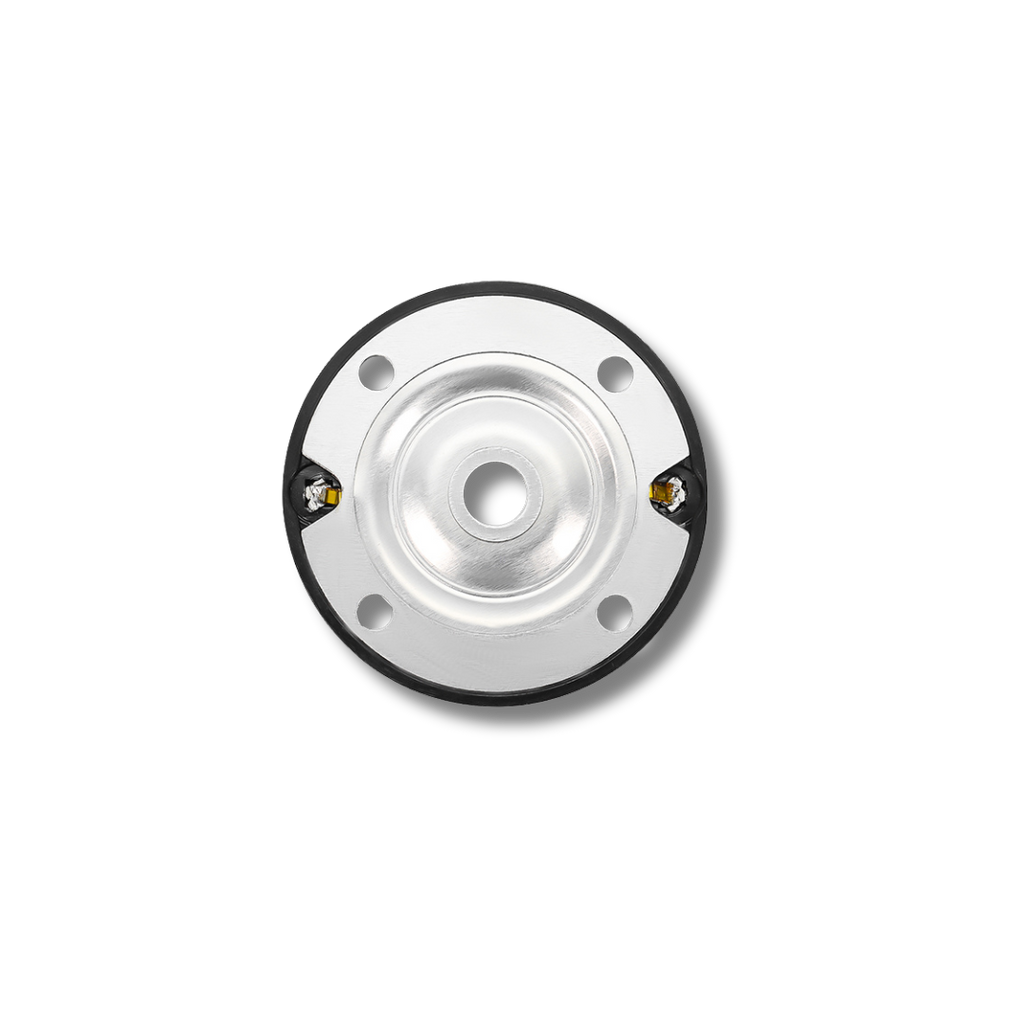

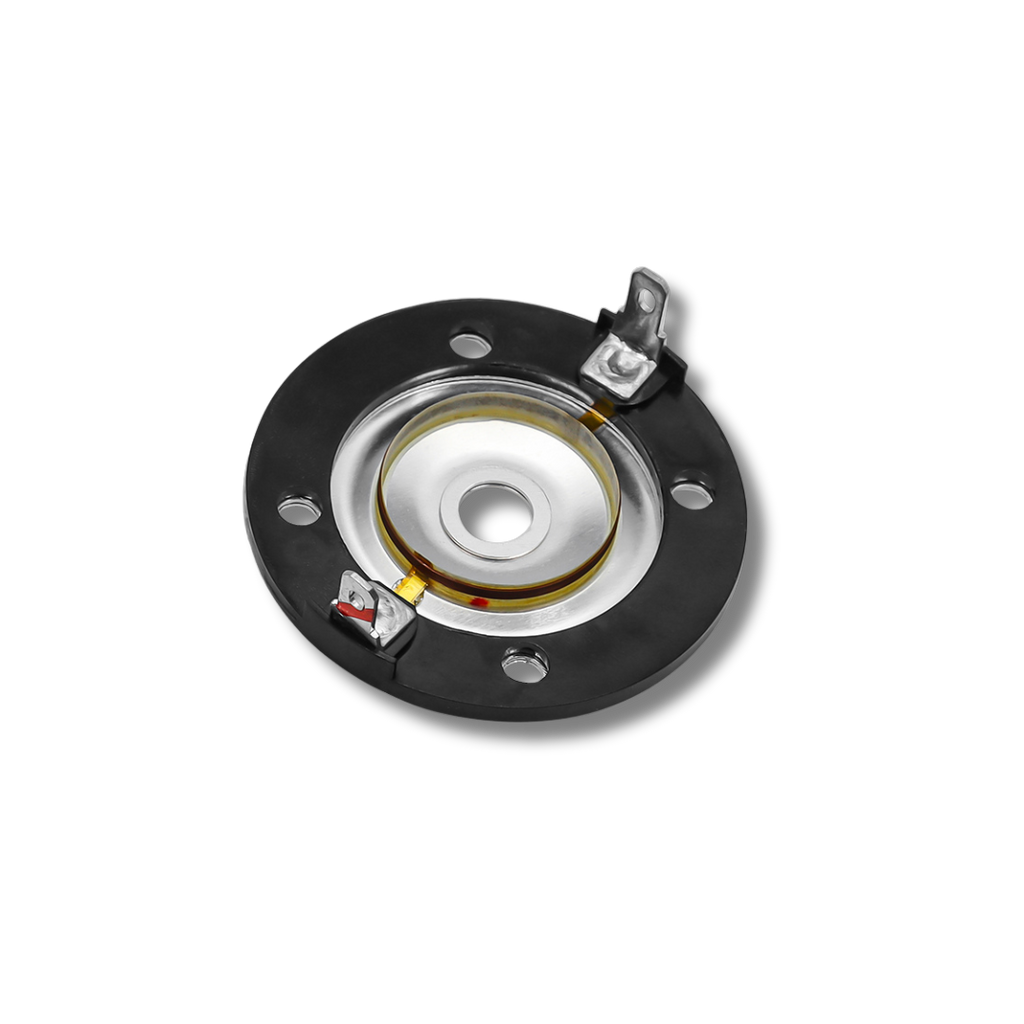

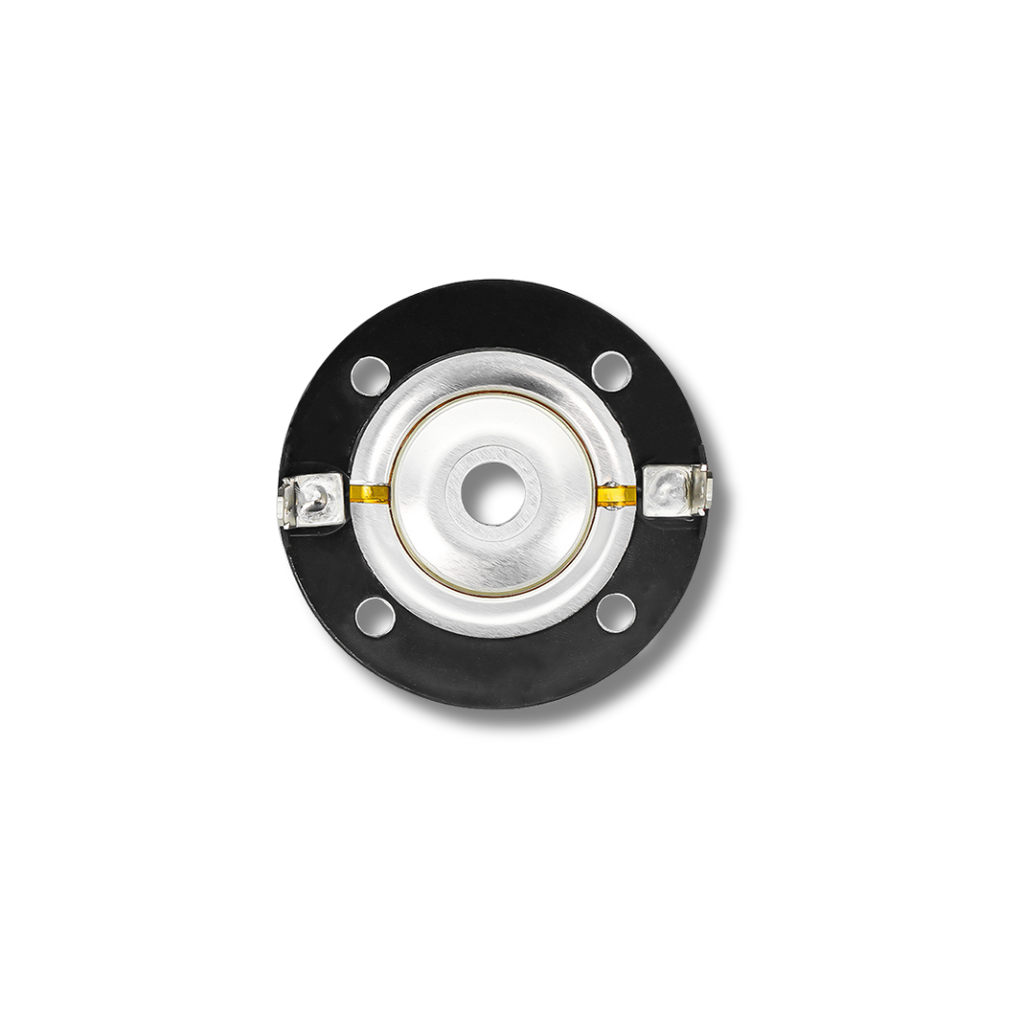

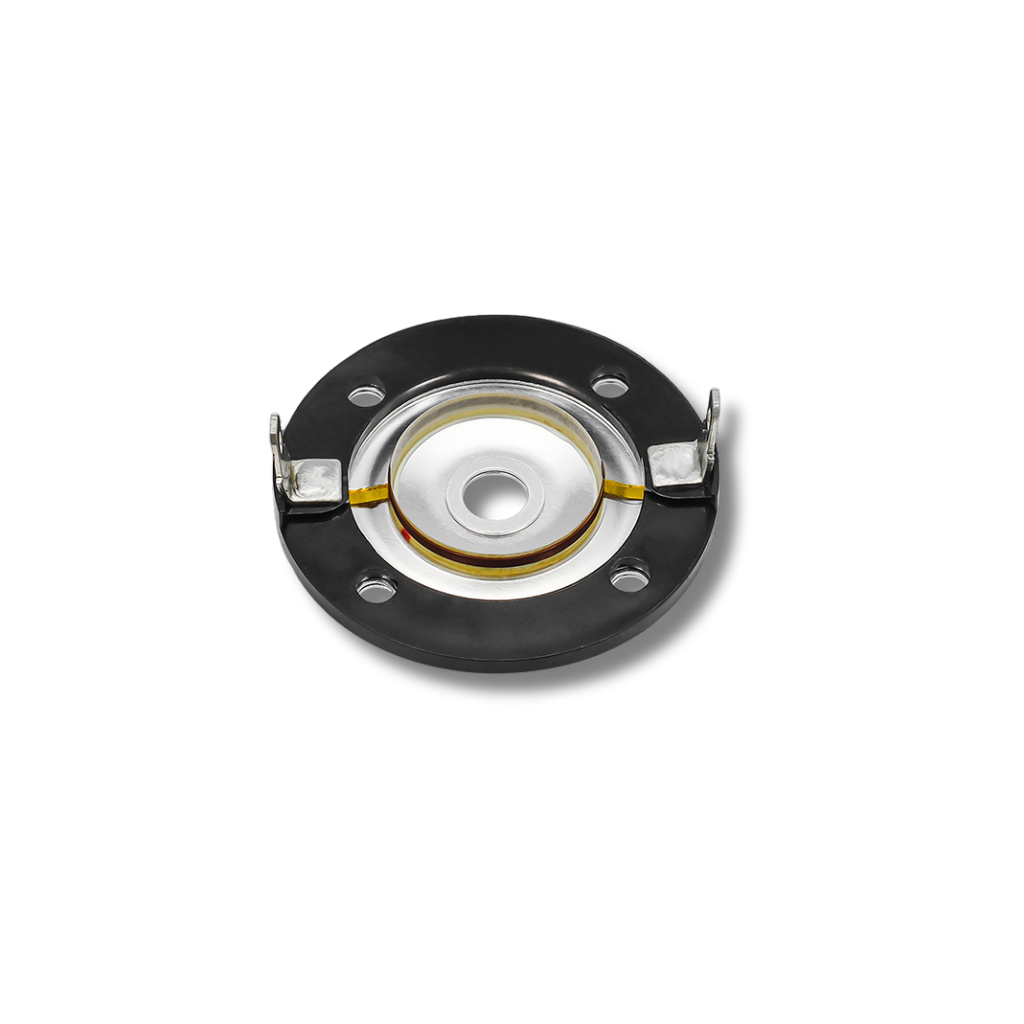

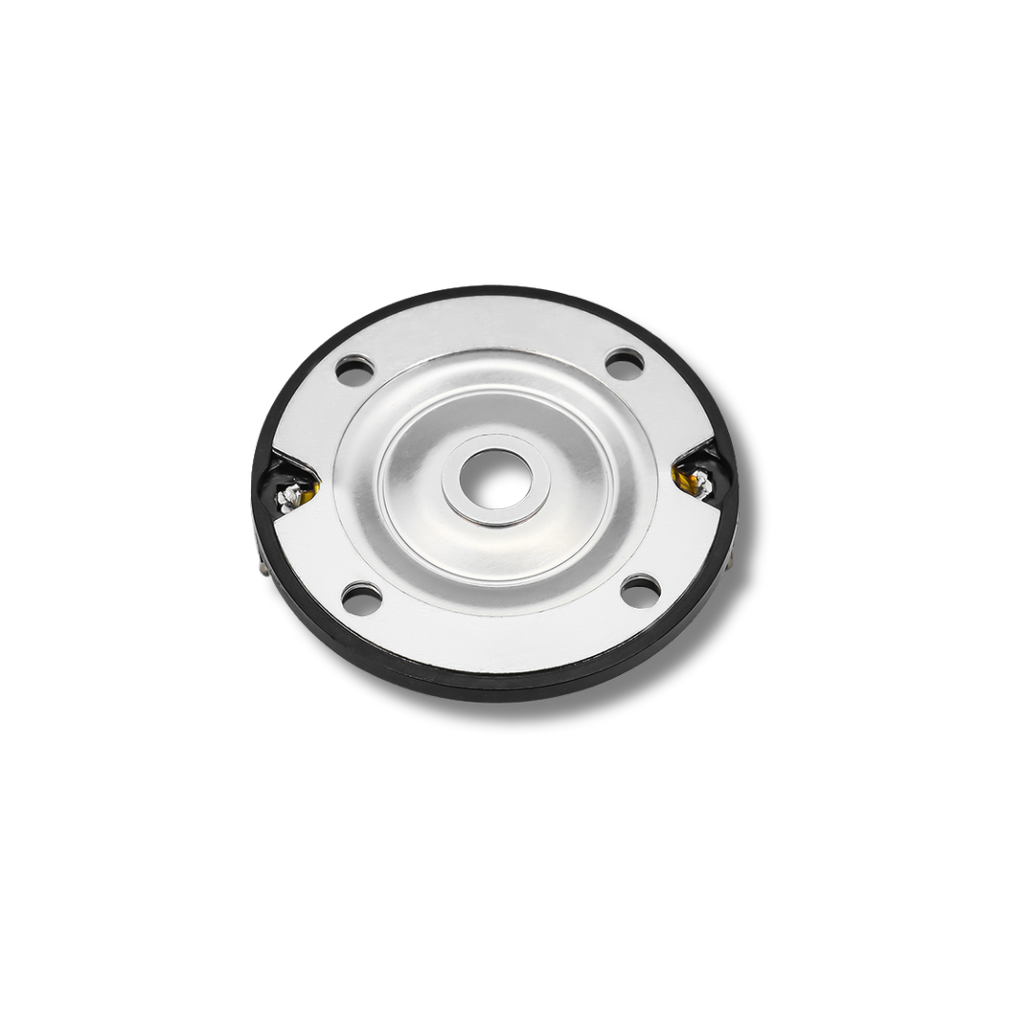

CRT1 - 1-inch Aluminium Diaphragm Replacement for RR1T - 4Ω
$80.00 AUD
SKU: CRT1
Tweeter diaphragm replacement for the Cicada Audio® RR1T – 1.0-inch aluminium, 4Ω. Sold individually.
The Cicada Audio CRT1 is a replacement tweeter diaphragm for the Cicada Audio RR1T horn tweeter – 1.0-inch aluminium diaphragm with high-temperature voice coil, 4Ω. Sold individually.
When a tweeter diaphragm fails, replacing the entire tweeter is unnecessary – the CRT1 is a direct-fit replacement diaphragm for the RR1T, restoring full tweeter function at a fraction of the cost of a new unit. The aluminium diaphragm and high-temperature voice coil are spec-matched to the original RR1T, so output characteristics and impedance are preserved after the swap.
Who This Is For
Builders with a Cicada Audio RR1T tweeter that needs a replacement diaphragm. For RR075T diaphragm replacement, see the CRT075. For RR3T/RR3TM diaphragm replacement, see the CRT3.0.
What This Is Best For
- Direct replacement for a failed RR1T diaphragm – spec-matched 1.0-inch aluminium diaphragm restores original performance; no new tweeter required.
- High-temperature voice coil – rated for the thermal demands of high-output audio systems in real riding conditions.
- 4Ω impedance match – matches the original RR1T spec; no system reconfiguration required after installation.
What's Inside the CRT1
The CRT1 is the moving assembly of the RR1T horn tweeter rather than a whole new tweeter: a 1.0-inch aluminium diaphragm on a high-temperature voice coil, spec-matched to the original and sold individually. On the road: a failed diaphragm is a part you replace rather than a tweeter you replace, and the horn goes back to the output it had before.
Impedance stays at 4Ω, the figure the RR1T was built to, and the high-temperature coil is rated for the thermal demands of a high-output system. On the road: the impedance matches what the system was tuned around, so the amplifier and crossover settings can stay where they are after the swap.
Fitment
This part is listed for the platforms below. If your bike is not on the list, tell us the model and year and we will check it for you.
| Model | Years |
|---|---|
| Electra Glide and Street Glide (batwing) | 1998 – 2013 |
| Road Glide | 1998 – 2013 |
| Street Glide, Electra Glide and Ultra (batwing) | 2014 – 2023 |
| Road Glide | 2015 – 2023 |
| Street Glide (batwing) | 2024+ |
| Road Glide | 2024+ |
| Harley trike (batwing) | 2009 – 2013 |
| Tri Glide Ultra (batwing) | 2014 – 2025 |
| Road Glide 3 (sharknose trike) | 2023 – 2025 |
| Harley trike (batwing) | 2026+ |
| Road Glide 3 (sharknose trike) | 2026+ |
Specifications
| For Tweeter | Cicada Audio RR1T |
| Diaphragm Size | 1.0-inch |
| Diaphragm Material | Aluminium |
| Voice Coil | High-temperature |
| Impedance | 4Ω |
| Sold As | Individual |
