Precision Power HD14.FHT – Gauge-Mounted High-Efficiency Tweeters for 2014–2023 Harley-Davidson® Touring
| Size | Tweeter |
| Impedance | 4 Ohm |
| Power | 50W RMS |
| Year Range | 2014-2023 |
| Location | Universal, Fairing |
High-efficiency gauge-mount tweeters for 2014–2023 Harley Touring — horn-loaded, plug-n-play, factory fit
The Precision Power HD14.FHT are horn-loaded gauge-mount tweeters for 2014–2023 Harley-Davidson® Touring motorcycles. They drop into the OEM gauge openings in the fairing, connect via a plug-n-play T-harness to the factory speaker pod wiring, and deliver 105 dB of focused high-frequency output at 4Ω — no cutting, no splicing, no modifications to the factory fairing. A built-in 12dB high-pass crossover at 4 kHz and integrated overload protection are included in each tweeter housing.
Factory 2014+ Harley Touring fairing speakers carry the full frequency range from a single position behind the windscreen. At highway speed, high frequencies are the first casualty — wind noise and distance combine to strip detail from vocals, guitars, and cymbals before it reaches the rider. The HD14.FHT addresses this by placing a dedicated high-frequency driver in the gauge area of the fairing, closer to ear level and in a position that projects directly toward the rider. The horn-loaded design — aluminium ring diaphragm with phase plug and horn contour — focuses output and delivers the sensitivity needed to cut through road noise without requiring additional amplification.
Who This Is For
Riders on 2014–2023 Harley Touring who want improved high-frequency clarity from the front stage without modifying the fairing. The HD14.FHT pairs with the HD14.652 (2Ω) or HD14.654 (4Ω) fairing speakers and the HD14.AWK amplifier kit for a complete front-stage build.
What This Is Best For
- Horn-loaded output for highway clarity — The aluminium ring diaphragm with phase plug and horn contour focuses high-frequency energy toward the rider. At 105 dB sensitivity, the HD14.FHT cuts through wind and road noise without requiring dedicated amplifier power.
- Factory gauge opening fitment — no fairing modification — Integrated mounting tabs fit directly into the OEM gauge openings on 2014–2023 Harley Touring fairings. No drilling, no cutting, and no modification to the fairing panel required.
- Plug-n-play T-harness included — The included T-harness connects directly to the OEM fairing speaker pod wiring. Signal in from the factory or aftermarket head unit, tweeter output connected — no splicing required.
- Built-in crossover and protection — An integrated 12dB high-pass crossover at 4 kHz filters low frequencies from the tweeter, and an overload protection circuit prevents driver damage at sustained high volume levels. No external crossover component required.
Fits 2014–2023 Harley Touring gauge openings. The HD14.FHT is designed for the gauge opening positions in 2014–2023 Touring model fairings. Confirm that your model has accessible, unoccupied gauge openings in the appropriate position before ordering.
DSP recommended when adding tweeters to an existing front stage. Adding a dedicated tweeter to a system already running full-range fairing speakers introduces frequency overlap. DSP control over crossover points and level balancing is the correct way to integrate the HD14.FHT with the HD14.652 or HD14.654.
Contact Motorcycle Audio Australia to discuss front-stage integration and DSP pairing before ordering.
The Bottom Line
The HD14.FHT is the high-frequency component a 2014+ Harley Touring front stage is missing — factory-fit gauge mount, horn-loaded output, plug-n-play harness, and built-in crossover. It delivers the vocal clarity and instrument detail that fairing speakers alone cannot produce at highway speed, without touching the factory fairing.
For matched fairing speakers, see the HD14.652 (2Ω) or HD14.654 (4Ω). For the amplifier install kit, see the HD14.AWK.
What's In The Kit

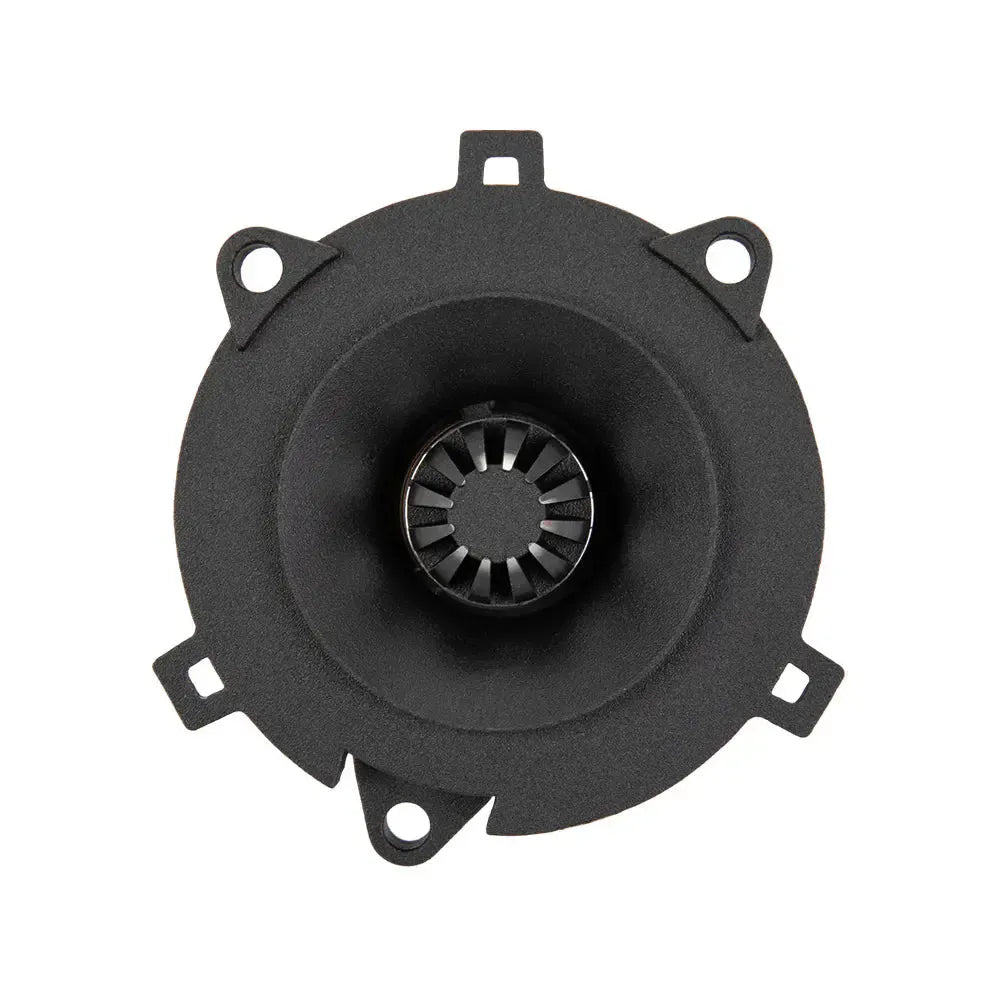

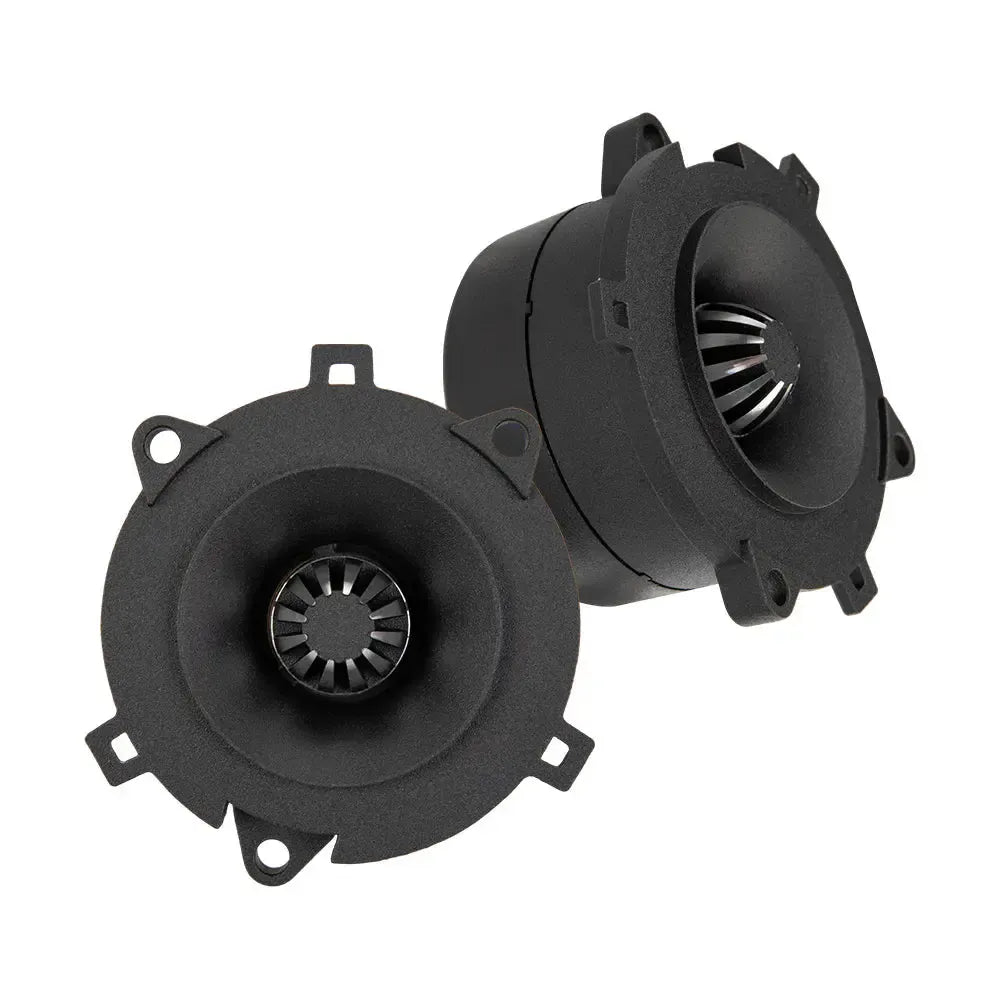

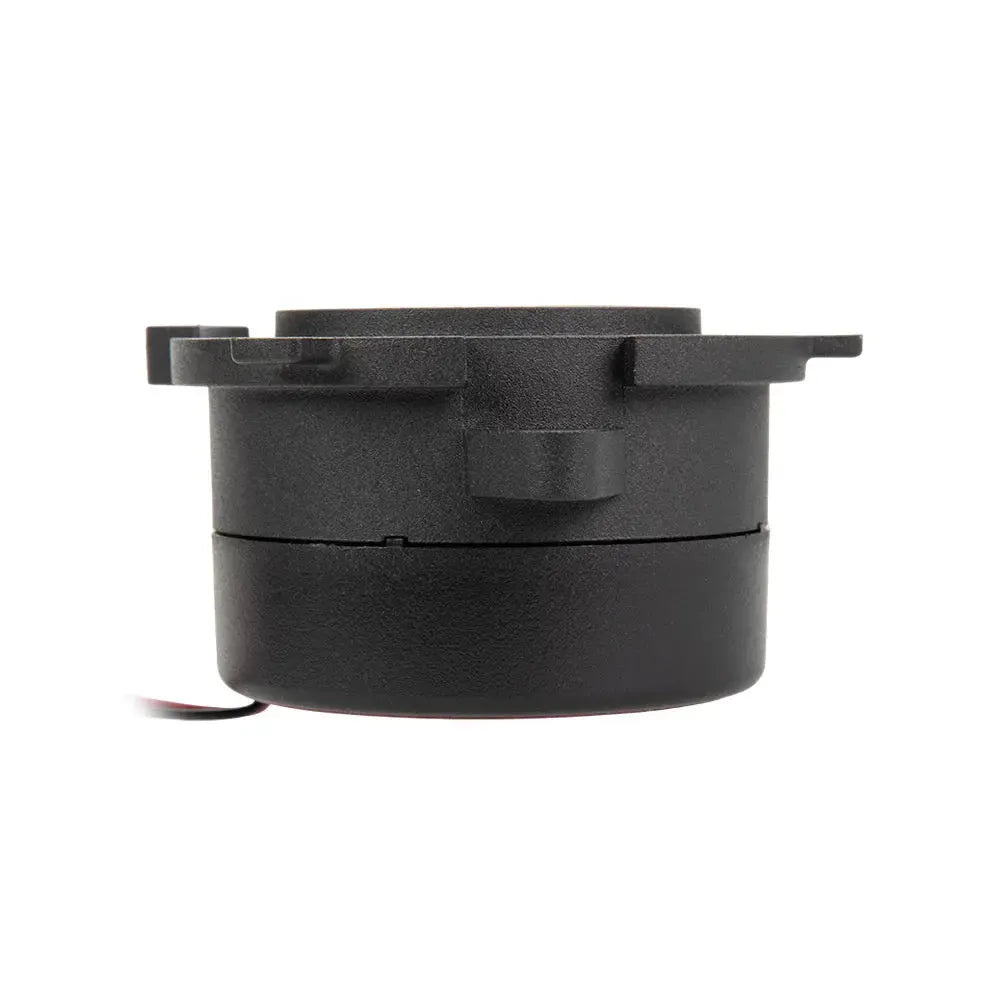

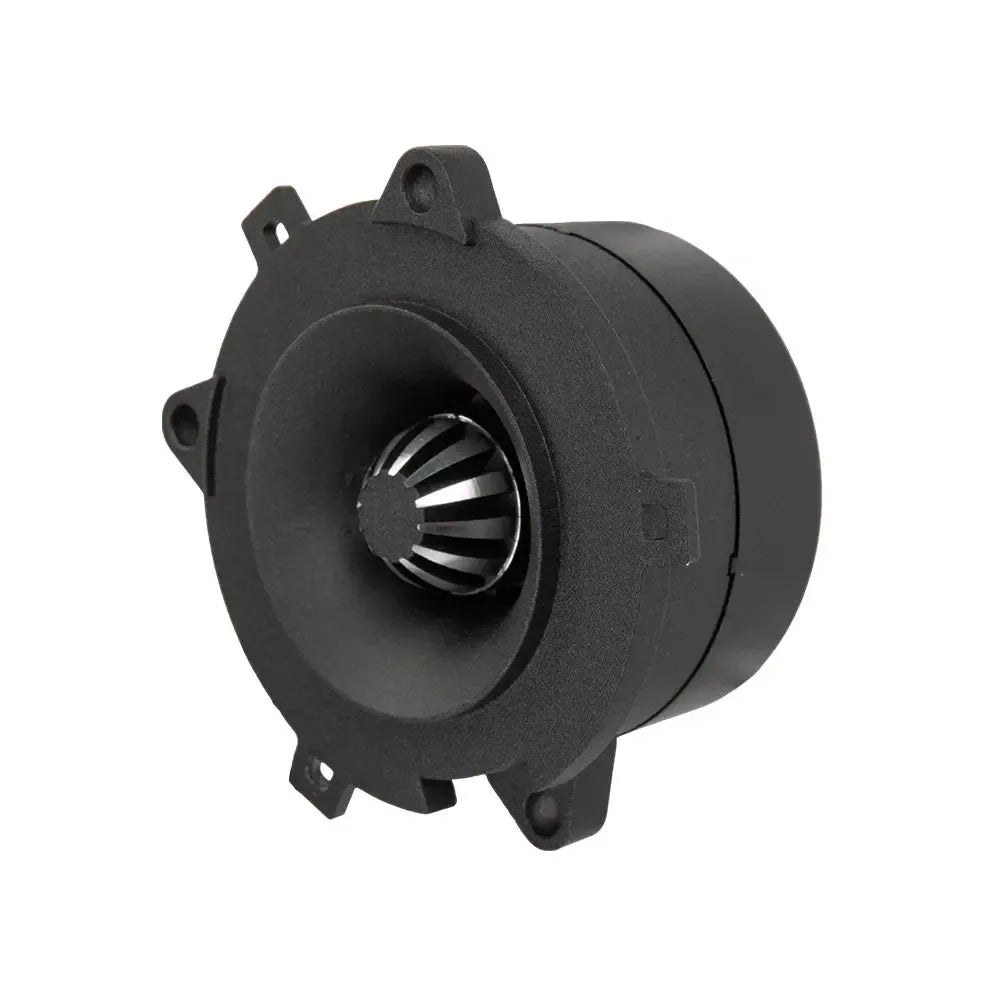

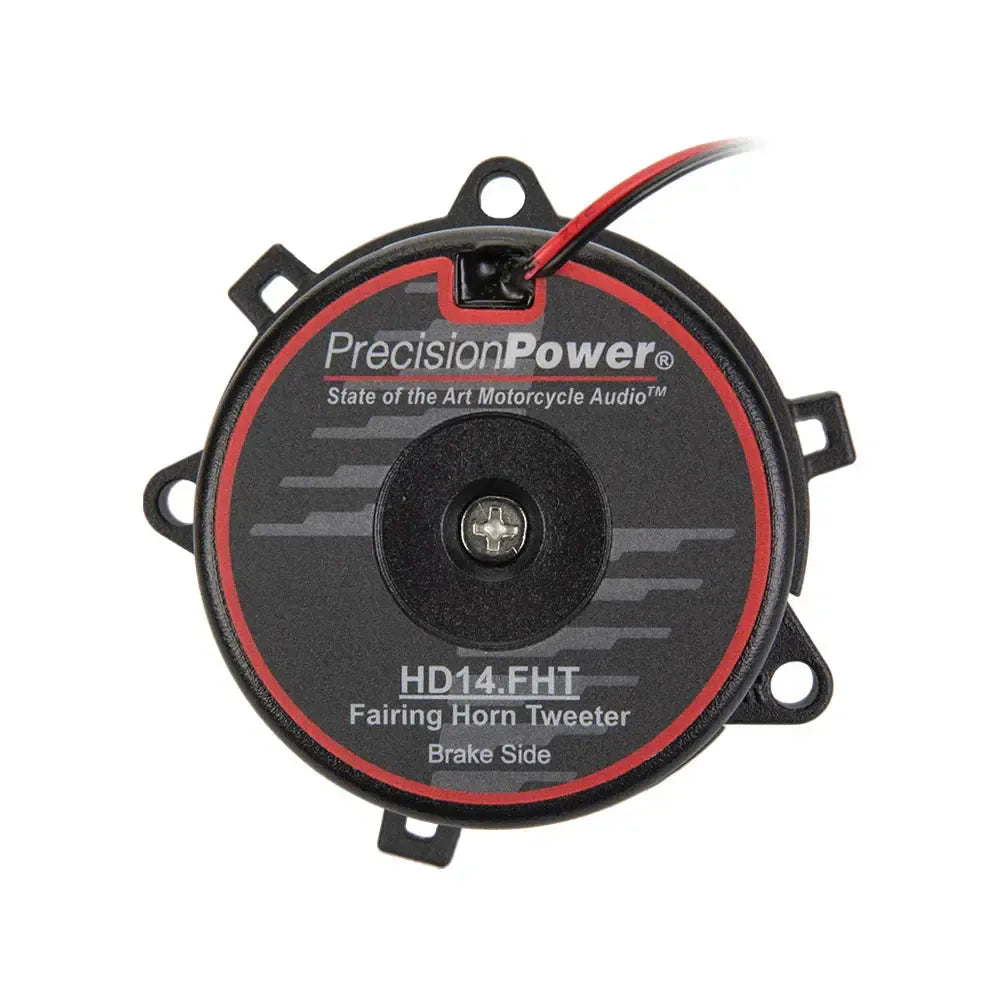

Horn-loaded tweeters — pair. Two horn-loaded tweeters with aluminium ring diaphragm, precision phase plug, and horn contour. The horn loading focuses high-frequency energy toward the listening position and increases effective sensitivity above what a conventional dome tweeter achieves in the same position. The aluminium ring diaphragm is lighter and stiffer than a fabric dome, producing lower distortion at the high output levels required for motorcycle audio at speed. Each tweeter housing includes the built-in 12dB high-pass crossover and overload protection circuit — no external components required.

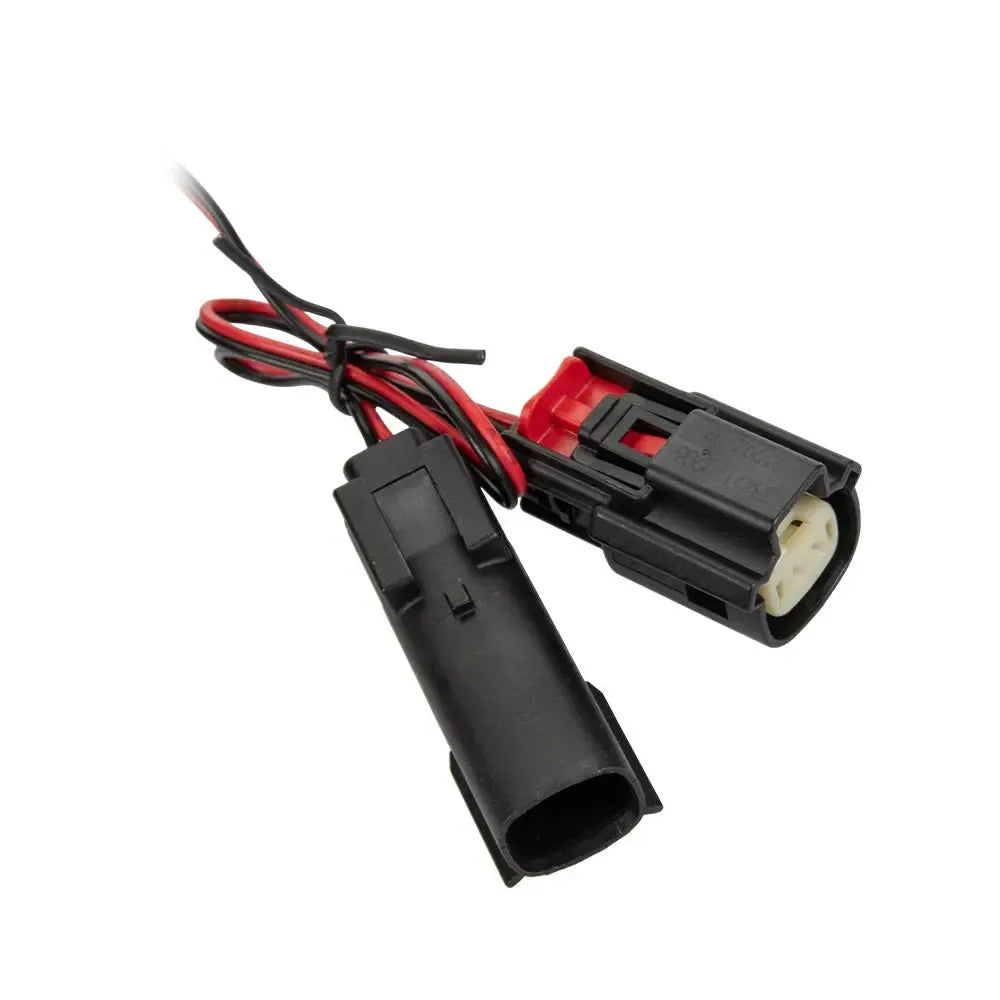

Plug-n-play T-harness. The T-harness connects directly to the OEM fairing speaker pod wiring without splicing or modification. Signal flows in from the factory or aftermarket head unit and out to the tweeter, with the harness handling the interface between the OEM connector and the tweeter terminals. The design allows the HD14.FHT to be added to an existing factory or aftermarket fairing speaker system without rewiring the factory loom.
Fitment
| Model | Year Range | Position |
|---|---|---|
| Street Glide® / Street Glide® Special | 2014–2023 | OEM fairing gauge openings |
| Road Glide® / Road Glide® Special | 2015–2023 | OEM fairing gauge openings |
| Electra Glide® Ultra Classic® / Ultra Limited | 2014–2023 | OEM fairing gauge openings |
Technical Specifications
| Driver Type | Horn-loaded — aluminium ring diaphragm with phase plug and horn contour |
| Motor | Neodymium alloy |
| Impedance | 4 Ω |
| Power Handling (RMS) | 50 W |
| Peak Power | 100 W |
| Sensitivity | 105 dB (1W/1m) |
| Frequency Response | 4 kHz – 22 kHz |
| Crossover | Built-in 12dB high-pass at 4 kHz |
| Protection | Integrated overload protection circuit |
| Mounting | Integrated tabs — fits OEM 2014–2023 Harley Touring gauge openings |
| Mounting Depth | 2.0" |
| Wiring | Plug-n-play T-harness to OEM fairing speaker pod wiring |
| Quantity | Pair |
| Warranty | 1 year through Motorcycle Audio Australia |
