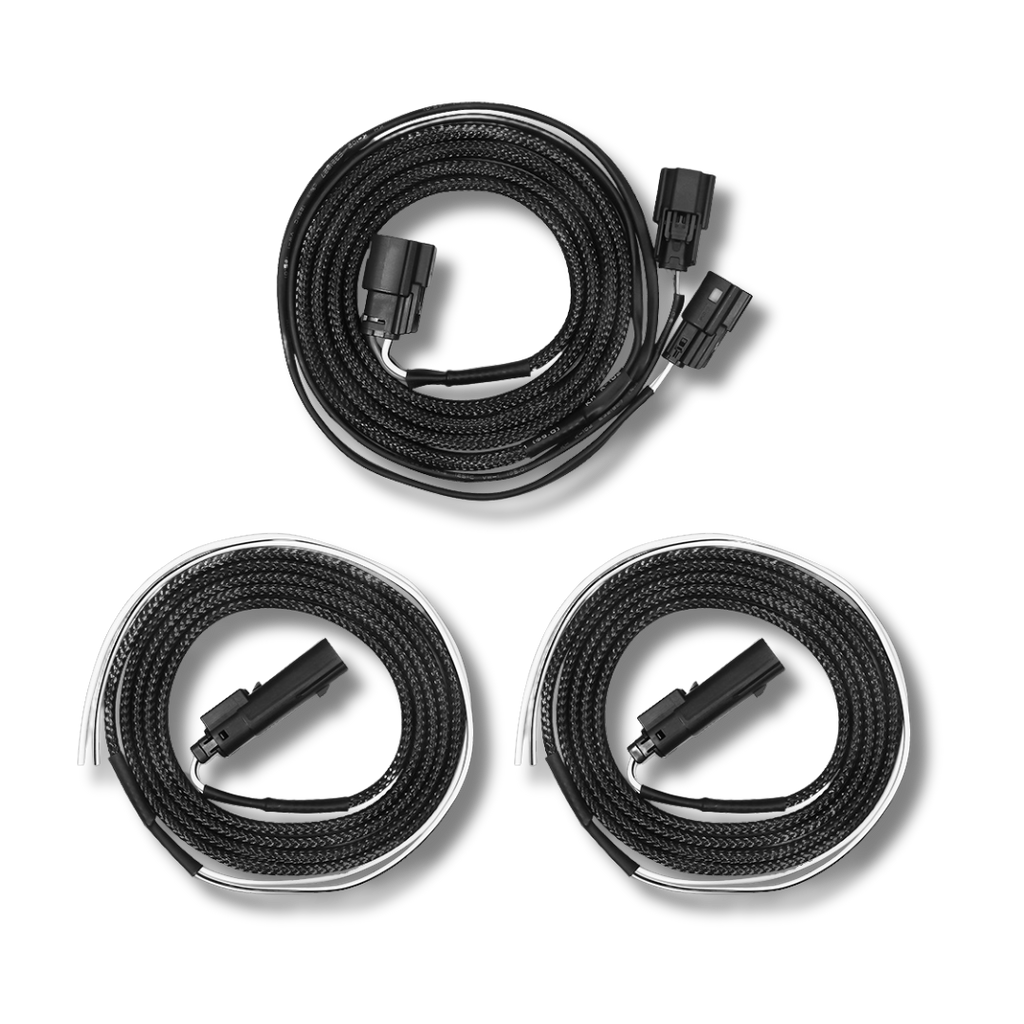

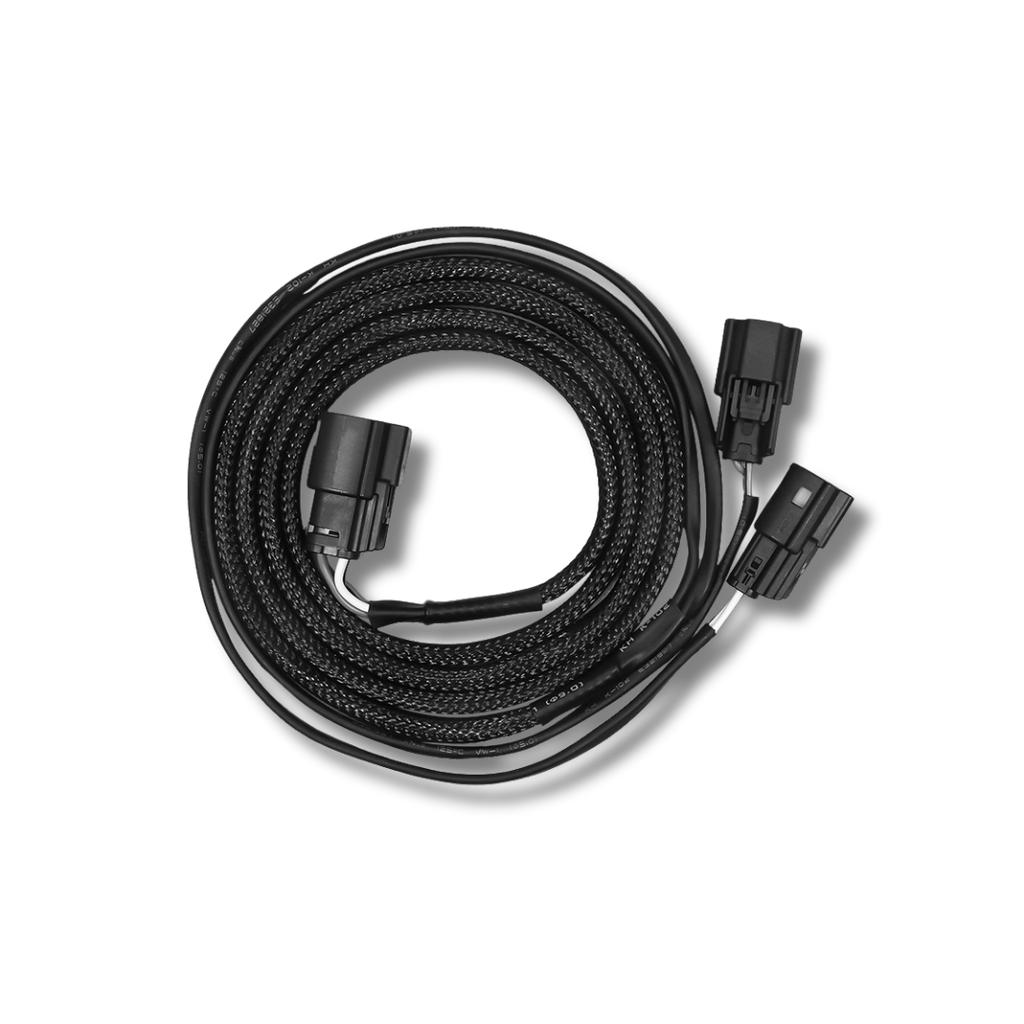

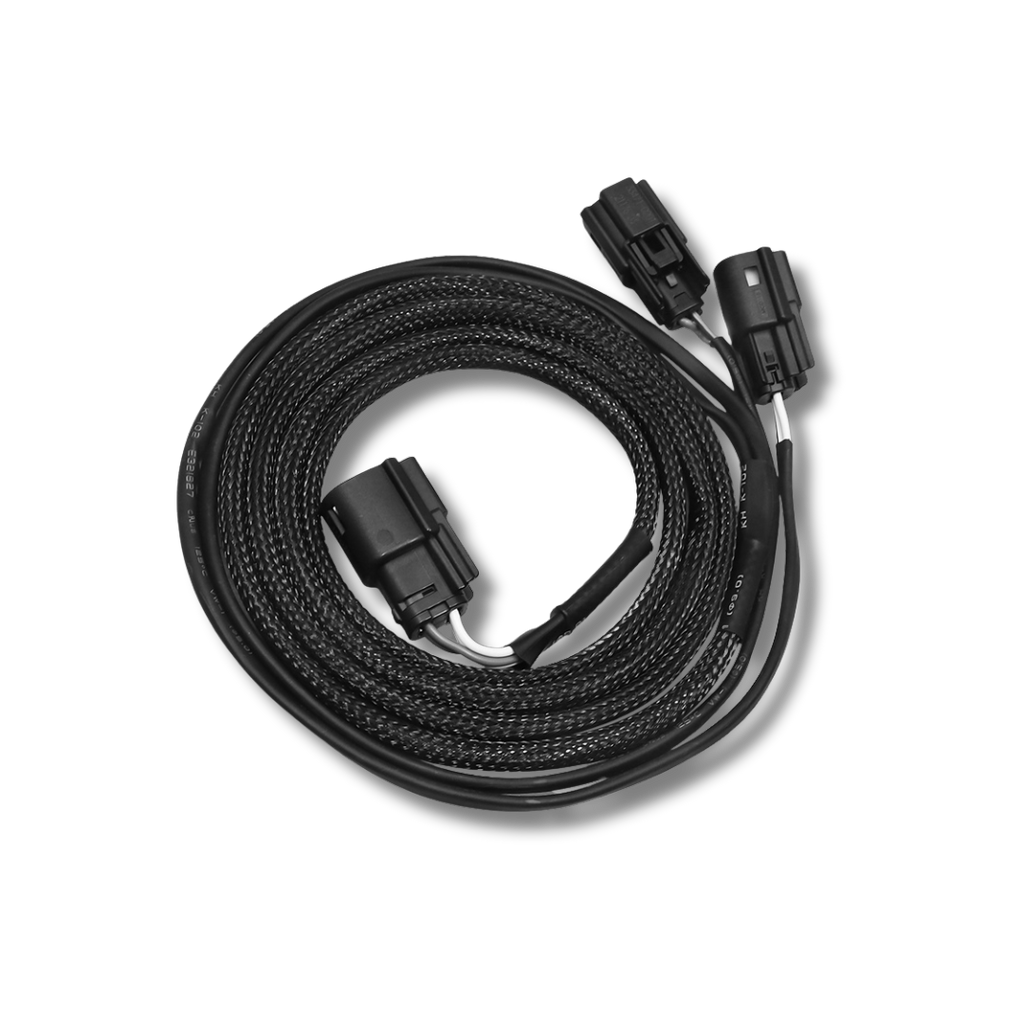

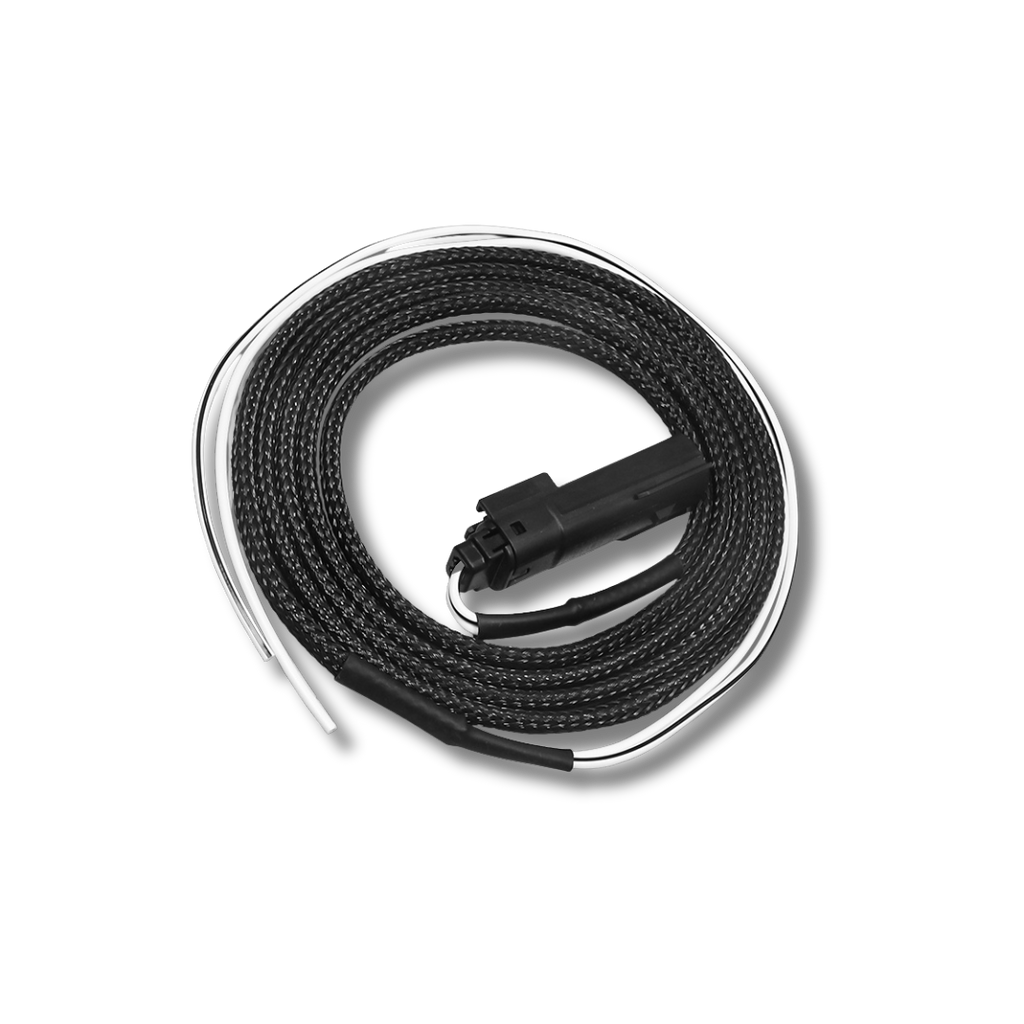

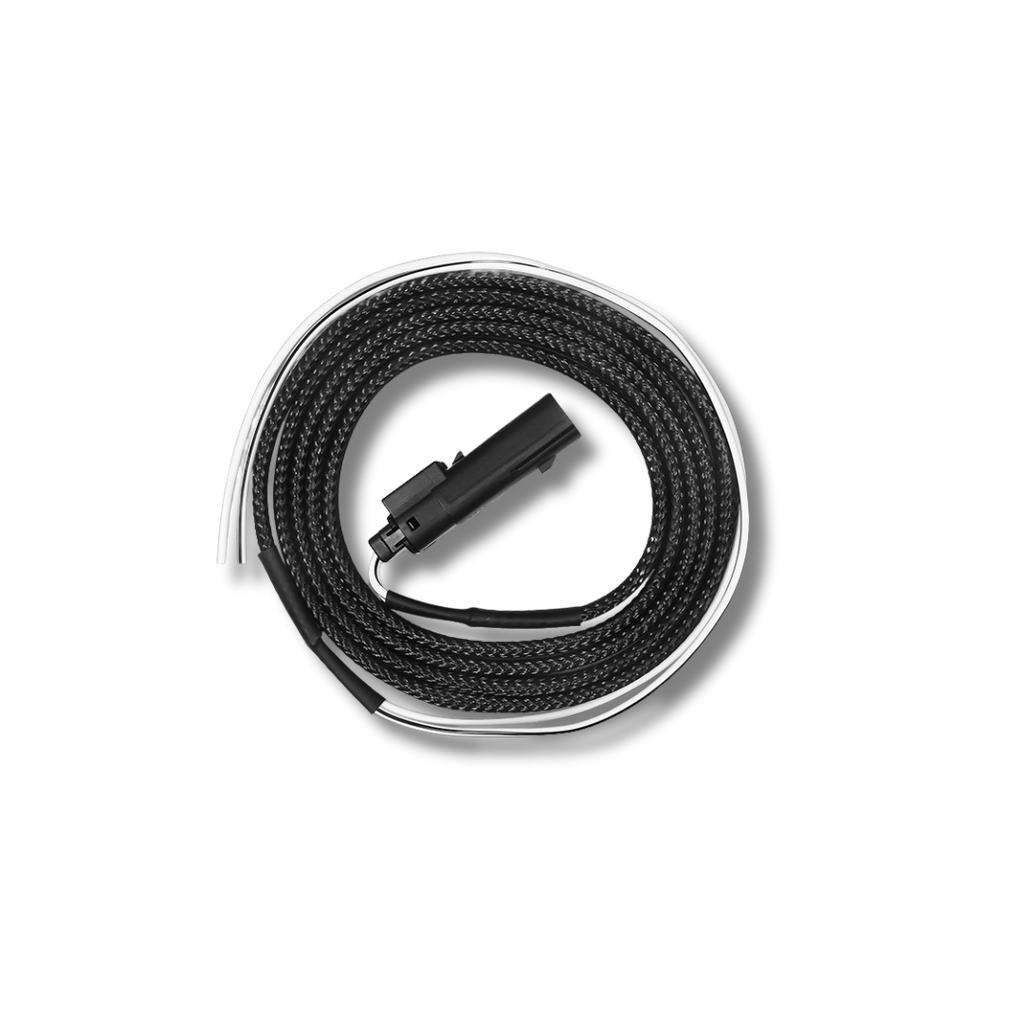

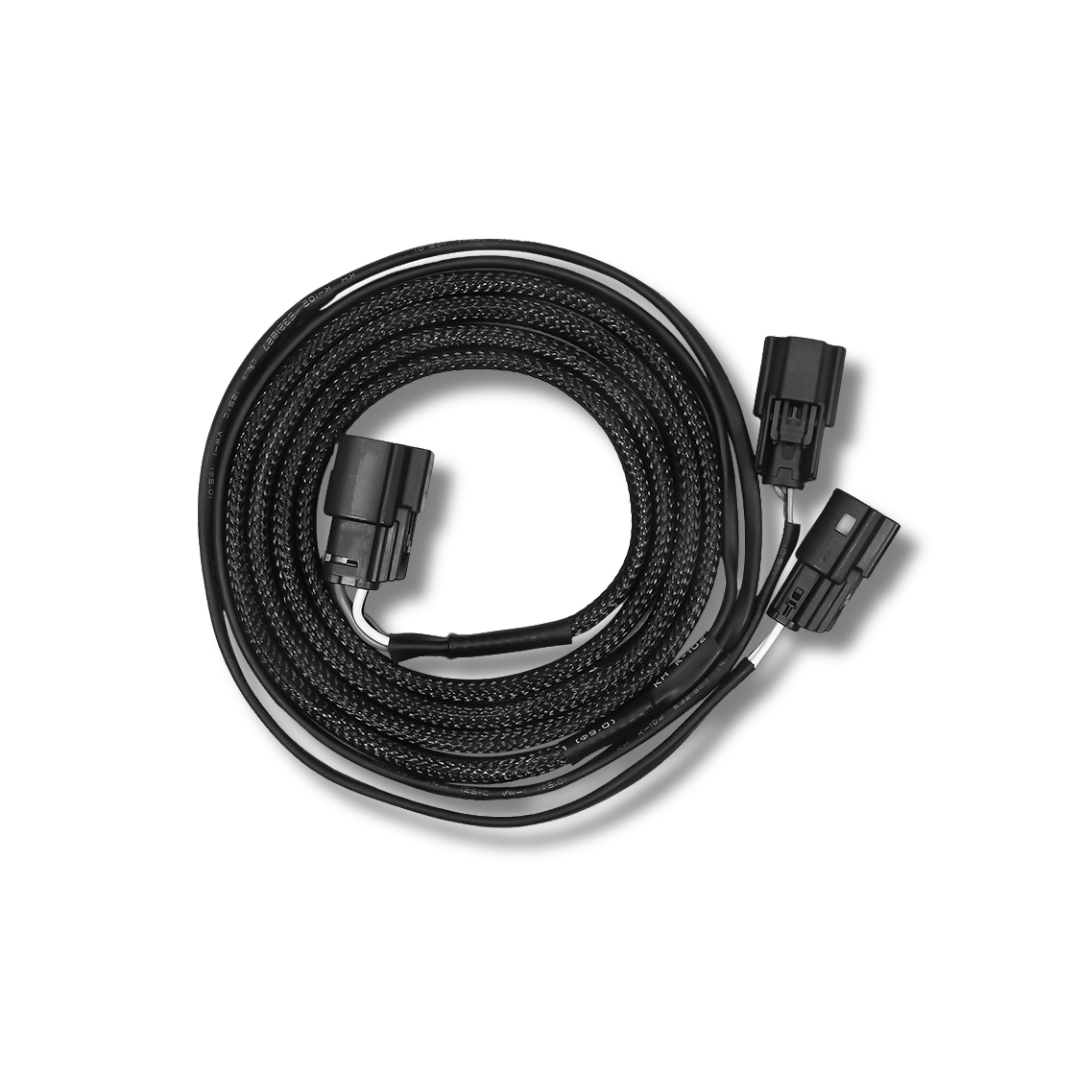

Rear output harness for 2014+ H-D® Touring — routes Cicada Audio® amplifier Molex® output to factory saddlebag speakers with 6-foot extension, no cutting required
The Cicada Audio HDRoM is the rear output harness for 2014+ Harley-Davidson® Touring models. It connects the Molex® speaker output on a Cicada Audio® amplifier to the factory rear saddlebag speaker wiring, using a 6-foot extension to cover the run from a fairing-mounted amplifier to the rear bag positions. No cutting or splicing required on either the amp or the factory harness.
Routing amplified signal from the fairing to the saddlebag speakers covers a significant distance on a Touring model. The HDRoM includes a 6-foot extension built for that run — Molex® termination at the amp, OEM-style connector at the rear speaker position, purpose-made rather than improvised. For the matching rear input harness (factory radio to amp), see the HDRiM. For the front output harness, see the HDFoM.
Who This Is For
Builders installing a Cicada Audio® amplifier on a 2014+ Harley-Davidson® Touring model and routing rear channels to the factory saddlebag speaker positions. If your amplifier is in the fairing and the rear speakers are in the bags, the HDRoM is the correct output harness for the rear stage. For front speaker output, use the HDFoM.
What This Is Best For
- Rear amplifier output to factory saddlebag speaker wiring — The Cicada amplifier's Molex® rear output connects directly to the HDRoM; the other end plugs into the factory H-D® saddlebag speaker connector. No terminal crimping, no connector sourcing, no guessing at pinout. On the road: a completed rear channel in the time it takes to route a harness — correct pinout, correct connector, clean installation.
- 6-foot extension for fairing-to-saddlebag runs — On a Touring model, the distance from a fairing-mounted amp to the rear saddlebag speaker connectors is non-trivial. The HDRoM's 6-foot extension is purpose-built for that run — long enough to route tidily through the frame without pulling tight, without splicing in additional wire. On the road: a harness that reaches where it needs to go without improvisation or mid-run joins that introduce noise potential.
- Factory rear harness integrity preserved — The OEM-style connector on the speaker side mates directly with the factory saddlebag wiring as-built. No modification to the factory harness is required, which means the rear stage is fully reversible and the bike's original wiring is untouched. On the road: a rear audio upgrade that can be removed without leaving a trace on the factory harness.
- Part of the Cicada harness ecosystem — The HDRoM pairs with the HDRiM (factory radio rear output to amp input) to complete the rear signal path, and works alongside the HDFoM on the front stage. Each harness in the system uses the same Molex® connector standard, so the signal path from radio to speaker is consistent throughout. On the road: a system wired with matched harnesses rather than a mix of adapters — simpler to trace, simpler to service.
The Bottom Line
The HDRoM is the correct rear output harness for Cicada Audio® amplifier installs on 2014+ H-D® Touring — Molex® at the amp, OEM-style at the saddlebag speakers, 6-foot extension included for the fairing-to-rear run. Plug-and-play, no cutting. Pair with the HDRiM for the complete rear signal path, and the HDFoM for front output. Available at MAA as Australia's authorised Cicada Audio dealer.
Compatibility
| Specification | Detail |
|---|---|
| Bike Application | 2014+ Harley-Davidson® Touring models |
| Connection | Cicada Audio® amplifier Molex® output → factory rear saddlebag speaker wiring |
| Output Stage | Rear — saddlebag speaker positions |
| Extension | 6 feet (included) |
| Amp-Side Connector | Molex® |
| Speaker-Side Connector | OEM-style H-D® saddlebag speaker connector |
| Installation | Plug-and-play — no cutting or splicing required |
| Companion Harnesses | HDRiM (rear input) · HDFoM (front output) |
| Sold As | Single harness |
