Precision Power HD13.FHT Gauge-Mounted Tweeters – 1998–2013 Harley Touring Audio Upgrade
$350.00 AUD
SKU: HD13.FHT
Skip to product information
Precision Power HD13.FHT Gauge-Mounted Tweeters – 1998–2013 Harley Touring Audio Upgrade
$350.00 AUD
SKU: HD13.FHT
| Size | Tweeter |
| Impedance | 4 Ohm |
| Power | 50W RMS |
| Year Range | 1998-2013, Trike 2009-2013 |
| Location | Fairing |
Turn unused fairing gauge openings into high-output tweeter positions – without touching the wiring loom

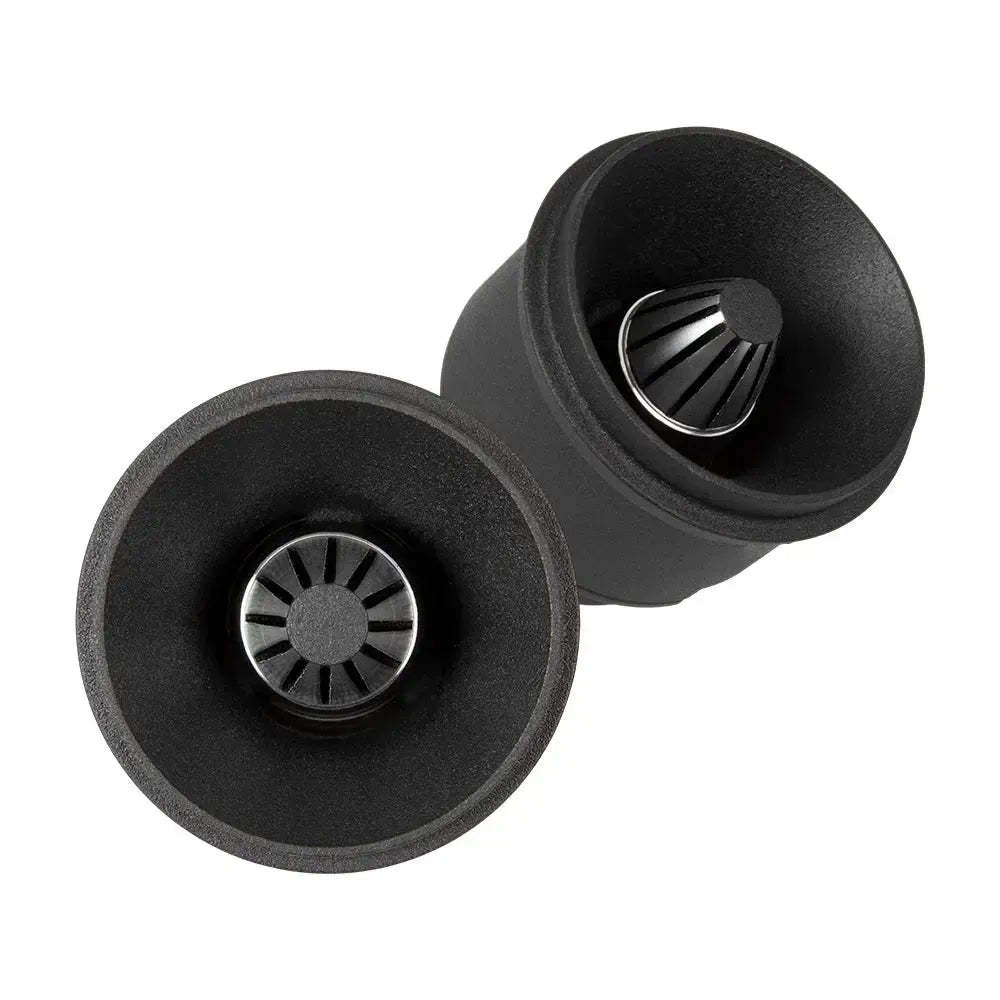

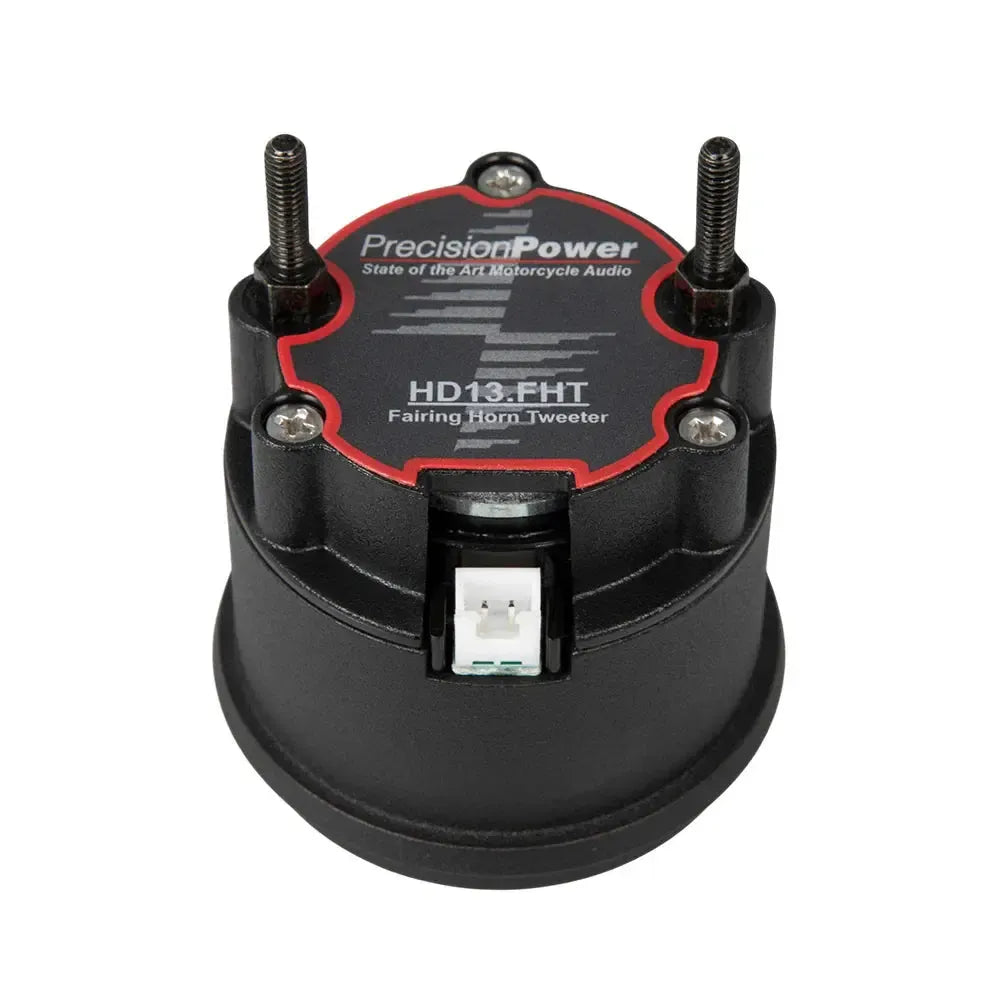

The Precision Power HD13.FHT is a pair of 1" horn-loaded tweeters engineered to mount directly into the unused gauge openings on 1998–2013 Harley-Davidson® Touring fairings. At 105 dB sensitivity, they deliver high-frequency extension far beyond what a coaxial fairing speaker's dome tweeter can produce from the same position – and the included plug-n-play T-harness means installation requires no cutting or splicing of the factory loom.
The upper fairing of a 1998–2013 Road Glide®, Street Glide®, or Electra Glide® has gauge openings that factory instruments do not fully occupy. The HD13.FHT uses those openings. A 1" aluminium ring diaphragm with an integrated phase plug and horn contour focuses high-frequency energy forward – toward the rider – with a sensitivity figure that positions the tweeter well above the output level of a conventional coaxial dome in the same location. The result is substantially more high-frequency clarity and presence at highway speeds without any fairing modification.
Who This Is For
Riders who have upgraded or are planning to upgrade the main fairing speakers – HD13.52 or similar 5.25" coaxials – and want to add a dedicated high-frequency driver in a factory-fit gauge position. The HD13.FHT adds the upper register definition that a coaxial tweeter at a fairing speaker position cannot match.
What This Is Best For
- High-frequency extension from a stealth gauge position – Installs into unused gauge openings on pre-2014 batwing and Sharknose fairings. From the rider's perspective, the tweeters are invisible until they are heard.
- Plug-n-play T-harness installation – The included T-harness connects directly into the OEM speaker wiring. No cutting, no soldering, no splicing. Unplug the factory connector, plug in the T-harness, connect the tweeter terminals.
- 105 dB sensitivity – At 105 dB, the HD13.FHT produces significantly more high-frequency output per watt than the dome tweeter in a coaxial fairing speaker. In a factory radio system, this efficiency difference is audible from the first listen.
- HD13 front-stage system – Pairs with the HD13.52 fairing speakers to form a front-stage system where the coaxials handle mid and bass and the HD13.FHT extends high-frequency response from the gauge position.
Before You Order – Compatibility Notes
Gauge opening fitment only. The HD13.FHT mounts into fairing gauge openings – not speaker cutouts. Confirm your fairing has available gauge positions before ordering. Standard 1998–2013 Road Glide, Street Glide, Electra Glide, and Ultra models typically have unused openings – verify yours before purchasing.
Crossover included. The HD13.FHT includes an inline 12 dB high-pass crossover set at 4 kHz, protecting the tweeter from low-frequency excursion. In a DSP-equipped system, the external crossover can be used and the inline unit bypassed if preferred.
Contact Motorcycle Audio Australia if you need help confirming gauge opening availability or configuring crossover points for your system.
Gauge opening fitment only. The HD13.FHT mounts into fairing gauge openings – not speaker cutouts. Confirm your fairing has available gauge positions before ordering. Standard 1998–2013 Road Glide, Street Glide, Electra Glide, and Ultra models typically have unused openings – verify yours before purchasing.
Crossover included. The HD13.FHT includes an inline 12 dB high-pass crossover set at 4 kHz, protecting the tweeter from low-frequency excursion. In a DSP-equipped system, the external crossover can be used and the inline unit bypassed if preferred.
Contact Motorcycle Audio Australia if you need help confirming gauge opening availability or configuring crossover points for your system.
TAB 2 – TECHNICAL DETAIL
--------------------------
What's Inside

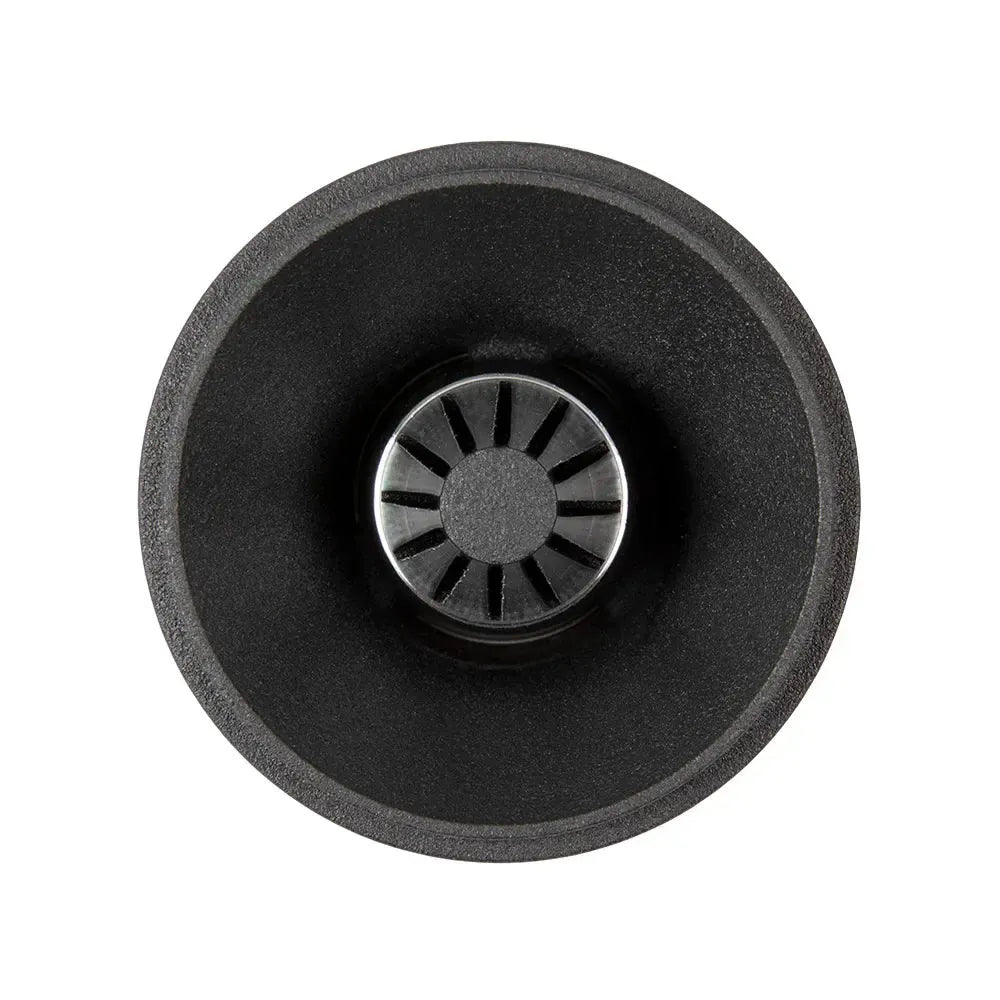

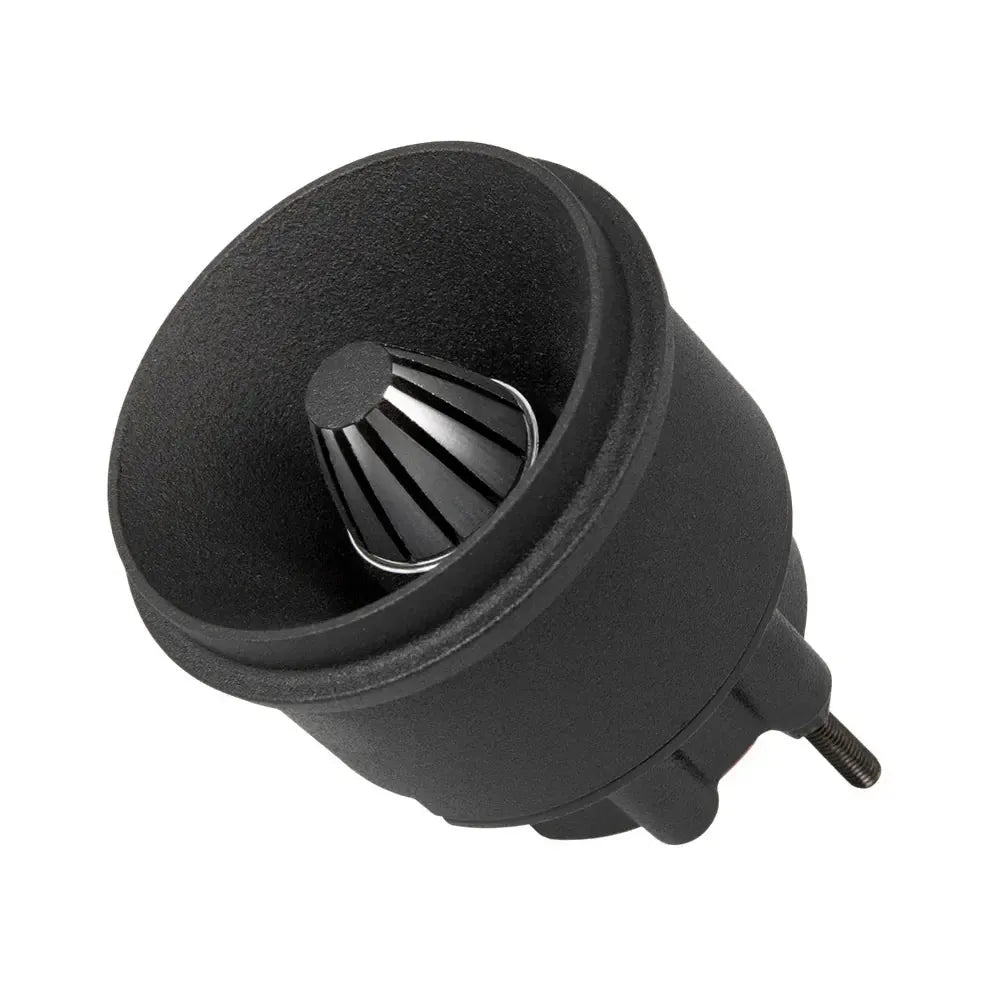

1" aluminium ring diaphragm with integrated horn and phase plug. The HD13.FHT uses a ring diaphragm rather than a conventional dome. This design produces a more uniform wave front and maintains phase coherence across the crossover region. The horn contour focuses high-frequency energy forward – toward the rider – rather than scattering it into the fairing cavity. The result is more usable high-frequency SPL at the riding position for the same input power.
Neodymium alloy magnet. A compact neodymium alloy magnet provides the motor force behind the 105 dB sensitivity rating – significantly more efficient than a ferrite-magnet design of comparable physical size. In a fairing environment where space is constrained and weight matters, the neodymium motor achieves the output of a physically larger driver.
Inline 12 dB high-pass crossover with overload protection. An inline crossover set at 4 kHz rolls off frequencies below the tweeter's operating range, protecting the diaphragm from low-frequency excursion at high power levels. An integrated overload protection circuit provides additional protection against clipping transients in amplified systems.

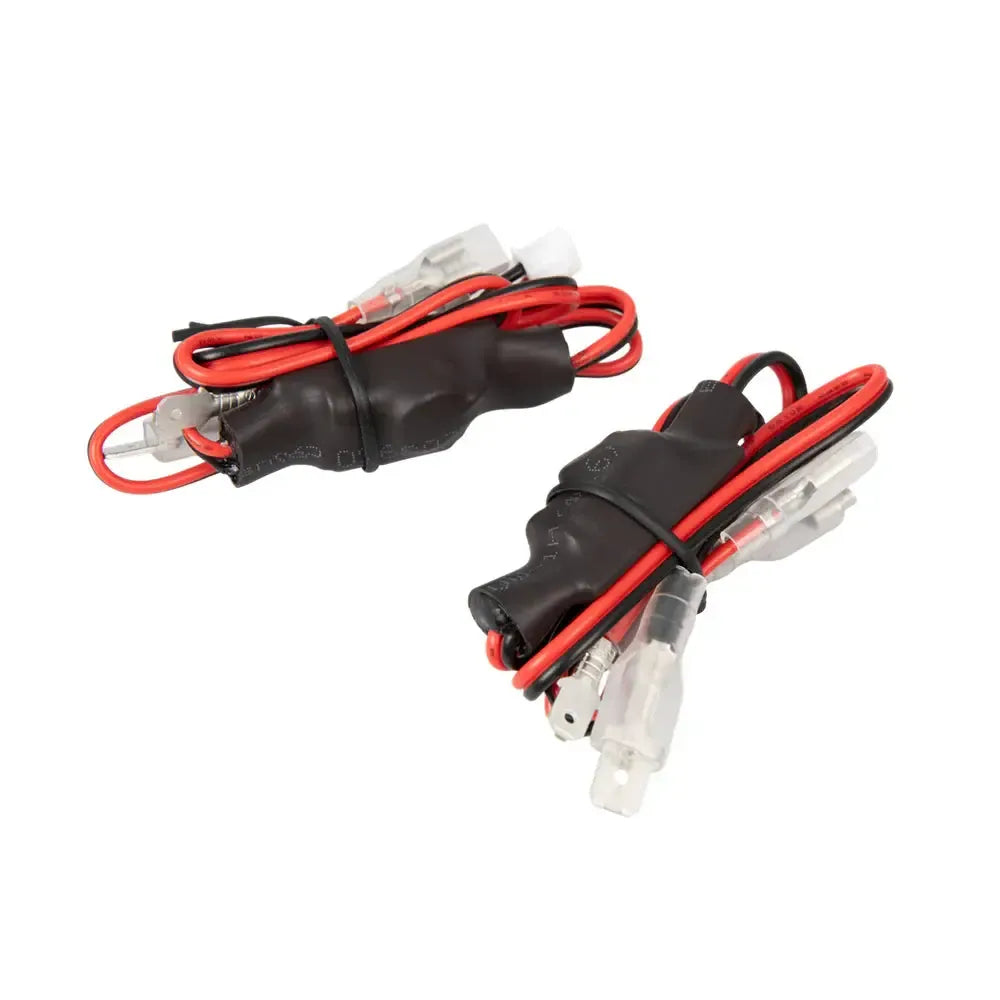

Plug-n-play T-harness. The included T-harness connects directly to the OEM speaker wiring, allowing the HD13.FHT to receive a signal from the factory speaker output without cutting, splicing, or rewiring. The tweeter connects to the T-harness output alongside the main speaker signal.
Fitment
| Model | Year Range | Position |
|---|---|---|
| Road Glide / Road Glide Custom (FLTR/FLTRX) | 1998–2013 | Fairing gauge openings |
| Street Glide (FLHX) | 2006–2013 | Fairing gauge openings |
| Electra Glide / Ultra Classic® (FLHT/FLHTC/FLHTCU) | 1998–2013 | Fairing gauge openings |
Technical Specifications
| Tweeter Type | 1" aluminium ring diaphragm with phase plug and horn contour |
| Impedance | 4 Ω |
| Power Handling (RMS) | 50 W |
| Power Handling (Peak) | 100 W |
| Sensitivity | 105 dB (1W/1m) |
| Frequency Response | 4 kHz – 22 kHz |
| Crossover | Inline 12 dB high-pass (4 kHz crossover point) |
| Protection | Integrated overload protection circuit |
| Magnet | Neodymium alloy |
| Mounting Depth | 51 mm (2.0 in) |
| Harness | Plug-n-play T-harness for OEM speaker wiring (included) |
| Warranty | 1 year through Motorcycle Audio Australia |
