Cicada Audio 24CHDSGGTK-05 – 2024+ Street Glide® Grille + RR05T Tweeter Kit (4Ω, Pair)
$600.00 AUD
SKU: 24CHDSGGTK-05
2024+ Street Glide fairing grilles with RR05T tweeters. Direct-fit front stage upgrade.
The Cicada Audio 24CHDSGGTK-05 is a direct-fit grille and tweeter kit for 2024+ Harley-Davidson® Street Glide models – 2024+ Street Glide-specific fairing grilles paired with a matched set of RR05T compact horn tweeters (4Ω, 40W RMS, 99 dB), 12 dB / 7 kHz crossovers, and mounting hardware. V9™ Phase Plug dispersion technology. Sold as a complete pair kit.
The 24CHDSGGTK-05 is the complete front tweeter upgrade for 2024+ Street Glide fairings – the kit built around the updated 2024+ fairing design. It combines 2024+ Street Glide-specific grilles with matched RR05T compact horn tweeters, crossovers, and all mounting hardware required for a direct-fit install. The RR05T's V9™ Phase Plug provides wide dispersion from the compact 0.5-inch format, delivering clear, focused highs from the fairing position at highway speeds. For 2014–2023 Street Glide models, the CHDSGGTK is the matching kit.
Who This Is For
Riders on 2024+ Harley-Davidson Street Glide models who want to add front fairing tweeters without cutting or fabrication. The 24CHDSGGTK-05 replaces the factory grilles with 2024+ platform-specific replacements incorporating RR05T mounts. For 2024+ Road Glide, the 24CHDRGGTK-075 is the Road Glide-specific variant. For 2014–2023 Street Glide, see the CHDSGGTK.
What This Is Best For
- Front tweeter upgrade on 2024+ Street Glide with no fabrication – 2024+ Street Glide-specific grilles replace the factory items directly, incorporating RR05T tweeter mounts in the correct fairing position.
- Amplified 2024+ Street Glide builds – 99 dB sensitivity and 40W RMS handling suit amplified motorcycle audio systems; V9™ Phase Plug ensures the coverage footprint reaches both rider and passenger from the fairing position.
- Clean, 2024+-correct OEM-style appearance – grilles are matched to the 2024+ Street Glide fairing design; maintains factory aesthetics with the tweeter integration built in.
- Complete passive front stage with CXK or CM65 mid-bass – pairs with 2024+ Street Glide front-stage mid-bass drivers for a complete passive front component system.
What's Inside the 24CHDSGGTK-05

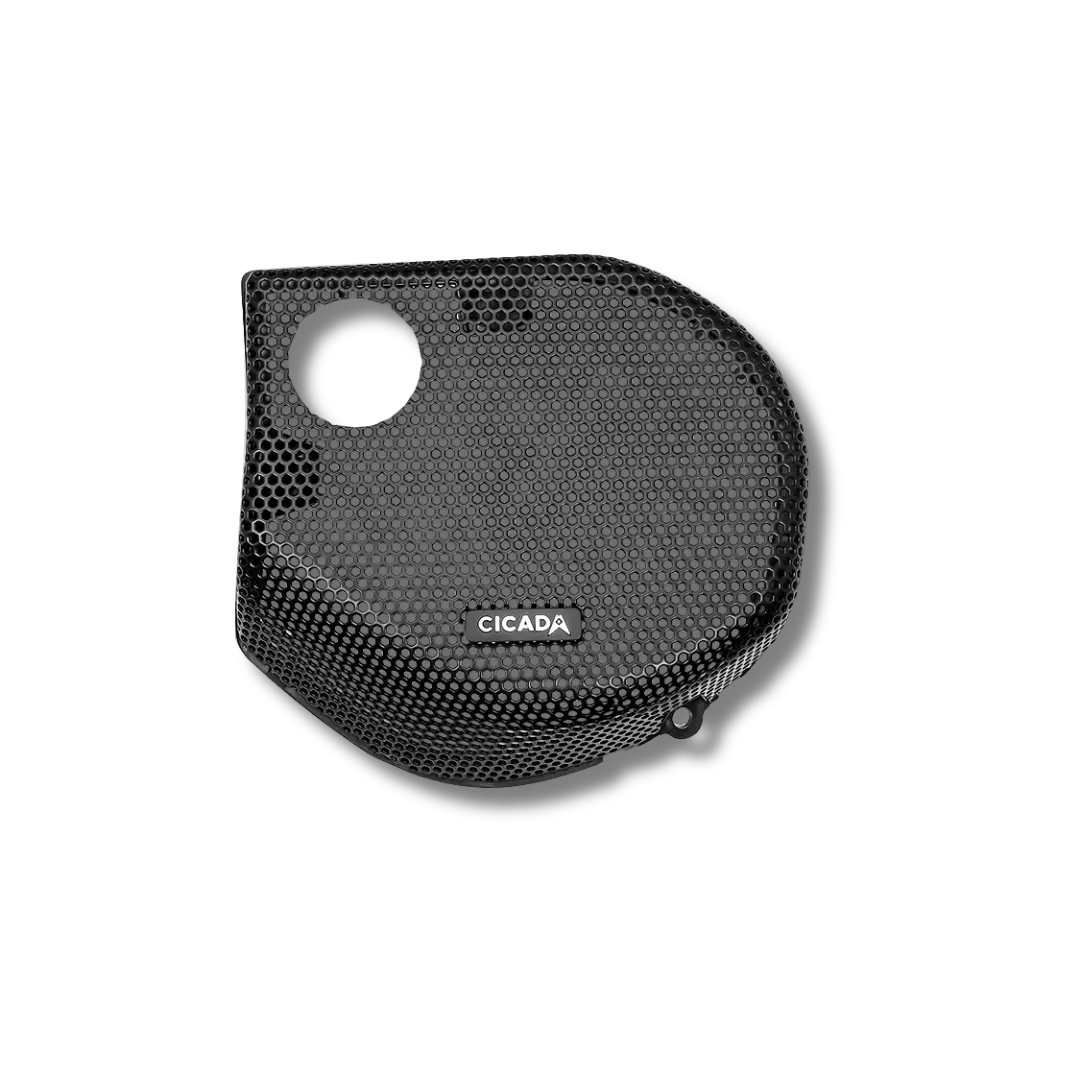

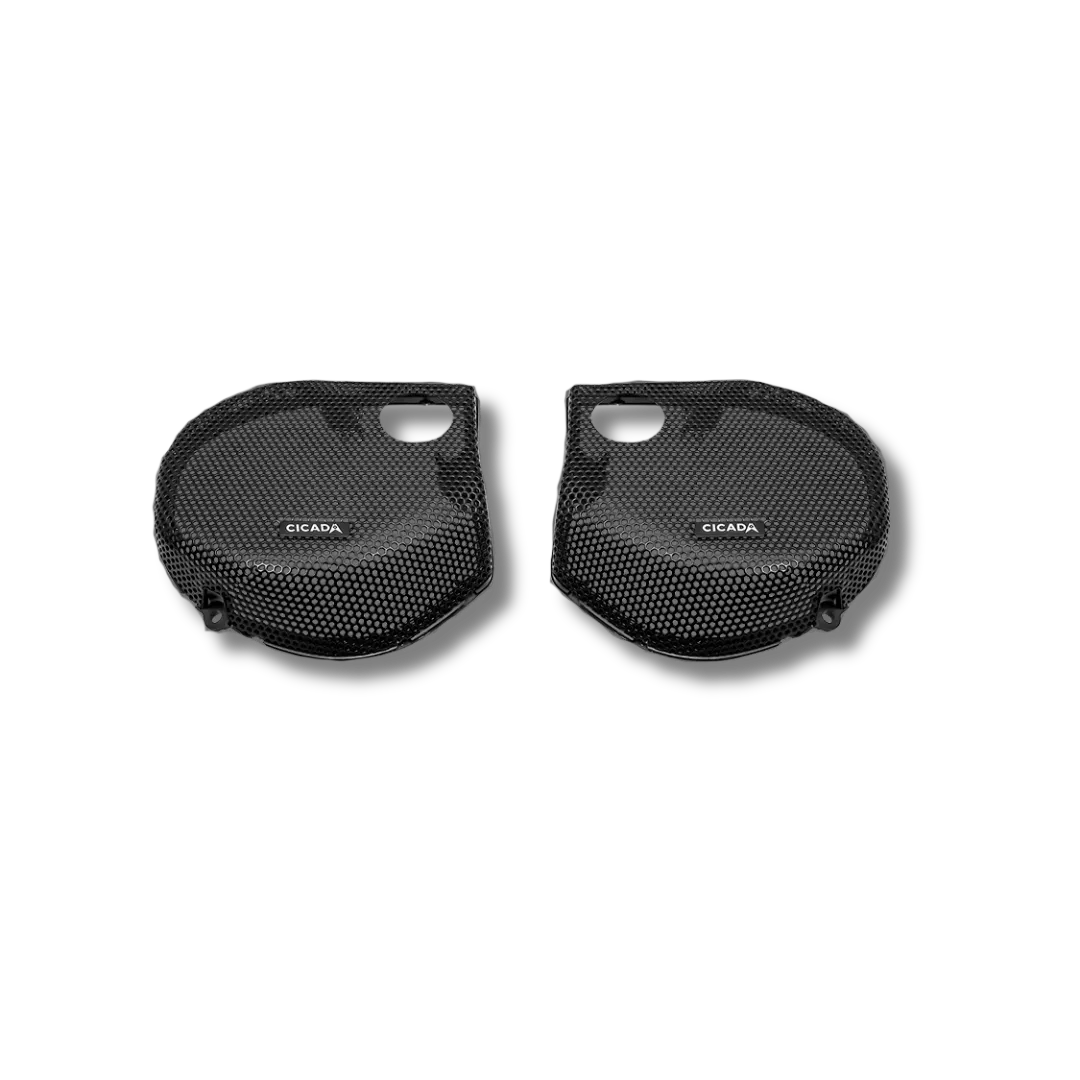

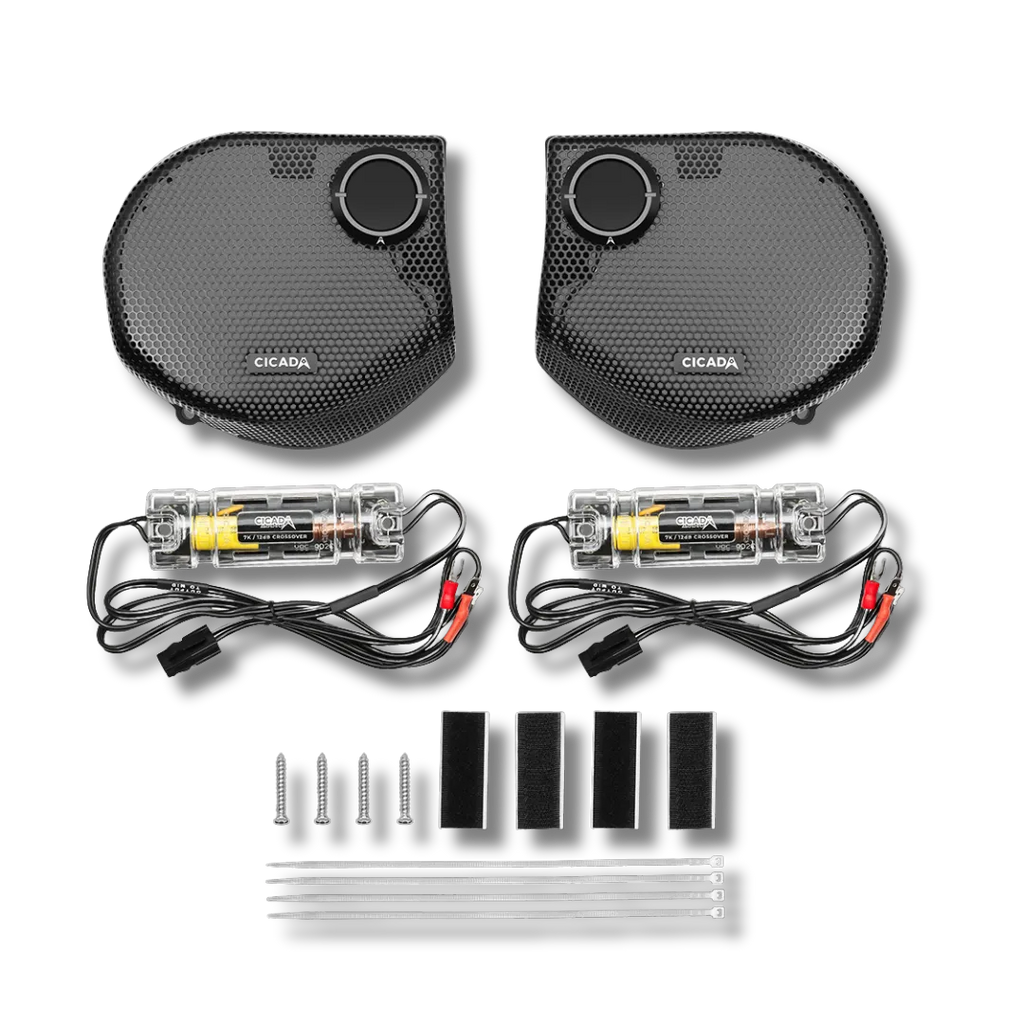

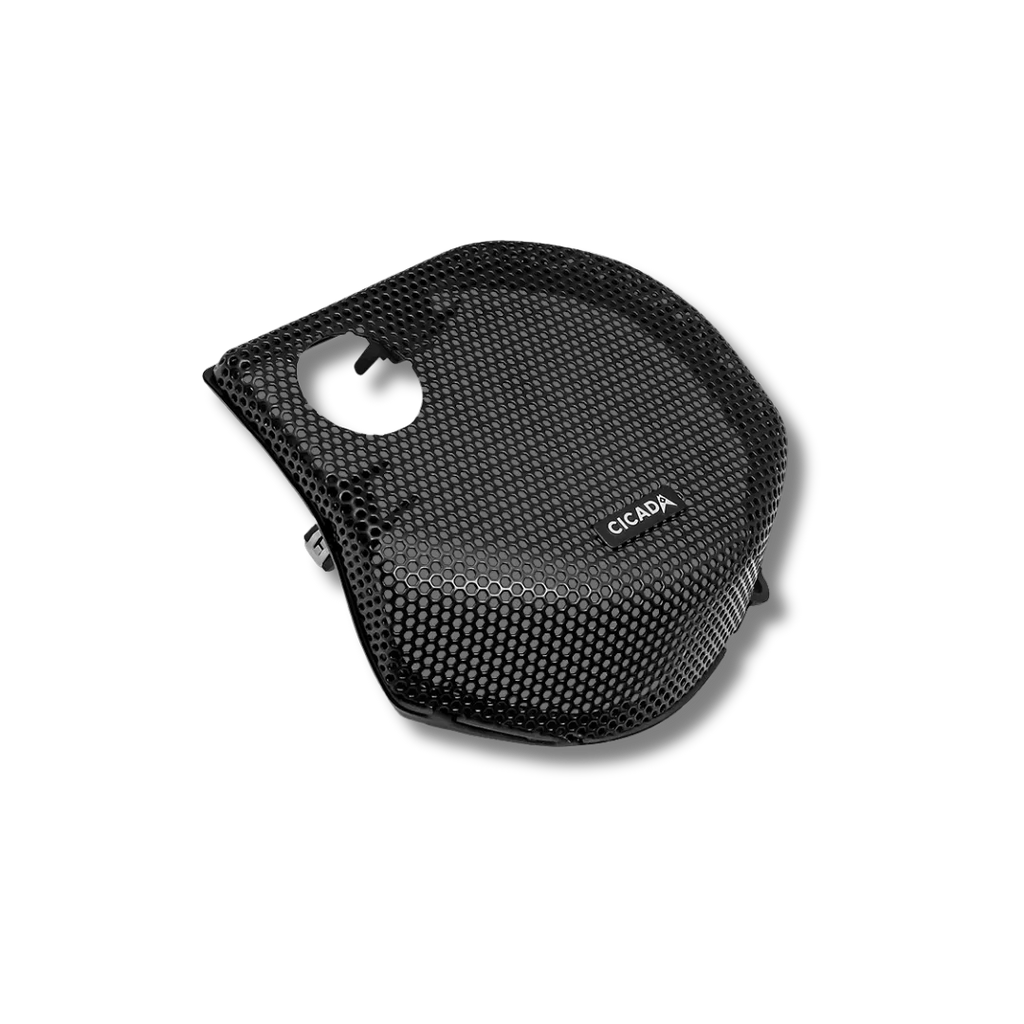

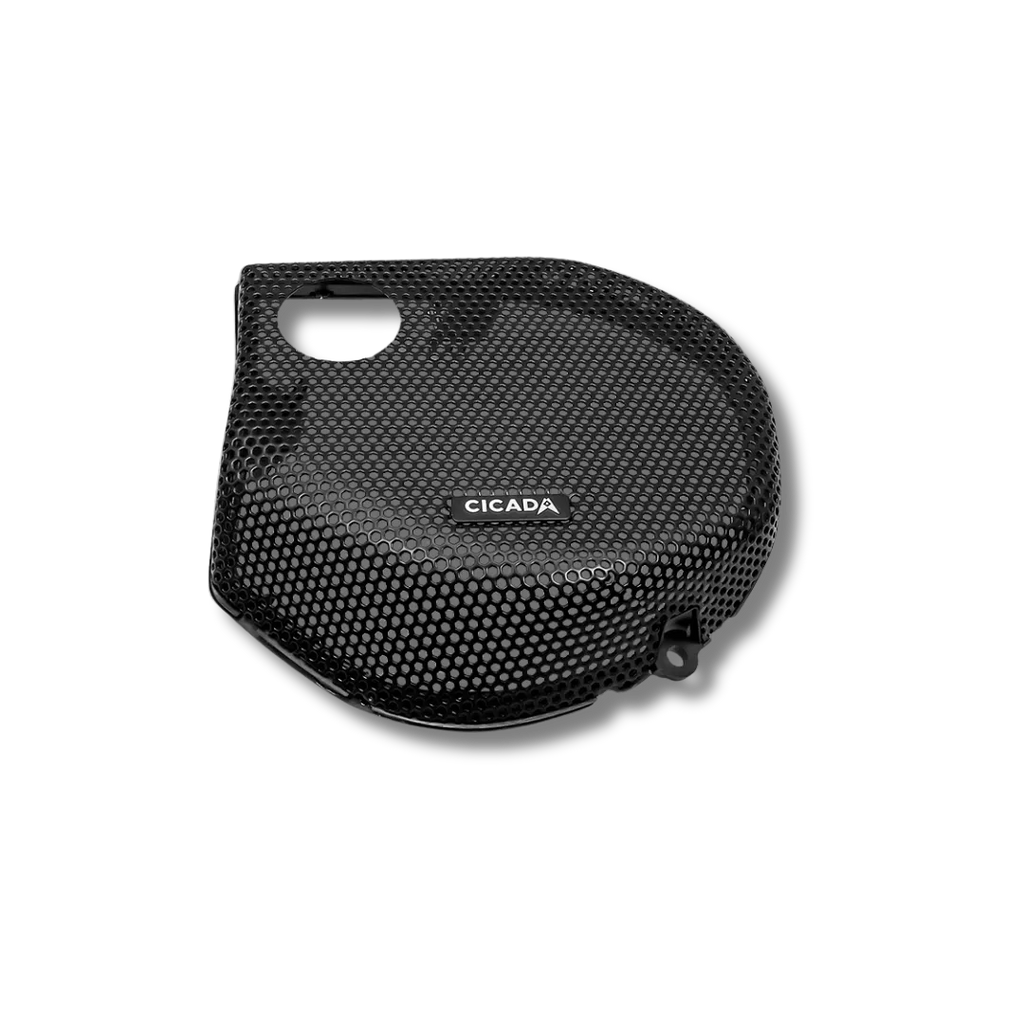

The 24CHDSGGTK-05 includes two 2024+ Street Glide-specific fairing grilles, two RR05T compact horn tweeters, two 7 kHz / 12 dB crossovers in custom-tooled vented cases, and complete mounting hardware. On the road: everything the front tweeter position needs arrives together, so the install does not stall waiting on a missing part.

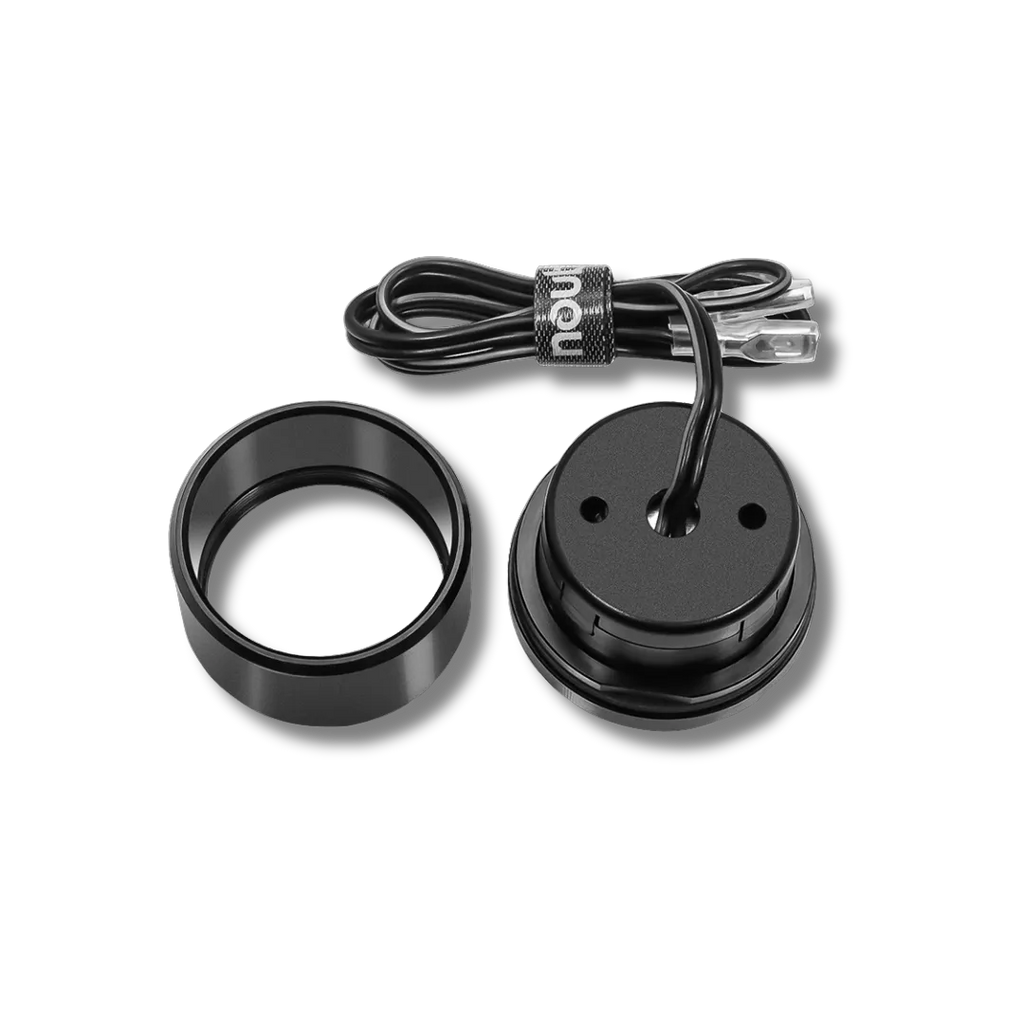

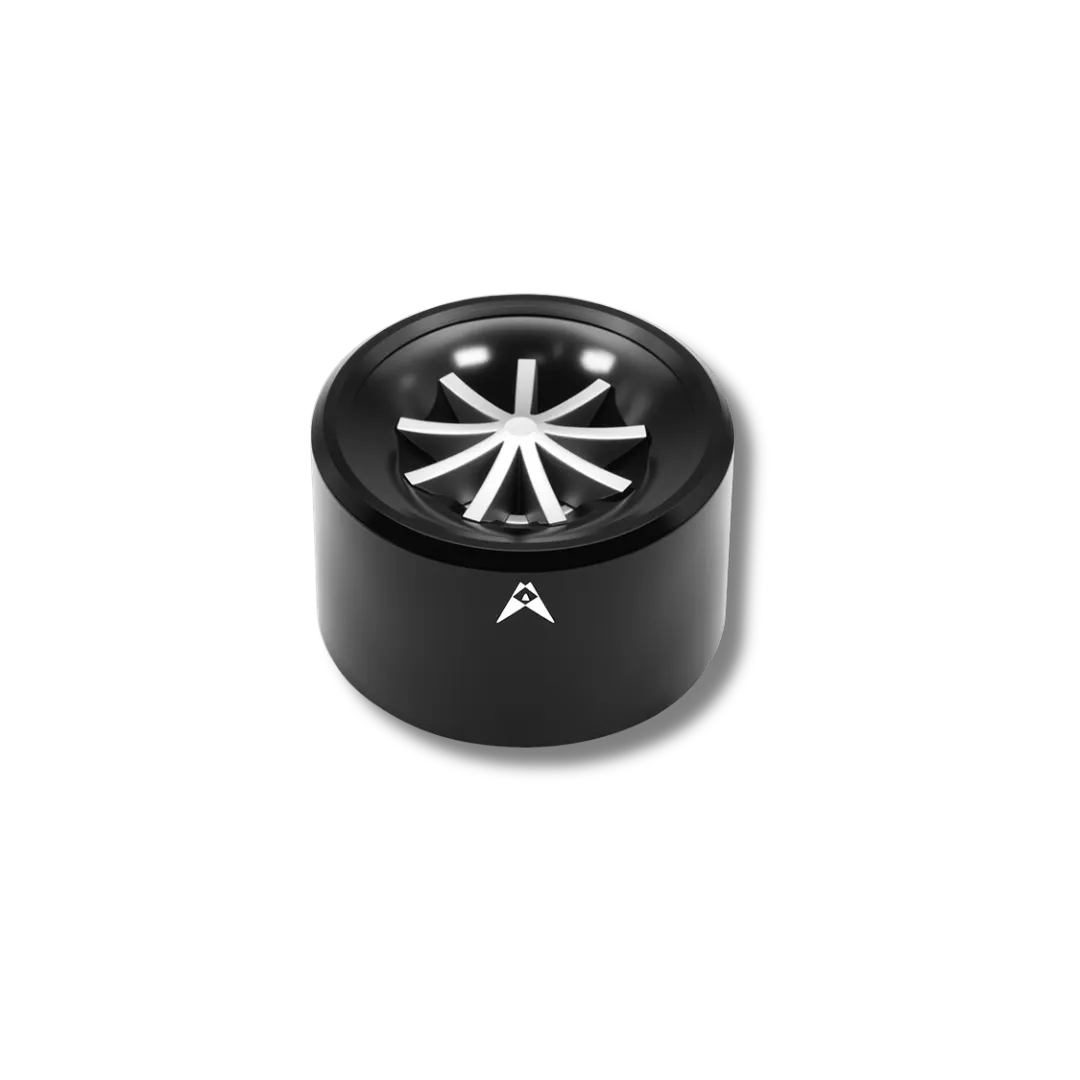

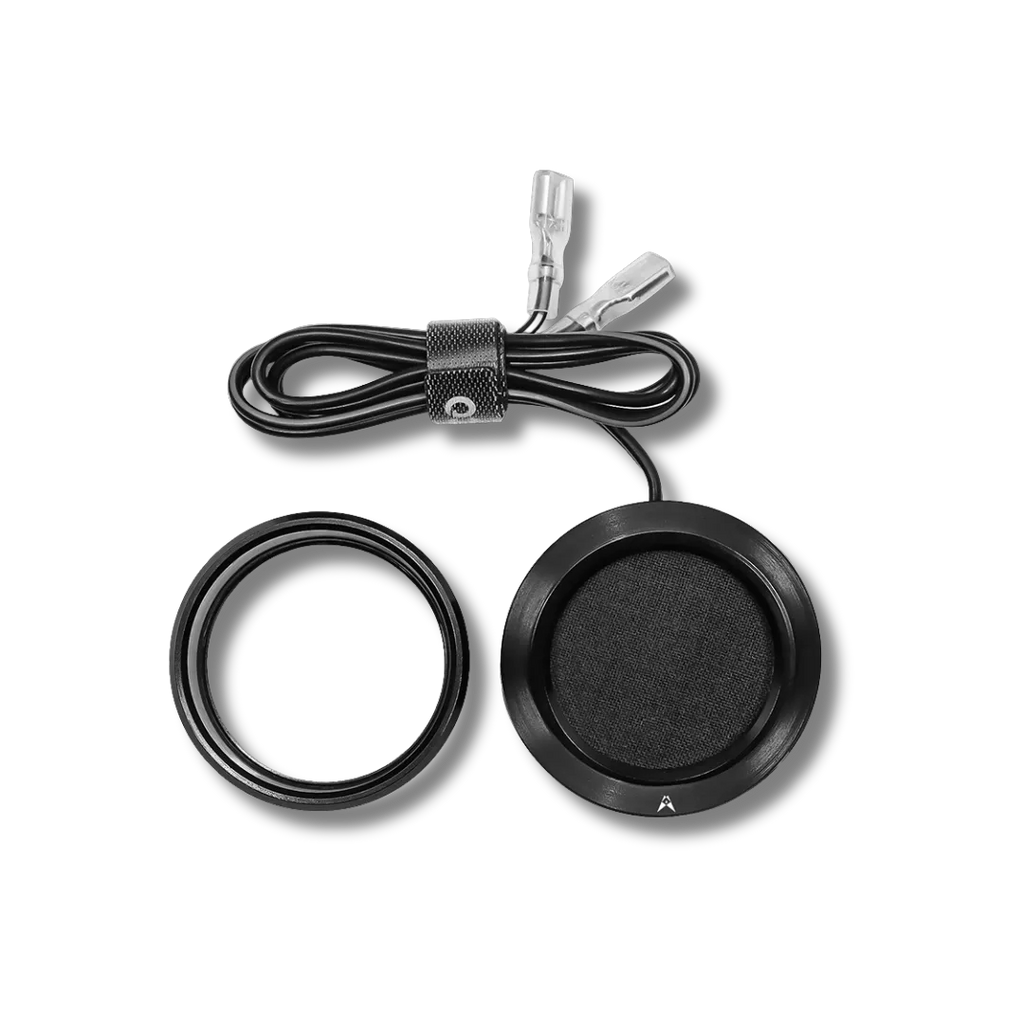

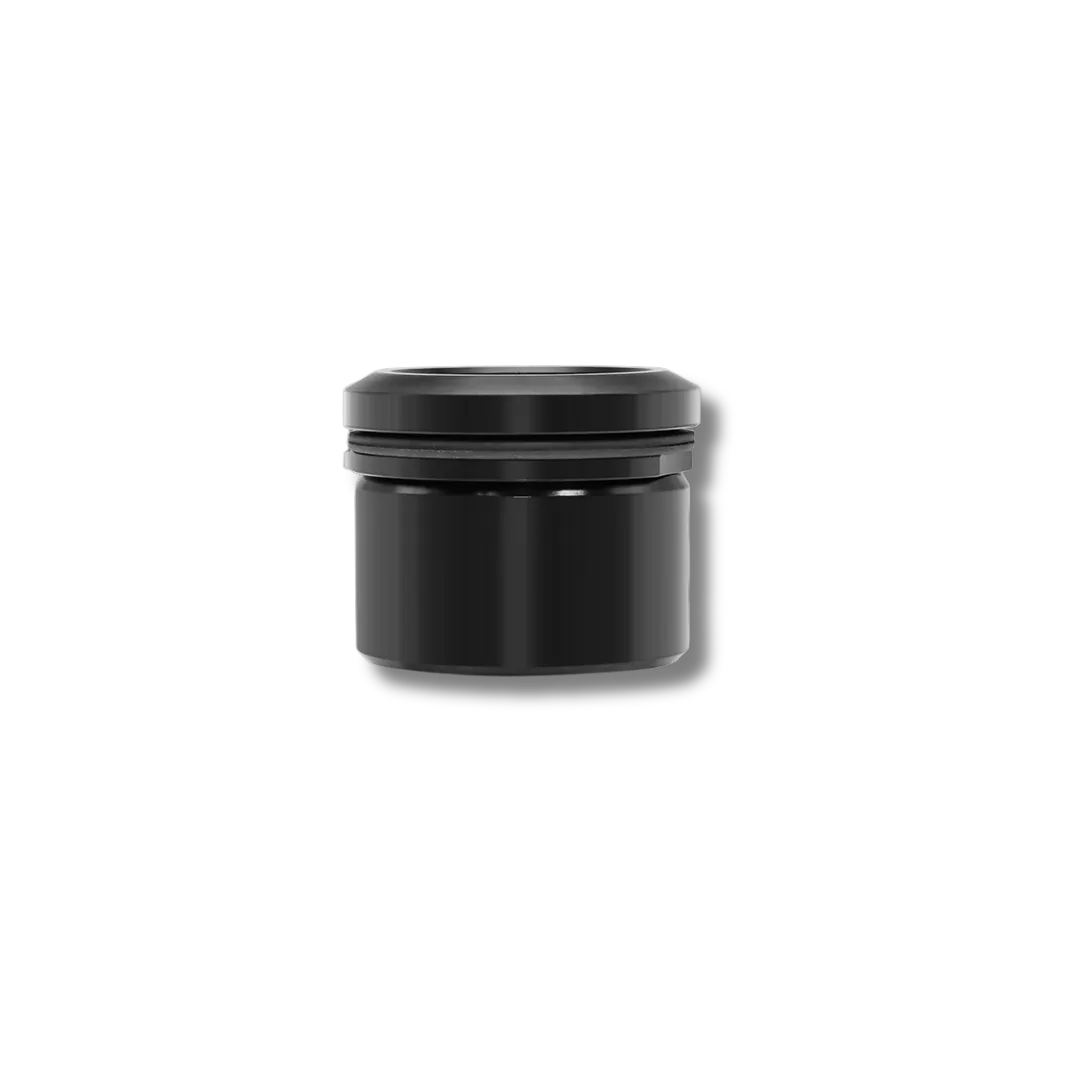

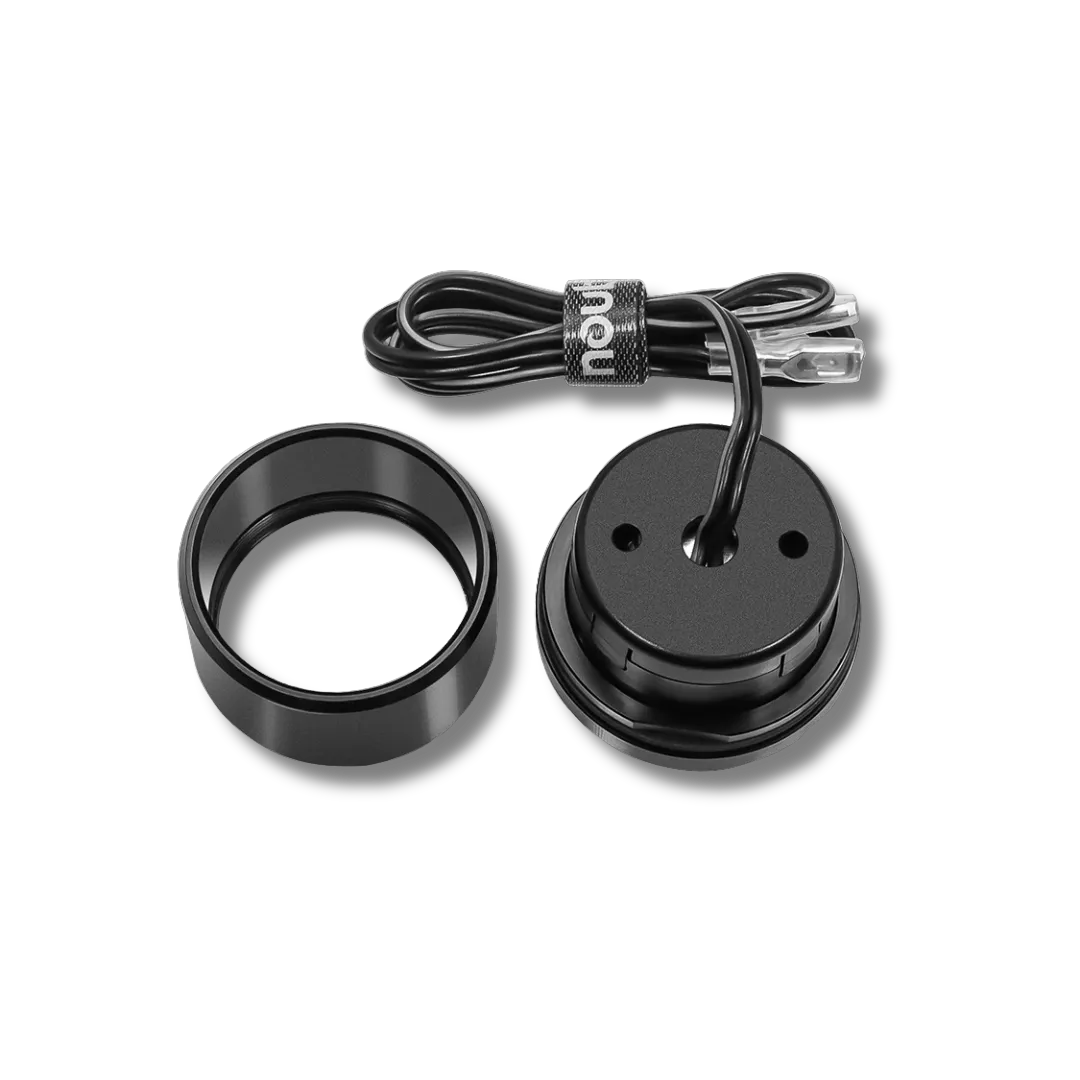

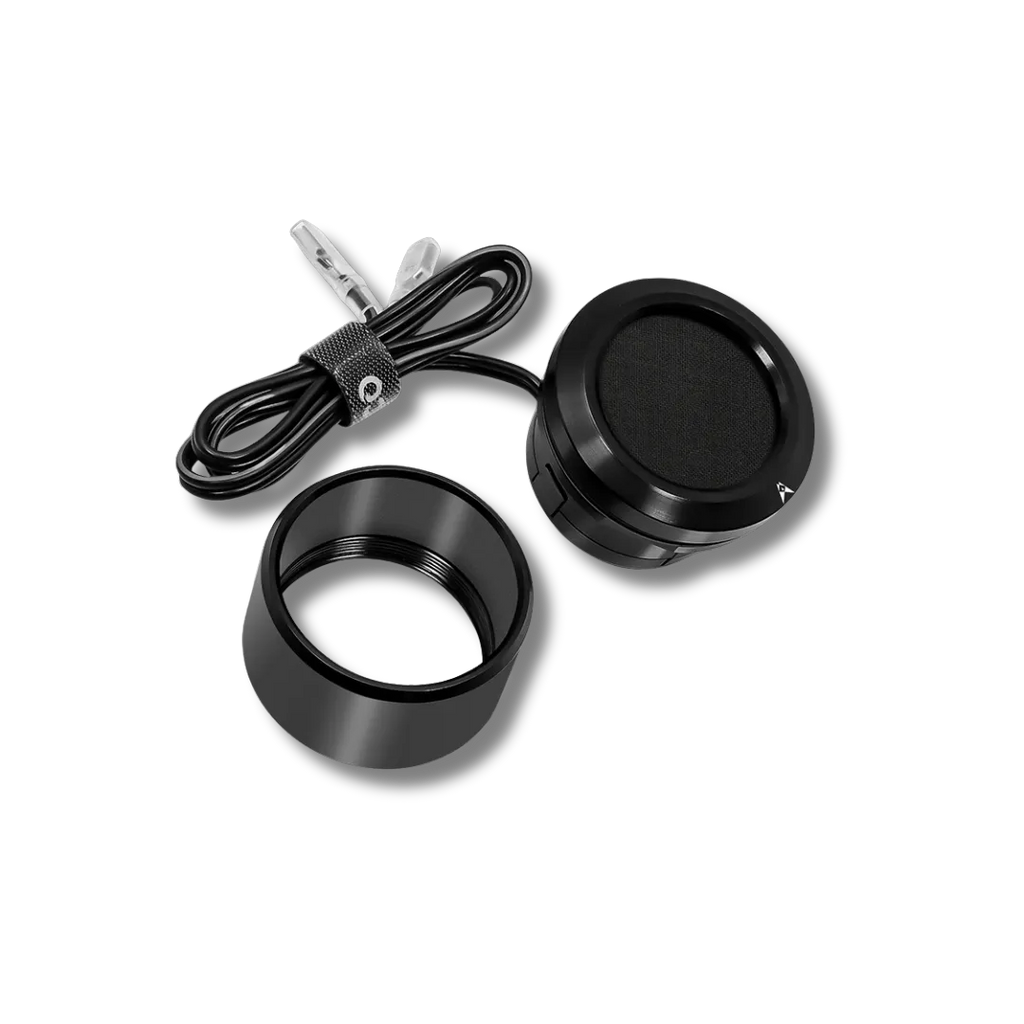

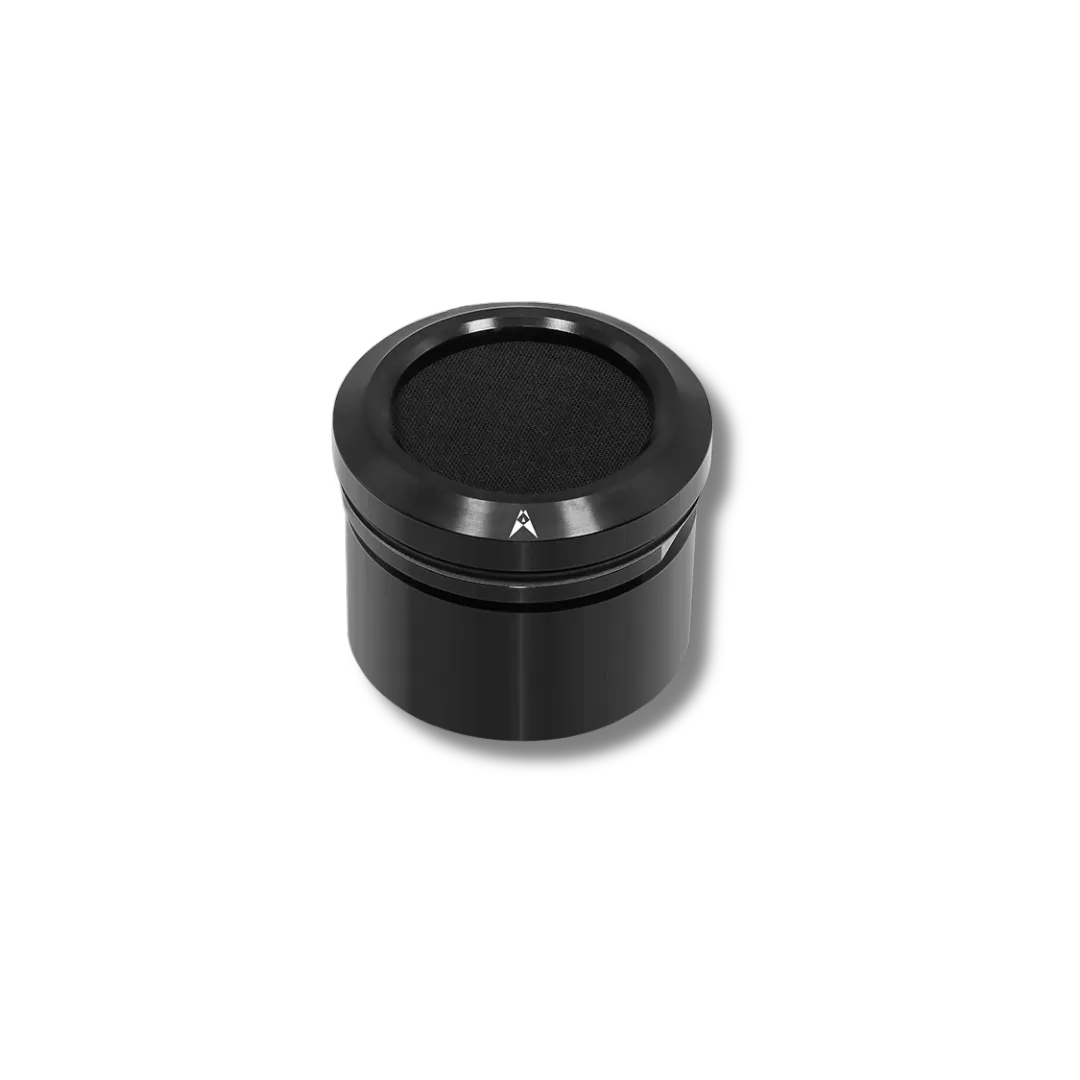

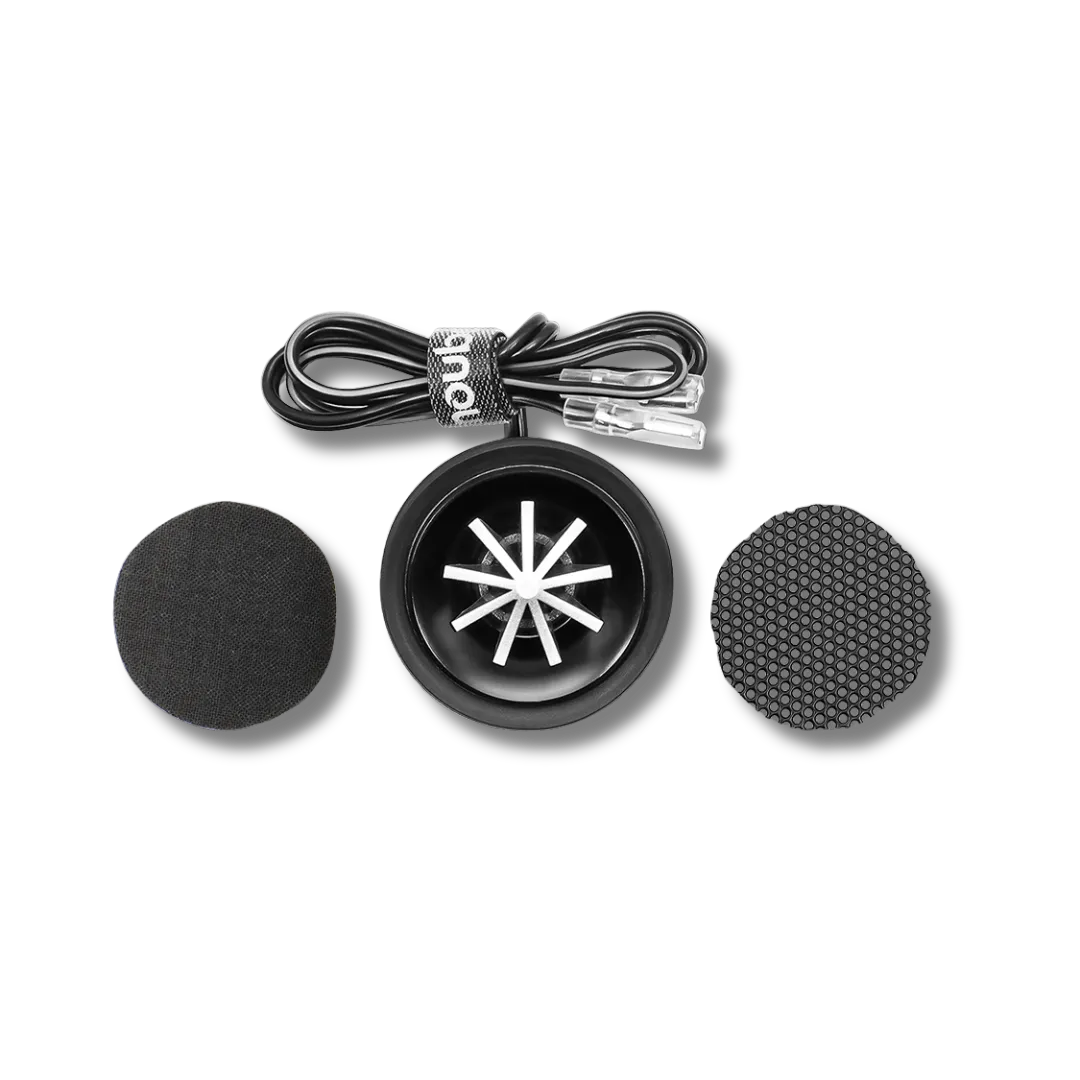

The RR05T tweeters use a 0.5-inch titanium dome in a short horn enclosure with Cicada's V9™ Phase Plug – the same dispersion-widening technology used in the RR1T. The V9™ Phase Plug broadens the acoustic field beyond the standard horn geometry, improving off-axis response at the riding and passenger positions from the fairing. The neodymium motor and die-cast aluminium basket keep the assembly compact and durable. The 7 kHz / 12 dB crossover handles the signal split – flush mounting depth of 21.7mm (0.85 in) suits the compact 2024+ fairing grille positions. On the road: the highs stay even across the riding position and the passenger position, rather than just directly in front of the grille.
Fitment
- Designed for 2024+ Harley-Davidson Street Glide factory fairing grille positions. On the road: the grilles go into the factory positions, so the upgrade happens without cutting the fairing.
- Compatible models: Street Glide (2024+), Street Glide Special (2024+), Street Glide CVO (2024+).
- Tweeter: Flush Mounting Depth 21.7 mm (0.85 in). Surface Mount Diameter 46.1 mm (1.8 in).
- For 2014–2023 Street Glide, see the CHDSGGTK.
Technical Specifications
| – RR05T Tweeter – | |
| Driver Size | 0.5 in (12.7 mm) |
| Impedance | 4Ω |
| Power Handling – RMS | 40W RMS per tweeter |
| Power Handling – MAX | 80W peak per tweeter |
| Sensitivity | 99 dB (1W/1m) |
| Frequency Response | 3 kHz – 20 kHz (±3 dB) |
| Tweeter Dome | Titanium |
| Voice Coil | 0.75 in (19 mm) |
| Magnet | Neodymium |
| Phase Plug | V9™ – Cicada exclusive dispersion enhancer |
| Flush Mounting Depth | 21.7 mm (0.85 in) |
| Surface Mount Diameter | 46.1 mm (1.8 in) |
| – System – | |
| Crossover | 7 kHz / 12 dB – custom tooled, vented case, included |
| Grille Fitment | 2024+ H-D Street Glide factory fairing grille positions |
| Weather Resistance | Rain or Shine™ |
| Warranty | 2 years |
| Sold As | Complete pair kit – 2x grille, 2x tweeter, 2x crossover, mounting hardware |
