250W mid-bass, 101 dB ring radiator horn tweeter. The passive 6×9 component kit for 2024+ Harley Touring saddlebag builds.
The Cicada Audio 24CXK69.2 is a complete 6×9-inch 2Ω passive component speaker kit — 250W RMS mid-bass, 50W RMS ring radiator horn tweeter with field-replaceable diaphragm, Carbon Matrix Composite™ (CMC™) cone, OFC copper shorting ring, Black Coat™ OFC 2.0-inch mid-bass voice coil, 12 dB external passive crossover at 7 kHz, and 2024+ Touring-specific mounting hardware. Designed for 2024+ H-D Touring saddlebag positions. Sold as a complete pair kit.
The 24CXK69.2 is the passive component kit for 6×9-inch saddlebag positions on 2024+ Harley-Davidson Touring models — mid-bass, tweeter, crossover, and 2024+ platform-specific mounting hardware, all included. Where the CXK69.2 fits 2014–2023 Touring saddlebag positions, the 24CXK69.2 provides the same drivers and crossover with mounting hardware designed for the 2024+ Touring saddlebag enclosure. The same CMC™ 6×9 mid-bass, the same 101 dB ring radiator horn tweeter with field-replaceable diaphragm, and the same 12 dB passive crossover at 7 kHz — with hardware matched to the 2024+ platform.
Who This Speaker Is For
For riders on 2024+ Street Glide, Road Glide, and other H-D Touring models who want a passive component rear stage in the saddlebag lid position without building an active DSP system. The 24CXK69.2 is the 2Ω version, correct for dedicated 2Ω-rated amplifiers in stereo. For bridged configurations or 4Ω builds, the 24CXK69.4 is the 4Ω variant. For 2014–2023 Touring models, see the CXK69.2.
What This Is Best For
- Passive component rear stage on 2024+ Harley Touring saddlebag positions — the mid-bass installs in the 2024+ saddlebag lid 6×9 opening; the tweeter mounts with the included 2024+ platform-specific bracket set. One amplifier channel per side drives the complete system through the passive crossover.
- Complete passive front + rear component system on a 2024+ Touring build — pairs with a 24CXK65.2SG (Street Glide) or 24CXK65.2RG (Road Glide) front component stage for a full passive front + rear system from a single 4-channel amplifier.
- Upgrading from a coaxial to a component rear stage on a 2024+ build — riders who want better separation between mid-bass and high frequencies from the saddlebag lid position, with the field-replaceable diaphragm for long-term serviceability in the saddlebag environment.
- Rear stage with field-serviceable tweeter — the field-replaceable diaphragm and aluminium die-cast backplate make the tweeter serviceable in the field without replacing the full driver assembly.
2Ω vs 4Ω — Choosing the Right Version
The 24CXK69.2 is a 2Ω component kit. The system load is driven by the 2Ω mid-bass driver — choose the 2Ω version when running a dedicated 2Ω-rated amplifier in stereo. The tweeter in this kit is 4Ω but operates on its own crossover branch. For bridged amplifier configurations requiring a 4Ω minimum load, the 24CXK69.4 (4Ω) is the correct choice.
The Bottom Line
250W mid-bass, 101 dB ring radiator horn tweeter with field-replaceable diaphragm, passive crossover at 7 kHz, 2024+ Touring mounting hardware included — the complete passive component kit for 2024+ H-D Touring saddlebag positions.
Ready to build? Add to cart above. For the 4Ω variant, the 24CXK69.4 is the same kit at 4Ω. For 2014–2023 Touring saddlebag positions, the CXK69.2 is the matching kit.

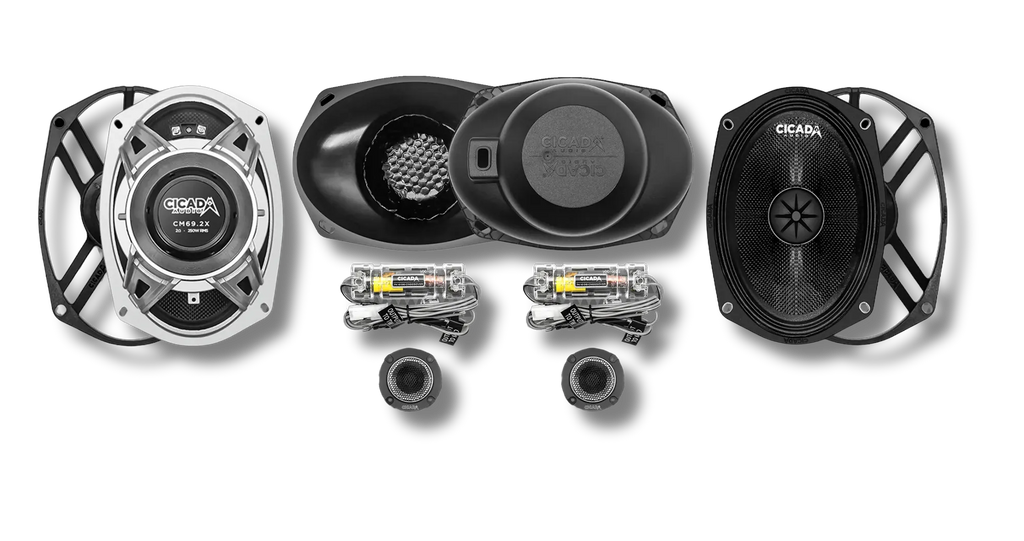

What's Inside the 24CXK69.2
The mid-bass driver and tweeter are identical in construction to the CXK69.2 — the 24CXK69.2 is differentiated by the 2024+ Touring-specific mounting hardware included in the kit, not by differences in the drivers or crossover.

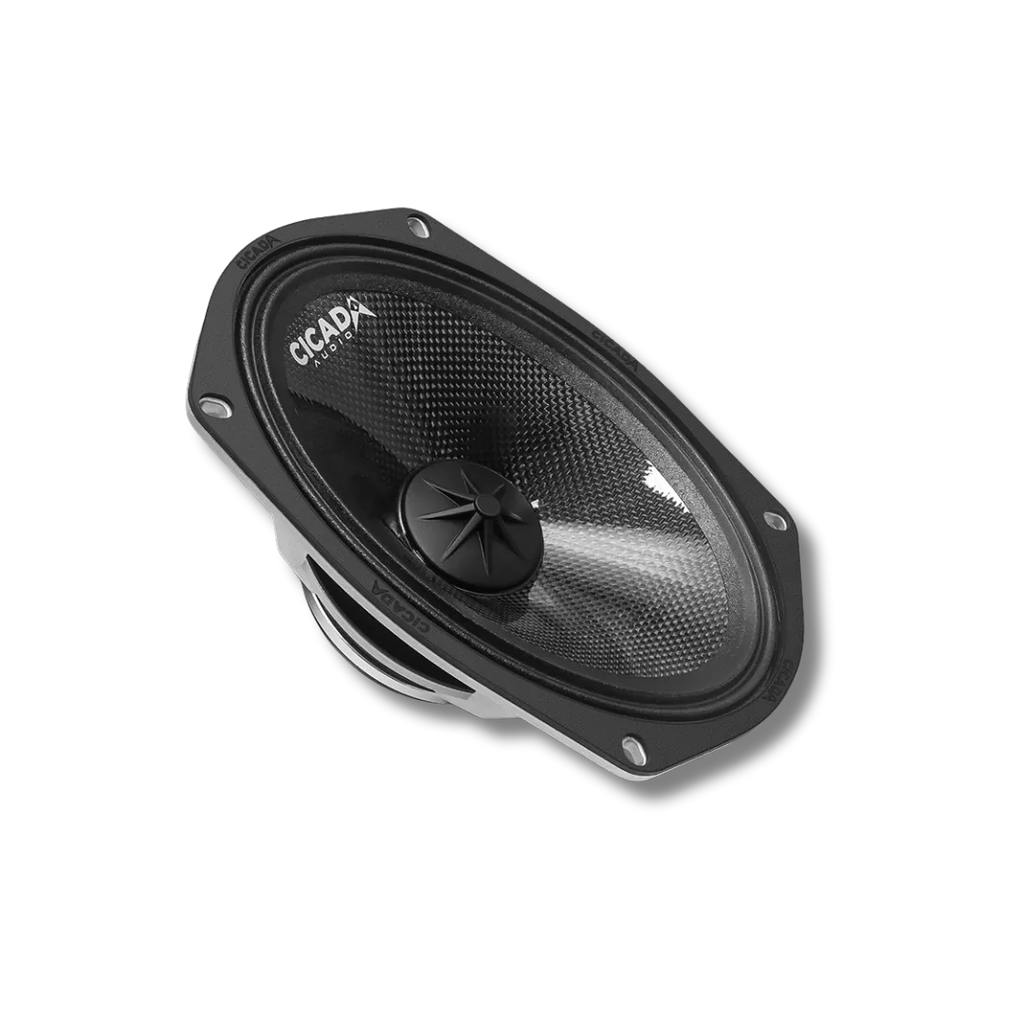

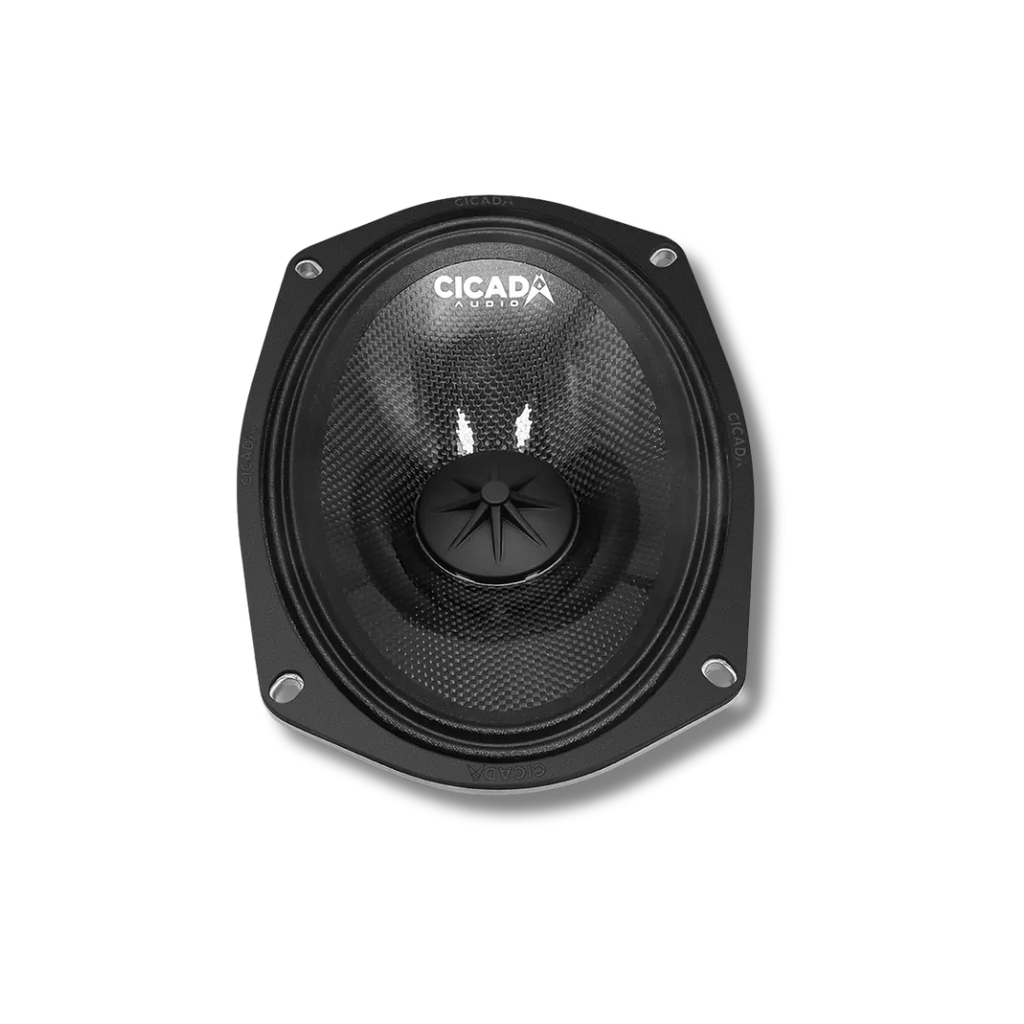

The mid-bass uses a Carbon Matrix Composite™ (CMC™) cone — lightweight, rigid, and thermally stable under sustained high-output operation. The 2.0-inch / 51mm Black Coat™ OFC copper voice coil handles sustained 250W RMS. The OFC copper shorting ring in the motor gap reduces inductance modulation distortion and extends upper mid-bass response. The mid-bass covers from 70 Hz to the 7 kHz crossover point — the full vocal and instrument body range from the saddlebag lid position. On the road: defined mid-bass and full midrange from the 2024+ saddlebag position, with the ring radiator horn tweeter handling everything above 7 kHz.

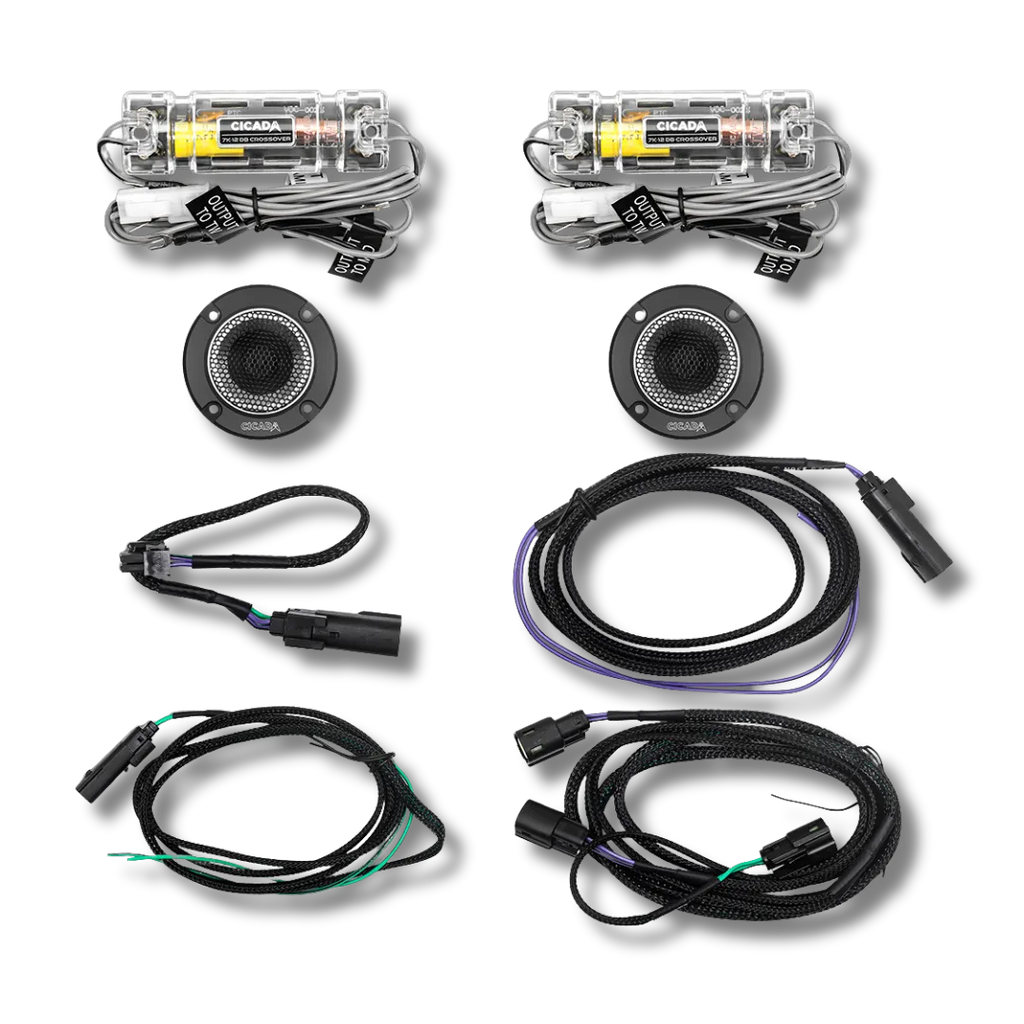

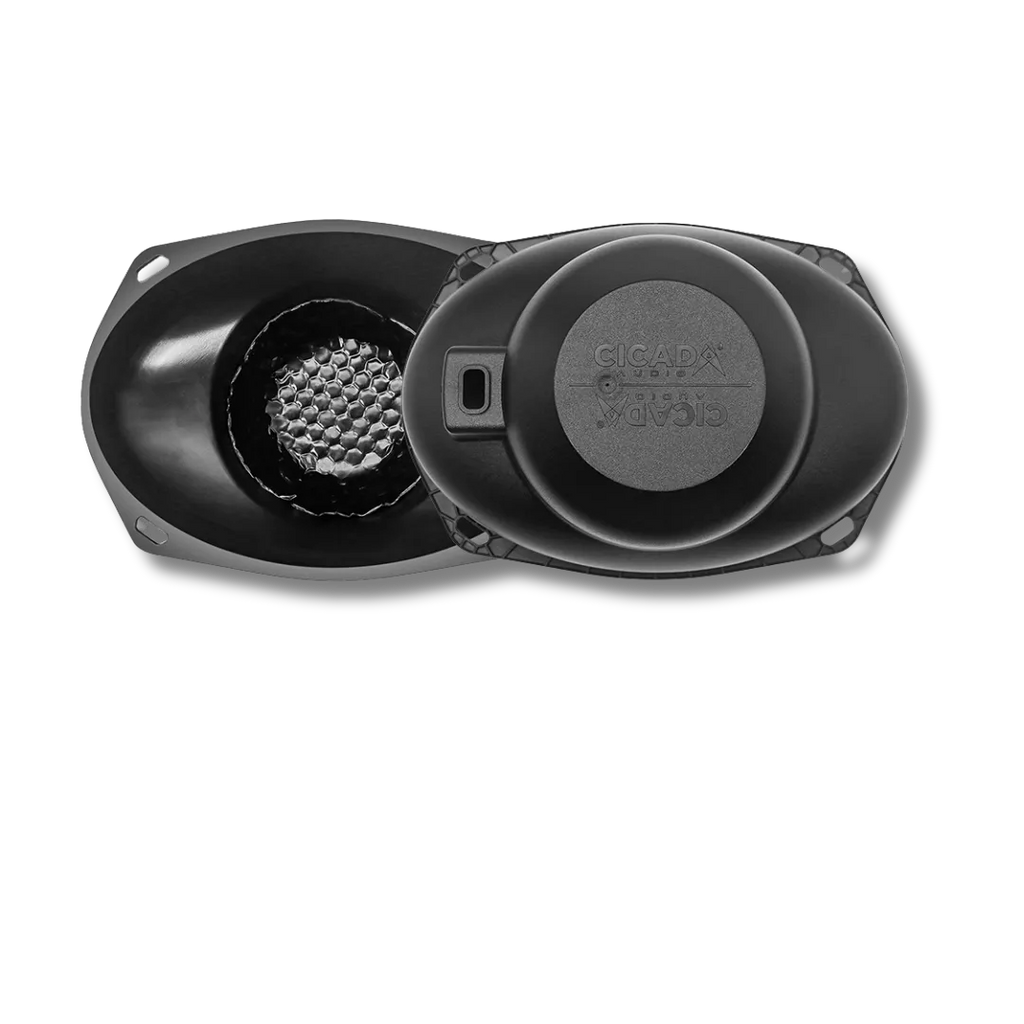

The tweeter is a 1.0-inch shallow ring radiator in a horn waveguide at 101 dB with a field-replaceable diaphragm and aluminium die-cast backplate. Ring radiators maintain wider dispersion at high frequencies than conventional domes — relevant when the listener's position changes with road conditions. The 12 dB passive crossover at 7 kHz is external, custom-tooled, vented, and encased. The kit includes 2024+ Harley Touring saddlebag-specific mounting hardware (tweeter bracket set and mounting hardware). A system-level high-pass on the amplifier at 80–120 Hz is still recommended to protect the mid-bass driver from sub-bass content.
Sensitivity and Frequency Coverage
The 24CXK69.2 delivers the same acoustic performance as the CXK69.2 — 94 dB mid-bass, 101 dB tweeter, 70 Hz – 20 kHz combined system response with the passive crossover managing the transition at 7 kHz. The 2024+ Touring-specific mounting hardware is the functional difference between the two kits; the acoustic performance is identical.
Why 2Ω — Amplifier Pairing
At 2Ω, the 24CXK69.2 extracts full rated output from any 2Ω-stable motorcycle amplifier. The FLX1400.4 and FLX2000.4 publish their rated output at 2Ω stereo. Paired with a 24CXK65.2SG or 24CXK65.2RG front stage, a 4-channel amplifier drives the complete front + rear passive component system. For bridged configurations, the 24CXK69.4 satisfies the 4Ω minimum load requirement.
Fitment
- Designed for 6×9-inch saddlebag positions on 2024+ Harley-Davidson Touring models — includes 2024+ platform-specific mounting hardware (tweeter bracket set and mounting hardware).
- 2024+ Harley-Davidson Touring: Street Glide, Street Glide Special, Street Glide CVO, Road Glide, Road Glide Special, Road Glide CVO, Road Glide Limited, Ultra Limited (2024+).
- For 2014–2023 Touring saddlebag positions, see the CXK69.2.
- Mid-bass: Mounting Depth 3.26 in (83 mm). Mounting Dimensions (cutout): 145 × 216 mm (5.7 × 8.5 in).
- Tweeter: Mounts with included 2024+ bracket set. Mounting Depth: 1.1 in (28 mm). Mounting Diameter: 2.0 in (50.8 mm).
- Requires a dedicated external amplifier — FLX1400.4, FLX2000.4, or other 2Ω-stable motorcycle amplifiers.
Technical Specifications
| — Mid-Bass Driver — | |
| Driver Size | 6×9 in |
| Impedance | 2Ω nominal |
| Power Handling — RMS | 250W RMS |
| Power Handling — MAX | 500W peak |
| Sensitivity | 94 dB (1W/1m) |
| Frequency Response | 70 Hz – 10 kHz (±3 dB) |
| Voice Coil | 2.0 in (51 mm) — Black Coat™ OFC copper |
| Shorting Ring | OFC copper — inductance reduction, distortion control |
| Magnet Type | Neodymium N35SH |
| Cone Material | Carbon Matrix Composite™ (CMC™) |
| Basket | Die-cast aluminium — Vortex Flow Venting™ |
| Mounting Depth | 83 mm (3.26 in) |
| Mounting Dimensions (Cutout) | 145 × 216 mm (5.7 × 8.5 in) |
| H-D Factory Fitment | 2024+ Harley-Davidson Touring saddlebag positions |
| — Tweeter — | |
| Driver Type | Shallow ring radiator horn tweeter |
| Driver Size | 1.0 in (25 mm) |
| Impedance | 4Ω nominal |
| Power Handling — RMS | 50W RMS |
| Power Handling — MAX | 100W peak |
| Sensitivity | 101 dB (1W/1m) |
| Frequency Response | 2 kHz – 20 kHz (±3 dB) |
| Tweeter Dome | Aluminium |
| Voice Coil | 1.0 in (25 mm) — OFC copper |
| Diaphragm | Field replaceable |
| Backplate | Aluminium die-cast, custom tooled |
| Mounting Depth | 28 mm (1.1 in) |
| Mounting Diameter | 50.8 mm (2.0 in) |
| — System — | |
| Crossover | 12 dB @ 7 kHz — external, custom tooled, vented, encased |

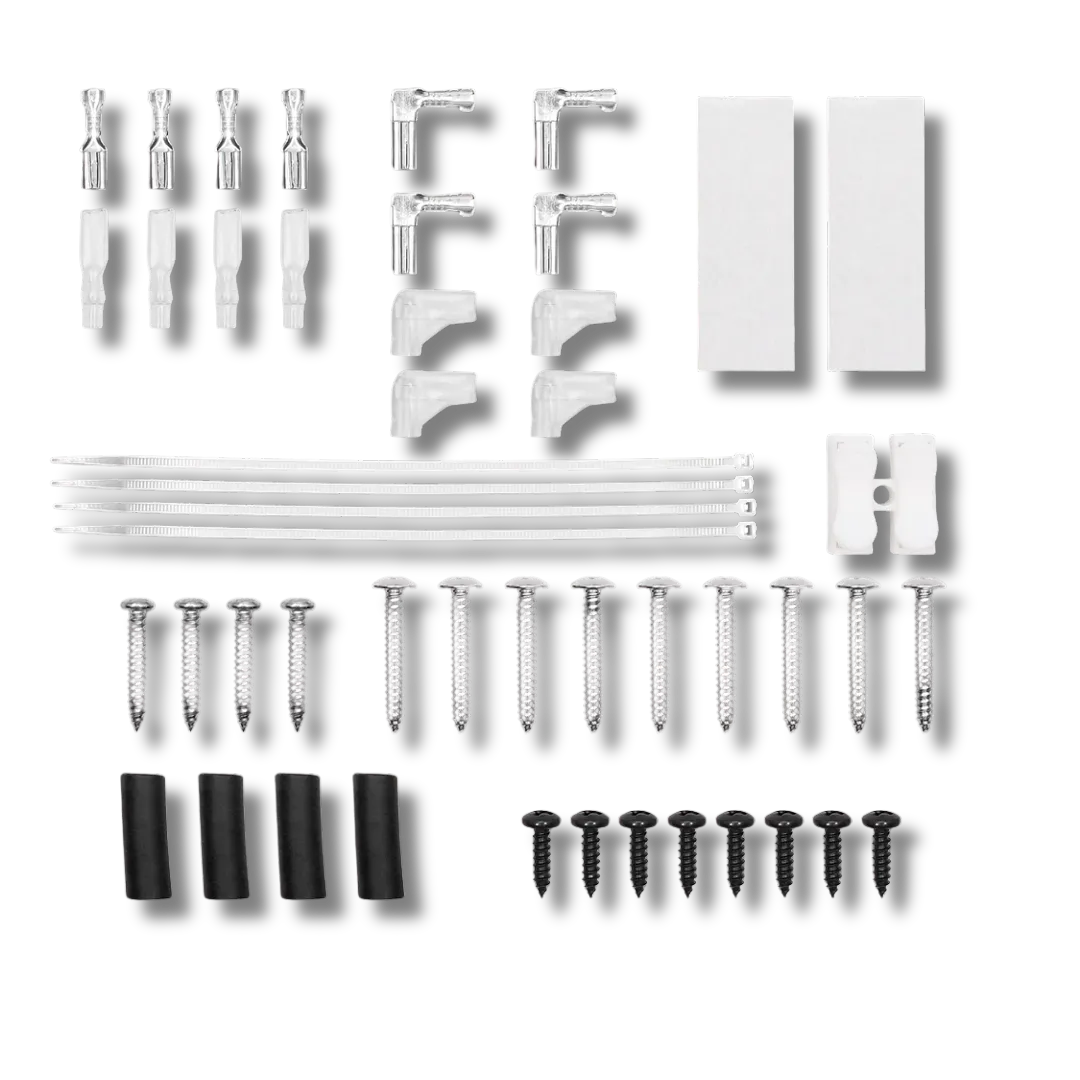

| Included Hardware | 2024+ Harley Touring saddlebag-specific mounting hardware |
| Weather Resistance | Rain or Shine™ — CMC™ cone, OFC shorting ring, aluminium tweeter dome |
| Warranty | 2 years |
| Sold As | Complete pair kit — 2x mid-bass, 2x tweeter, 2x crossover, mounting hardware |
