The 24CXK69.2 at 4Ω — for bridged channels and conservative builds.
The Cicada Audio 24CXK69.4 is a complete 6×9-inch 4Ω passive component speaker kit — 250W RMS mid-bass, 50W RMS ring radiator horn tweeter with field-replaceable diaphragm, Carbon Matrix Composite™ (CMC™) cone, OFC copper shorting ring, Black Coat™ OFC 2.0-inch mid-bass voice coil, 12 dB external passive crossover at 7 kHz, and 2024+ Touring-specific mounting hardware. Designed for 2024+ H-D Touring saddlebag positions. Sold as a complete pair kit.
The 24CXK69.4 shares every construction element with the 24CXK69.2 — the same CMC™ 6×9 mid-bass, the same 101 dB ring radiator horn tweeter with field-replaceable diaphragm, the same 12 dB passive crossover at 7 kHz, and the same 2024+ Touring-specific mounting hardware. The 4Ω mid-bass impedance presents a higher electrical load to the amplifier: lower current demand, reduced thermal stress, and compatibility with bridged configurations where a 4Ω minimum load is required.
Who This Speaker Is For
For riders on 2024+ Harley-Davidson Touring models building passive component rear stages in saddlebag lid positions with bridged rear channels, or who prefer the conservative 4Ω impedance for better thermal performance. The 24CXK69.4 is the 4Ω variant of the 24CXK69.2 — same kit, same performance, higher mid-bass impedance. For dedicated 2Ω-rated amplifiers in stereo, the 24CXK69.2 extracts maximum power.
What This Is Best For
- Bridged rear channels on 2024+ Harley Touring saddlebag builds — when rear channels are bridged for maximum per-channel output, the 24CXK69.4 satisfies the 4Ω minimum load requirement while delivering the full passive component stage with 2024+ mounting hardware.
- Uniform 4Ω passive system on a 2024+ Touring build — pairs with the 24CXK65.4SG or 24CXK65.4RG front component stage for a uniform 4Ω passive system front and rear.
- Conservative builds where the amplifier delivers sufficient power at 4Ω — when the amp's 4Ω rated output exceeds 250W per channel, the 24CXK69.4 mid-bass receives full rated power without requiring the 2Ω operating condition.
- Passive rear stage with field-serviceable tweeter at 4Ω — same field-replaceable diaphragm as the 24CXK69.2, with the thermal and load benefits of 4Ω impedance.
2Ω vs 4Ω — Choosing the Right Version
The 24CXK69.4 is a 4Ω component kit. Choose 4Ω for bridged configurations, conservative system designs, or when the amplifier already delivers sufficient power at 4Ω. For maximum output from a dedicated 2Ω-rated amplifier in stereo, the 24CXK69.2 (2Ω) is the correct choice.
The Bottom Line
250W mid-bass, 101 dB ring radiator horn tweeter with field-replaceable diaphragm, passive crossover at 7 kHz, 2024+ Touring mounting hardware included — the 4Ω passive component kit for 2024+ H-D Touring saddlebag positions.
Ready to build? Add to cart above. For the 2Ω variant, the 24CXK69.2 is the same kit at 2Ω. For 2014–2023 Touring saddlebag positions, the CXK69.4 is the matching kit.
What's Inside the 24CXK69.4
The 24CXK69.4 is identical in construction to the 24CXK69.2 — all construction notes below apply equally to both impedance variants.

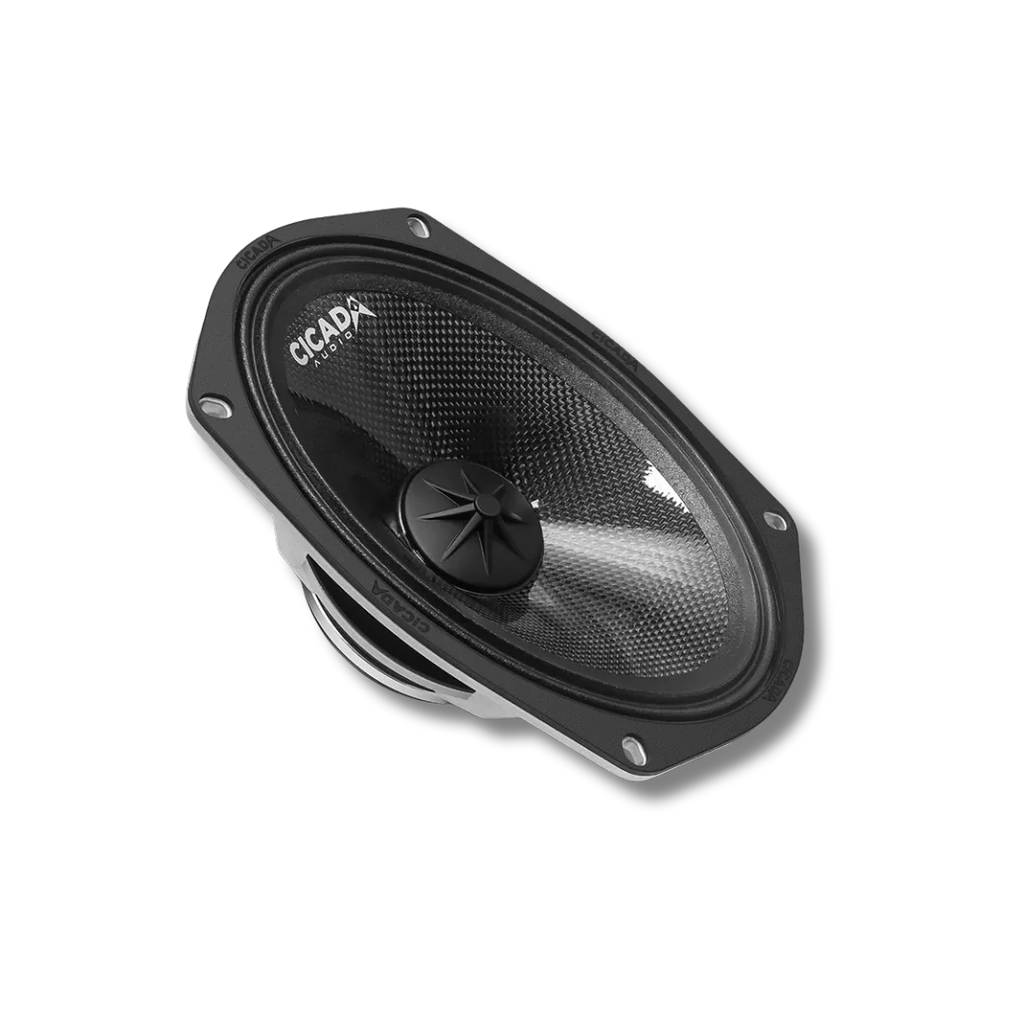

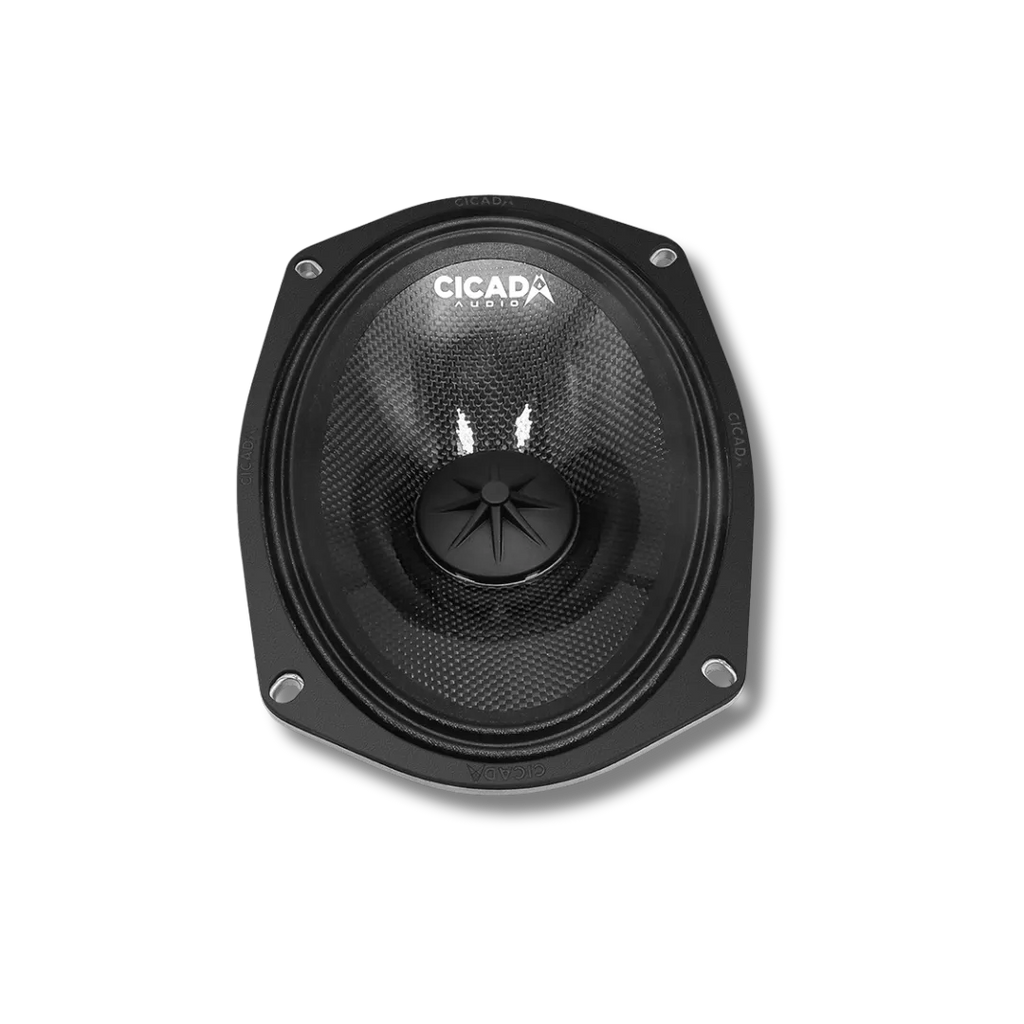

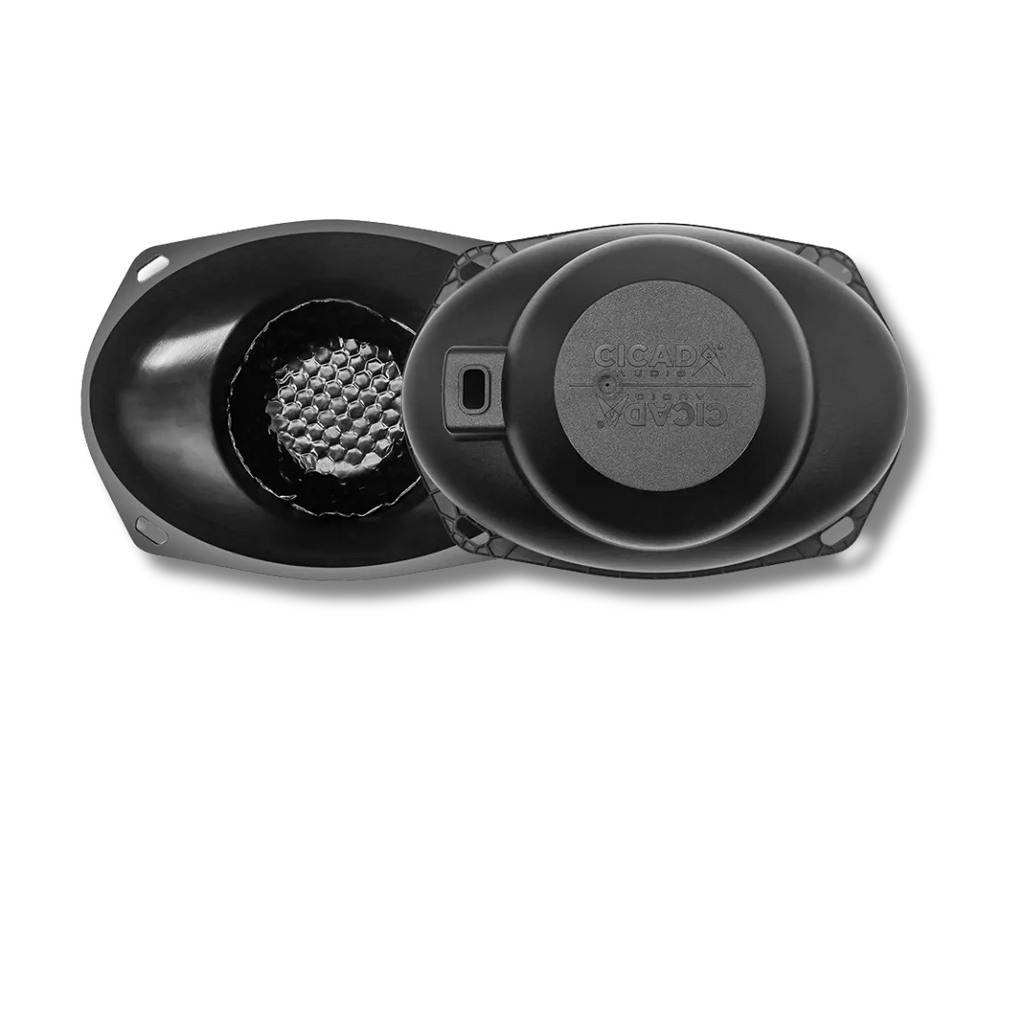

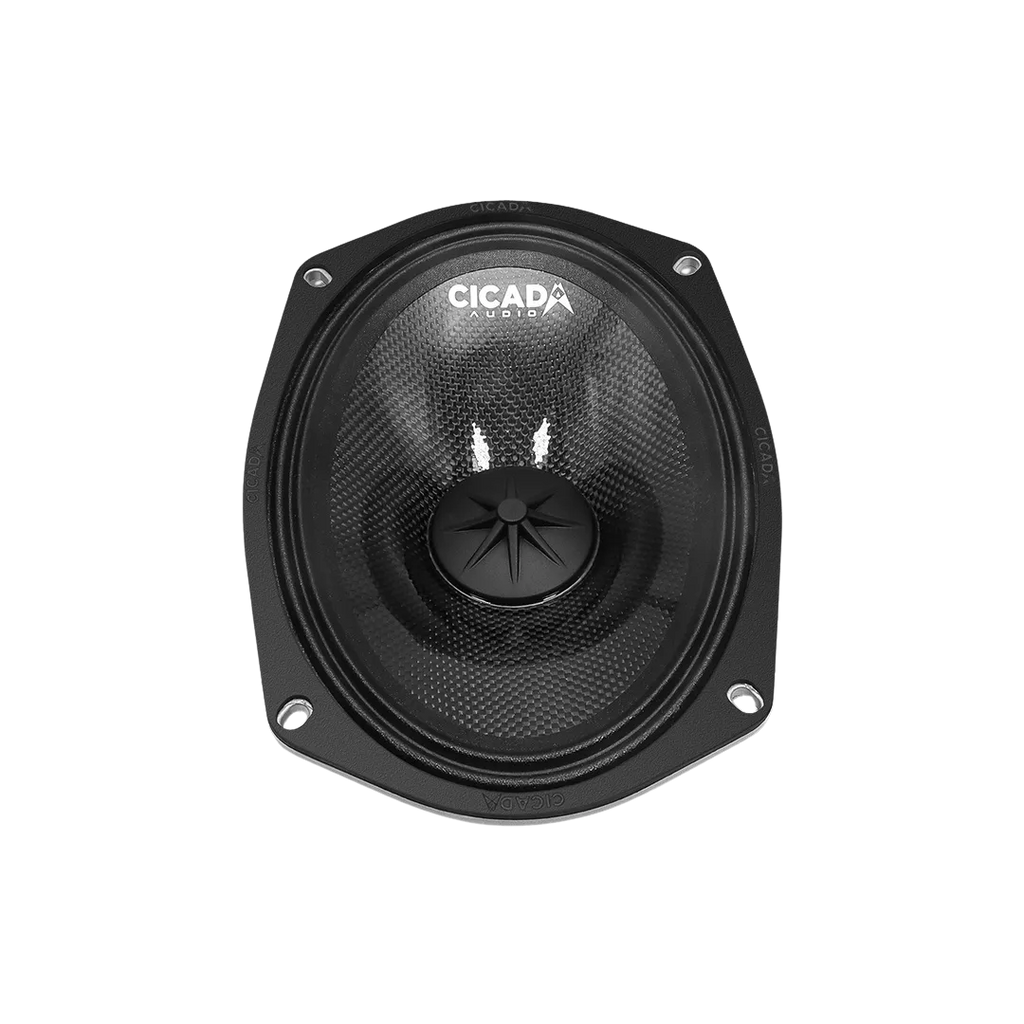

The mid-bass cone is Carbon Matrix Composite™ (CMC™) — lightweight, rigid, and thermally stable. The 2.0-inch / 51mm Black Coat™ OFC copper voice coil handles sustained 250W RMS. The OFC copper shorting ring in the motor gap reduces inductance modulation distortion. The 4Ω impedance adds thermal headroom to both driver and amplifier while delivering the same 94 dB sensitivity and 70 Hz – 10 kHz range. On the road: the same mid-bass character and rear fill as the 24CXK69.2 from the 2024+ saddlebag position, with the amplifier running cooler on the rear channels.
The tweeter is the same 1.0-inch shallow ring radiator horn at 101 dB with field-replaceable diaphragm and aluminium die-cast backplate. The 12 dB passive crossover at 7 kHz handles the signal split. 2024+ Harley Touring saddlebag-specific mounting hardware is included.
Sensitivity and Frequency Coverage
At 94 dB mid-bass and 101 dB tweeter, the 24CXK69.4 matches the output of the 24CXK69.2 — impedance changes amplifier compatibility, not performance. Combined system response: 70 Hz – 20 kHz with passive crossover at 7 kHz. The 4Ω mid-bass impedance means the amplifier draws less current on the rear channels — relevant in builds where total system current demand is a design consideration.
Why 4Ω — Bridged Amps and Thermal Margin
A 4Ω mid-bass driver presents a higher electrical load than a 2Ω driver — lower current demand, less heat, and compatibility with bridged configurations. For stereo installs at the amp's rated 2Ω output, the 24CXK69.2 is the matching choice.
Fitment

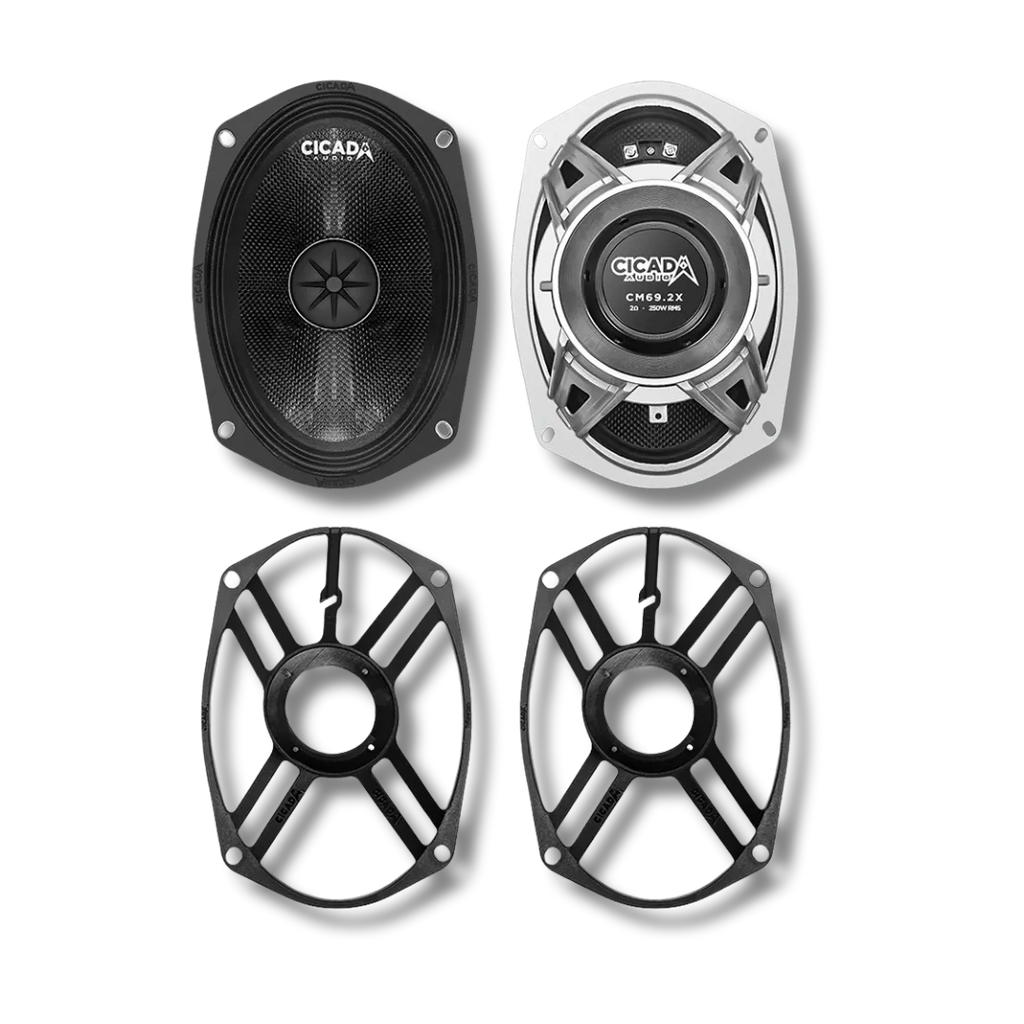

- Designed for 6×9-inch saddlebag positions on 2024+ Harley-Davidson Touring models — includes 2024+ platform-specific mounting hardware.
- 2024+ Harley-Davidson Touring: Street Glide, Street Glide Special, Street Glide CVO, Road Glide, Road Glide Special, Road Glide CVO, Road Glide Limited, Ultra Limited (2024+).
- Mid-bass: Mounting Depth 3.26 in (83 mm). Mounting Dimensions (cutout): 145 × 216 mm (5.7 × 8.5 in).
- Tweeter: Mounts with included 2024+ bracket set. Mounting Depth: 1.1 in (28 mm). Mounting Diameter: 2.0 in (50.8 mm).
- Compatible with 4Ω-rated amplifiers including bridged configurations.
Technical Specifications
| — Mid-Bass Driver — | |
| Driver Size | 6×9 in |
| Impedance | 4Ω nominal |
| Power Handling — RMS | 250W RMS |
| Power Handling — MAX | 500W peak |
| Sensitivity | 94 dB (1W/1m) |
| Frequency Response | 70 Hz – 10 kHz (±3 dB) |
| Voice Coil | 2.0 in (51 mm) — Black Coat™ OFC copper |
| Shorting Ring | OFC copper — inductance reduction, distortion control |
| Magnet Type | Neodymium N35SH |
| Cone Material | Carbon Matrix Composite™ (CMC™) |
| Basket | Die-cast aluminium — Vortex Flow Venting™ |
| Mounting Depth | 83 mm (3.26 in) |
| Mounting Dimensions (Cutout) | 145 × 216 mm (5.7 × 8.5 in) |
| H-D Factory Fitment | 2024+ Harley-Davidson Touring saddlebag positions |
| — Tweeter — | |
| Driver Type | Shallow ring radiator horn tweeter |
| Driver Size | 1.0 in (25 mm) |
| Impedance | 4Ω nominal |
| Power Handling — RMS | 50W RMS |
| Power Handling — MAX | 100W peak |
| Sensitivity | 101 dB (1W/1m) |
| Frequency Response | 2 kHz – 20 kHz (±3 dB) |
| Tweeter Dome | Aluminium |
| Voice Coil | 1.0 in (25 mm) — OFC copper |
| Diaphragm | Field replaceable |
| Backplate | Aluminium die-cast, custom tooled |
| Mounting Depth | 28 mm (1.1 in) |
| Mounting Diameter | 50.8 mm (2.0 in) |
| — System — | |
| Crossover | 12 dB @ 7 kHz — external, custom tooled, vented, encased |

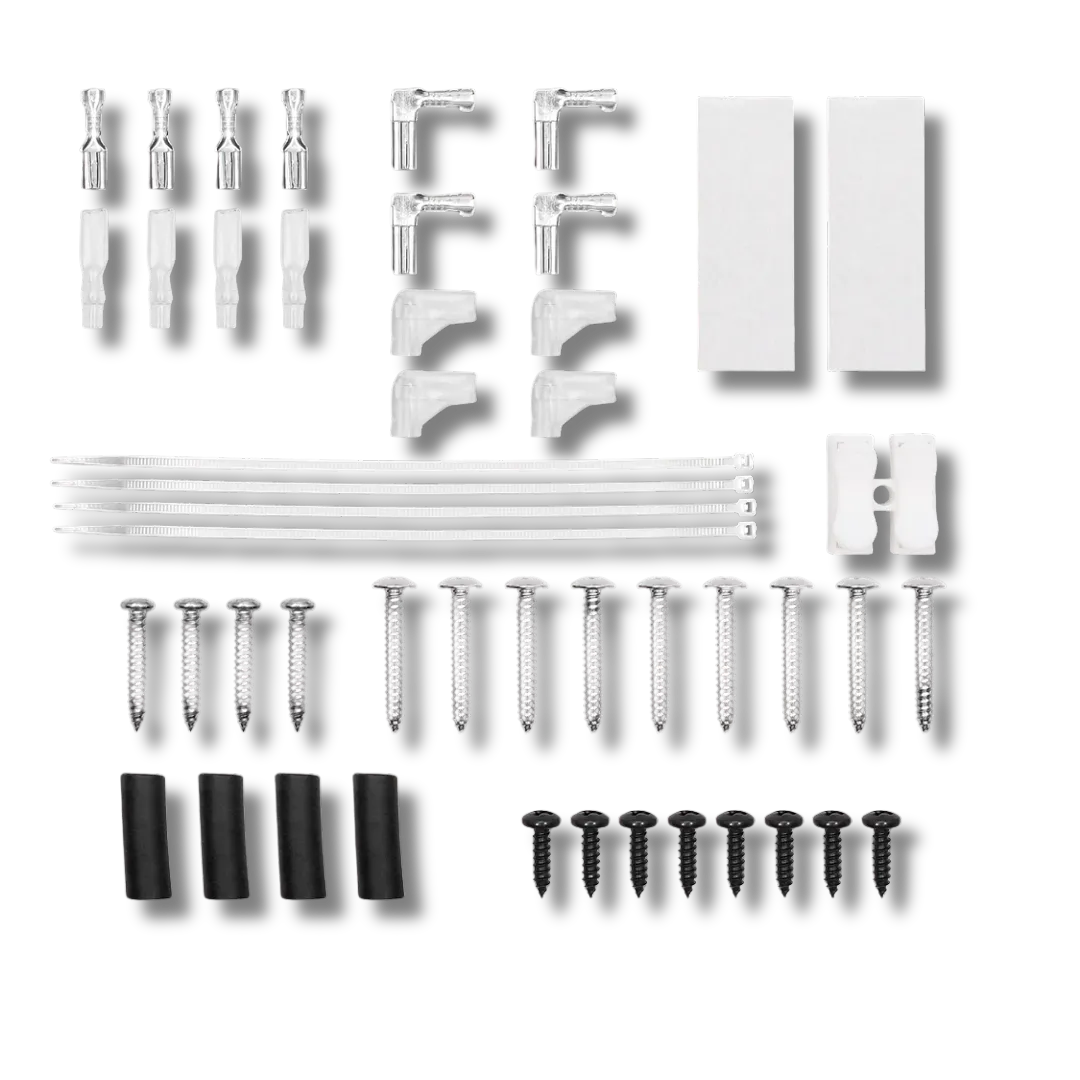

| Included Hardware | 2024+ Harley Touring saddlebag-specific mounting hardware |
| Weather Resistance | Rain or Shine™ — CMC™ cone, OFC shorting ring, aluminium tweeter dome |
| Warranty | 2 years |

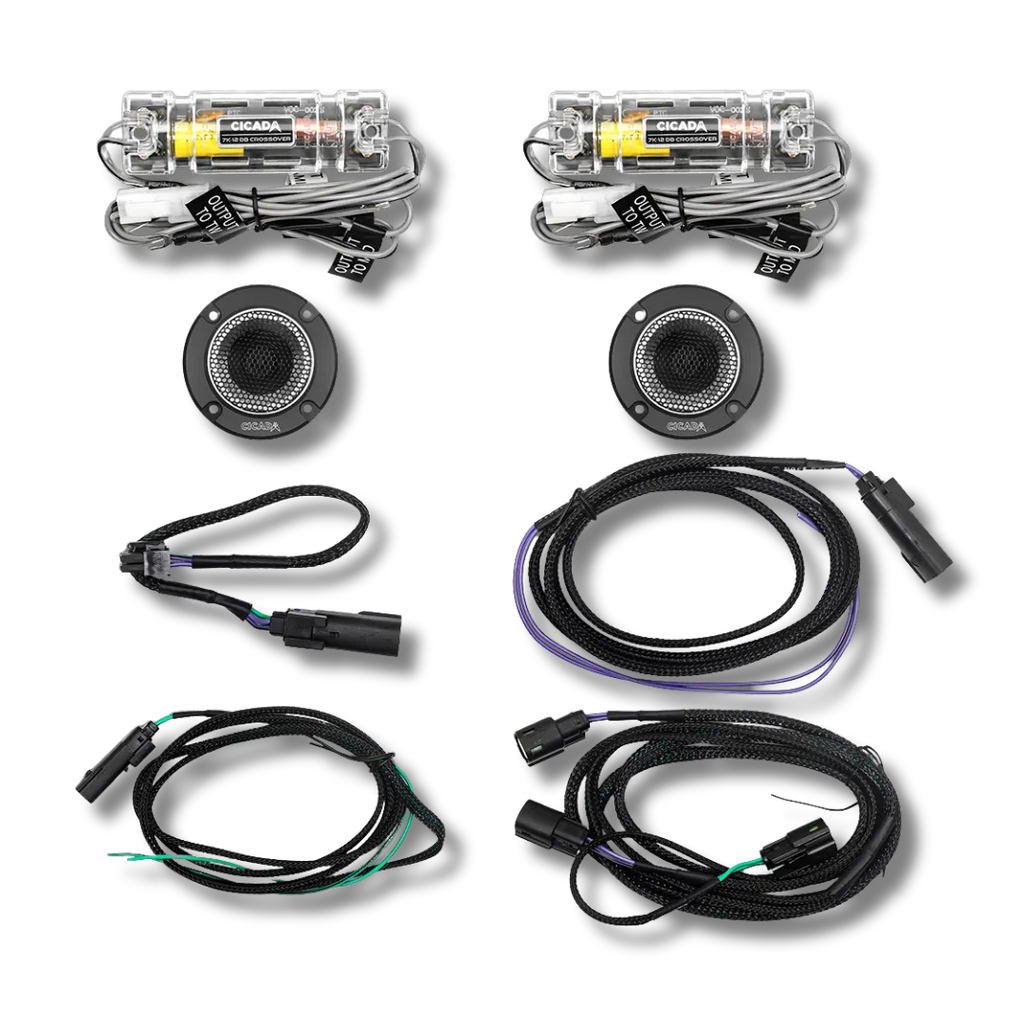

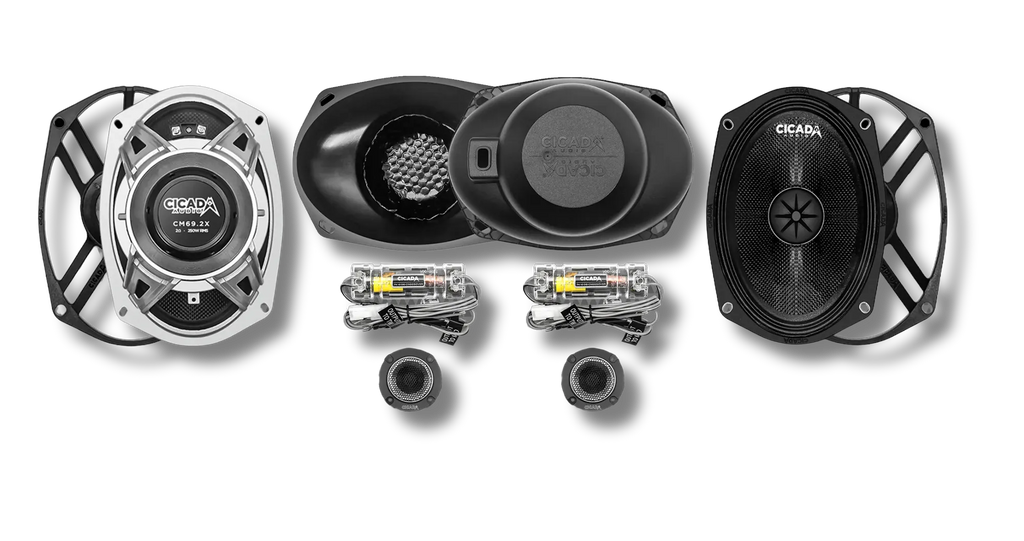

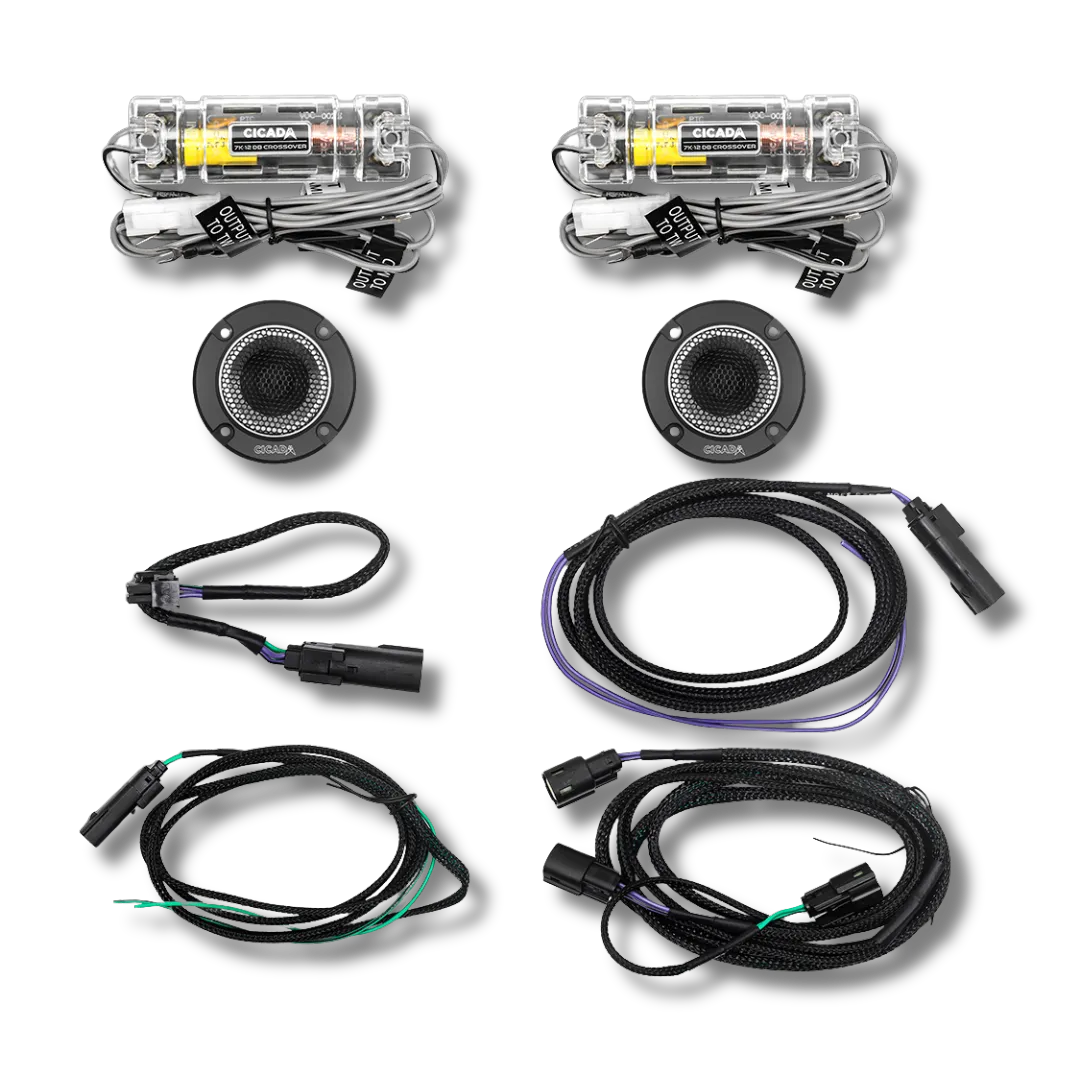

| Sold As | Complete pair kit — 2x mid-bass, 2x tweeter, 2x crossover, mounting hardware |
