2014–2023 Street Glide fairing grilles with RR075T tweeters. Direct-fit front stage upgrade.
The Cicada Audio CHDSGGTK is a direct-fit grille and tweeter kit for 2014–2023 Harley-Davidson Street Glide, Street Glide Special, and Street Glide CVO models — custom-punched batwing fairing grilles paired with a matched set of RR075T shallow horn tweeters (4Ω, 50W RMS, 107 dB), 12 dB / 7 kHz crossovers, flush and surface mounting hardware. Sold as a complete pair kit.
The CHDSGGTK is the complete front tweeter upgrade for 2014–2023 Street Glide fairings. The kit replaces the factory batwing grilles with custom-punched, Street Glide-specific replacements that incorporate matched RR075T tweeter mounts — no drilling, no custom brackets, no fabrication. The RR075T shallow horn tweeters deliver a clear, detailed high-frequency stage that cuts through wind and road noise from the fairing position, and the included 7 kHz / 12 dB crossovers handle the signal split. The result is a front tweeter stage that looks factory and performs well above it.
Who This Is For
Riders on 2014–2023 Harley-Davidson Street Glide models who want to add or upgrade front fairing tweeters without custom fabrication — the CHDSGGTK installs into existing fairing grille positions with no modification. For 2024+ Street Glide models, the 24CHDSGGTK-05 is the matching kit for the updated fairing design. For the Road Glide equivalent, see the CHDRGGTK.
What This Is Best For
- Front tweeter upgrade on 2014–2023 Street Glide with no fabrication — replaces factory batwing grilles with punched replacements incorporating RR075T mounts; installs in the factory positions with included hardware.
- Amplified Street Glide builds using CM65X mid-bass drivers — the CHDSGGTK is designed to complement Cicada CM65X mid-bass drivers for a complete fairing component stage.
- Clean, OEM-style appearance with high-performance tweeter output — custom-punched Street Glide-specific grilles maintain the factory batwing fairing aesthetic while adding serious high-frequency performance.
- Riders upgrading from no tweeter or stock audio tweeters — the RR075T's 107 dB sensitivity and shallow horn loading deliver noticeably more presence and clarity at highway speeds than conventional dome tweeters.
The Bottom Line
The complete 2014–2023 Street Glide front tweeter upgrade — custom grilles and RR075T tweeters in one direct-fit kit. 107 dB sensitivity, 7 kHz crossover included. Sold as a pair. For 2024+ Street Glide, see the 24CHDSGGTK-05.
Ready to build? Add to cart above. For 2024+ Street Glide, see the 24CHDSGGTK-05. For Road Glide, see the CHDRGGTK. For RR075T tweeters only (without grilles), see the RR075T.
What's Inside the CHDSGGTK

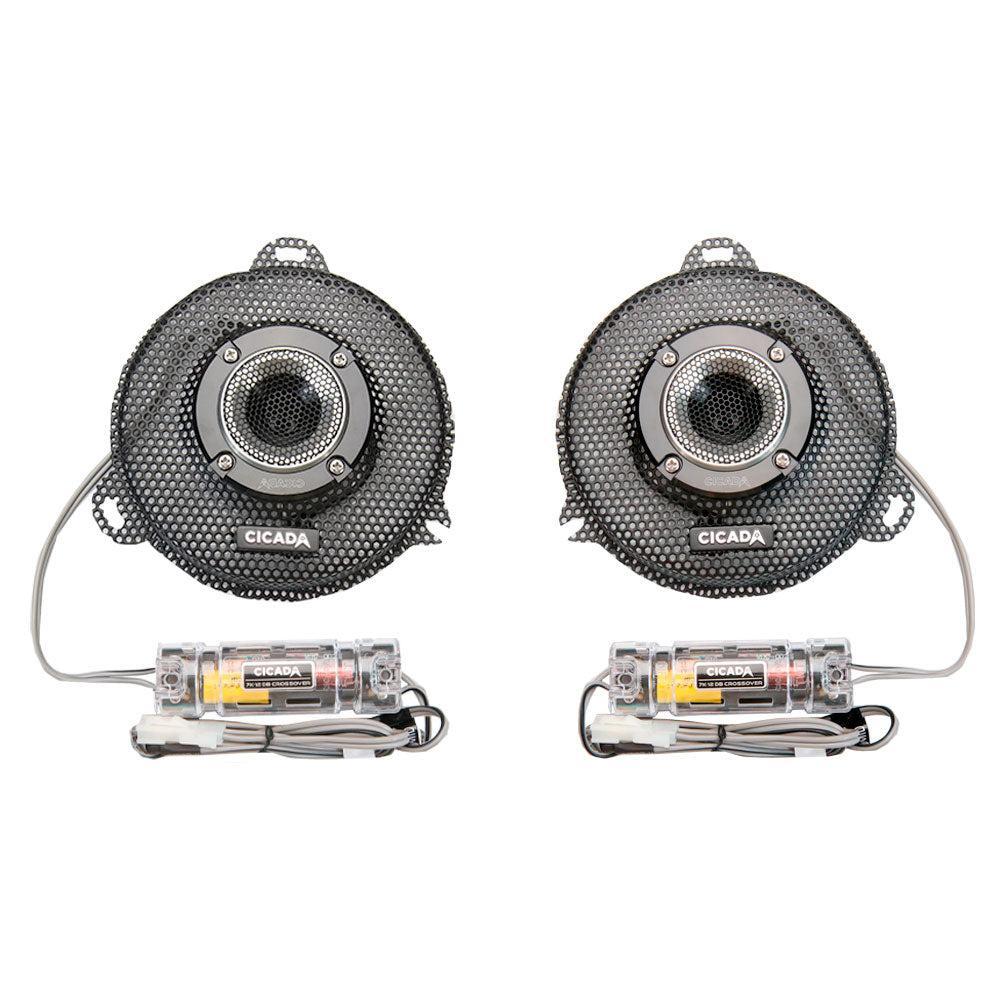

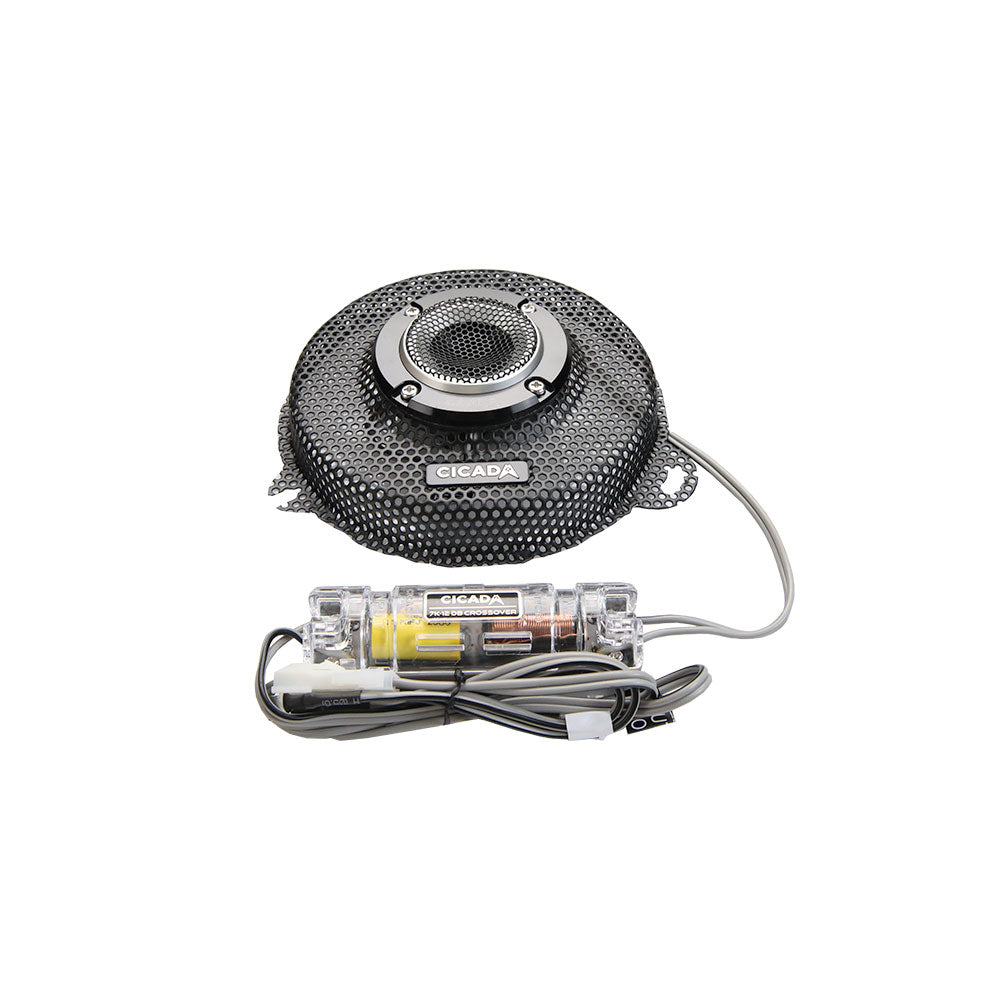

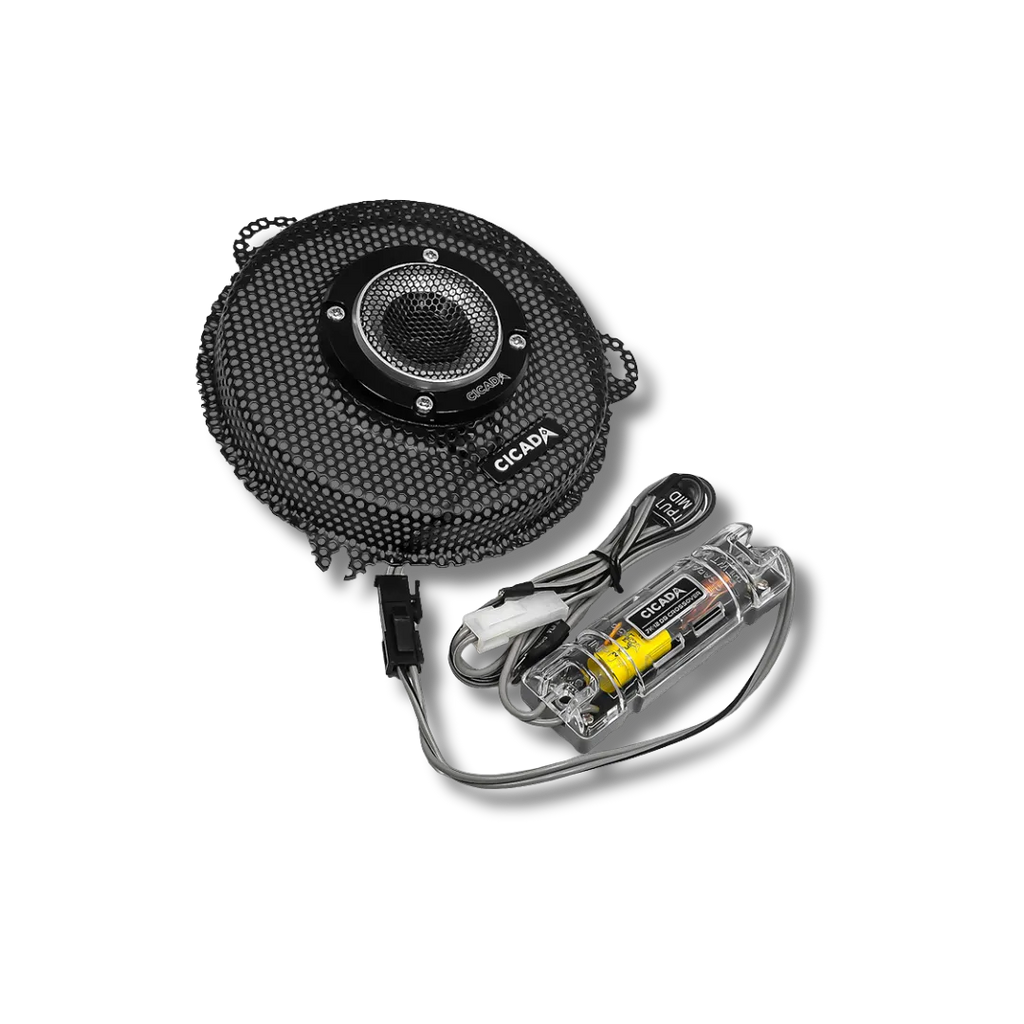

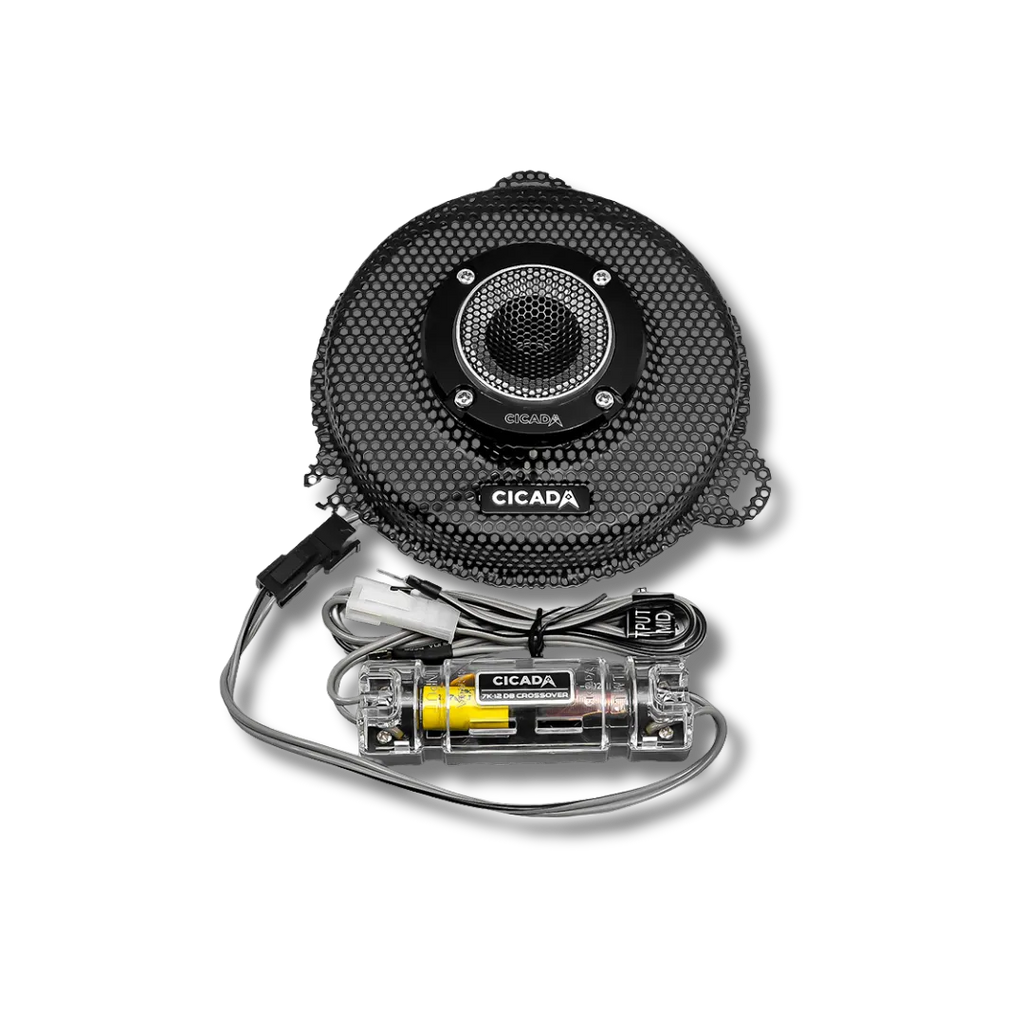

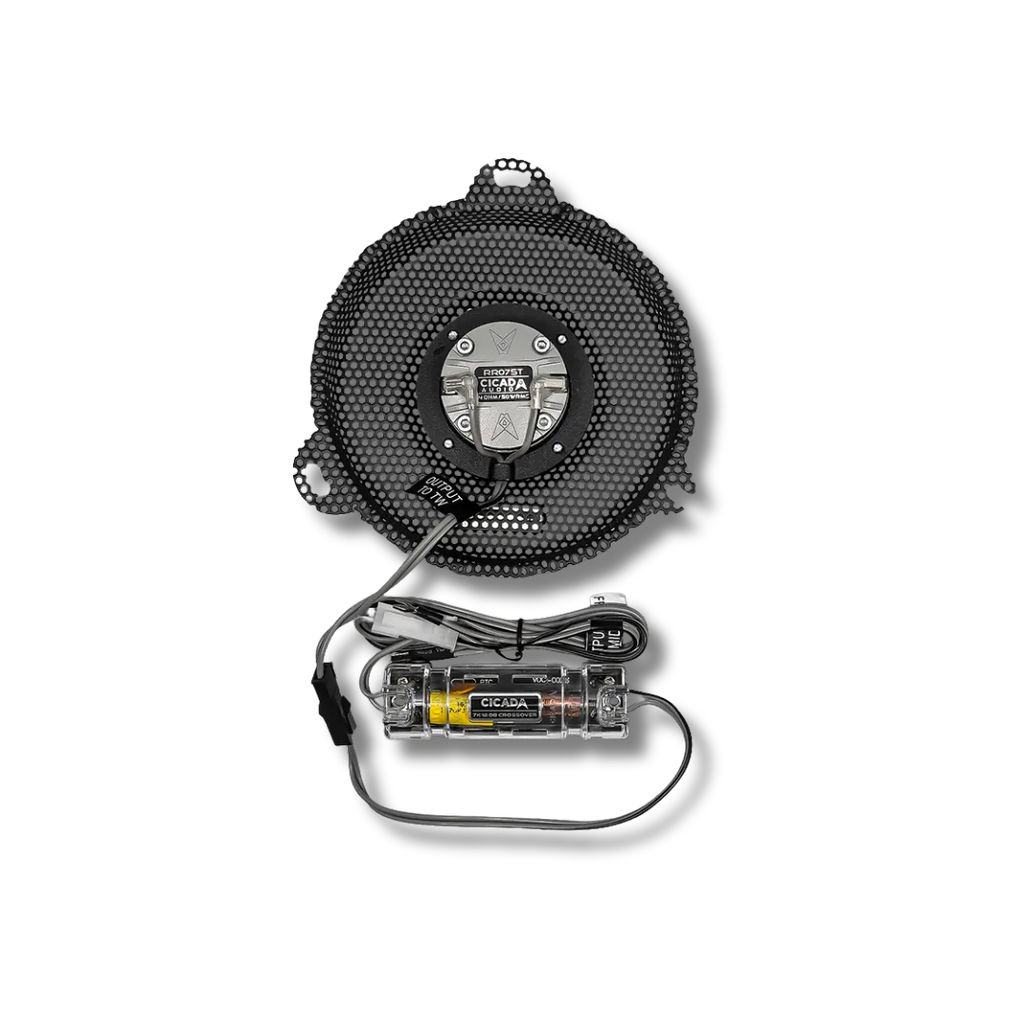

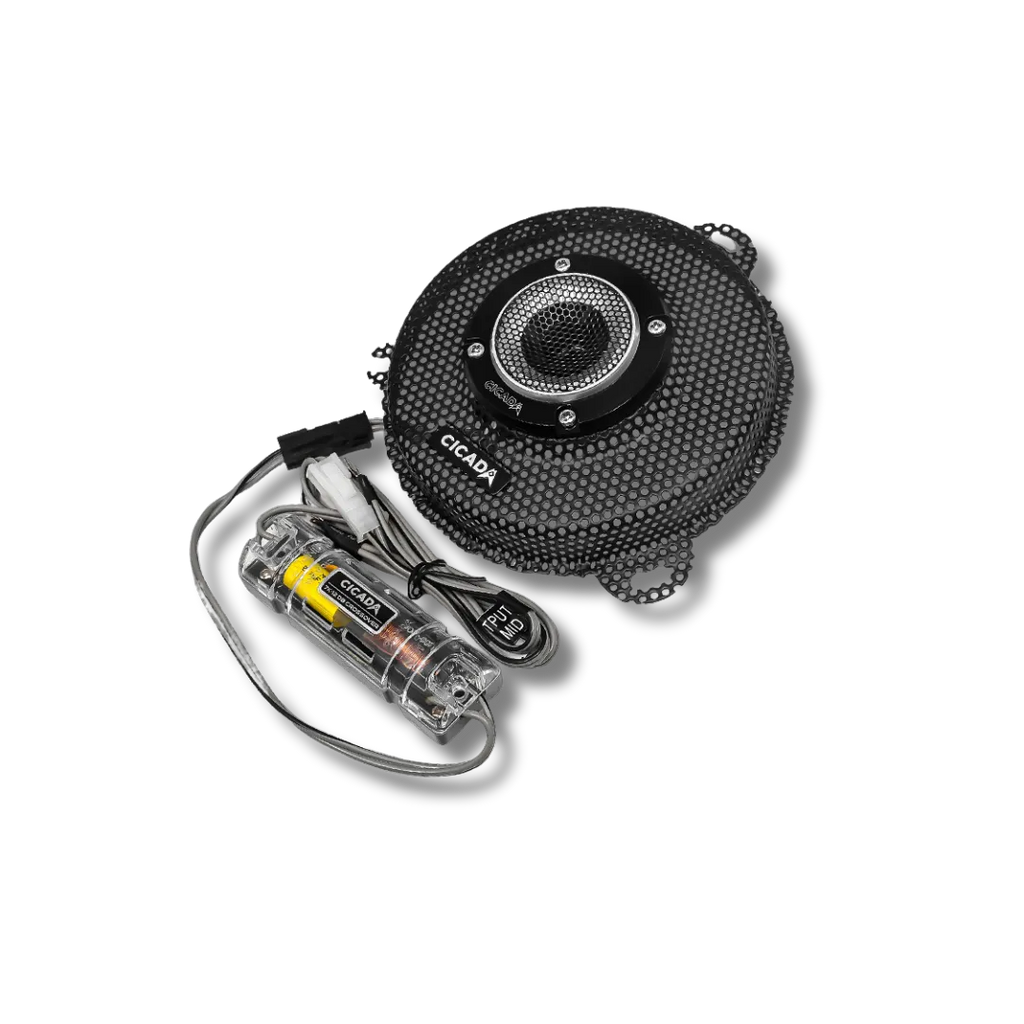

The CHDSGGTK includes two precision-punched Street Glide-specific batwing fairing grilles, two RR075T shallow horn tweeters, two 7 kHz / 12 dB crossovers in custom-tooled vented cases, and complete flush and surface mounting hardware. The grilles are custom-punched for direct-fit replacement of the factory Street Glide batwing grilles — correct dimensions, correct mounting points, clean acoustic transparency through the grille pattern.
The RR075T tweeters use a 1.0-inch aluminium diaphragm with high-temp voice coil, N35 neodymium motor, and an advanced heat-sink design for sustained thermal management. At 107 dB sensitivity and 50W RMS, they deliver strong projection from the fairing position under sustained amplified output. The 7 kHz / 12 dB crossover high-passes the tweeter and provides the appropriate transition from the mid-bass driver. A system-level high-pass on the mid-bass at 80–120 Hz and basic EQ from a DSP or head unit significantly improves the overall system balance when used with CM65X mid-bass drivers.
Fitment
- Designed for 2014–2023 Harley-Davidson Street Glide factory batwing fairing positions.
- Compatible models: Street Glide (2014–2023), Street Glide Special (2014–2023), Street Glide CVO (2014–2023).
- Tweeter: Mounting Depth 28.9 mm (1.13 in). Mounting Diameter 50 mm (2.0 in).
- For 2024+ Street Glide, see the 24CHDSGGTK-05.
Technical Specifications
| — RR075T Tweeter — | |
| Driver Size | 1.0 in (25 mm) |
| Impedance | 4Ω |
| Power Handling — RMS | 50W RMS per tweeter |
| Power Handling — MAX | 100W peak per tweeter |
| Sensitivity | 107 dB (1W/1m) |
| Frequency Response | 2 kHz – 20 kHz (±5 dB) |
| Tweeter Dome | Aluminium |
| Voice Coil | Aluminium, High-Temp — advanced heat-sink design |
| Magnet | Neodymium N35 |
| Basket | Die-cast aluminium |
| Mounting Depth | 28.9 mm (1.13 in) |
| Mounting Diameter | 50 mm (2.0 in) |
| — System — | |
| Crossover | 7 kHz / 12 dB — custom tooled, vented case, included |
| Grille Fitment | 2014–2023 H-D Street Glide batwing fairing positions |
| Grille Material | Custom-punched Street Glide-specific grilles |
| Weather Resistance | Rain or Shine™ |
| Warranty | 2 years |
| Sold As | Complete pair kit — 2x grille, 2x tweeter, 2x crossover, mounting hardware |
