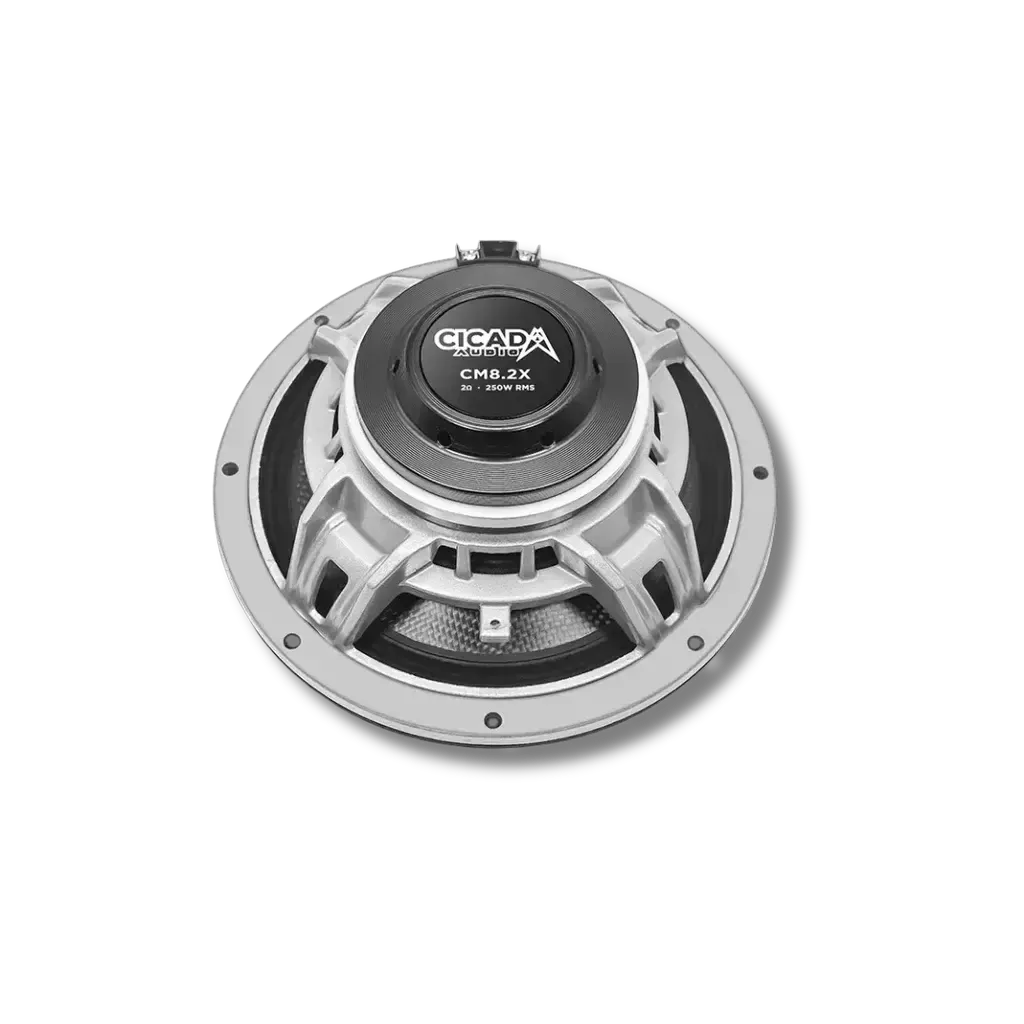

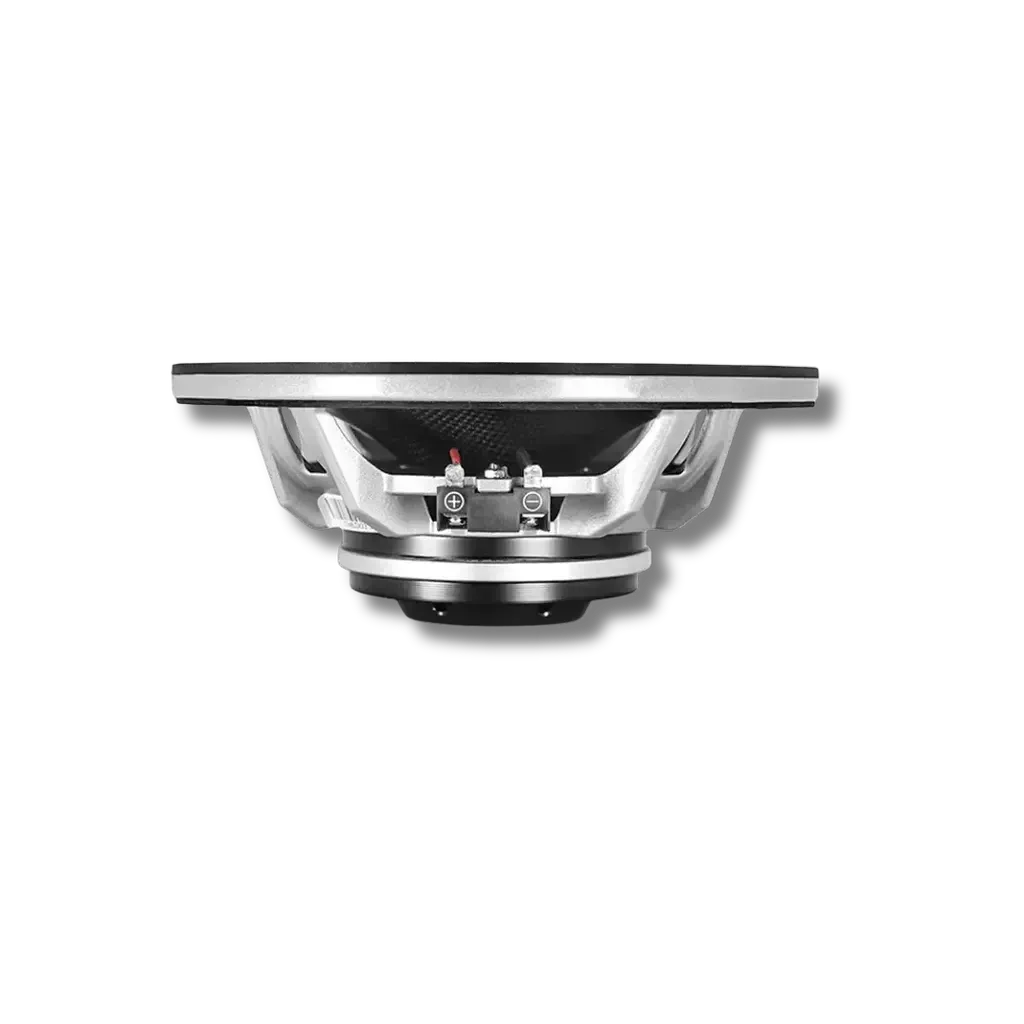

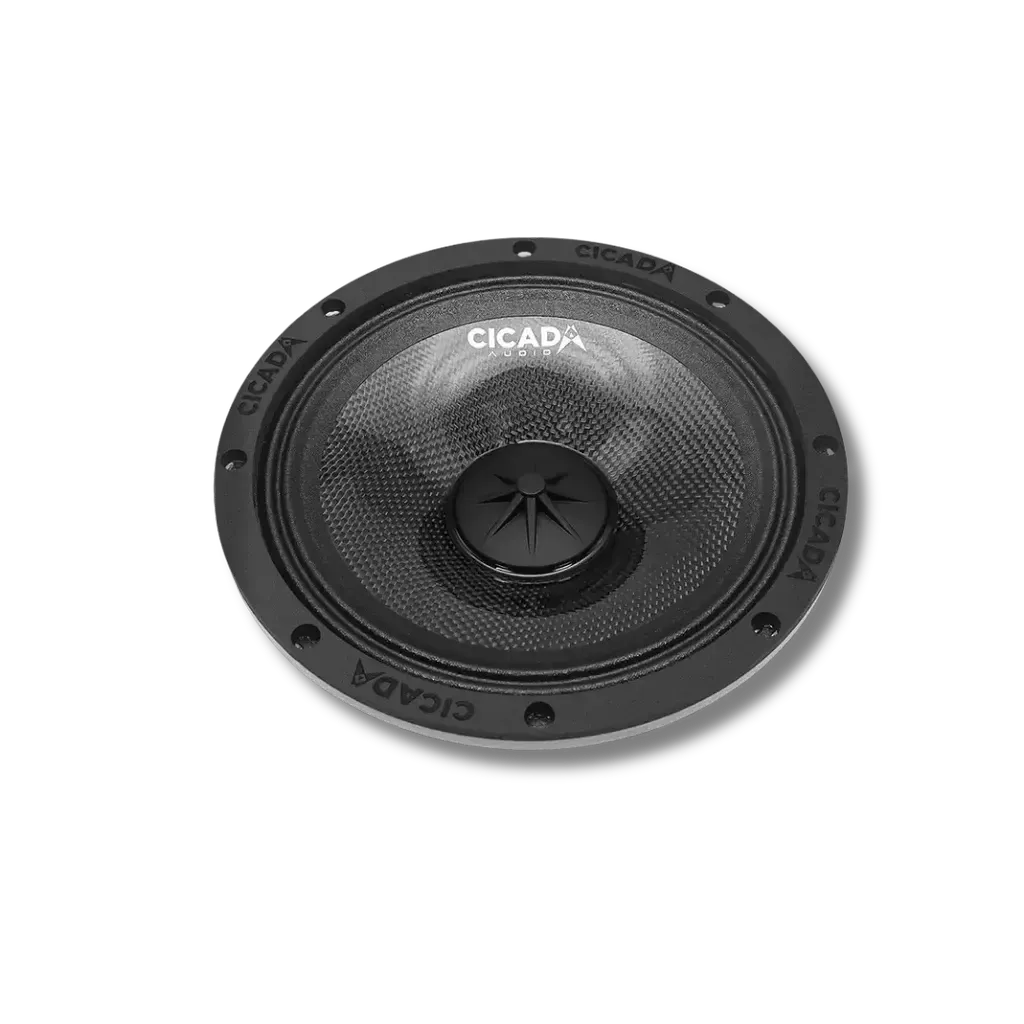

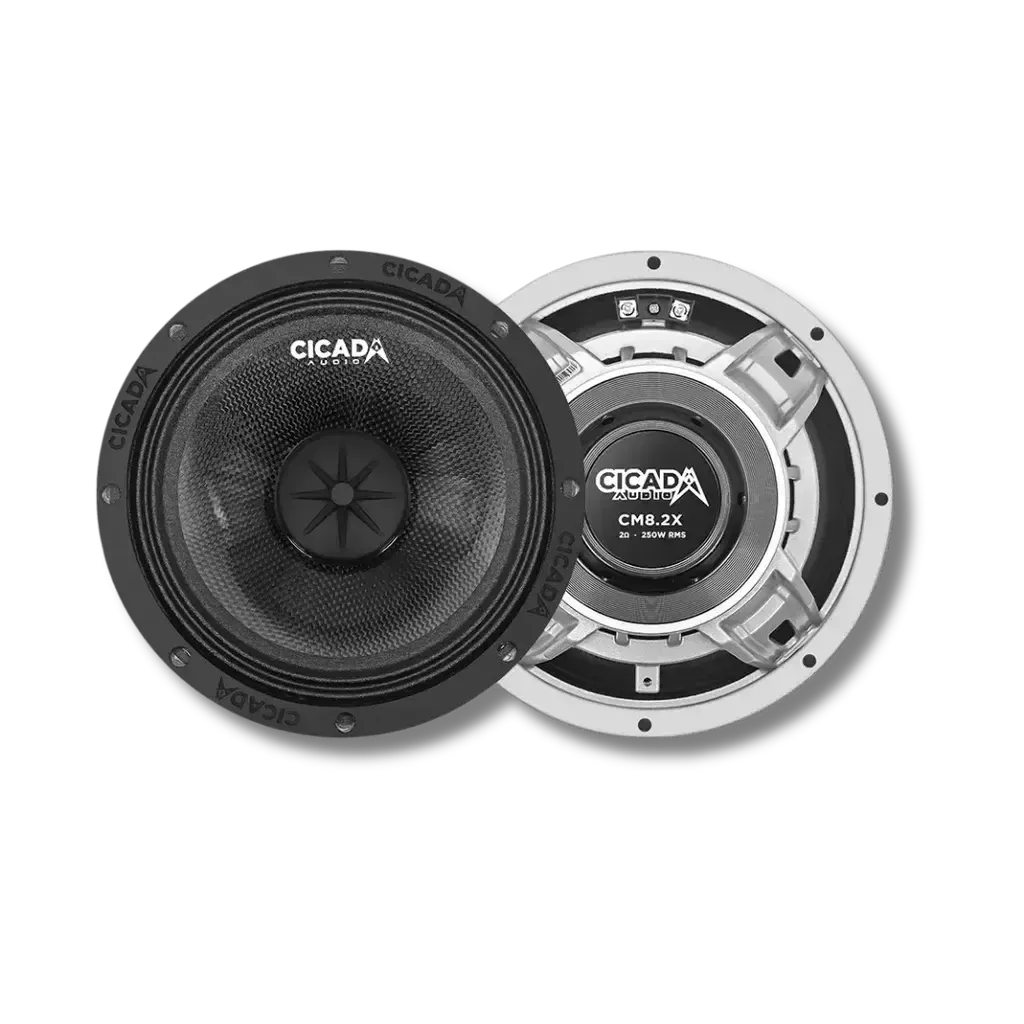

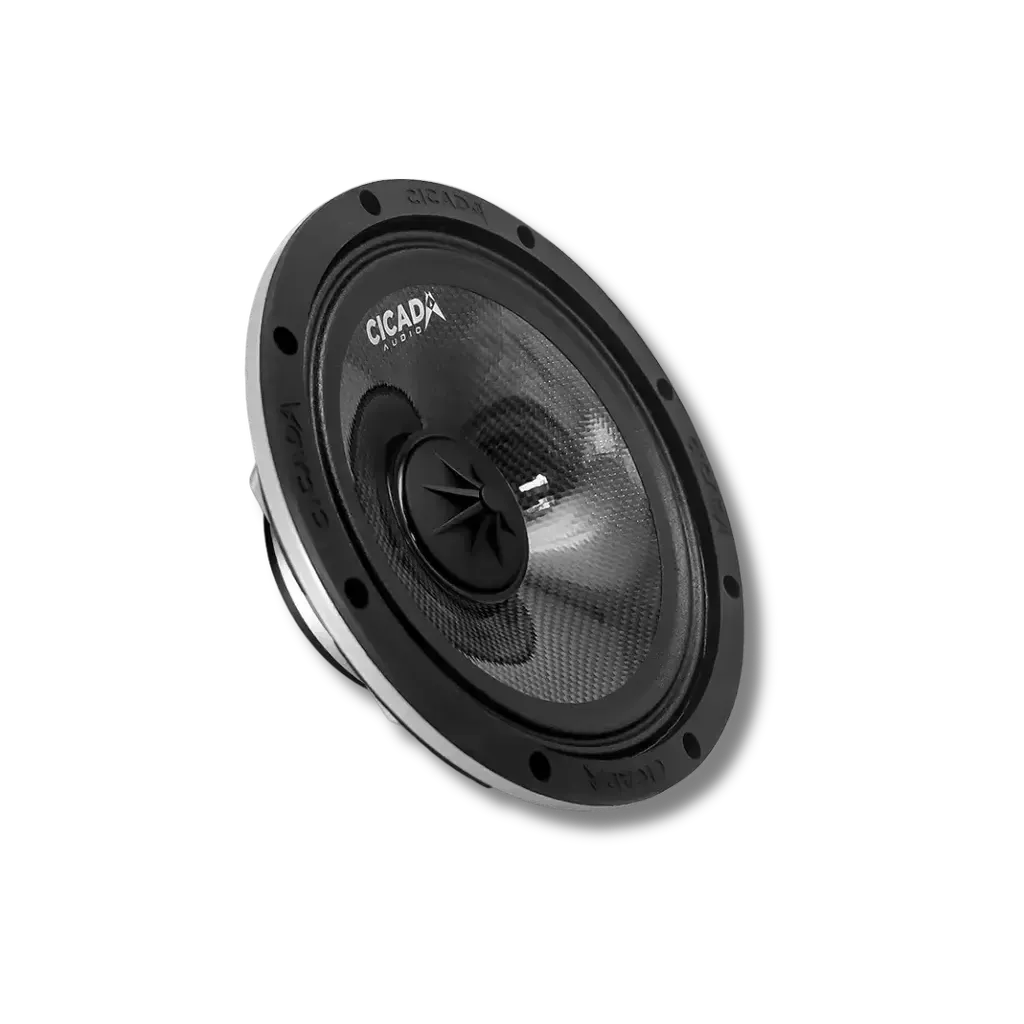

Cicada Audio CM8.2X – 8" Carbon Matrix Mid-Bass Motorcycle Speaker (2Ω) – 8-inch
$940.00 AUD
SKU: CM8.2X
Skip to product information
Cicada Audio CM8.2X – 8" Carbon Matrix Mid-Bass Motorcycle Speaker (2Ω) – 8-inch
$940.00 AUD
SKU: CM8.2X
| Size | 8 · Mid-bass |
| Impedance | 2 Ohm |
| Power | 250W RMS |
| Year Range | 2024+, 2014-2023 |
| Location | Saddlebags, Lower Fairing |
250W RMS, 94 dB. The full-range capable mid-bass component for custom 8-inch builds.
The Cicada Audio CM8.2X is an 8-inch 2Ω mid-bass component speaker – 250W RMS, 94 dB sensitivity, Carbon Matrix Composite™ (CMC™) cone, OFC copper shorting ring, Black Coat™ OFC 2.0-inch voice coil, N35SH neodymium motor, and a die-cast aluminium basket with Vortex Flow Venting™. Frequency response 70 Hz – 20 kHz (±3 dB). Sold in pairs.
The CM8.2X is a dedicated mid-bass driver – no tweeter, no crossover – built for custom 8-inch speaker positions in active DSP builds and component systems. Where the CM65.2X and CM69.2X are purpose-built mid-bass drivers that hand off to a tweeter before 10 kHz, the CM8.2X extends to 20 kHz – usable as a full-range driver in simpler builds, or as a high-output mid-bass in active systems where the DSP crossover point is set above 10 kHz. CMC™ cone construction, 94 dB sensitivity, and the OFC copper shorting ring's inductance distortion reduction make it the component option for 8-inch custom enclosure positions.
Who This Speaker Is For
For builders running custom 8-inch speaker positions – saddlebag lids, Tour-Pak enclosures, lower fairing, or bespoke fabricated enclosures – who want active DSP control or a component setup rather than a coaxial. The CM8.2X is the 2Ω version, correct for dedicated 2Ω-rated amplifiers in stereo. For bridged configurations or 4Ω builds, the CM8.4X is the 4Ω variant. For an all-in-one coaxial option in 8-inch positions, the CHX8.2 includes the horn tweeter and crossover. For an all-in-one coaxial in 8-inch positions, the CHX8.2 includes the horn tweeter and crossover. Compare the range: see how this driver stacks up against the other Cicada mid-bass options in our guide, Cicada CXXM vs CM-X Mid-Bass: Kevlar or Carbon Matrix?
What This Is Best For
- Active DSP builds in custom 8-inch saddlebag lid enclosures – the CM8.2X in a custom or aftermarket saddlebag lid speaker position, driven by dedicated channels on a DSP amplifier (FLX700.4PRO, FLX1400.4PRO) or DSP processor (DSP412PRO). DSP control over the 8-inch position – crossover frequency, slope, level, and time alignment – that a coaxial cannot provide.
- Full-range single-driver builds in 8-inch custom positions – where a tweeter is not installed and the CM8.2X operates across its full 70 Hz – 20 kHz range. At 94 dB and 250W RMS, it delivers the output level the 8-inch format is capable of without requiring a separate high-frequency driver.
- Custom Tour-Pak or lower fairing builds – for builders fabricating or modifying lid enclosures or fairing pods to accept 8-inch drivers, the CM8.2X provides the mid-bass foundation for an active stage without the height constraints of a horn coaxial tweeter assembly.
- High-efficiency rear stage builds – at 94 dB sensitivity, the CM8.2X delivers the output available from the 8-inch format with less amplifier effort than lower-efficiency alternatives, relevant in builds where rear stage output needs to match a high-efficiency front stage.
2Ω vs 4Ω – Choosing the Right Version
The CM8.2X is a 2Ω mid-bass driver. Choose the 2Ω version when running a dedicated 2Ω-rated amplifier in stereo – the FLX1400.4 and FLX2000.4 publish their rated output at 2Ω, where the CM8.2X delivers its full 250W RMS capacity. For bridged amplifier configurations requiring a 4Ω minimum load, the CM8.4X (4Ω) is the correct choice.
What's Inside the CM8.2X
The mid-bass cone is Carbon Matrix Composite™ (CMC™) – lightweight, rigid, and thermally stable under sustained high-output operation. The 2.0-inch / 51mm Black Coat™ OFC copper voice coil handles sustained 250W RMS with high conductivity and low thermal resistance. The 8-inch format provides greater cone area and lower-frequency extension than the 6.5-inch or 6×9-inch variants – the CMC™ cone's stiffness keeps the larger driver's resonant characteristics predictable across the power levels available in this format. On the road: authoritative mid-bass from a custom 8-inch position, with the consistent character of a rigid cone at sustained output.
The OFC copper shorting ring is mounted in the motor gap – a conductive sleeve that counteracts the voice coil's inductance variation as the coil moves. The effect is a reduction in second and third harmonic distortion (which a fluctuating inductance otherwise generates) and a flatter impedance curve at higher frequencies, extending usable response. The CM8.2X's response to 20 kHz reflects the combined effect of the 8-inch cone's surface area and the shorting ring's upper-frequency extension – in an active DSP system, this gives flexibility to set the crossover point higher than 10 kHz if the tweeter being paired warrants it. In a full-range configuration, it means the CM8.2X covers the full audio range without a companion driver. On the road: clear upper mid-range and presence through to the top of the audio band – from a single 8-inch driver.
The motor is an N35SH neodymium with H-grade temperature rating. The die-cast aluminium basket with Vortex Flow Venting™ channels airflow through the motor assembly for active thermal management. No external crossover is included or required – the CM8.2X is designed to be driven directly from an amplifier channel, with crossover management at the system level if needed.
Sensitivity and Frequency Coverage
At 94 dB (1W/1m) and 250W RMS, the CM8.2X delivers the same sensitivity as the rest of the CM series – the higher efficiency figure versus coaxial alternatives in the same format reflects the absence of coaxial crossover insertion loss and the OFC shorting ring's contribution to usable upper-frequency response. Frequency response runs 70 Hz – 20 kHz (±3 dB) – the full audio range from a single 8-inch driver. In active DSP builds where a tweeter is installed, the DSP crossover point is typically set between 3 kHz and 8 kHz depending on the tweeter; in full-range single-driver builds, the CM8.2X operates across the complete range.
Why 2Ω – Amplifier Pairing
At 2Ω, the CM8.2X extracts full rated output from any 2Ω-stable motorcycle amplifier. For active DSP builds, the FLX700.4PRO and FLX1400.4PRO provide DSP crossover control and dedicated amplifier channels for mid-bass and tweeter from a single unit. For high-output stereo builds without DSP, the FLX1400.4 and FLX2000.4 publish their rated output at 2Ω stereo. For bridged configurations, the CM8.4X satisfies the 4Ω minimum load requirement.
Fitment
- Designed for custom 8-inch speaker enclosures – no H-D direct-fit factory position. Suitable for any fabricated or aftermarket enclosure built to the CM8.2X's mounting dimensions.
- Custom saddlebag lid enclosures: Aftermarket or custom-fabricated saddlebag lids with 8-inch speaker openings – the primary custom 8-inch position on Street Glide and Road Glide platforms.
- Tour-Pak enclosures: Custom Tour-Pak lid builds or fabricated internal enclosures designed around the 8-inch mounting footprint.
- Lower fairing positions: Custom or fabricated lower fairing speaker pods built for the 8-inch format.
- Bespoke fabricated enclosures: Any custom speaker housing designed around the CM8.2X's 7.1-inch mounting diameter and 2.8-inch depth.
- Mounting Depth: 71 mm (2.8 in). Mounting Diameter (cutout): 180 mm (7.1 in).
- Requires a dedicated external amplifier – FLX700.4PRO, FLX1400.4PRO, FLX1400.4, or other 2Ω-stable motorcycle amplifiers.
Technical Specifications
| Driver Size | 8 in |
| Driver Type | Mid-bass component (no tweeter) |
| Impedance | 2Ω nominal |
| Power Handling – RMS | 250W RMS |
| Power Handling – MAX | 500W peak |
| Sensitivity | 94 dB (1W/1m) |
| Frequency Response | 70 Hz – 20 kHz (±3 dB) |
| Voice Coil | 2.0 in (51 mm) – Black Coat™ OFC copper |
| Shorting Ring | OFC copper – inductance reduction, distortion control |
| Magnet Type | Neodymium N35SH |
| Cone Material | Carbon Matrix Composite™ (CMC™) |
| Basket | Die-cast aluminium – Vortex Flow Venting™ |
| Crossover | None – active DSP or external passive crossover at system level |
| Mounting Depth | 71 mm (2.8 in) |
| Mounting Diameter (Cutout) | 180 mm (7.1 in) |
| Weather Resistance | Rain or Shine™ – CMC™ cone, OFC shorting ring, Vortex Flow Venting™ |
| Warranty | 2 years |
| Sold As | Pair |
