NAV-TV ZEN-H — 8-Channel A2B to Analog Audio Interface for 2023.5+ Harley-Davidson Touring Models
The correct way to add aftermarket amplifiers to modern Harley-Davidson A2B audio systems.

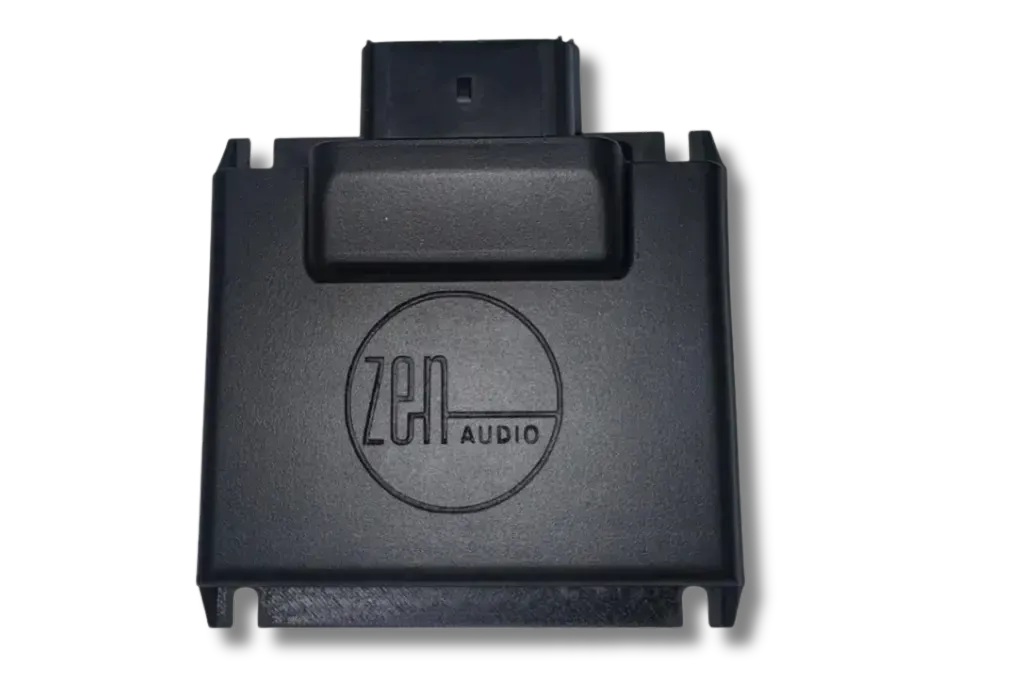

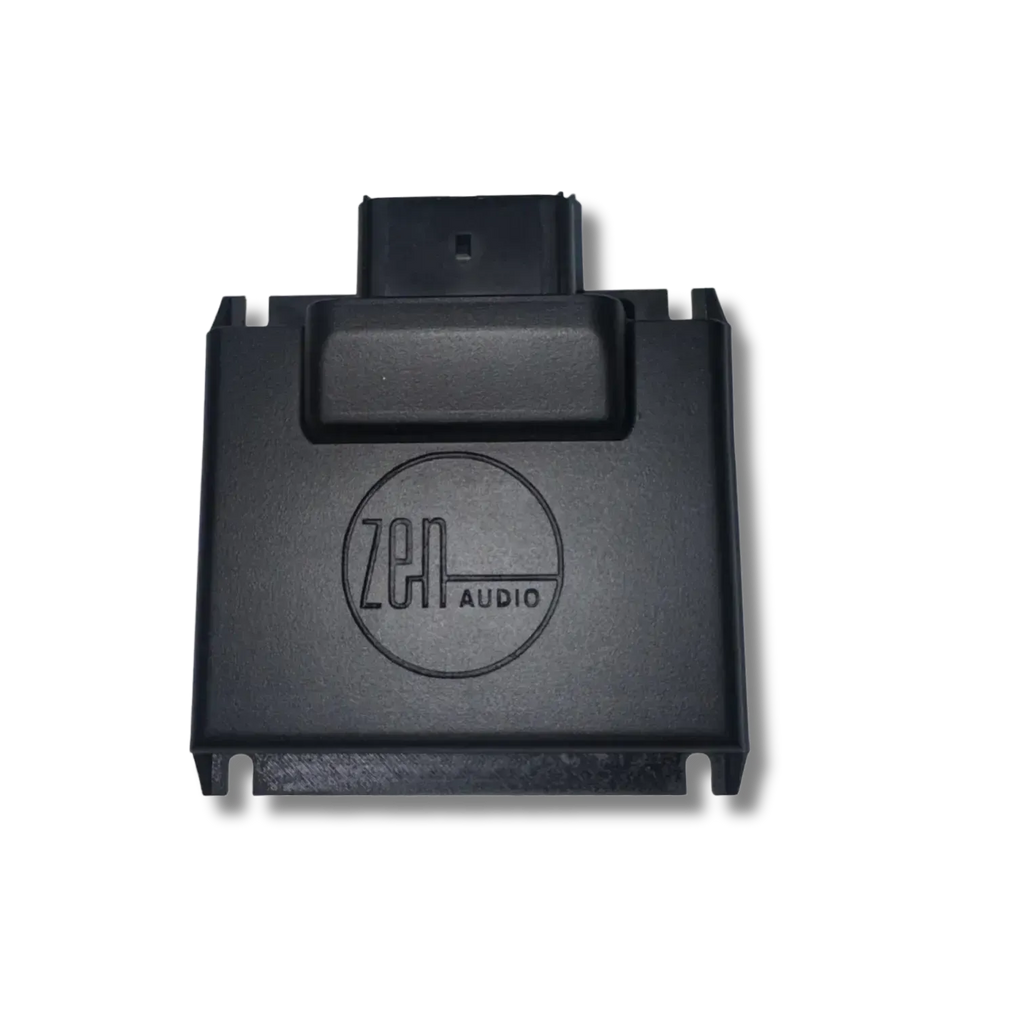

The NAV-TV ZEN-H is an 8-channel A2B to analog pre-amp interface designed specifically for 2023.5+ Harley-Davidson Touring models equipped with the Skyline / A2B audio platform. It replaces the factory amplifier and extracts a clean, flat, unprocessed audio signal directly from the bike’s digital A2B bus — before factory EQ and processing are applied.
On modern Harleys, the factory radio sends digital audio to the OEM amplifier, where heavy EQ and processing are baked in. Tapping the signal after the factory amp forces installers to undo that processing before tuning can even begin. The ZEN-H solves this properly by delivering eight channels of flat, full-range analog RCA output, giving you a clean foundation for aftermarket amplifiers or DSP-based systems.
This is the same concept used in high-end automotive interfaces — now purpose-built for Harley-Davidson Touring bikes.
What the ZEN-H Does
- Converts Harley-Davidson A2B digital audio to analog: Extracts signal before factory processing is applied.
- Provides 8-channel RCA pre-amp output: Clean, flat signal ready for aftermarket amplifiers or DSPs.

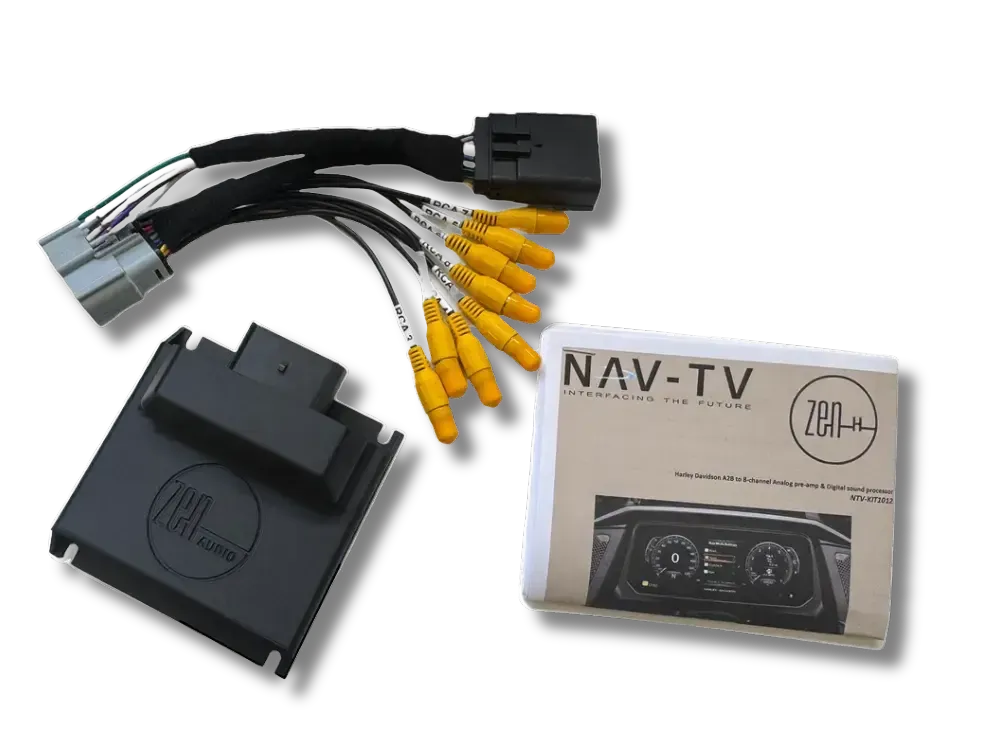

- Replaces the factory amplifier: Installs in the OEM amp location using a plug-and-play harness.
- Retains OEM functionality: Volume control, balance, fade, sub control, EQ presets, phone audio and prompts remain intact.
- No cutting or splicing: Fully plug-and-play installation.
ZEN-H vs ZEN-H PRO — Which One Do You Need?
| Feature | ZEN-H | ZEN-H PRO |
|---|---|---|
| Analog Outputs | 8 × RCA | 8 × RCA |
| Signal Type | Flat, unprocessed | Flat, unprocessed |
| Integrated DSP | No (external DSP or DSP amp required) | Yes — 8-channel DSP built in |
| Best For | DSP-equipped amplifiers or external DSP systems | Compact builds where space and wiring must be minimised |
| System Complexity | Moderate | Lower (fewer external modules) |
In short: Choose ZEN-H if you are running an amplifier with built-in DSP or an external DSP. Choose ZEN-H PRO if you want an all-in-one interface with DSP built directly into the module.
Technical Specifications
| NAV-TV ZEN-H – Technical Specifications | |
|---|---|
| GENERAL | |
| Application | Harley-Davidson Touring (2023.5+ A2B / Skyline systems) |
| Digital Input | A2B |
| Analog Outputs | 8 × RCA (single-ended) |
| Output Voltage (RMS) | 5.0 V |
| Output Voltage (Peak) | 13.8 V |
| AUDIO PERFORMANCE | |
| Digital Resolution | 24-bit / 48 kHz |
| DAC | 192 kHz / 24-bit |
| DSP Core | 32-bit fixed-point |
| Frequency Response (Digital) | 18 Hz – 24 kHz |
| Frequency Response (Analog) | 18 Hz – 24 kHz |
| Signal-to-Noise Ratio | 113 dB |
| THD+N @ -1 dBFS | -94 dB |
| POWER & CONTROL | |
| Operating Voltage | 7 – 20 V DC |
| Standby Current | < 1 mA |
| Operational Current | 250 mA (max) |
| Amp Turn-On Output | Automatic, battery voltage |
| Remote Turn-On Current Limit | 500 mA (relay required for multiple amplifiers) |
| PHYSICAL | |
| Dimensions | 4” × 4” × 1.5” |
| Weight | 5 oz |
| ⚠️ IMPORTANT – Installation & Grounding Requirements | |
|---|---|
|
Improper grounding can damage the ZEN-H and void the warranty. Before connecting any RCA cables to the ZEN-H or downstream processors:
|
|
Remote Turn-On Note
|
Why Riders Choose the ZEN-H
- Correct signal extraction: Clean audio before factory EQ and processing.
- Installer-friendly: Plug-and-play, no coding, no cutting.
- System flexibility: Works with DSP amps or external processors.
- Future-proof foundation: Ideal starting point for serious Harley audio builds.
Not sure whether you need ZEN-H or ZEN-H PRO?
Motorcycle Audio Australia can help you choose the right interface, amplifiers, and DSP strategy for your build.
