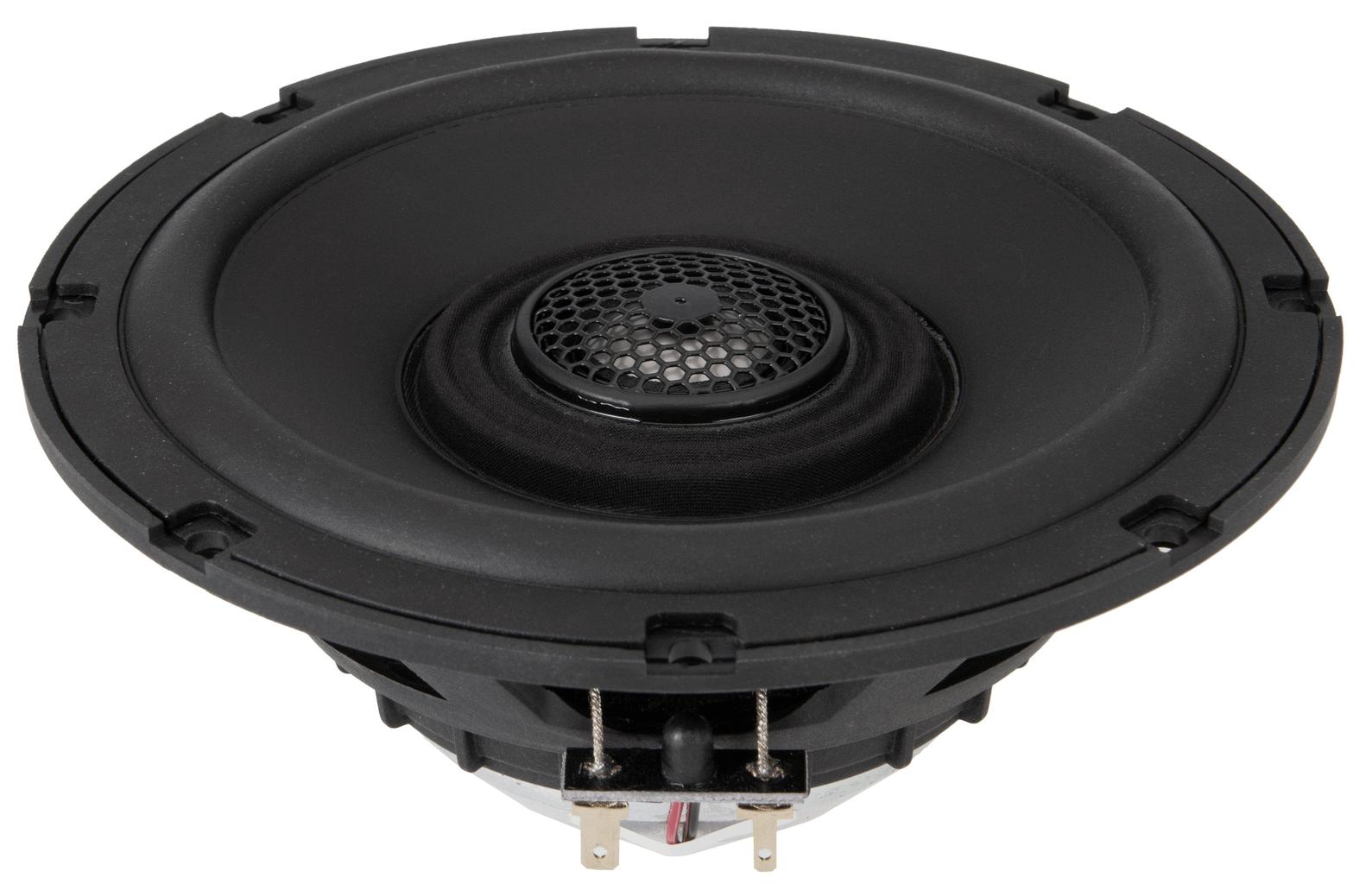

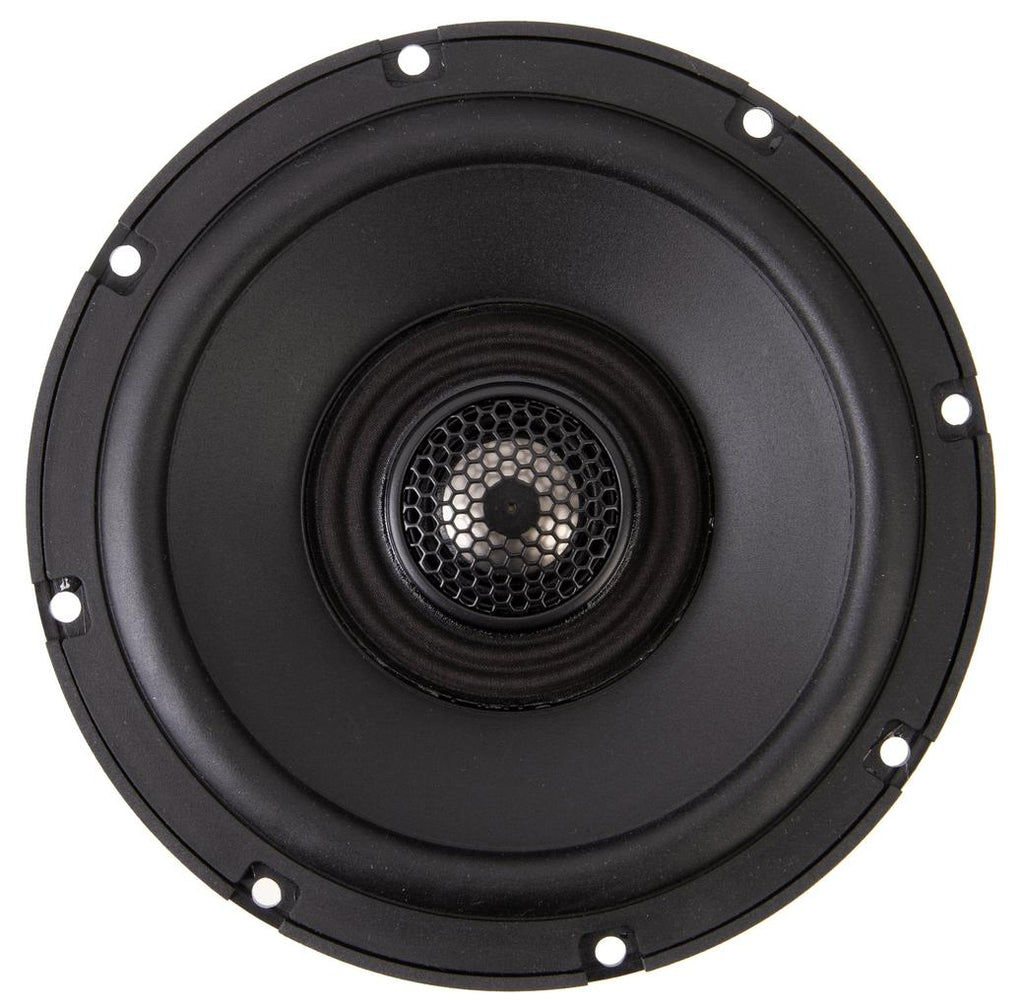

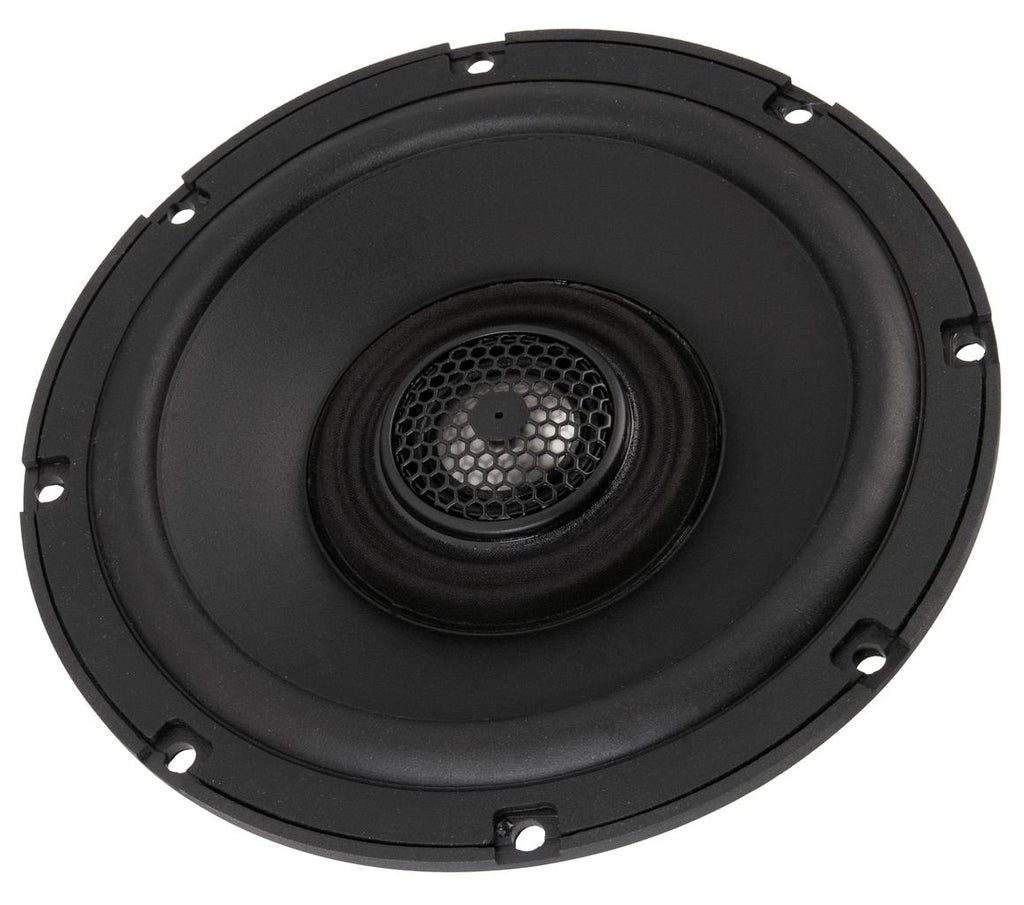

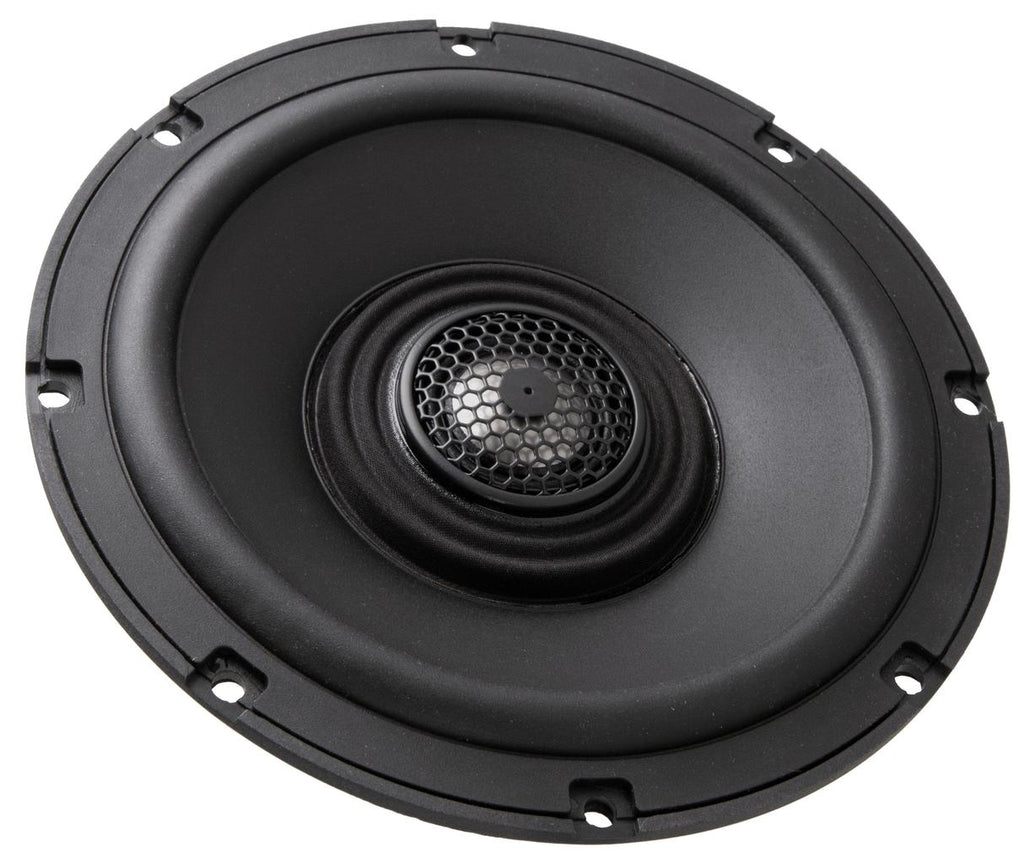

Precision Power HD14.654 – 6.5" 4-Ohm Fairing Speakers for 2014+ Harley-Davidson Touring

What's Inside the HD14.654

The cone is UV-resistant polypropylene, co-moulded with a low-density Santoprene surround through a chemical bonding process – not mechanical joining. Polypropylene is dimensionally stable across the temperature extremes a motorcycle fairing sees: it doesn't soften in summer heat or stiffen in cold morning starts. Santoprene holds its compliance across the full excursion range without the degradation that affects foam surrounds in outdoor conditions. On the road: the speaker's acoustic behaviour in summer heat is the same as on a cold winter morning. No compliance shift, no cone sag – the response characteristic you set up stays stable across riding conditions, seasons, and years.

The 1.25" (31.75mm) oxygen-free copper voice coil is wound on a thermally absorbent aluminium former. Aluminium conducts heat away from the voice coil windings faster than paper or Kapton – transferring it to the air gap and basket, where it can dissipate. In an amplified build, the speaker is receiving more power and generating more heat than in a factory-radio system. The aluminium former manages that heat load and maintains consistent power handling under sustained amplified operation. The neodymium motor delivers a high magnetic flux density in a low-mass package – the field strength needed for efficient output in a multi-channel amplified build without adding unnecessary mass to the assembly. On the road: at sustained amplified volume in an enclosed fairing on a hot day, the aluminium former keeps voice coil temperature in check – maintaining consistent power handling and output across long riding sessions.

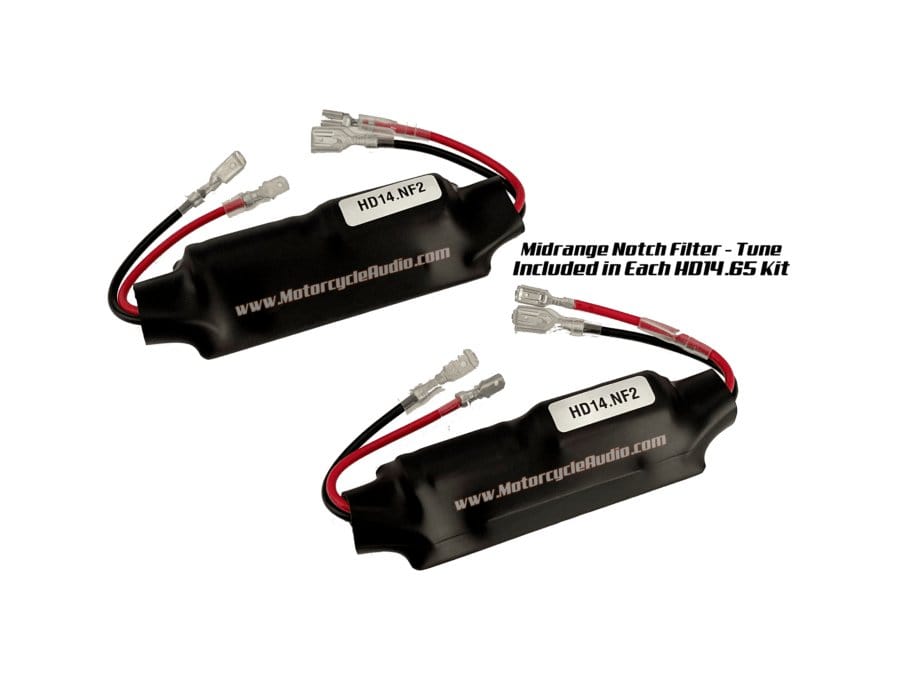

The Midrange Notch Filter is a passive acoustic correction network – a reactive circuit of inductors and capacitors tuned to the resonant frequency of the sealed 2014+ fairing pod. The sealed enclosure creates a standing lower-midrange peak: vocals and instrument fundamentals are pushed forward, the front stage sounds congested, and output at volume feels compressed rather than open. The filter introduces a compensating attenuation at that frequency, flattening the response curve and giving the amplifier an accurate, balanced foundation to build from. On the road: without the filter, the sealed pod pushes lower midrange forward and compresses the overall response – the amplifier is working against the enclosure. With the filter, the response is flat: the amplifier drives an accurate front stage, and the result at highway speed is a balanced, open stereo image rather than a congested wall of sound.

The tweeter is a 1" titanium dome – rigid, low-mass, and thermally stable. Titanium moves quickly and accurately at high frequencies without the breakup modes that limit softer dome materials. It resists UV degradation, moisture, and temperature cycling better than fabric domes – which soften over time in the heat and exposure of a motorcycle fairing. An integrated 6dB high-pass crossover rolls off low frequencies before they reach the tweeter, protecting it from excursion damage at the higher output levels an amplified build delivers. On the road: the titanium dome handles the power levels an amplified build puts into it, and maintains its acoustic character through weather and seasons. The clarity you hear on the first amplified ride is the clarity you get three summers later.

The glass fibre-reinforced ABS basket provides the structural rigidity to handle the vibration environment of a motorcycle fairing without flex or resonance – keeping the motor and cone assembly aligned under the higher excursion of amplified operation.

Sensitivity and Impedance

At 92 dB (1W/1m), the HD14.654 converts amplifier power to acoustic output efficiently – important in a motorcycle system where charging system constraints limit how much amplifier power is available. In an amplified build, sensitivity and amplifier output work together: a higher-sensitivity speaker produces more volume from the same watt than a lower-sensitivity alternative. The 4Ω impedance is the design operating point for most external amplifiers in stereo: it provides the correct load for the amplifier's output stage and gives better thermal margin than a 2Ω load at the same power level.

4Ω – What It Means for Your System

External amplifiers are designed around an output impedance that their output stage drives efficiently and safely. Most quality motorcycle amplifiers – including the MAA4.400 – are rated at both 4Ω and 2Ω in stereo, and for a minimum 4Ω speaker load in bridged mode. The 4Ω stereo operating point produces less heat and draws less current from the electrical system than 2Ω – giving the amplifier more thermal headroom for sustained operation. In bridged mode, a 4Ω speaker is the minimum rated load for the bridged configuration – across a bridged channel pair, each channel effectively works into 2Ω, the safe lower limit that keeps the amplifier out of thermal protection under sustained use. Running a 2Ω speaker in bridged mode would put each channel at about 1Ω – below the rating of most amplifiers, including the MAA4.400. The HD14.654 is the only correct fairing speaker for any bridged-amp configuration in the HD14 system.

Fitment

Technical Specifications

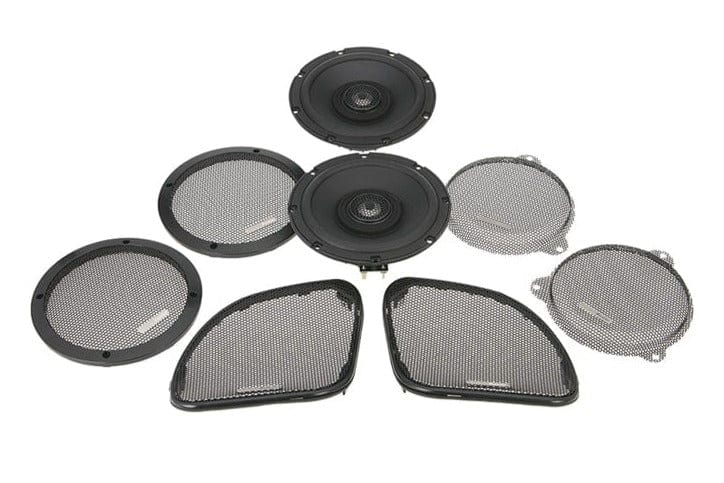

In the Box

• Precision Power HD14.654 6.5" 4Ω coaxial speakers – pair
• Midrange Notch Filter crossover module – pair
• Road Glide, Street Glide, and Tour-Pak direct-fit grilles
