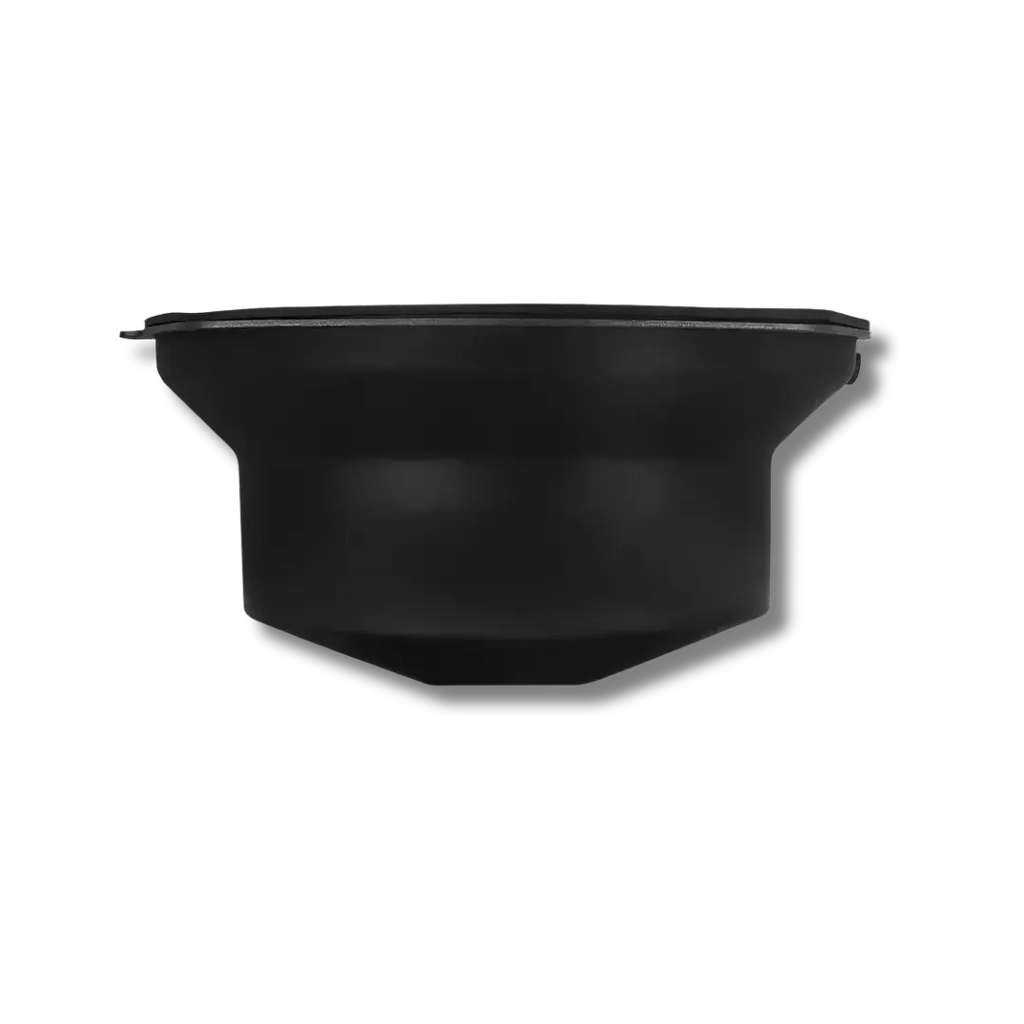

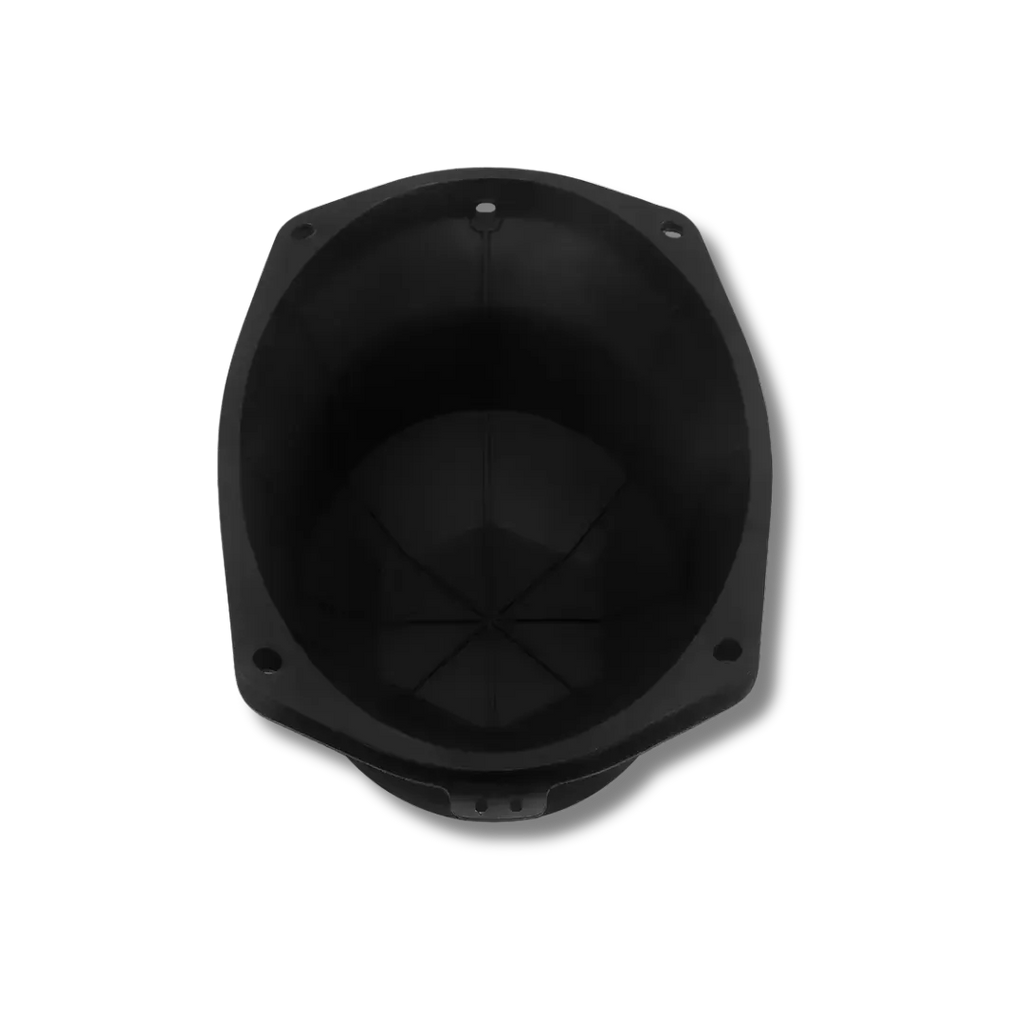

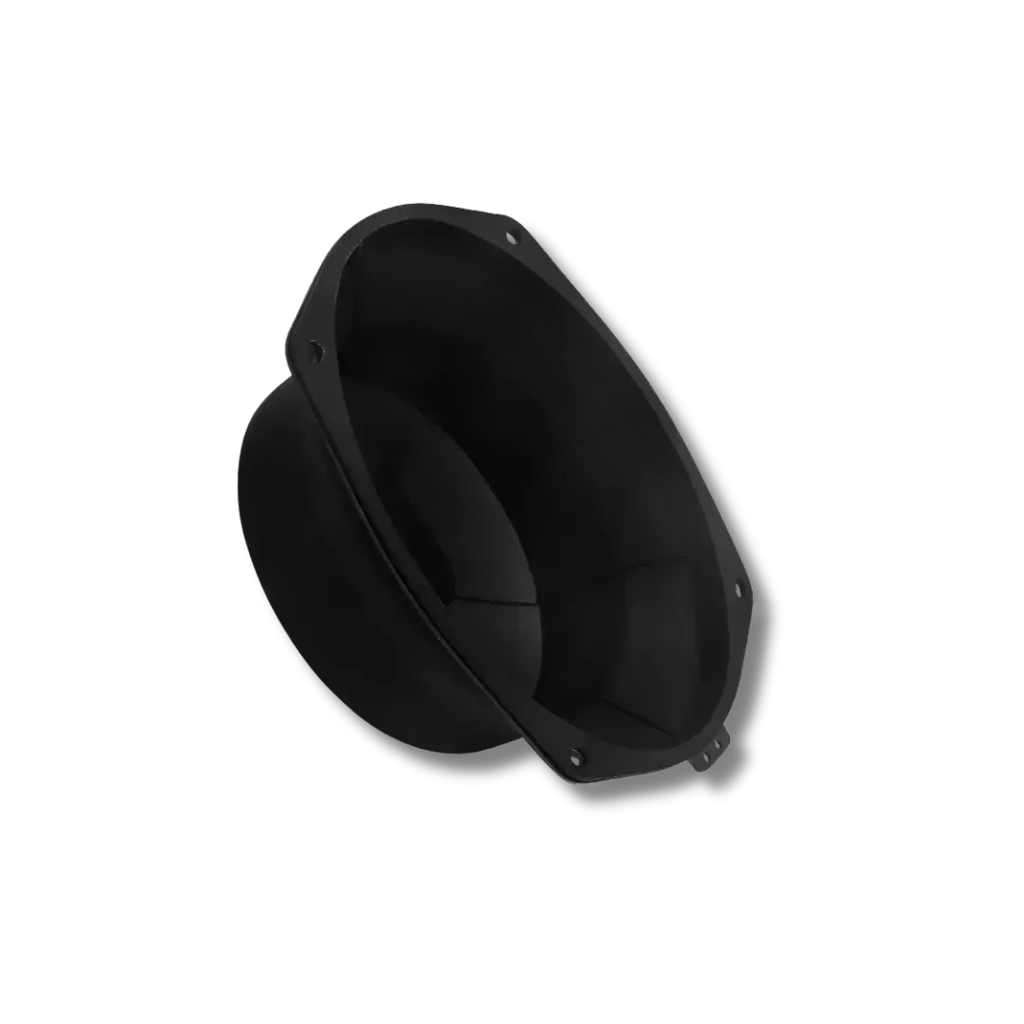

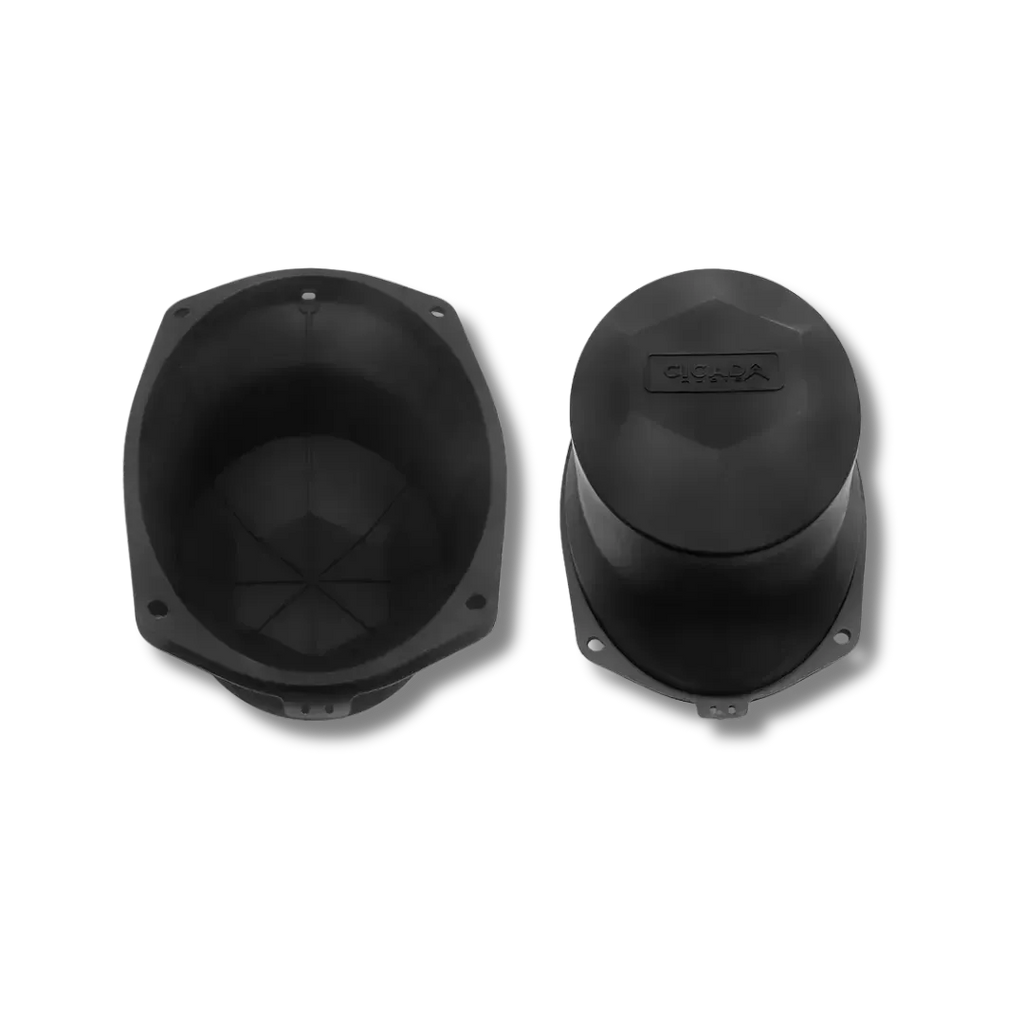

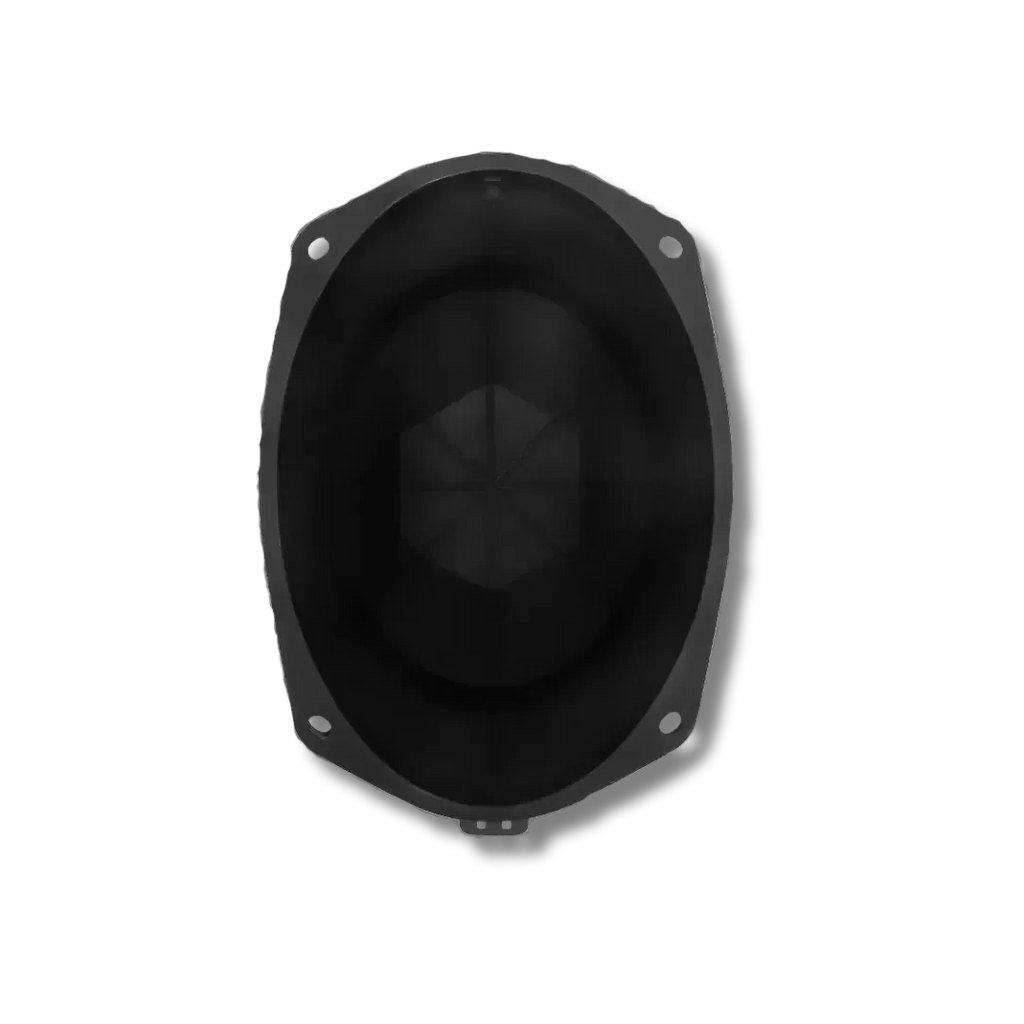

6×9-inch silicone saddlebag speaker divider — prevents 6×9 speakers acting as passive radiators when running CMB8.S4 or CMB10.S4 pro mid-bass. Sold as pair.
The Cicada Audio CHD69SD is a pair of custom-moulded high-grade silicone saddlebag dividers for 6×9-inch speaker positions — designed to acoustically isolate the 6×9-inch speaker from the air volume of a CMB8.S4 or CMB10.S4 pro mid-bass driver installed in the same saddlebag, preventing the 6×9 from acting as an unintended passive radiator. Flexible silicone construction. Sold as pair.
Running a 6×9-inch coaxial or horn coaxial speaker alongside a Cicada Audio® CMB8.S4 or CMB10.S4 pro mid-bass driver in the same saddlebag creates a shared air space — at the excursion levels a pro mid-bass driver generates, that shared air will cause the 6×9 cone to move in response, acting as a passive radiator. This degrades mid-bass output and puts uncontrolled stress on the 6×9 speaker. The CHD69SD is a flexible silicone divider that sits between the speaker positions, breaking the shared air path and allowing each driver to operate independently.
⚠️ Critical installation requirement: The amplifier or DSP crossover must be set to 250 Hz at 12–24 dB/octave or higher when using this divider. Any crossover point below 250 Hz will cause distortion and may permanently damage the speaker. Damage from incorrect crossover settings is not covered under warranty.
Who This Is For
Builders running both a Cicada Audio® CMB8.S4 or CMB10.S4 pro mid-bass driver and a 6×9-inch speaker in the same Harley-Davidson® saddlebag, who need to prevent acoustic coupling between the two drivers. For 6×9-inch ABS saddlebag dividers for coax horn CH/CHX speakers, see the CHD69HD. For 6×9-inch ABS dividers for CM69 mid-bass drivers, see the CHD69MHD.
What This Is Best For
- Acoustic isolation in mixed saddlebag installs — prevents 6×9-inch speakers from acting as passive radiators when a CMB8.S4 or CMB10.S4 pro mid-bass driver shares the same saddlebag air volume.
- Flexible silicone construction — conforms to the saddlebag interior for a better seal than rigid dividers; maintains flexibility across temperature extremes.
- Protects speaker performance in high-output systems — eliminates uncontrolled cone movement in the 6×9, maintaining output clarity and protecting the driver under amplified conditions.
The Bottom Line
6×9-inch silicone saddlebag divider — prevents passive radiator coupling between 6×9 speakers and CMB8.S4/CMB10.S4 pro mid-bass drivers. Crossover must be set to 250 Hz or higher. Sold as pair.
Add to cart above.
Compatibility
| Application | Mixed saddlebag installs with Cicada Audio® CMB8.S4 or CMB10.S4 pro mid-bass drivers and 6×9-inch speakers |
| Material | Custom-moulded high-grade silicone |
| Function | Acoustic isolation — prevents 6×9 speaker acting as passive radiator |
| Crossover Requirement | 250 Hz @ 12–24 dB/octave minimum — required to prevent distortion and speaker damage |
| Sold As | Pair |
