Cicada Audio CHX69.4 — 6x9" Pro Coaxial Horn Motorcycle Speakers (4Ω, Carbon Matrix Composite)
Cicada Audio CHX69.4 — 6×9″ Pro Coaxial Horn Speakers for Harley-Davidson Motorcycle Audio Systems (4Ω, Carbon Matrix Composite)
If you want huge rear-stage output with amplifier flexibility and rock-solid control, the CHX69.4 delivers.
The Cicada Audio CHX69.4 is a high-output 6×9-inch Pro Coaxial Horn speaker engineered for Harley-Davidson saddlebag lids, rear pods and touring systems requiring power, clarity and durability. Featuring a Carbon Matrix Composite™ cone, oversized 2.5″ mid-bass voice coil and a 1.75″ horn-loaded tweeter, the CHX69.4 provides powerful, controlled output with excellent efficiency.
The 4Ω configuration offers increased amplifier compatibility, making it ideal for bridged channels and multi-speaker systems while still delivering serious rear-stage authority.
Key Features
- 6×9″ pro coaxial horn design: Wide coverage and high-output projection.
- Carbon Matrix Composite™ cone: Lightweight, rigid and weather-resistant.
- 4Ω impedance: Ideal for bridged amplifiers and multi-speaker channel sharing.
- N35SH neodymium motor: High-efficiency performance with improved thermal control.
- Repairable horn tweeter: Serviceable 1.75″ tweeter voice coil (CHT175).
- External 12 dB crossover: Includes -3 / -6 dB tweeter attenuation.
- Motorcycle-ready construction: Designed for harsh touring environments.
Recommended Power Amplifiers
For correct output, control and long-term reliability, Cicada Audio recommends the following amplifiers:
- FLX1000.4 — ideal when bridged with 4Ω speaker loads
- FLX1400.4
- FLX1400.4P — DSP-equipped for advanced tuning and protection
- FLX2000.4
Note: Using a properly powered amplifier with adequate headroom is essential to prevent distortion and mechanical damage.
Specifications
| Cicada Audio CHX69.4 – Technical Specifications | |
|---|---|
| GENERAL | |
| Speaker Size | 6×9″ Pro Coaxial Horn |
| Design | Horn-loaded coaxial with Carbon Matrix Composite™ cone |
| Impedance | 4 Ω |
| Power Handling | 400W RMS / 800W MAX |
| AUDIO PERFORMANCE | |
| Sensitivity | 92 dB (1W / 1M) |
| Frequency Response | 46 Hz – 20 kHz (±3 dB) |
| COMPONENTS | |
| Mid-Bass Voice Coil | 2.5″ Black Coat™ OFC copper |
| Tweeter | 1.75″ aluminium-dome horn tweeter |
| Tweeter Voice Coil | Repairable OFC copper (CHT175) |
| Crossover | External 12 dB, vented, encased |
| Tweeter Attenuation | -3 / -6 dB resistor pack |
| Magnet | Neodymium N35SH |
| Basket | Die-cast aluminium with Vortex Flow Venting™ |
| PHYSICAL | |
| Mounting Depth | 3.75″ (96 mm) |
| Cut-Out Size | 8.5″ × 5.7″ (216 × 145 mm) |
| Grilles | Not included |
| WARRANTY | |
| Coverage | 2 years |

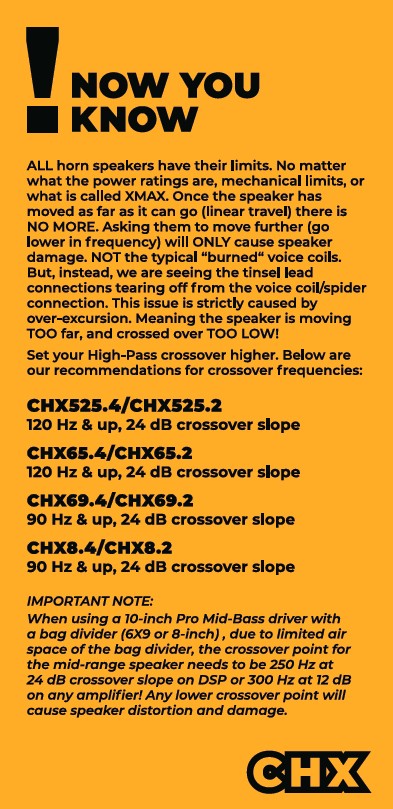

| ⚠️ IMPORTANT – Crossover & Setup Requirements (Read Before Installation) | |
|---|---|
|
All horn speakers have mechanical limits. Regardless of power ratings or advertised “MAX” figures, a speaker can only move so far before mechanical failure occurs. Most horn speaker failures are NOT burned voice coils. In real-world motorcycle installs, damage is typically caused by over-excursion — the speaker moving too far because it is crossed over too low. This leads to tinsel leads tearing away from the voice coil or spider. Once this happens, the speaker is permanently damaged. |
|
Required High-Pass Crossover Settings
Lower crossover points WILL cause distortion and speaker damage. |
|
|
Saddlebag & Pod Installations – Critical Note
When using 6×9 or 8-inch Pro Mid-Bass / Horn drivers inside saddlebags, internal air volume is limited. Cicada Audio strongly recommends the following DSP settings:
Never run these speakers full-range. |
|

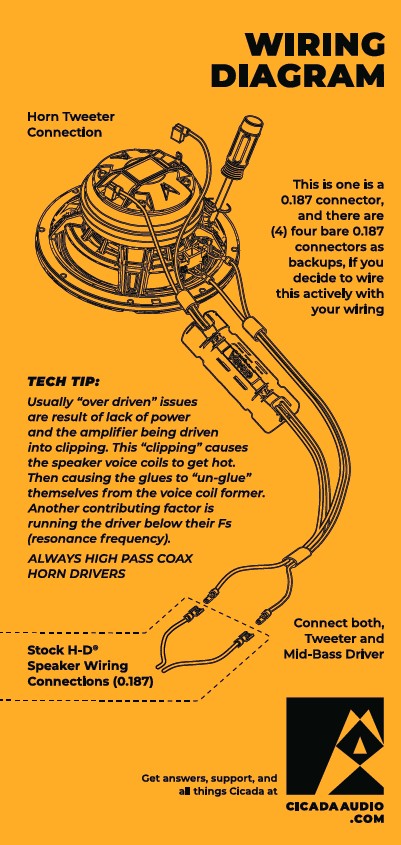

Amplifier & Wiring Setup Notes
Always high-pass coaxial horn drivers. |
Why It Works So Well on Motorcycles
- Huge output capability: 6x9 format moves more air for a bigger, fuller rear stage.
- Perfect for lids: Provides the projection needed to keep up with strong front stages.
- Clear at any speed: Horn tweeter easily cuts through wind, exhaust and road noise.
- Engineered for touring: Built to survive harsh Australian heat, vibration and weather.
Fitment
Designed for Harley-Davidson Touring saddlebag lid kits & rear speaker pods (2014–2025 models).
- Street Glide (2014–2023)
- Street Glide Special (2014–2023)
- Street Glide CVO (2014–2023)
- Road Glide (2015–2024)
- Road Glide Special (2015–2023)
- Road Glide Limited / Ultra (2015–2024)
- Electra Glide (2014–2023)
- Tri Glide (2014–2025)
- Ultra Limited (2014–2024)
- All CVO Touring models with 6x9 lid kits (2014–2023)
- Compatible with aftermarket 6x9 saddlebag lid kits & rear pods
Recommended System Matching
- Pairs extremely well with Cicada FLX-series amplifiers.
- Ideal as rear-stage speakers for loud touring systems.
- DSP recommended for proper level balancing and crossover control.
- Complements CHX65 or CHX8 front stages and subwoofer installs.
Building a bagger with serious rear-stage output?
Motorcycle Audio Australia can help match the CHX69.4 with the right lid kit, amplifier and DSP for your Harley.
