Soundstream HDV-Ultra Wireless Rear View Camera For Harley-Davidson® Motorcycles
$680.00 AUD
SKU: HDV-Ultra
Wireless Rear Camera with Night Vision — OEM-Style Fitment for Harley-Davidson® Ultra Touring

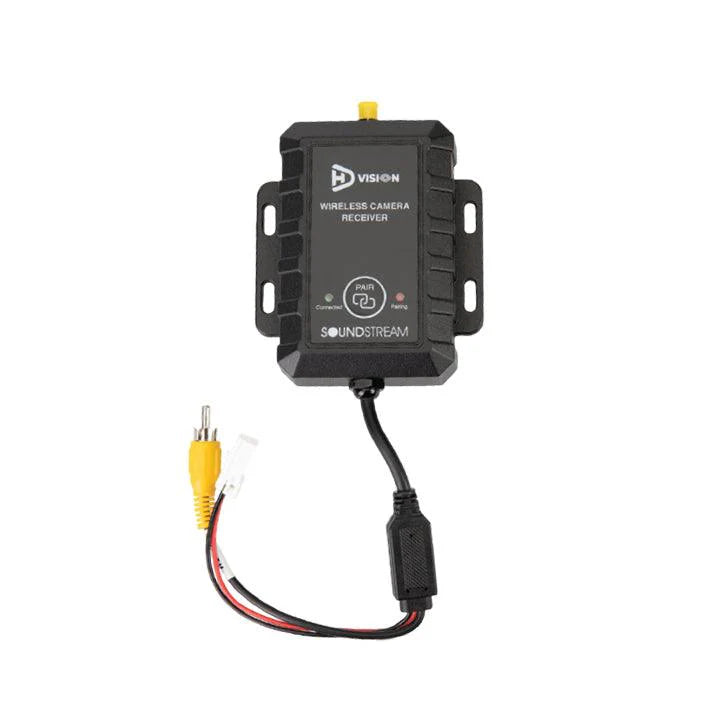

The Soundstream HDV-Ultra is a wireless rear camera system built for Harley-Davidson® Ultra Limited, Road Glide Ultra, and Tri Glide models. It replaces the OEM rear fender tail light with a purpose-built housing that integrates an LED brake and driving light, a 140° wide-angle camera with automatic night vision, and a built-in wireless transmitter — no video cable run required. The included wireless receiver mounts inside the fairing via a P&A power connector and outputs a standard-definition RCA signal to compatible Soundstream WHD Series and HDHU Series head units.
Traditional rear camera installs mean routing a video cable the full length of the motorcycle — through the frame, under bodywork, and up into the fairing. The HDV-Ultra eliminates that entirely. The camera transmits wirelessly to the receiver in your fairing, keeping the install clean and the bike looking exactly as it should. A photo-sensitive sensor automatically activates night vision mode when light levels drop, with no input from the rider required.
Who This Is For
Riders with a Soundstream WHD Series head unit — WHD14+, WHD.SG, WHD.RG, or WHD.9813 — or a compatible HDHU Series unit, featuring a standard-definition RCA camera input, who want a clean wireless rear camera upgrade without the complexity of running video cable through the bike.
What This Is Best For
Low-speed manoeuvring and reverse parking — The 140° wide-angle view gives you a clear picture of what's directly behind the bike. Tight car parks, backing into a driveway, or reversing out of a busy rally are all significantly easier with a rear camera on screen.
Day and night visibility — The automatic night vision mode activates when the photo-sensitive sensor detects low light, giving you useful rear visibility after dark without having to switch anything on manually.
Clean builds where wiring matters — Wireless transmission removes the need to strip fairings and chase video cable through the frame. The HDV-Ultra is designed for builds where the end result needs to look factory-clean, not custom-wired.
Fitment

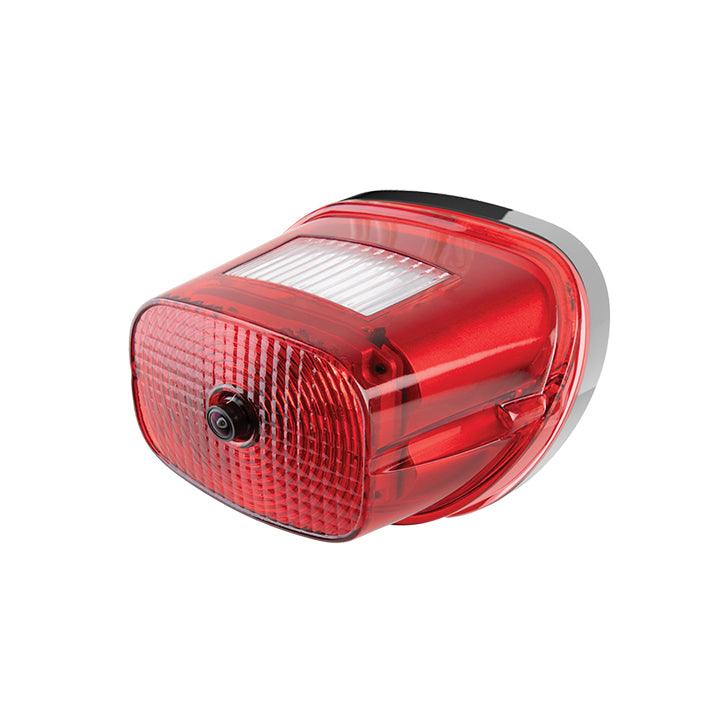

The HDV-Ultra replaces the OEM tail light bulb and lens on the rear fender of compatible Harley-Davidson® Ultra Touring and Tri Glide models. No additional brackets or external camera mounts are required.
| Model | Year Range | Notes |
|---|---|---|
| Ultra Limited | 2014–2024 | |
| Road Glide Ultra / Road Glide Ultra Limited | 2015–2023 | |
| Road Glide 3 | 2023–2025 | 3-wheel model |
| Tri Glide Ultra | Select years | 3-wheel model |
Before You Order — Compatibility Notes
Standard-definition RCA input required. The HDV-Ultra outputs standard-definition video and is designed for head units with SD RCA camera input, including the WHD14+, WHD.SG, WHD.RG, WHD.9813, and compatible HDHU Series units.
Reserve V2 and Reserve SG.V2 owners. If your head unit is the Soundstream Reserve V2 or Reserve SG.V2, which feature HD video input, you need the HDV-UltraV2 instead.
If you are unsure which version suits your head unit, contact Motorcycle Audio Australia before ordering and we'll confirm compatibility.
Standard-definition RCA input required. The HDV-Ultra outputs standard-definition video and is designed for head units with SD RCA camera input, including the WHD14+, WHD.SG, WHD.RG, WHD.9813, and compatible HDHU Series units.
Reserve V2 and Reserve SG.V2 owners. If your head unit is the Soundstream Reserve V2 or Reserve SG.V2, which feature HD video input, you need the HDV-UltraV2 instead.
If you are unsure which version suits your head unit, contact Motorcycle Audio Australia before ordering and we'll confirm compatibility.
Supplied and Supported by Motorcycle Audio Australia
Motorcycle Audio Australia is the authorised SoundStream dealer for Australia and New Zealand. Every HDV-Ultra is supplied with local warranty support and backed by our team for fitment and compatibility questions.
Warranty
1-year warranty through Motorcycle Audio Australia, covering Australia and New Zealand.
The Bottom Line
The Soundstream HDV-Ultra delivers wireless rear vision with automatic night vision for Harley-Davidson® Ultra Limited, Road Glide Ultra, and Tri Glide models — integrated LED brake and driving light, IP67 weather sealing, 140° adjustable pivot, and no cable run required, designed for use with Soundstream WHD Series and HDHU Series head units with standard-definition RCA camera input.
Technical Specifications
| Type | Wireless integrated rear view camera system |
| Housing | Replaces OEM rear fender tail light bulb and lens |
| Video Resolution | Standard definition |
| Field of View | 140° |
| Camera Pivot | 140° adjustable |
| Night Vision | Automatic — photo-sensitive sensor activates in low-light conditions |
| Transmission | Wireless |
| Receiver Connection | P&A power connector, installs in fairing |
| Receiver Output | Standard-definition RCA — compatible with select Soundstream WHD and HDHU Series head units |
| Weatherproof Rating | IP67 (dust-tight and temporary water immersion) |
| Brake Light | Integrated LED brake and driving light (replaces OEM) |
| Compatible Head Units | Soundstream WHD14+, WHD.SG, WHD.RG, WHD.9813, select HDHU Series (SD RCA input models) |
| Fitment | 2014–2024 Ultra Limited; 2015–2023 Road Glide Ultra / Limited; 2023–2025 Road Glide 3; Tri Glide Ultra (select years) |
| Warranty | 1 year through Motorcycle Audio Australia |
