Soundstream WHD14+ CarPlay Head Unit for 2014 to 2023 Harley Touring

Features

Wireless Apple CarPlay® — iPhone Integration Without Cables

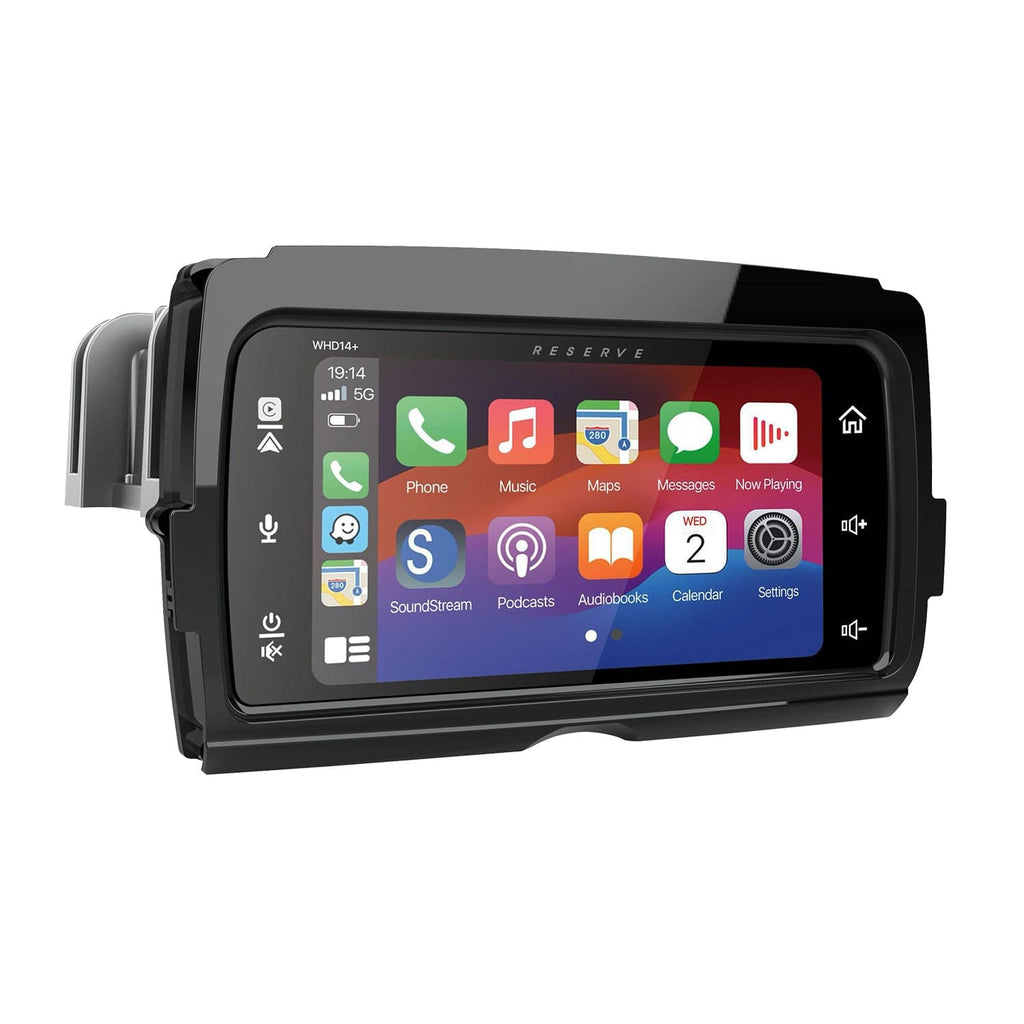

Apple CarPlay® on the SoundStream WHD14+ connects wirelessly — no cable required, no cable to wear out from vibration or weather. Once paired, your iPhone connects automatically each time you ride. Apple Maps, Google Maps, Waze, Spotify, Apple Music, podcasts, calls, and messages all appear on the 7-inch display in the CarPlay interface, designed for easy single-glance viewing. Control via touchscreen or via the OEM handlebar controls through the included thumb control module. Siri® responds to voice commands for hands-free operation at speed.

Wireless Android Auto® — Google Assistant and Full Android Integration

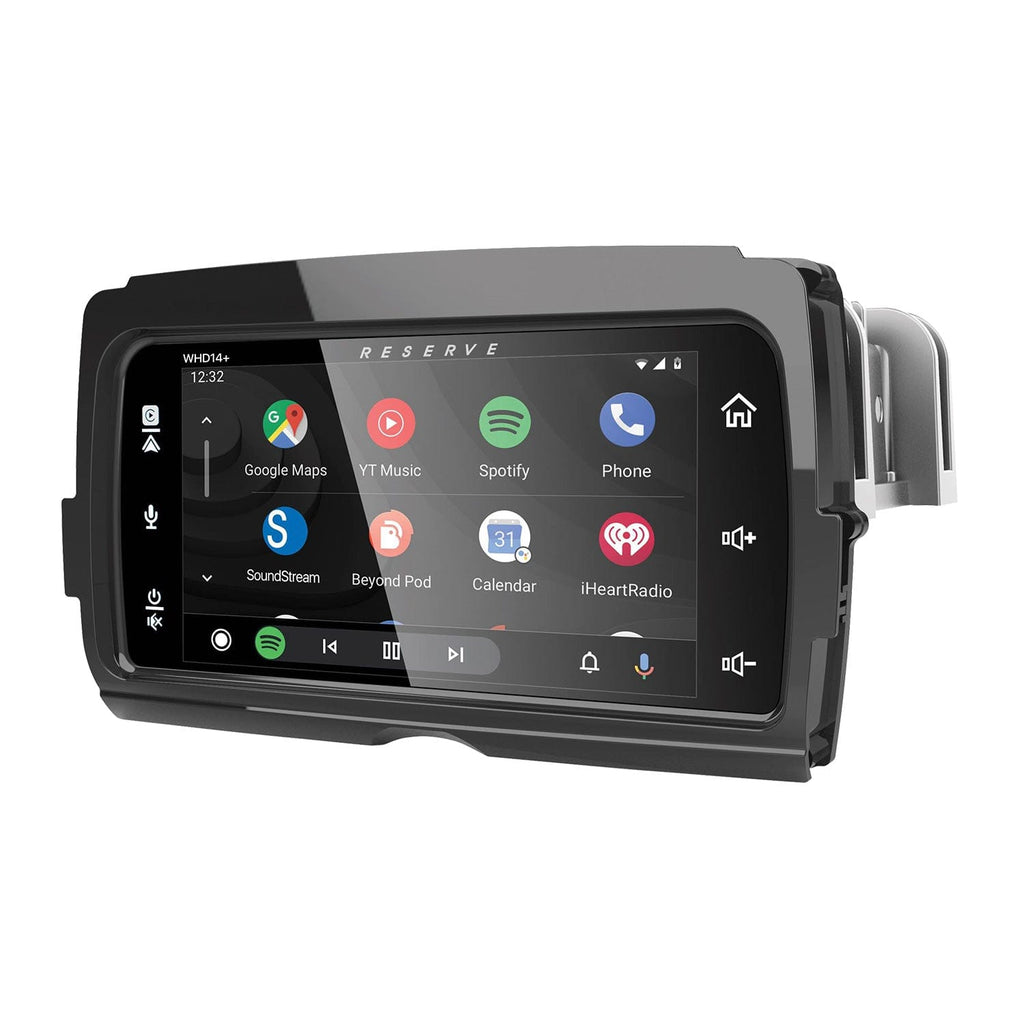

Android Auto® connects wirelessly and brings your Android apps to the WHD14+'s screen with no cable needed. Google Maps, Waze, Spotify, and messaging apps are all accessible from the display or by voice. Google Assistant handles natural voice commands — ask for directions, send a message, or find the nearest fuel stop without taking your hands off the bars. Real-time traffic data through Waze or Google Maps is displayed on the 7-inch screen.

7-inch Optically Bonded QLCD — 1000 NIT Touchscreen

The 7-inch QLCD uses an optically bonded construction — the touchscreen glass is bonded directly to the display panel, eliminating the air gap that causes glare and fogging in standard screens. The result is a clearer, higher-contrast image in direct sunlight with no condensation between layers. The 1000 NIT backlight keeps maps and menus readable at highway speeds in Australian conditions, and the capacitive touchscreen responds accurately even with gloved hands.

Bluetooth® 5.0 — Audio Streaming and Hands-Free Calling

Independent of CarPlay and Android Auto, the WHD14+ supports Bluetooth® 5.0 for wireless audio streaming (A2DP) and hands-free phone calling. Faster pairing, more stable connection, and better range than earlier Bluetooth standards. Stream music or take calls over a direct Bluetooth® connection when a full CarPlay or Android Auto session isn't needed.

OE-Style Chassis — Plug-and-Play Installation

The WHD14+ is built specifically for the 2014 to 2023 Harley-Davidson® Touring fairing. It uses the factory radio bracket and mounting hardware — no dash kits, no trim panels, no cutting. The supplied plug-and-play loom connects to the OEM radio harness without splicing any factory wiring. The OEM AM/FM radio antenna and USB media port cable connect directly with no adapters. The faceplate profile matches the factory head unit surround for a clean, OEM-finish result.

Handlebar Controls — Thumb Control Module Included

Every WHD14+ supplied by MAA includes a thumb control module that interfaces with the OEM handlebar controls. Volume up and down, track skipping, and phone call answer and end are all accessible from the bars without touching the screen. This covers the controls you actually need at speed. For full cursor navigation, advanced button mapping, and expanded function programming, the WHD.UNLOC + Maestro® RR2 adds that capability.

IPx5 Water Resistance — Built for Real Riding

The WHD14+ carries an IPx5 water resistance rating — protected against direct water spray from any direction. The optically bonded QLCD eliminates the internal air gap that traps moisture, sonically welded ABS housings resist water ingress at the seams, and silicone gaskets seal the faceplate perimeter. Built for rain, road grime, and wash-downs over the long term.

Built-In Class-D Amplifier with Full DSP

The WHD14+ includes a built-in 2-ohm stable Class-D 4-channel amplifier — enough clean power to drive upgraded fairing and bag speakers directly, or to serve as the head unit in a multi-amplifier system. Five-volt RCA outputs for front, rear, and subwoofer channels give downstream amplifiers more signal to work with, reducing noise at high volume. The 13-band digital equaliser includes custom staging presets and manual adjustment. Active crossovers are available for front, rear, and subwoofer outputs independently.

Rear Camera Input

An RCA video input with 12V trigger support allows connection of a front or rear camera. The camera feed displays on the 7-inch screen, triggered automatically or manually. Compatible with the HD Vision V2 rear camera for a clean integrated solution.

WHD.UNLOC + Maestro® RR2 — Required for Factory Boom!™ Audio Bikes

On a Harley with a factory Boom!™ Stage 1, Stage 2 or Harley HD Audio amplifier, the SoundStream WHD.UNLOC kit is not an optional extra — it is the component that allows the WHD14+ to communicate with that amplifier. Without it the factory amp stays offline and the speakers it drives will not play. Most CVO Touring models fall into this category, as do most Ultra, Limited and Tri Glide® Ultra models and most Touring bikes with factory saddlebag or Tour-Pak® speakers. If you are not certain which you have, send us your model, year and VIN and we'll confirm before you order.

On every bike, amplified or not, the WHD.UNLOC and its iDataLink® Maestro® RR2 module also transform the WHD14+ from a CarPlay head unit into a fully integrated Harley infotainment system: up to 10 real-time digital gauges from 40+ available parameters (subject to the data available from your bike), pop-up warnings for oil pressure, fuel level and engine temperature, and advanced programmable handlebar thumb control mapping. The WHD.UNLOC connects via a pre-wired plug-and-play harness — no additional cutting or splicing required.

When the WHD14+ and WHD.UNLOC are ordered together, MAA pre-configure the Maestro® RR2 module before shipping, matched to your specific Harley model, so the integration is ready to go from the start. See the WHD.UNLOC kit here.

Technical Specifications

In the Box

• SoundStream WHD14+ head unit
• Plug-and-play wiring harness
• Thumb control module
• Mounting kit
• Installation guide
