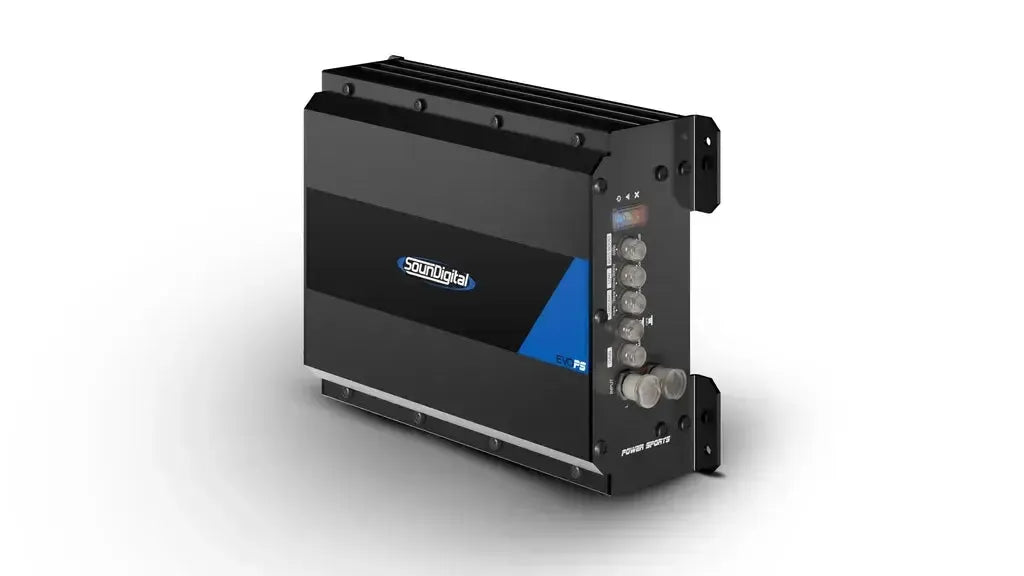

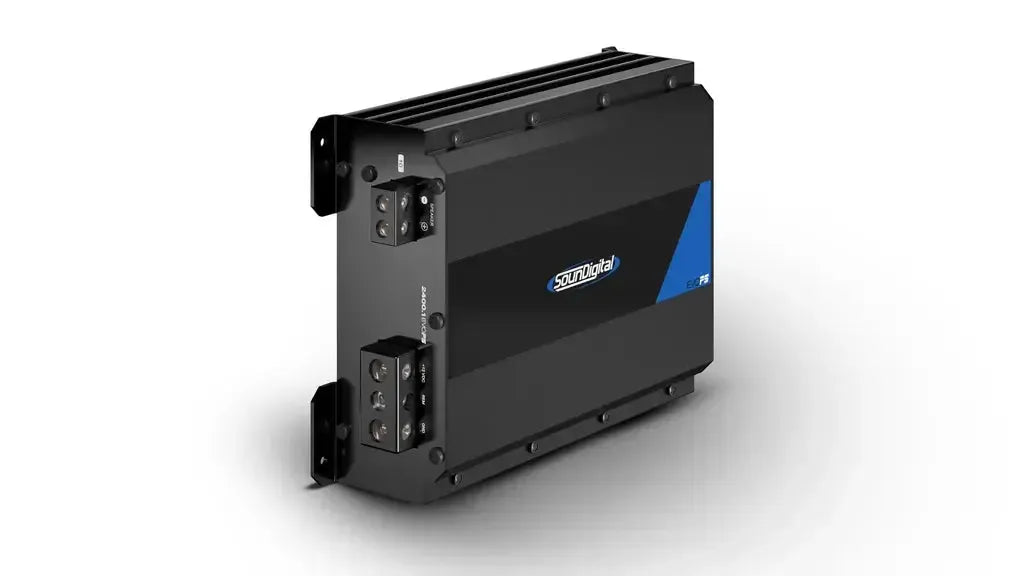

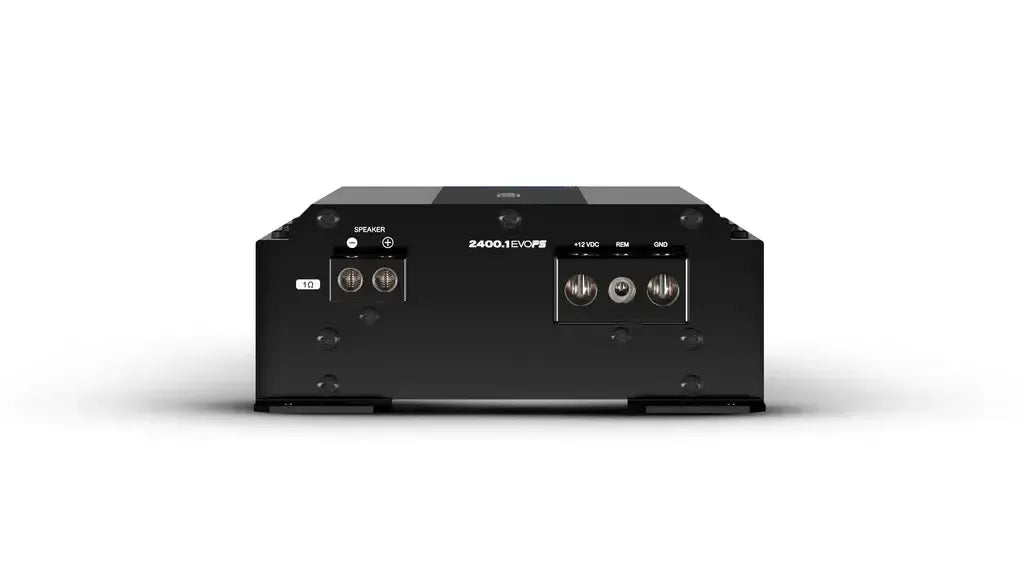

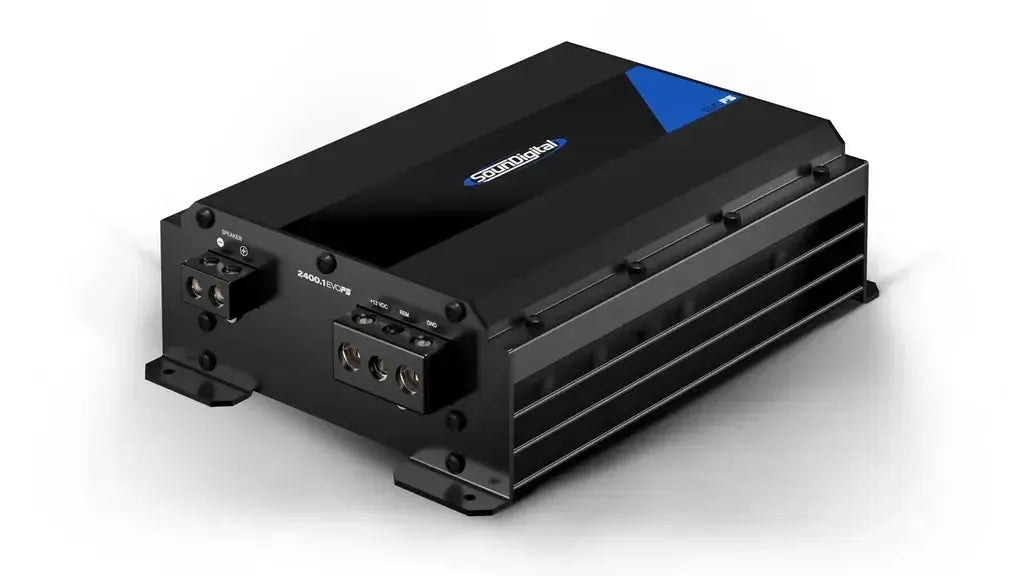

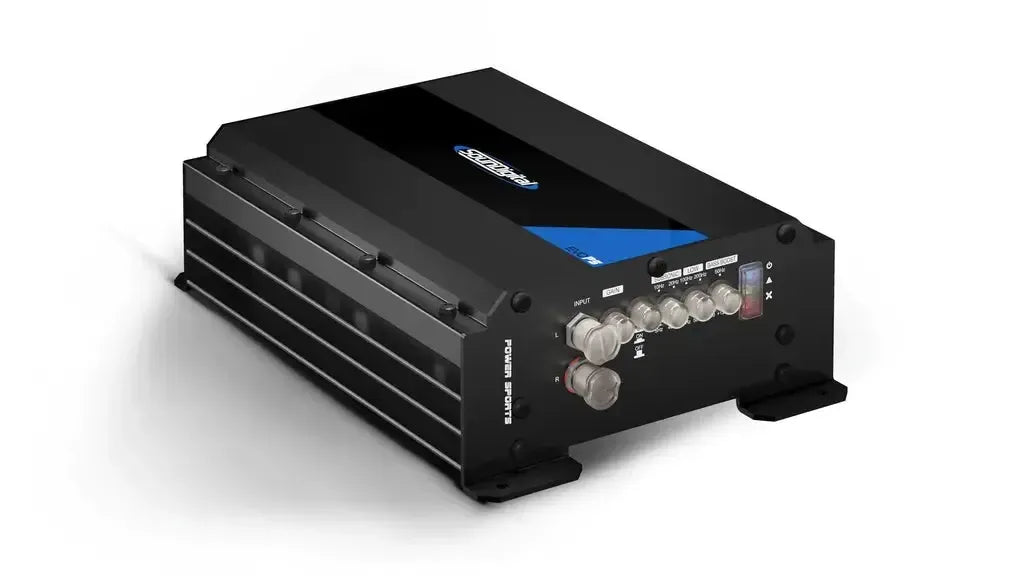

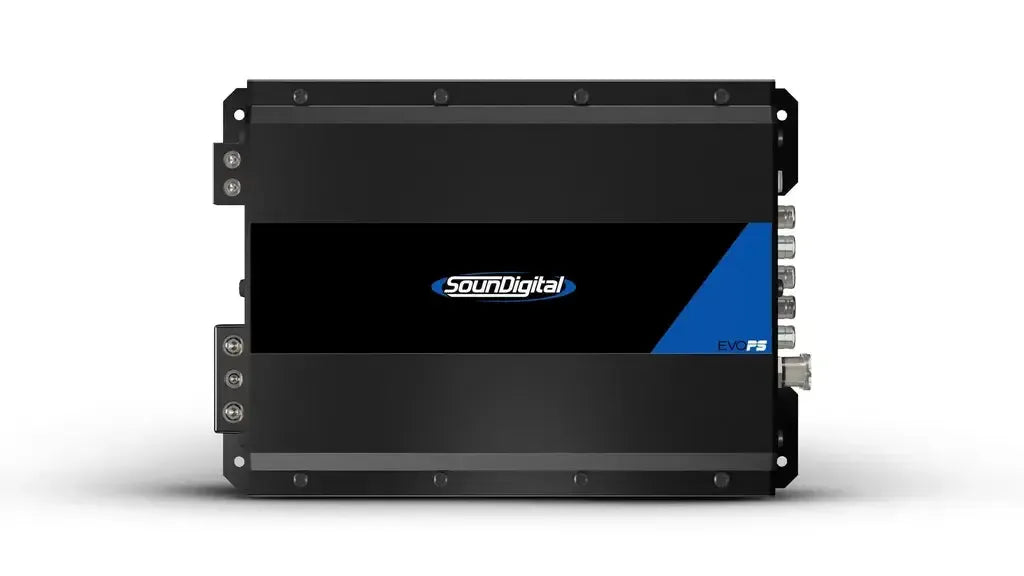

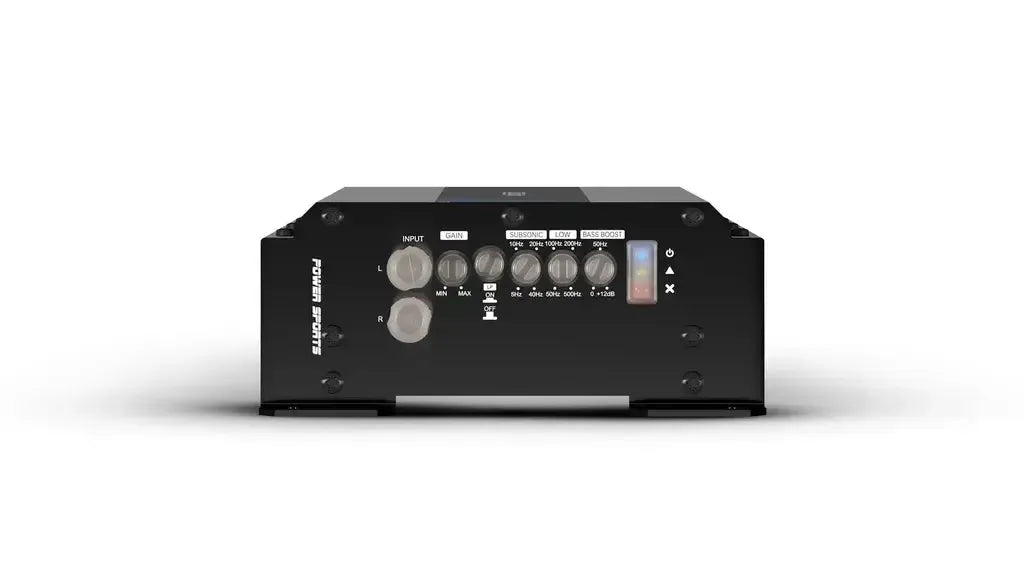

SounDigital EVO PS 2400.1 — Compact 1-Channel Class-D Motorcycle Subwoofer Amplifier (2,400W RMS @ 2Ω)
| Channels | 1 Channel |
| Power | 2400W RMS |
| Year Range | 1998-2013, 2014-2023, 2024+ |
SounDigital EVO PS 2400.1 — 2400W Compact Monoblock Amplifier for Motorcycle Audio Systems
The SounDigital EVO PS 2400.1 is a high-output compact monoblock amplifier engineered for motorcycle and powersports audio systems that demand serious power in tight mounting spaces. Delivering up to 2400 W RMS from an ultra-small chassis, it’s ideal for mid-bass drivers, subs, and high-efficiency pro-audio speakers in Harley Touring builds.
Key Features
- Up to 2400 W RMS depending on impedance version (2Ω or 4Ω).
- High-efficiency Class-D topology designed for motorcycle electrical systems.
- Ultra-compact sealed chassis fits fairings, saddlebags, and custom amp racks.
- Advanced thermal management ensures stable performance in hot riding conditions.
- High-level & low-level inputs for simple OEM or aftermarket head unit integration.
- Locked-gain system prevents unwanted tuning changes.
- Comprehensive protection circuitry for long-term reliability.
- 8–16 V operating range supports upgraded motorcycle charging systems.
Why It Works on Harleys
- Massive output that cuts through wind, pipes, and open-road noise.
- Compact footprint ideal for Street Glide and Road Glide fairings.
- Efficient design delivers high power without excessive current draw.
- Stable at 2Ω or 4Ω depending on chosen model.
- Runs cool even during Aussie summer riding.
Recommended System Use
- Mid-bass stage: 6.5″, 8″, or 10″ pro-audio mid-bass drivers.
- Subwoofer stage: Motorcycle-specific subs & saddlebag enclosures.
- Hybrid builds: Pair with a 4-channel amp for full-bike systems.
- SPL setups: When high output is required in minimal space.
Fitment
- Designed for Harley-Davidson Touring motorcycles.
- Fits Street Glide, Road Glide, Ultra Limited, CVO & custom baggers.
- Compatible with popular aftermarket amp racks and fairing mounts.
Specifications
| Impedance Versions | 2Ω or 4Ω models available |
| Power @ 4Ω (2Ω Version) | 1 × 1584 W RMS |
| Power @ 2Ω (2Ω Version) | 1 × 2400 W RMS |
| Power @ 4Ω (4Ω Version) | 1 × 2400 W RMS |
| Operating Voltage | 8 – 16 V |
| Current Draw (Music) | 93 A |
| Current Draw (Max) | 185 A |
| Recommended Fuse (Music) | 100 A |
| Total Efficiency | 90% |
| Damping Factor | > 2000 |
| Frequency Response (-3dB) | 5 Hz – 25 kHz |
| Signal-to-Noise Ratio | 90 dB |
| HPF/Subsonic Filter | 5 Hz – 40 Hz |
| LPF | 50 Hz – 500 Hz |
| THD + N (10% Rated Power) | 0.1% |
| Dimensions (Inches) | 8.4 × 5.8 × 2.4 in |
| Dimensions (CM) | 21.4 × 14.9 × 6.2 cm |
Need System Advice?
The EVO PS 2400.1 is ideal for high-output Harley systems where space is tight but power is critical. If you're planning a full system, we can help you match speakers, subs, wiring, and charging upgrades to get the best out of this amp.
