2024+ Street Glide DSP system – full-range horn fairing stage with band-limited CMB69.4 rear reinforcement

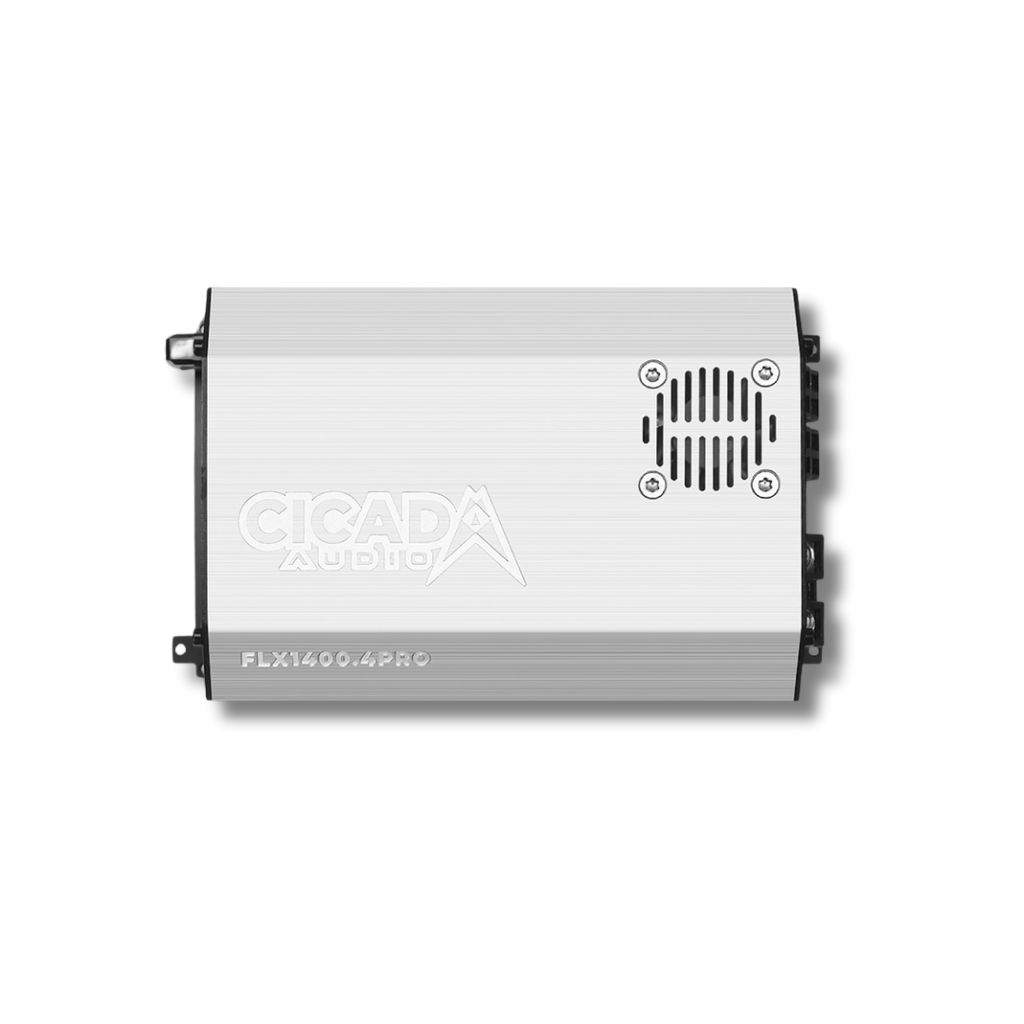

The Cicada Audio® 24FLXPCHCMB-4X4SG is not a conventional four-speaker full-range system. The front pair is the 2Ω CH65.2C horn coaxial, while the saddlebag pair is the 4Ω CMB69.4 dedicated mid-bass driver with no tweeter. The FLX1400.4PRO gives each stage independent crossover, level and protection settings.

What the Street Glide System Delivers

  • Full-range information stays in the fairing. CH65.2C supplies the vocal and high-frequency content through its horn-coaxial construction.
  • The lid stage adds a defined midrange band. CMB69.4 operates above a mandatory 250 Hz / 24 dB/oct high-pass in the sealed saddlebag installation. With no rear tweeter, it does not reproduce the complete musical spectrum.
  • This is not a bass-system shortcut. The high crossover required by the sealed lid means the CMB69.4 contributes lower-midrange weight and rear output, not sub-bass or deep kick-drum extension.
  • Power limits differ front to rear. Set the two 2Ω front channels to the CH65.2C's 250W RMS rating. Set the two 4Ω rear channels to the CMB69.4's 150W RMS rating, despite their 225W amplifier capability.

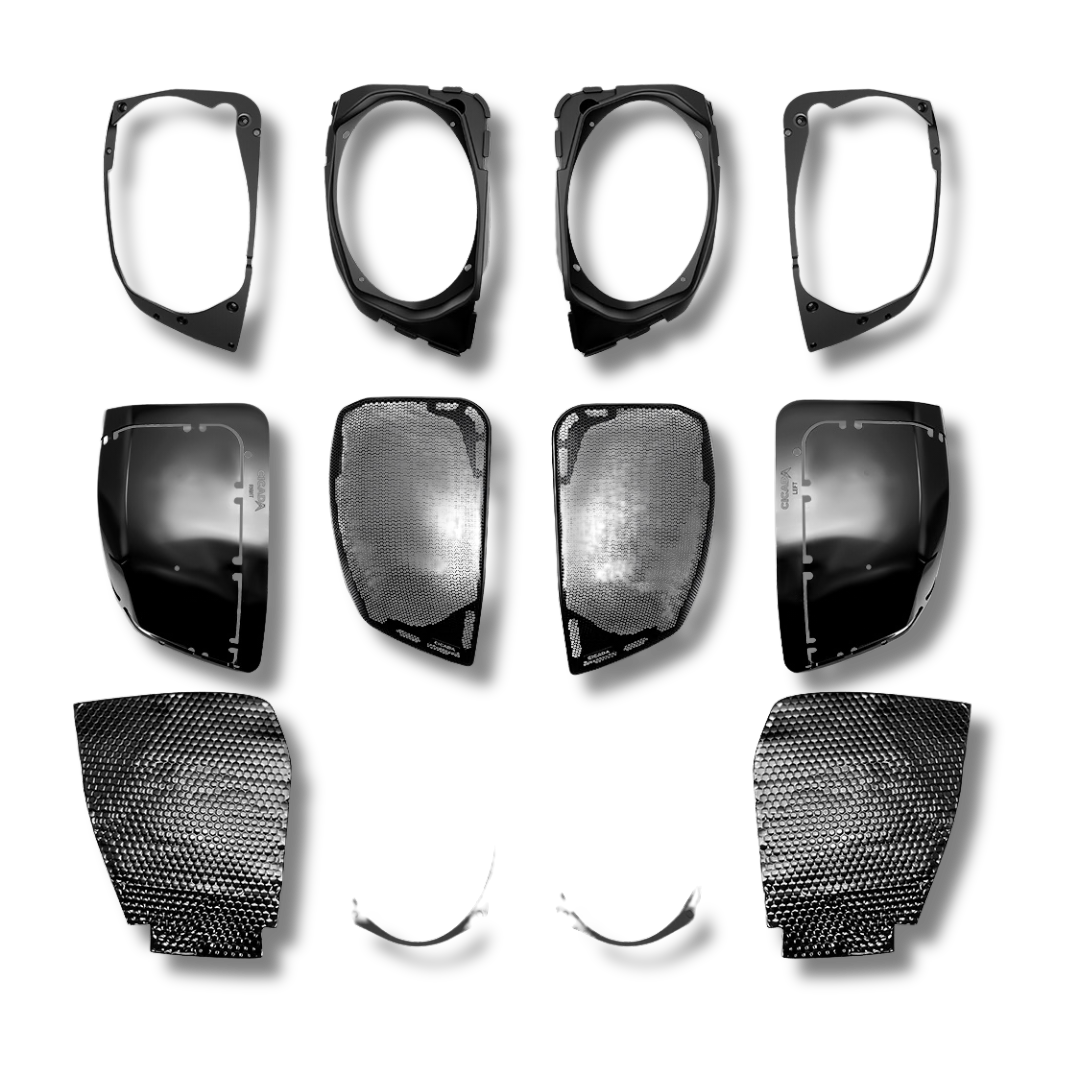

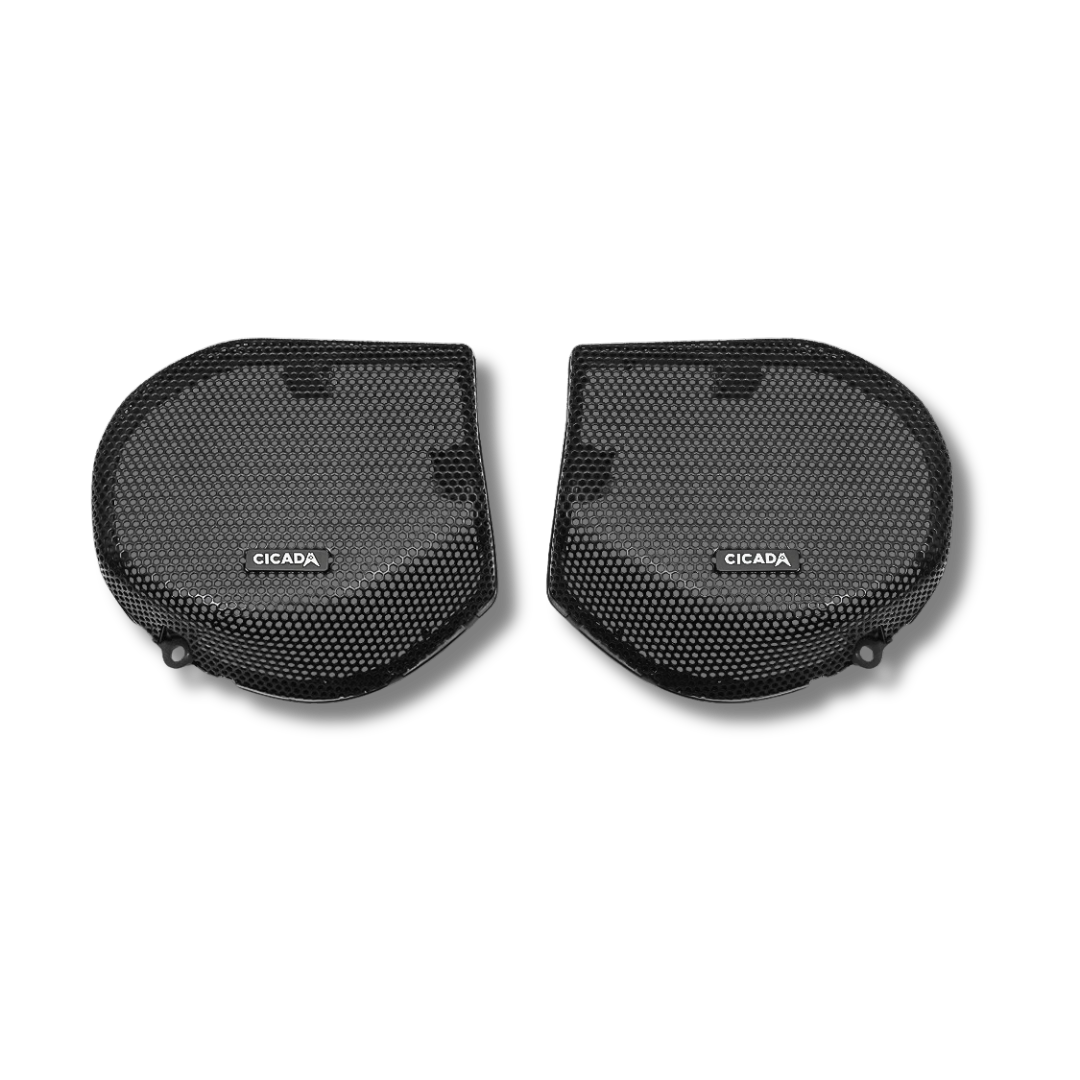

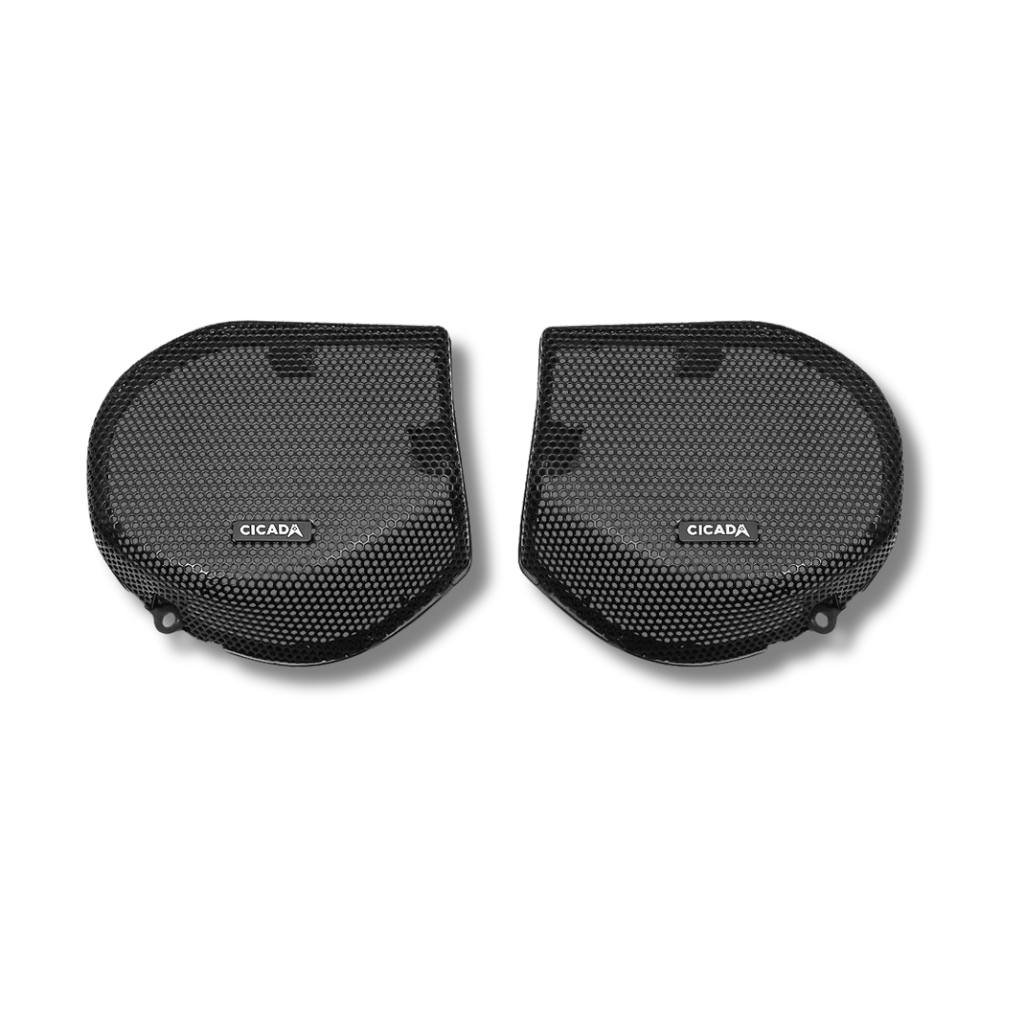

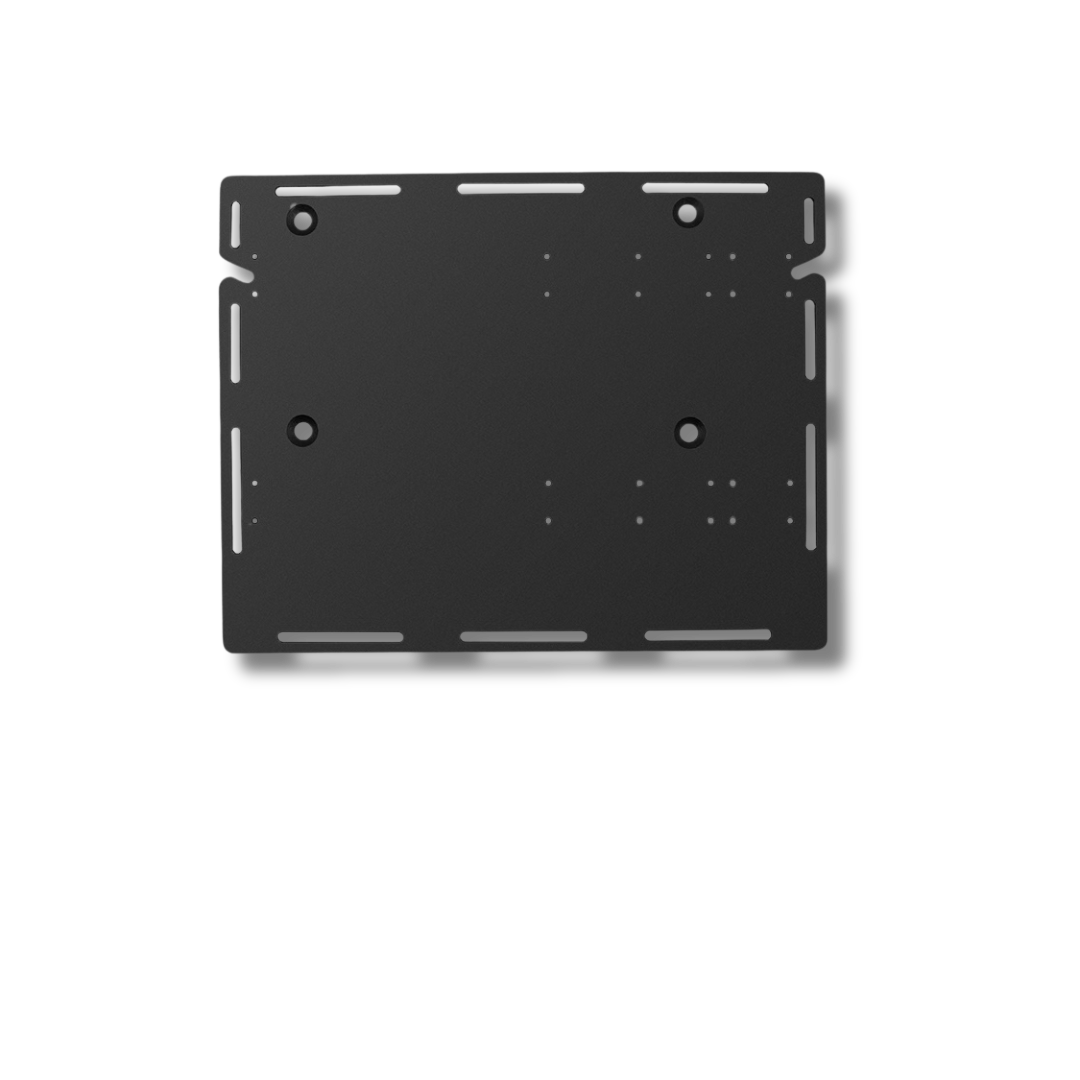

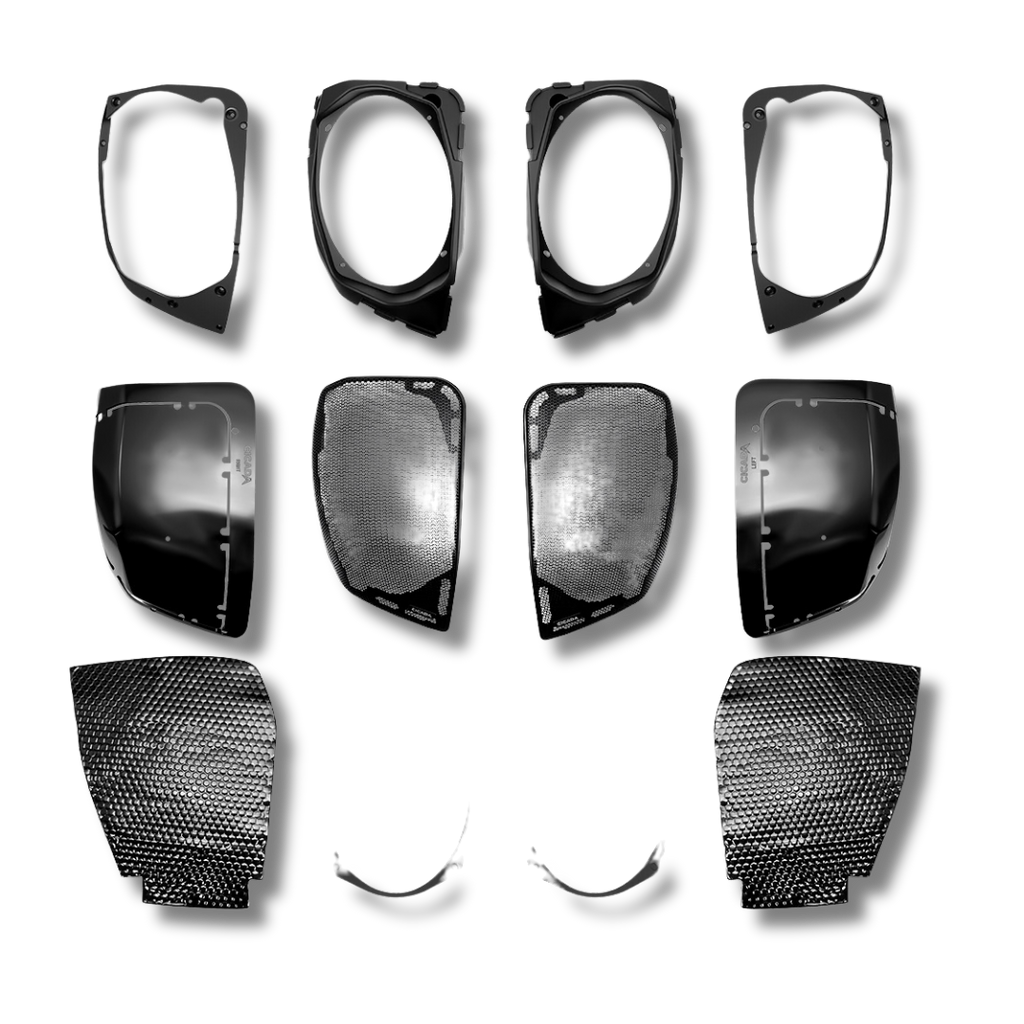

  • Street Glide hardware is supplied. The 24HDAR-SG supports the amplifier, 24CHDSGG covers the front speakers and 24CHDLID handles the permanent rear conversion.

DSP-dependent system – do not use a generic tune

The front and rear channel pairs use different impedances, power ratings, sensitivities and operating bands. Configure them separately in the USB-C Windows software. The rear high-pass must be at least 250 Hz / 24 dB/oct or 300 Hz / 12 dB/oct, with a 150W output limit.

Street Glide Application

Motorcycle 2024+ Harley-Davidson Street Glide / Street Glide Special with confirmed compatible audio

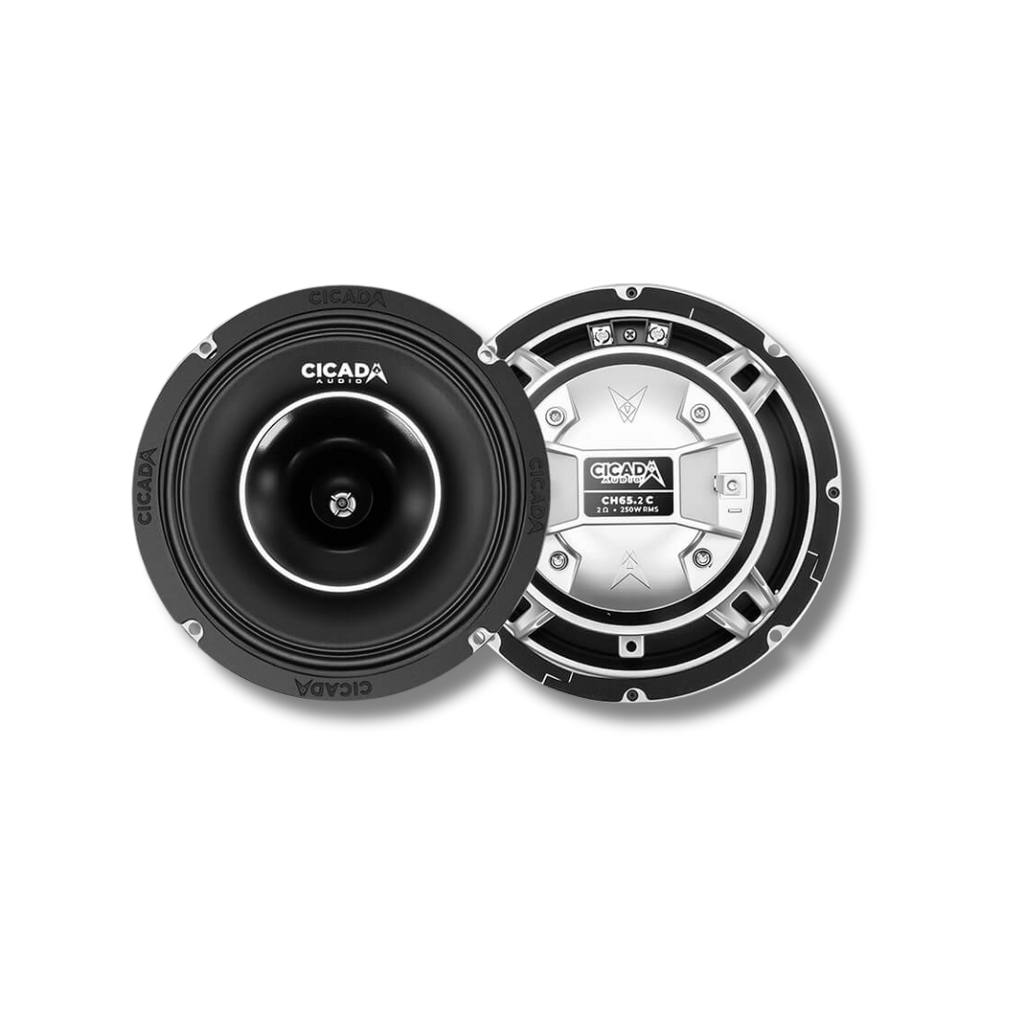

Fairing pair CH65.2C, 2Ω, 250W RMS each

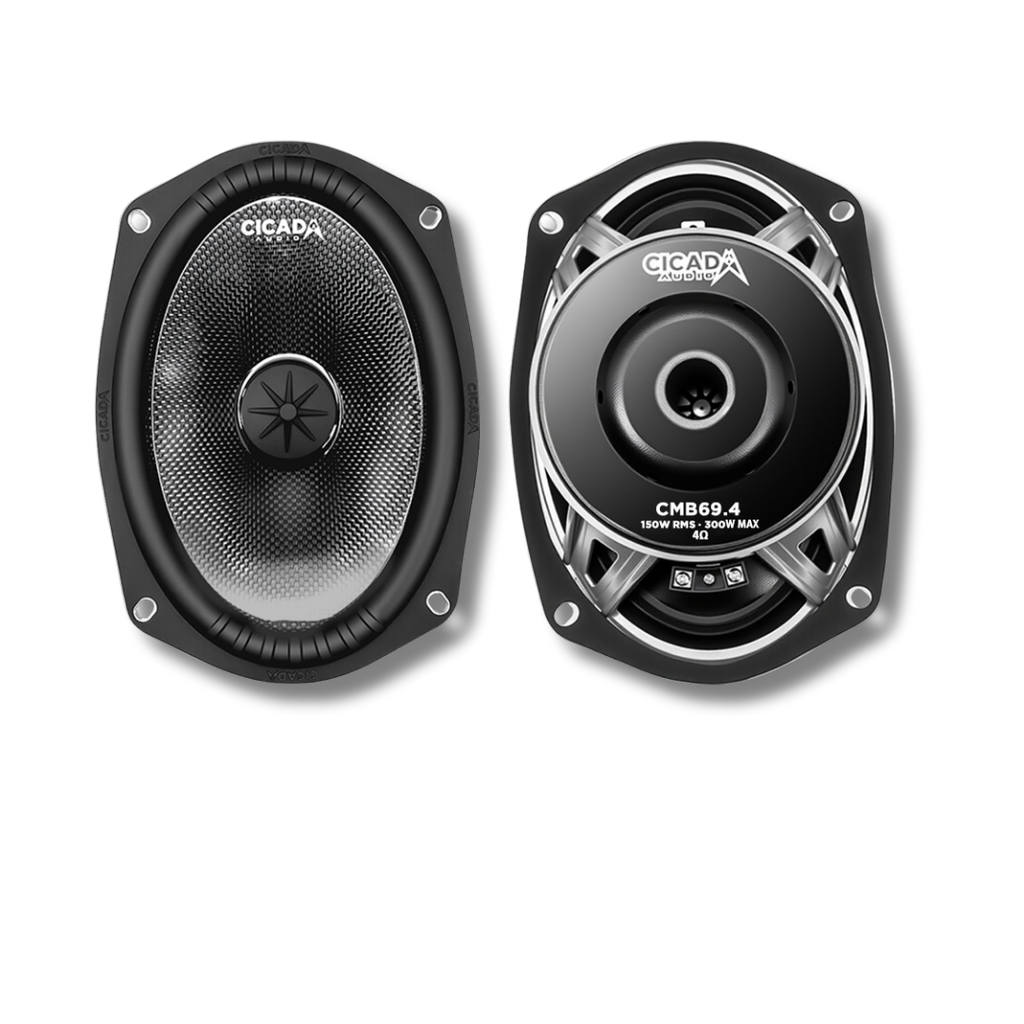

Saddlebag pair CMB69.4, 4Ω, 150W RMS each, no tweeters

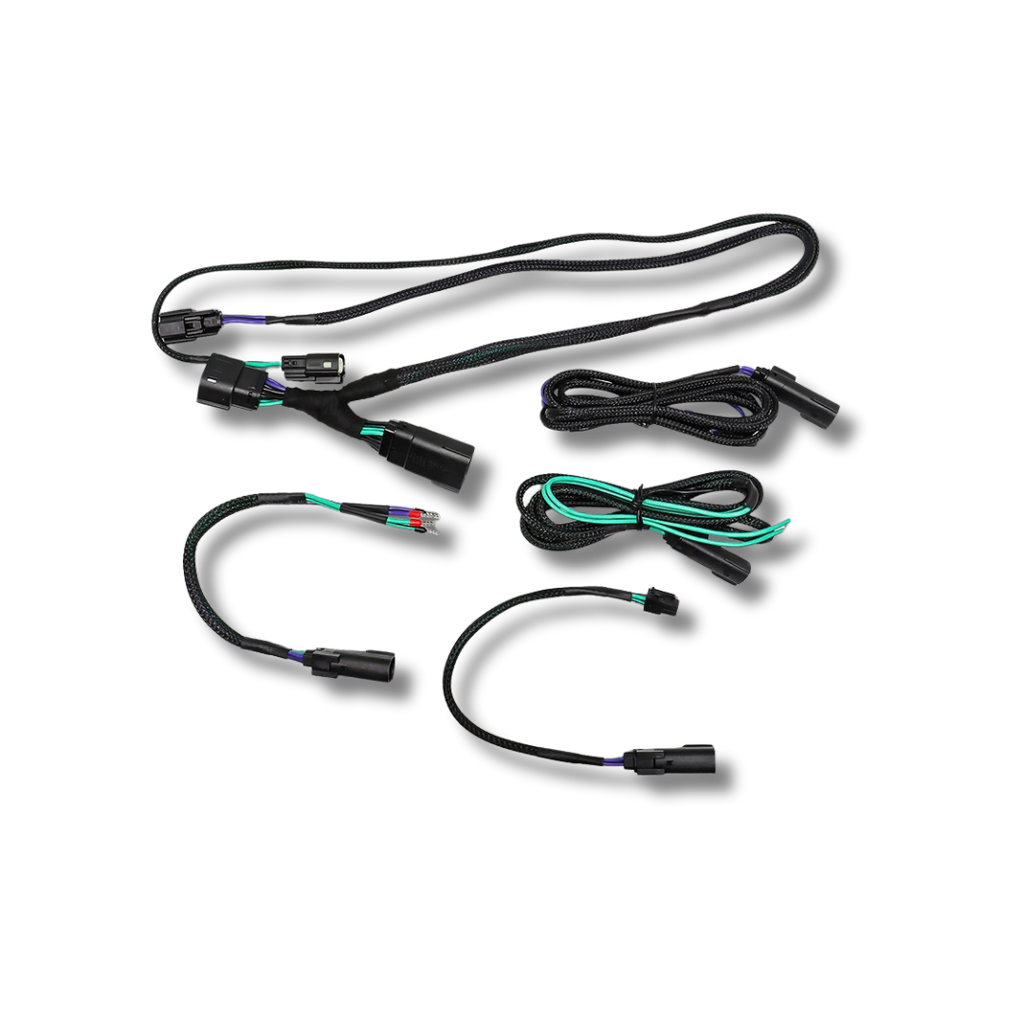

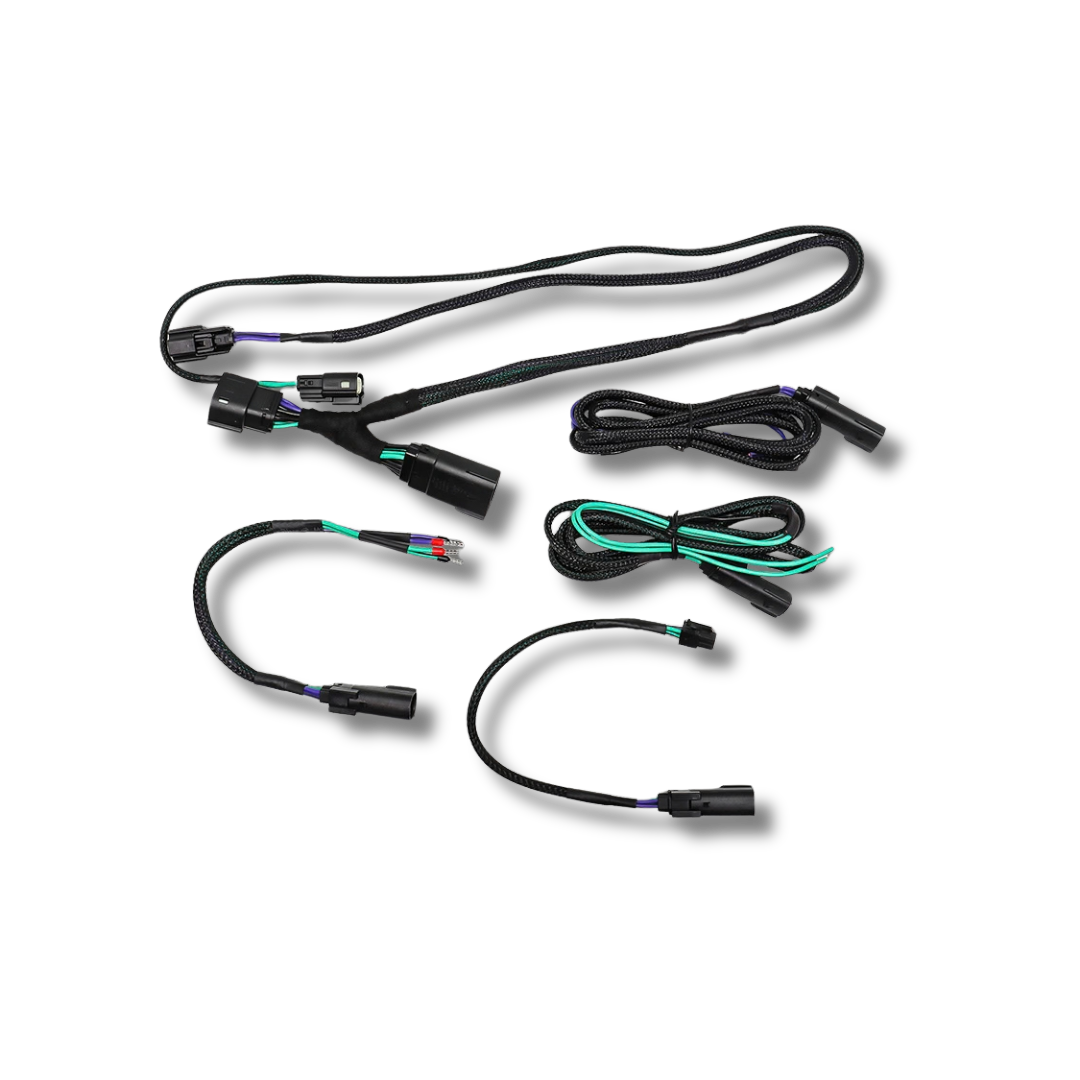

Rear wiring 24HDRO included

Installed Output and Processing

Front channel capability 350W RMS × 2 @ 2Ω; DSP-limited to 250W each
Rear channel capability 225W RMS × 2 @ 4Ω; DSP-limited to 150W each
Rear frequency role Band-limited midrange reinforcement from approximately 250 Hz upward

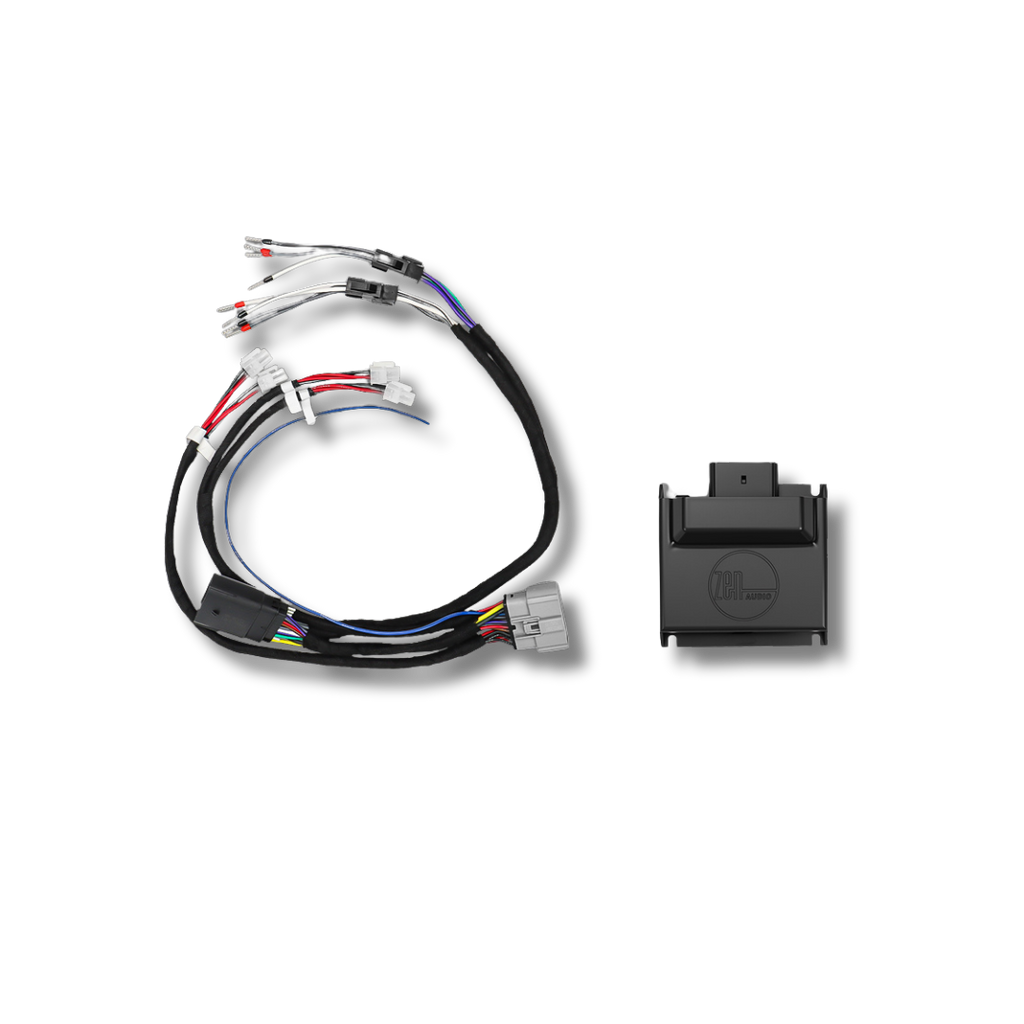

Source interface 24HDZENHCAKIT with non-DSP Zen-H
Amplifier DSP Independent crossover, EQ, level, delay and limiter settings

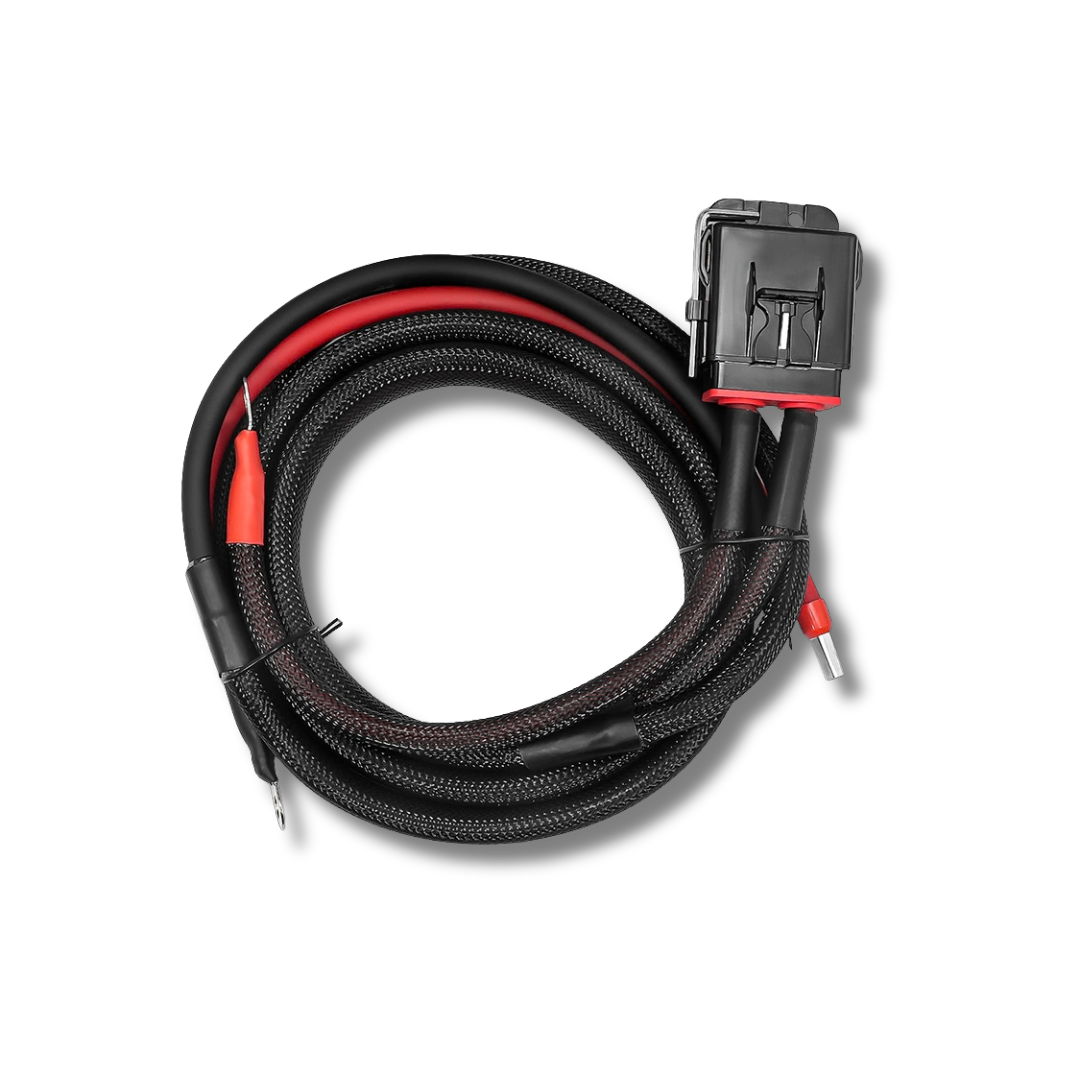

Electrical installation HDPG4K 4 AWG fused wiring

Alternative Street Glide Packages

The horn-coaxial full stage uses rear tweeters and covers the complete range from the lids. The Level 4 component system uses separate rear mid-bass and tweeter drivers. Choose the front-only Level 3 PRO system when no lid stage is required. The CH69.4W is the linked full-range horn-coaxial rear option.

Because processing is already inside the amplifier, the Zen-H Pro is unnecessary. MAA's A2B article explains the source conversion.
